Raspberry Pi Pico 2W Wireless Microcontroller Board
Key Technical Specifications
- Next-Gen Processor: RP2350 main chipset featuring a choice between dual Arm Cortex-M33 or dual open-hardware RISC-V Hazard3 cores running at 150MHz.
- Upgraded Memory: Packed with 520 KB of on-chip SRAM and a massive 4 MB of onboard QSPI flash memory (double the storage of the original.
- Wireless Connectivity: Integrated 2.4GHz 802.11n Wi-Fi alongside Bluetooth 5.2 (Classic and BLE support) driven by an Infineon CYW43439 modem.
- Hardware Security: Built-in Arm TrustZone architecture, secure boot ROM, SHA-256 acceleration, and anti-fuse OTP key storage.
- Expanded Custom I/O: 26 multi-function 3.3V GPIO pins (including 3 analog inputs) and 12x Programmable I/O (PIO) state machines to build custom interfaces.
- Drop-In Layout: Shares the identical 40-pin form factor footprint as the original Pico W for instant compatibility with existing project shields and PCBs.
Raspberry Pi Pico Microcontroller Board
Technical Specifications
- Processor: Dual-core ARM Cortex-M0+ processor running at a flexible clock speed up to 133 MHz.
- Memory: 264KB of internal SRAM and 2MB of onboard QSPI Flash memory for code storage.
- GPIO Interface: 26 multi-function 3.3V GPIO pins (including 3 analog inputs).
- Custom Peripherals: 8× Programmable I/O (PIO) state machines for custom interface support.
- Supported Software: Fully compatible with official Micro Python and C/C++ SDKs.
- Connectivity: Easy drag-and-drop programming via Micro-USB port.
Raspberry Pi Pico W Wireless Microcontroller Board
Key Technical Specifications
- Core Chipset: Raspberry Pi RP2040 custom dual-core ARM Cortex-M0+ running up to 133 MHz.
- Memory: 264 KB internal SRAM and 2 MB onboard QSPI Flash memory for code storage.
- Wireless Connectivity: Onboard Infineon CYW43439 wireless chip supporting 2.4GHz 802.11n Wi-Fi and Bluetooth 5.2.
- GPIO Interface: 26 multi-function 3.3V GPIO pins, including 3 analog-to-digital (ADC) inputs.
- Custom Peripherals: 8× Programmable I/O (PIO) state machines for custom interface support.
- Power System: Onboard buck-boost SMPS accepting wide input voltages from 1.8V to 5.5V DC via Micro-USB or battery pins.
- Programming Support: Ready for fast drag-and-drop programming using MicroPython or C/C++ SDKs
Raspberry Pi Zero 2 W – High-Performance Quad-Core Mini PC with Wi-Fi & Bluetooth
Technical Specifications
- CPU: Broadcom BCM2835 @ 1GHz (ARM11 core)
- Memory: 512MB LPDDR2 SDRAM
- Connectivity: 2.4GHz 802.11 b/g/n wireless LAN, Bluetooth 4.1, Bluetooth Low Energy (BLE)
- Video Output: Mini-HDMI (supports 1080p60)
- USB Ports: 1x Micro-USB data (OTG), 1x Micro-USB power
- Storage: Micro-SD card slot
- Power Supply: 5V via micro-USB (2A recommended)
- Dimensions: 65mm x 30mm x 5mm
Raspberry Pi Zero Case
Technical Specification Details
| Parameter | Specification Details |
|---|---|
| Board Compatibility | Raspberry Pi Zero | Raspberry Pi Zero W | Raspberry Pi Zero 2 W |
| Material Construction | Impact-resistant, high-durability ABS Plastic |
| Lid Configuration 1 | Solid plain cover for complete dust-proof protection |
| Lid Configuration 2 | Camera mount cover with custom slot to embed a camera module flush |
| Lid Configuration 3 | GPIO breakout cover exposing the full 40-pin array for prototyping |
| Assembly Profile | Interlocking snap-fit frame alignment matrix |
| Physical Dimensions | 78.8 mm × 37.0 mm × 15.5 mm |
| Product Weight | ~28 Grams (unloaded) |
Raspberry Pi Zero W
Technical Specifications
- CPU: Broadcom BCM2835 @ 1GHz (ARM11 core)
- Memory: 512MB LPDDR2 SDRAM
- Connectivity: 2.4GHz 802.11 b/g/n wireless LAN, Bluetooth 4.1, Bluetooth Low Energy (BLE)
- Video Output: Mini-HDMI (supports 1080p60)
- USB Ports: 1x Micro-USB data (OTG), 1x Micro-USB power
- Storage: Micro-SD card slot
- Power Supply: 5V via micro-USB (2A recommended)
- Dimensions: 65mm x 30mm x 5mm
Raspberry Pi Zero W Case
🔧 Advanced Data Sheet Specifications (For Technical Tabs)
| Parameter | Specification Details |
|---|---|
| Board Compatibility | Raspberry Pi Zero W | Raspberry Pi Zero 2 W | Raspberry Pi Zero |
| Material Construction | Impact-resistant, high-durability ABS Plastic |
| Lid Configuration 1 | Solid plain cover for complete dust-proof protection |
| Lid Configuration 2 | Camera mount cover with custom slot to embed a camera module flush |
| Lid Configuration 3 | GPIO breakout cover exposing the full 40-pin array for prototyping |
| Assembly Profile | Interlocking snap-fit frame alignment matrix |
| Physical Dimensions | 78.8 mm × 37.0 mm × 15.5 mm |
| Product Weight | ~28 Grams (unloaded) |

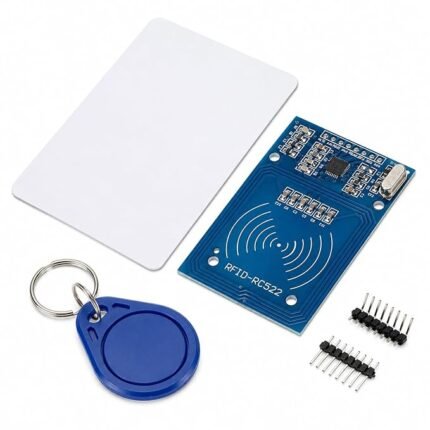

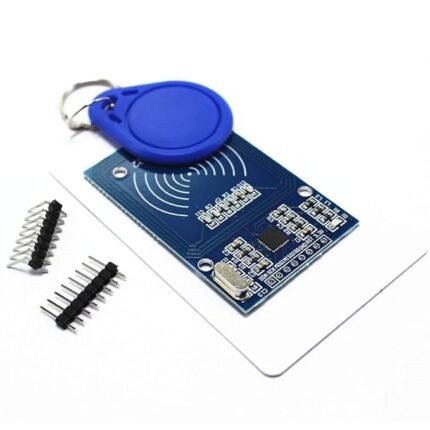

RC522 RFID Card Reader Module Kit
Technical Specification Details
| Parameter | Specification Details |
|---|---|
| Primary Chipset Silicon | NXP Semiconductors MFRC522 |
| Radio Frequency Band | 13.56 MHz ISM Proximity Band |
| Operating Logic Voltage | 3.3V DC (Pins are 5V tolerant for signal inputs) |
| Current Draw Profile | 13–26mA (Active read) | 10–13mA (Idle) | <80µA (Sleep mode) |
| Maximum Data Rate | Up to 10 Mbps over the SPI interface protocol |
| Effective Sensing Range | ≥ 50 mm (Subject to tag antenna geometry configurations) |
| Supported Card Arrays | MIFARE 1 S50 | MIFARE 1 S70 | MIFARE Ultralight | MIFARE Pro |
| System Interface Bus | Serial Peripheral Interface (SPI) default mode |
| Physical Proportions | 40.0 mm × 60.0 mm compact footprint card layout |
RC522- RFID Smart Card
Technical Specification Details
| Parameter | Specification Details |
|---|---|
| Operating Frequency | 13.56 MHz High-Frequency (HF) |
| Chip Architecture Core | MIFARE Classic 1K Compatible (S50) |
| Memory Capacity | 1024 Bytes (1 KB) EEPROM |
| Storage Structure Layout | 16 Sectors (Each sector contains 4 Blocks; 1 Block holds 16 Bytes) |
| Unique Identification Number | 4-Byte Non-Changeable Unique ID (UID) |
| Communication Protocol | ISO / IEC 14443 Type A Standard |
| Typical Data Retention | Engineered to hold written data securely for over 10 Years |
| Sensing Distance Threshold | 2 cm to 10 cm (Subject to your reader antenna power profile) |
| Physical Proportions | 85.6 mm × 54.0 mm × 0.8 mm (Standard CR80 Credit Card Size) |
RFID Adhesive Tag
Technical Specification Details
| Parameter | Specification Details |
|---|---|
| Operating Frequency | 13.56 MHz High-Frequency (HF) |
| Chip Architecture Core | MIFARE Classic 1K Compatible (S50) |
| Memory Capacity | 1024 Bytes (1 KB) EEPROM |
| Storage Structure Layout | 16 Sectors (Each sector contains 4 Blocks; 1 Block holds 16 Bytes) |
| Unique Identification Number | 4-Byte Non-Changeable Unique ID (UID) |
| Communication Protocol | ISO / IEC 14443 Type A Standard |
| Adhesive Backing Type | Authentic 3M Heavy-Duty Double-Sided Tissue Tape or equivalent |
| Sensing Distance Threshold | 1 cm to 4 cm (Subject to your reader antenna power profile) |
| Material Base Finish | Water-Resistant White PVC Coin Disc Profile |
| Physical Proportions | 25.0 mm Diameter × 1.0 mm Thickness |
RS-555 Multipurpose High-Torque DC Motor
Technical Specifications
| Characteristic | Specification Parameters |
|---|---|
| Motor Classification | RS-555 Heavy-Duty Brushed Carbon DC Motor |
| Operating Voltage Range | 6.0V to 18.0V DC (12V Nominal Power) |
| No-Load Angular Speed | ~4000 RPM to 6000 RPM (at 12V DC) |
| Current Limits (at 12V) | 0.2A No-Load / 1.2A Rated Peak / up to 3.0A Stall |
| Output Shaft Dimensions | 3.17 mm Diameter × 16 mm Length |
| Mounting Blueprint | 2 × M3 Bolt Holes spaced 25 mm apart on faceplate |
| Main Body Diameter | 36 mm (37 mm with magnetic sleeve insulation) |
RS-775 Heavy-Duty High-Speed DC Motor
Technical Specifications
| Characteristic | Specification Parameters |
|---|---|
| Motor Classification | RS-775 High-Power Brushed Carbon DC Motor |
| Operating Voltage Range | 12.0V to 24.0V DC (12V/24V Dual-Nominal Support) |
| No-Load Angular Speed | ~10,000 RPM (at 12V) to ~20,000 RPM (at 24V) |
| Current Limits (at 12V) | ~1.2A No-Load / 5A Rated Peak / Up to 20A+ full stall surge |
| Output Shaft Dimensions | 5.0 mm Diameter × 16 mm Length (Round Shaft) |
| Mounting Blueprint | 2 × M4 Bolt Holes spaced 29 mm apart on faceplate |
| Main Body Dimensions | 42 mm Housing Diameter × 67 mm Frame Length |
