Showing 1–12 of 24 results
11.1V 3300mAh Lithium Polymer Battery Pack
Technical Specifications
| Characteristic | Specification Parameters |
|---|---|
| Battery Chemistry Family | Lithium-Polymer (Li-Po High-Discharge Pouch Matrix) |
| Cell Configuration Matrix | 3S1P (3 Cells wired in Series / 1 in Parallel) |
| Nominal Pack Voltage | 11.1V DC |
| Full Charge Voltage Ceiling | 12.6V DC (4.2V maximum per individual internal cell) |
| Critical Discharge Limit | 9.0V DC (3.0V minimum per cell; lower drops permanently kill capacity) |
| Total Stored Energy | 19.62 Wh (Watt-Hours) |
| Continuous Discharge Rating | 35C (Yields up to 147 Amps of continuous current draw) |
| Peak Burst Rating | ~70C (Instantaneous short duration acceleration current) |
| Wire & Connector Profile | 12 AWG Silicone Wire Lead with XT60 or Deans Connector |

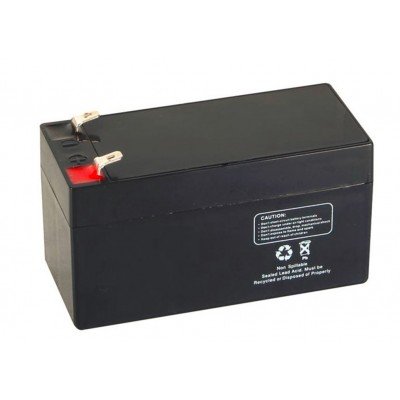

12V 1.2Ah Sealed Lead-Acid Rechargeable Battery
Technical Specifications
| Characteristic | Specification Parameters |
|---|---|
| Battery Chemistry Core | Sealed Lead Acid (SLA) / AGM VRLA Technology |
| Nominal System Voltage | 12.0V DC |
| Rated Storage Capacity | 1.2 Ah at a standard 20-hour discharge rate |
| Standby Float Charge Range | 13.5V to 13.8V DC at 25°C |
| Cyclic Charging Window | 14.4V to 15.0V DC Max |
| Maximum Charging Current | 0.36A (Too much charging current causes thermal swelling) |
| Terminal Connector Block | Standard F1 Faston Tabs (4.75 mm / 0.187 inch width) |
| Chassis Main Dimensions | Approx. 97 mm × 43 mm × 52 mm (Standard Pocket Box Size) |
| Average Operational Weight | Approx. 0.55 kg (1.21 lbs) |
12V 5A DC Power Adapter
Technical Specifications
| Characteristic | Specification Parameters |
|---|---|
| Input AC Voltage Range | 100V AC to 240V AC (Standard Indian Single-Phase Mains) |
| Input AC Frequency | 50 Hz / 60 Hz |
| Output DC Voltage | 12V DC Fixed |
| Maximum Output Current | 5.0 Amperes (5000 mA) Continuous |
| Total Rated Power Capacity | 60 Watts Max |
| Connector Dimension Profile | Standard 5.5 mm (Outer Diameter) × 2.1 mm or 2.5 mm (Inner Pin) |
| Connector Core Polarity | Center-Positive (Inner sleeve (+), Outer ring (-)) |
| Form Factor Style | Desktop Type (requires a 3-pin IEC C13 or C5 AC power cord) |
12V 7Ah Sealed Lead-Acid Rechargeable Battery
Technical Specifications
| Characteristic | Specification Parameters |
|---|---|
| Battery Chemistry Core | Sealed Lead Acid (SLA) / AGM VRLA Technology |
| Nominal System Voltage | 12.0V DC |
| Rated Storage Capacity | 7.0 Ah at a standard 20-hour discharge rate |
| Standby Float Charge Range | 13.5V to 13.8V DC at 25°C (Recommended for UPS/Standby) |
| Cyclic Charging Window | 14.4V to 15.0V DC Max (Recommended for Solar/Cyclic) |
| Maximum Charging Current | 2.1A (Exceeding this ceiling causes thermal swelling and gas build-up) |
| Terminal Connector Block | Standard F2 Faston Tabs (6.35 mm width) or F1 Tabs (4.75 mm width) |
| Chassis Main Dimensions | Approx. 151 mm × 65 mm × 94 mm (Standard Universal Blocks) |
| Average Operational Weight | Approx. 2.0 kg to 2.2 kg (Heavy internal lead grid density) |

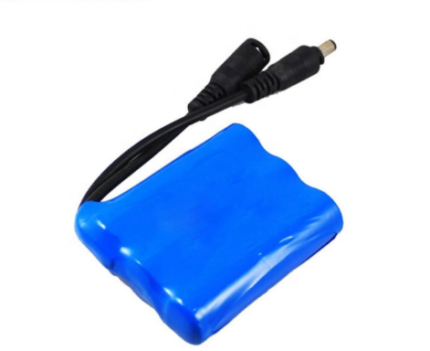

12V Lithium-Ion Battery Pack with DC Barrel Jack
Technical Specifications
| Characteristic | Specification Parameters |
|---|---|
| Internal Cell Assembly | Lithium-Ion 18650 Format in a 3S arrangement (3 Series) |
| Nominal System Voltage | 11.1V DC to 12.0V DC |
| Full Charge Peak Ceiling | 12.6V DC Max Voltage Profile |
| Discharge Cut-Off Safety | ~9.0V DC BMS Threshold Limit |
| Popular Capacity Offerings | Ranges of 2000mAh |
| Interface Port Connector | 5.5 mm × 2.1 mm DC Barrel Plug (Center-Positive configuration) |
| Continuous Discharge Limit | ~2A to 5A Continuous Output Current (BMS variant dependent) |
18650 Lithium-Ion Rechargeable Battery Cell
Technical Specifications
| Characteristic | Specification Parameters |
|---|---|
| Battery Chemistry Type | Lithium-Ion (Li-Ion) Cylindrical Cell |
| Standard Core Sizing | 18650 Baseline (Protected layout extended to ~18675 sizing) |
| Nominal Voltage Rating | 3.6V to 3.7V DC |
| Full Charge Voltage Ceiling | 4.2V DC Max |
| Discharge Cut-off Limit | 2.5V to 3.0V DC (Going below this can permanently kill the cell) |
| Average Capacity Range | 1,200 mAh (Budget) up to 3,500+ mAh (Premium cells) |
| Maximum Discharge Rate | Variable by grade (Typically 1C for storage cells up to 10C+ for power tool cells) |
CR1220 Lithium Manganese Dioxide Coin Cell Battery
Technical Specifications
| Characteristic | Specification Parameters |
|---|---|
| Battery Chemistry Core | Lithium Manganese Dioxide (LiMnO2) Primary Cell |
| IEC Standard Designation | CR1220 (Cross-references with DL1220, ECR1220, BR1220) |
| Nominal Voltage Output | 3.0V DC |
| Average Charge Capacity | 35 mAh to 40 mAh |
| Standard Continuous Drain | 0.1 mA |
| Cell Structural Diameter | 12.5 mm |
| Cell Structural Thickness | 2.0 mm |
| Average Component Weight | Approx. 0.8 grams to 1.0 gram |
CR2032 Lithium Manganese Dioxide Coin Cell Battery
Technical Specifications
| Characteristic | Specification Parameters |
|---|---|
| Battery Chemistry Core | Lithium Manganese Dioxide (LiMnO2) Primary Cell |
| IEC Standard Designation | CR2032 (Cross references with DL2032, ECR2032) |
| Nominal Voltage Output | 3.0V DC |
| Average Charge Capacity | 220 mAh to 240 mAh |
| Standard Continuous Drain | 0.2 mA (Peak pulse capacity up to 15 mA) |
| Cell Structural Diameter | 20.0 mm |
| Cell Structural Thickness | 3.2 mm |
| Average Component Weight | Approx. 3.0 grams |
Duracell Alkaline AA 1.5V Battery
The Duracell Alkaline AA 1.5V Battery (commonly searched for via typo as "AA batery durecell") is a high-performance, single-use cylindrical power cell engineered to drive both high-drain electronics and everyday household gadgets. Utilizing premium Alkaline-Manganese Dioxide chemistry, it provides up to 10 times longer lasting power compared to standard zinc-carbon batteries. Recognizable by its iconic "Copper Top" black and bronze design, it serves as the premium power solution across India for digital cameras, motorized toys, game controllers, and flashlights. [1, 2, 3, 4, 5]
✨ Key Features
- Duralock Power Preserve Technology: Formulated to lock in chemical energy, guaranteeing a shelf life of up to 10 years in proper storage conditions.
- Superior Leakage Prevention: Built with a robust mechanical top closure and specialized anti-corrosion steel casing to prevent dangerous runtime leaks.
- High-Drain Optimisation: Capable of supplying consistent voltage without dropping under sudden high-current load pulses.
- Wide Thermal Tolerance: Specially designed to operate smoothly across a wide temperature spectrum, maintaining efficiency in extreme environments.
Duracell Ultra Alkaline AA 1.5V Battery
Technical Specifications
| Characteristic | Specification Parameters |
|---|---|
| Battery Chemical Profile | Premium High-Performance Alkaline Manganese Dioxide (Zn/MnO₂) |
| Global Standard Sizing | AA / LR6 / MX1500 / 15A |
| Nominal Output Voltage | 1.5V DC |
| Internal Static Impedance | ~81 m-Ohm @ 1 kHz |
| Average Rated Capacity | ~1,500 mAh down to a 0.8V cut-off threshold |
| Operating Temperature | Reliable performance from -20°C up to 54°C |
| Rechargeable Attributes | No (Strictly single-use disposable; attempting to charge may explode) |
| Average Unit Component Weight | Approx. 24.0 grams to 25.0 grams per cell |
Eveready AA 1.5V Everyday Dry Cell Battery
Technical Specifications
| Characteristic | Specification Parameters |
|---|---|
| Battery Chemistry Type | Carbon-Zinc / Zinc-Manganese Dioxide (Zn/MnO₂) |
| Global Sizing Designations | AA Size / R6 / ANSI-15D / 1015 Series |
| Nominal Voltage Output | 1.5V DC Baseline |
| Average Operational Capacity | ~1,100 mAh down to a 0.8V cut-off threshold |
| Typical Shelf Life Sizing | 2 to 3 Years from manufacturing date (Variant dependent) |
| Standard Battery Jacket | Rigid protective metal casing sleeve |
| Average Unit Component Weight | Approx. 15.0 grams per cell |

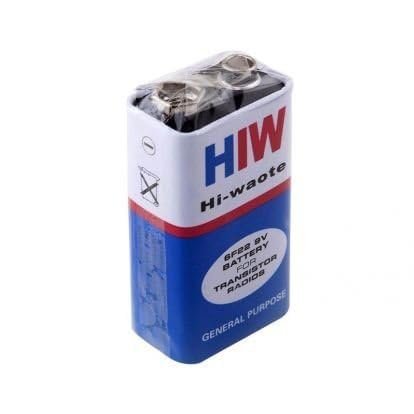

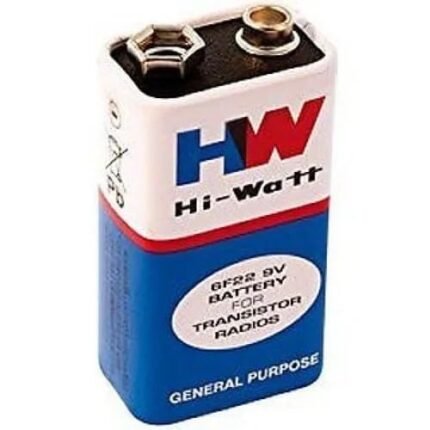

Hi-Watt (HW) 9V Non-Rechargeable Battery
Technical Specifications
| Characteristic | Specification Parameters |
|---|---|
| Battery Chemical Profile | Primary Zinc-Carbon (Non-Rechargeable dry cell) |
| Industry Standard Sizing | PP3 Framework / 6F22 Configuration |
| Nominal Output Voltage | 9.0V DC |
| Average Charge Capacity | ~500 mAh to 600 mAh under intermittent test conditions |
| Discharge Resistance Sizing | 620 Ω internal static resistance path |
| Continuous Discharge life | ~9 Hours under reference diagnostic loads |
| Discharge Cut-Off Ceiling | 5.4V DC Lower functional boundary |
| Operational Heat Window | -20°C up to +85°C Operating Limit |
| Module Base Dimensions | Approx. 48.5 mm × 26.5 mm × 17.5 mm |
