Showing 1–12 of 30 results

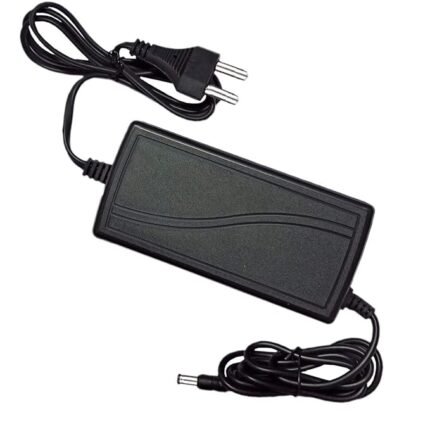

12V 10A DC Power Adapter
Technical Specifications
| Characteristic | Specification Parameters |
|---|---|
| Input AC Voltage Range | 100V AC to 240V AC (Standard Indian Single-Phase Mains) |
| Input AC Frequency | 50 Hz / 60 Hz |
| Output DC Voltage | 12V DC Fixed |
| Maximum Output Current | 10.0 Amperes (10,000 mA) Continuous |
| Total Rated Power Capacity | 120 Watts Max |
| Connector Dimension Profile | Standard 5.5 mm (Outer Diameter) × 2.5 mm or 2.1 mm (Inner Pin) |
| Connector Core Polarity | Center-Positive (Inner pin (+), Outer sleeve (-)) |
| Form Factor Style | Desktop Brick Type (requires a heavy-duty 3-pin IEC C13 power cord) |
12V 10A DC Power SMPS
Technical Specifications
| Characteristic | Specification Parameters |
|---|---|
| Input AC Voltage Range | 100V AC to 240V AC (Standard Indian Single-Phase Mains) |
| Input AC Frequency | 50 Hz / 60 Hz |
| Output DC Voltage | 12V DC Fixed |
| Maximum Output Current | 10.0 Amperes (10,000 mA) Continuous |
| Total Rated Power Capacity | 120 Watts Max |
| Connector Dimension Profile | Standard 5.5 mm (Outer Diameter) × 2.5 mm or 2.1 mm (Inner Pin) |
| Connector Core Polarity | Center-Positive (Inner pin (+), Outer sleeve (-)) |
| Form Factor Style | Desktop Brick Type (requires a heavy-duty 3-pin IEC C13 power cord) |
12V 1A DC Power Adapter
Technical Specifications
| Characteristic | Specification Parameters |
|---|---|
| Input AC Voltage Range | 100V AC to 240V AC (Standard Indian Single-Phase Mains) |
| Input AC Frequency | 50 Hz / 60 Hz |
| Output DC Voltage | 12V DC |
| Maximum Output Current | 1.0 Ampere (1000 mA) Continuous |
| Total Rated Power Capacity | 12 Watts Max |
| Connector Dimension Profile | 5.5 mm (Outer Diameter) × 2.1 mm (Inner Pin Diameter) |
| Connector Core Polarity | Center-Positive (Inner sleeve (+), Outer ring (-)) |
| Average Output Cable Length | ~1.0 Meter to 1.5 Meters |
12V 20A Enclosed Metal Chassis SMPS (High-Capacity Industrial Power Supply)
Technical Specifications
| Characteristic | Specification Parameters |
|---|---|
| Input AC Voltage Range | 110V AC / 220V AC (Selectable via toggle switch, standard 220V for India) |
| Output DC Voltage | 12V DC Base Rail (Adjustable via +V ADJ) |
| Maximum Output Current | 20.0 Amperes (20,000 mA) Continuous |
| Total Rated Power Capacity | 240 Watts Max Continuous Output |
| Interface Port Type | 7-Pin or 9-Pin Screw Terminal Barrier Block |
| Terminal Designations | L / N (AC Mains), FG / ⏚ (Earth), -V / COM (Ground), +V (12V Output Rail) |
| Form Factor Style | Enclosed Metal Mesh Chassis with mounting arrays |
12V 2A DC Power Adapter
Technical Specifications
| Characteristic | Specification Parameters |
|---|---|
| Input AC Voltage Range | 100V AC to 240V AC (Standard Indian Single-Phase Mains) |
| Input AC Frequency | 50 Hz / 60 Hz |
| Output DC Voltage | 12V DC Fixed |
| Maximum Output Current | 2.0 Amperes (2000 mA) Continuous |
| Total Rated Power Capacity | 24 Watts Max |
| Connector Dimension Profile | Standard 5.5 mm (Outer Diameter) × 2.1 mm (Inner Pin Diameter) |
| Connector Core Polarity | Center-Positive (Inner sleeve (+), Outer ring (-)) |
| Average Output Cable Length | ~1.2 Meters to 1.5 Meters |
12V 30A Metal Chassis SMPS
Technical Specifications
| Characteristic | Specification Parameters |
|---|---|
| Input AC Voltage Range | 110V AC / 220V AC (Selectable via toggle switch, standard 220V for India) |
| Output DC Voltage | 12V DC Base Rail (Adjustable via +V ADJ) |
| Maximum Output Current | 30.0 Amperes (30,000 mA) Continuous |
| Total Rated Power Capacity | 360 Watts Max Continuous Output |
| Interface Port Type | 9-Pin Screw Terminal Barrier Block |
| Terminal Designations | L / N (AC Mains), FG / ⏚ (Earth), -V / COM (Ground ×3), +V (12V Output Rail ×3) |
| Form Factor Style | Enclosed Metal Mesh Chassis with mounting arrays |
12V 3A DC Power Adapter
Technical Specifications
| Characteristic | Specification Parameters |
|---|---|
| Input AC Voltage Range | 100V AC to 240V AC (Standard Indian Single-Phase Mains) |
| Input AC Frequency | 50 Hz / 60 Hz |
| Output DC Voltage | 12V DC Fixed |
| Maximum Output Current | 3.0 Amperes (3000 mA) Continuous |
| Total Rated Power Capacity | 36 Watts Max |
| Connector Dimension Profile | Standard 5.5 mm (Outer Diameter) × 2.1 mm or 2.5 mm (Inner Pin) |
| Connector Core Polarity | Center-Positive (Inner sleeve (+), Outer ring (-)) |
| Form Factor Style | Wall-Mount Large Brick or Desktop Type (with 3-pin AC cord) |
🛠️ Core Interfacing Guide
Operating safely with a 36W power supply requires tracking absolute electronic load rules:
- The Voltage Rules Must Match: Only plug this adapter into devices explicitly rated for 12V DC input. Connecting a 12V adapter to a 5V device (like an entry-level development board or smartphone) will instantly destroy its internal microchips.
- Current is Pulled, Not Pushed: The 3A rating is a maximum capacity ceiling. If you plug it into a 12V device that only draws 1A or 2A (like a standard router), the device will safely draw only its required current without damage. However, do not exceed 3A by connecting heavy loads like large 12V DC cooling fans or high-torque water pumps, or the adapter will overheat and shut down.
- Check the Pin Inner Dimension: Many high-power 12V appliances and CCTV DVRs utilize a 5.5mm × 2.5mm jack instead of the standard consumer 5.5mm × 2.1mm size. Ensure your device's receiving power jack matches the adapter's pin dimensions to maintain a secure electrical contact.
12V 5A Metal Chassis SMPS
⚙️ Technical Specifications
| Characteristic | Specification Parameters |
|---|---|
| Input AC Voltage Range | 110V AC to 220V AC (Selectable via an internal slider switch or auto-ranging) |
| Output DC Voltage | 12V DC Fixed Base (Adjustable via +V ADJ) |
| Maximum Output Current | 5.0 Amperes (5000 mA) Continuous |
| Total Rated Power Capacity | 60 Watts Max |
| Interface Port Type | 5-Pin or 7-Pin Screw Terminal Barrier Block |
| Terminal Designations | L / N (AC Mains), FG / ⏚ (Earth), -V / COM (Ground), +V (12V Rail) |
| Form Factor Design | Enclosed Metal Mesh Chassis (Mountable via bottom/side screw holes) |
24V 10A DC Power Supply SMPS
Technical Specifications
| Characteristic | Specification Parameters |
|---|---|
| Input AC Voltage Range | 110V AC / 220V AC (Selectable via toggle switch, standard 220V configuration for India) |
| Input AC Frequency | 50 Hz / 60 Hz |
| Output DC Voltage | 24V DC Base Rail (Adjustable via +V ADJ) |
| Maximum Output Current | 10.0 Amperes (10,000 mA) Continuous |
| Total Rated Power Capacity | 240 Watts Max Continuous Output |
| Interface Port Type | 7-Pin or 9-Pin Screw Terminal Barrier Block |
| Terminal Designations | L / N (AC Mains), FG / ⏚ (Earth), -V / COM (Ground ×2), +V (24V Output Rail ×2) |
| Form Factor Style | Enclosed Metal Mesh Chassis with mounting arrays |
24V 1A DC Power Adapter
Technical Specifications
| Characteristic | Specification Parameters |
|---|---|
| Input AC Voltage Range | 100V AC to 240V AC (Standard Indian Single-Phase Mains) |
| Input AC Frequency | 50 Hz / 60 Hz |
| Output DC Voltage | 24V DC Fixed |
| Maximum Output Current | 1.0 Ampere (1000 mA) Continuous |
| Total Rated Power Capacity | 24 Watts Max |
| Connector Dimension Profile | 5.5 mm (Outer Diameter) × 2.1 mm or 2.5 mm (Inner Pin Diameter) |
| Connector Core Polarity | Center-Positive (Inner pin (+), Outer sleeve (-)) |
| Circuit Design Type | Switched-Mode Power Supply (SMPS) |
24V 2A DC Power Adapter
Technical Specifications
| Characteristic | Specification Parameters |
|---|---|
| Input AC Voltage Range | 100V AC to 240V AC (Standard Indian Single-Phase Mains) |
| Input AC Frequency | 50 Hz / 60 Hz |
| Output DC Voltage | 24V DC Fixed |
| Maximum Output Current | 2.0 Amperes (2000 mA) Continuous |
| Total Rated Power Capacity | 48 Watts Max |
| Connector Dimension Profile | Standard 5.5 mm (Outer Diameter) × 2.1 mm or 2.5 mm (Inner Pin Diameter) |
| Connector Core Polarity | Center-Positive (Inner pin (+), Outer sleeve (-)) |
| Circuit Design Type | Switched-Mode Power Supply (SMPS) |
24V 30A power supply SMPS
Technical Specifications
| Characteristic | Specification Parameters |
|---|---|
| Input AC Voltage Range | 110V AC / 220V AC (Selectable via toggle switch, standard 220V configuration for India) |
| Input AC Frequency | 50 Hz / 60 Hz |
| Output DC Voltage | 24V DC Base Rail (Adjustable via +V ADJ) |
| Maximum Output Current | 30.0 Amperes (30,000 mA) Continuous |
| Total Rated Power Capacity | 720 Watts Max Continuous Output |
| Interface Port Type | 9-Pin Screw Terminal Barrier Block |
| Terminal Designations | L / N (AC Mains), FG / ⏚ (Earth), -V / COM (Ground ×3), +V (24V Output Rail ×3) |
| Form Factor Style | Enclosed Metal Mesh Chassis with mounting arrays |
