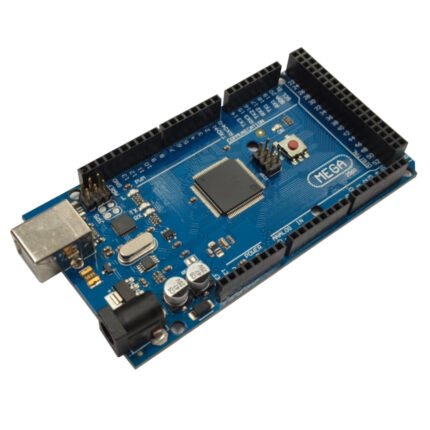

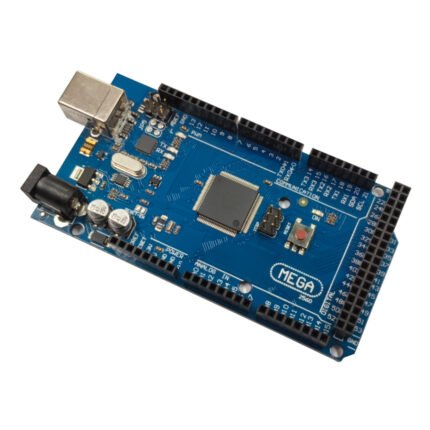

Arduino Mega 2560 R3 Development Board with ATmega16U2 USB
Technical Specification Details
| Parameter | Specification Details |
|---|---|
| Primary Microcontroller | Microchip ATmega2560 (8-bit AVR architecture) |
| USB-to-Serial Processor | ATmega16U2 (Supports DFU mode and keyboard/mouse emulation) |
| Operating Logic Voltage | 5V DC |
| Input Voltage (Barrel Jack) | 7V to 12V DC recommended (Absolute operating safety boundaries: 6V to 20V) |
| Digital I/O Breakout Pins | 54 Pins (of which 15 deliver true hardware PWM output channels) |
| Analog Input Channels | 16 Channels (10-bit resolution Analog-to-Digital Converter) |
| DC Current per I/O Pin | 20 mA maximum output |
| Onboard Flash Memory | 256 KB (of which 8 KB is reserved for bootloader execution codes) |
| SRAM & EEPROM Array | 8 KB SRAM | 4 KB EEPROM internal |
| System Processing Clock | 16 MHz Quartz Crystal Oscillator |
| Main Interface Port | USB Type-B Female Connector + 2.1mm DC Barrel Jack |

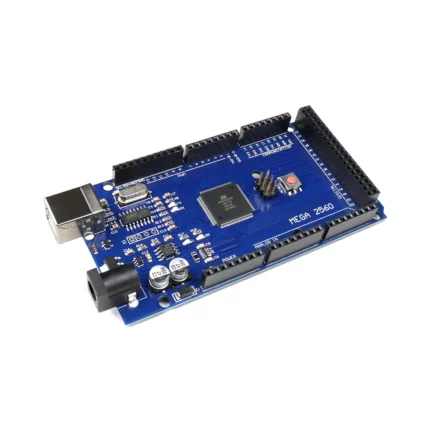

Arduino Mega 2560 R3 with CH340 USB Chip
Technical Specification Details
| Parameter | Specification Details |
|---|---|
| Core Microcontroller | Microchip ATmega2560 (8-bit AVR architecture) |
| USB-to-Serial Driver | CH340G / CH340C Controller Chip |
| Operating Logic Voltage | 5V DC |
| Input Voltage (Barrel Jack) | 7V to 12V DC recommended (Operating limits: 6V to 20V) |
| Digital I/O Breakout Pins | 54 Pins (of which 15 provide hardware PWM output channels) |
| Analog Input Channels | 16 Channels (10-bit resolution Analog-to-Digital Converter) |
| DC Current per I/O Pin | 20 mA maximum |
| Onboard Flash Memory | 256 KB (of which 8 KB is utilized by the bootloader code) |
| SRAM & EEPROM | 8 KB SRAM | 4 KB EEPROM internal |
| Core Processing Clock | 16 MHz Crystal Oscillator |
| Main Interface Port | USB Type-B Female Connector + 2.1mm DC Barrel Jack |

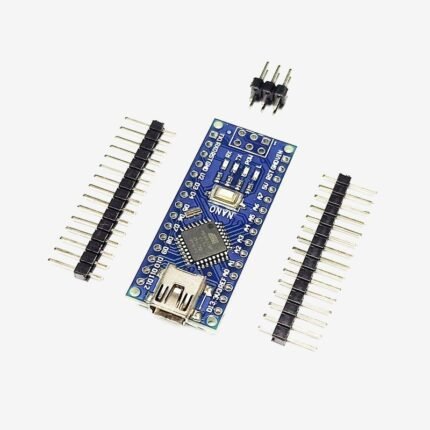

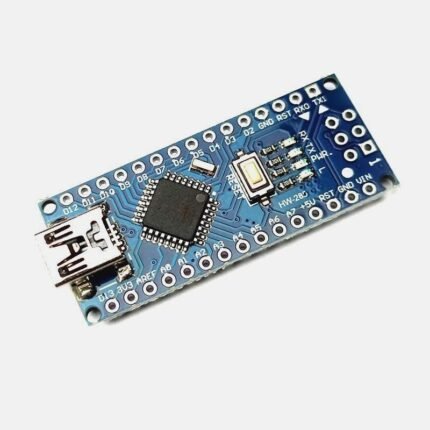

Arduino Nano
Technical Specification Details
| Parameter | Specification Details |
|---|---|
| Core Microcontroller Chip | Microchip ATmega328P (Premium 8-bit AVR architecture) |
| Operating Logic Voltage | 5V DC |
| Recommended Input Voltage | 7V to 12V DC input limits via VIN pin |
| Digital I/O Breakout Pins | 14 Pins (6 channels configured for hardware PWM signals) |
| Analog Read Channels | 8 Input Channels (10-bit resolution Analog-to-Digital Converter) |
| DC Current Current Output | 40 mA peak performance per physical I/O pin |
| Onboard Memory Capacity | 32 KB Flash Storage | 2 KB SRAM | 1 KB EEPROM |
| System Processing Clock | 16 MHz Crystal Oscillator |
| Interface Port Type | Mini-B USB Connector Interface |
| Physical Dimensions | 18 mm × 45 mm compact layout profile |

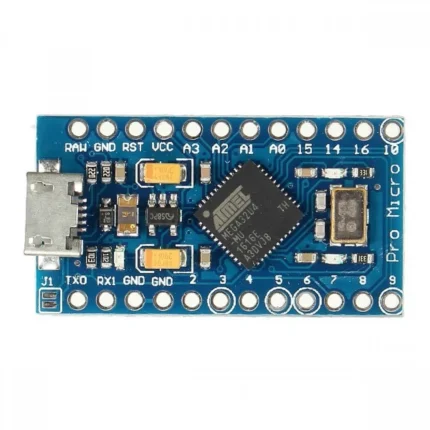

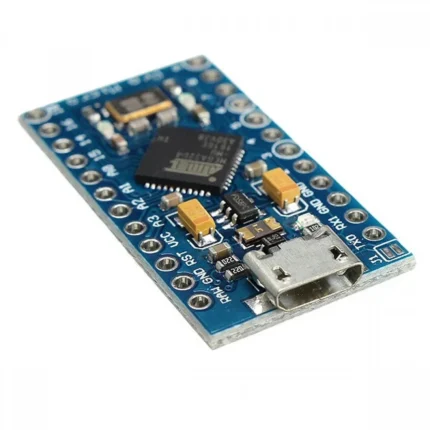

Arduino Pro Micro
Technical Specification Details
| Parameter | Specification Details |
|---|---|
| Core Microcontroller | Microchip ATmega32U4 (8-bit AVR with internal USB transceiver) |
| Operating Logic Voltage | 5V DC |
| Input Supply Voltage (RAW) | 5V to 12V DC max (Via the onboard raw voltage regulator pin) |
| Digital I/O Breakout Pins | 12 Pins (of which 5 provide hardware PWM output channels) |
| Analog Input Channels | 4 Channels (10-bit resolution Analog-to-Digital Converter) |
| Hardware Serial Ports | 1 x True Hardware UART Serial port (Rx/Tx) |
| Onboard Memory Capacity | 32 KB Flash Storage (4 KB used by bootloader) | 2.5 KB SRAM | 1 KB EEPROM |
| Core Processing Clock | 16 MHz Crystal Oscillator |
| Physical Dimensions | 33.0 mm × 18.0 mm (Slightly longer than a Pro Mini) |
Arduino Pro Mini (5V, 16MHz Variant)
Specification Details Technical
| Parameter | Specification Details |
|---|---|
| Core Microcontroller | Microchip ATmega328P (8-bit AVR architecture) |
| Operating Logic Voltage | 5V DC (VCC Pin) |
| Input Supply Voltage (RAW) | 5V to 12V DC max (Via the onboard raw voltage regulator pin) |
| Digital I/O Breakout Pins | 14 Pins (of which 6 provide hardware PWM output channels) |
| Analog Input Channels | 8 Channels (10-bit resolution Analog-to-Digital Converter) |
| DC Current per I/O Pin | 40 mA maximum |
| Onboard Flash Memory | 32 KB (of which 2 KB is reserved for bootloader execution codes) |
| SRAM & EEPROM Array | 2 KB SRAM | 1 KB EEPROM internal |
| Core Processing Clock | 16 MHz Ceramic Resonator |
| Programming Interface | 6-Pin Standard FTDI / TTL Serial Row Header |

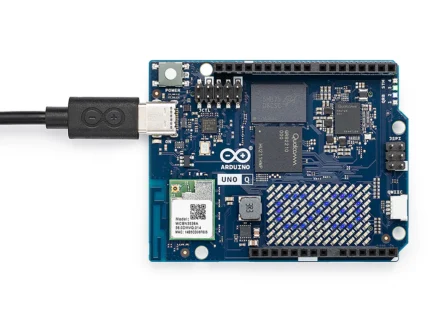

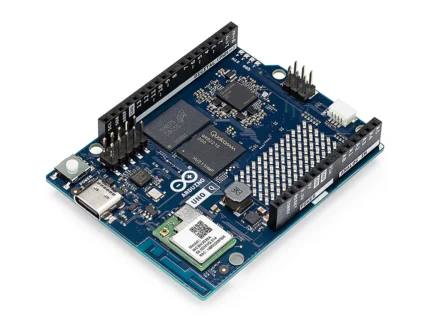

Arduino UNO Q 2GB – AI Single Board Computer
Technical Specification Details
| Parameter | Specification Details |
|---|---|
| High-Level MPU Core | Qualcomm® Dragonwing™ QRB2210 (Quad-Core 64-bit ARM® Cortex®-A53 @ 2.0 GHz) |
| Real-Time MCU Core | STM32U585 (ARM® Cortex®-M33 running up to 160 MHz with 2 MB Flash / 786 KB SRAM) |
| System Memories | 2 GB LPDDR4 RAM + 16 GB onboard eMMC Flash Storage |
| Operating Systems | Debian Linux (MPU Layer) + Zephyr RTOS with Arduino Core (MCU Layer) |
| Wireless Interfaces | Dual-Band Wi-Fi 5 (2.4/5GHz) + Bluetooth 5.1 with integrated onboard antennas |
| USB Bus Routing | Multi-role USB-C with Power Delivery (PD), device switching, and DisplayPort Video Out |
| Expansion Connectors | Arduino UNO Shields, SparkFun Qwiic (3.3V I2C), MIPI-CSI Camera, and MIPI-DSI Display lines |
| Logic Working Voltage | 3.3V System Logic (Pins are 5V tolerant for backward shield compatibility) |
| Input DC Power Tolerances | 5V/3A over USB-C (Supports Power Delivery) or 7V to 24V DC input via VIN pin |
Arduino UNO Q 4GB – AI Single Board Computer
Technical Specification Details
| Parameter | Specification Details |
|---|---|
| High-Level MPU Core | Qualcomm® Dragonwing™ QRB2210 (Quad-Core 64-bit ARM® Cortex®-A53 @ 2.0 GHz) |
| Real-Time MCU Core | STM32U585 (ARM® Cortex®-M33 running up to 160 MHz with 2 MB Flash / 786 KB SRAM) |
| System Memories | 4 GB LPDDR4 RAM + 16 GB onboard eMMC Flash Storage |
| Operating Systems | Debian Linux (MPU Layer) + Zephyr RTOS with Arduino Core (MCU Layer) |
| Wireless Interfaces | Dual-Band Wi-Fi 5 (2.4/5GHz) + Bluetooth 5.1 with integrated onboard antennas |
| USB Bus Routing | Multi-role USB-C with Power Delivery (PD), device switching, and DisplayPort Video Out |
| Expansion Connectors | Arduino UNO Shields, SparkFun Qwiic (3.3V I2C), MIPI-CSI Camera, and MIPI-DSI Display lines |
| Logic Working Voltage | 3.3V System Logic (Pins are 5V tolerant for backward shield compatibility) |
| Input DC Power Tolerances | 5V/3A over USB-C (Supports Power Delivery) or 7V to 24V DC input via VIN pin |

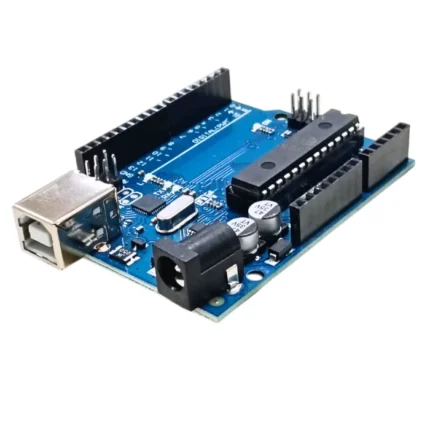

Arduino Uno R3 DIP- ATmega328P
Technical Specification Details
| Parameter | Specification Details |
|---|---|
| Core Microcontroller | Microchip ATmega328P (28-pin Dual-Inline DIP Package) |
| USB-to-Serial Driver | ATmega16U2 (Provides fast native USB communication speeds) |
| Operating Logic Voltage | 5V DC |
| Input Voltage (Barrel Jack) | 7V to 12V DC recommended (Absolute operating limits: 6V to 20V) |
| Digital I/O Breakout Pins | 14 Pins (of which 6 provide hardware PWM output channels) |
| Analog Input Channels | 6 Channels (10-bit resolution Analog-to-Digital Converter) |
| DC Current per I/O Pin | 40 mA maximum |
| Onboard Flash Memory | 32 KB (of which 0.5 KB is utilized by the bootloader code) |
| SRAM & EEPROM | 2 KB SRAM | 1 KB EEPROM internal |
| Core Processing Clock | 16 MHz Crystal Oscillator |
| Main Interface Port | USB Type-B Female Connector + 2.1mm DC Barrel Jack |
Arduino Uno R3 SMD
Technical Specification Details
| Parameter | Specification Details |
|---|---|
| Core Microcontroller | Microchip ATmega328P (Surface-Mount SMD Package) |
| USB-to-Serial Driver | ATmega16U2 (or CH340 based on exact stock type) |
| Operating Logic Voltage | 5V DC |
| Input Voltage (Barrel Jack) | 7V to 12V DC recommended (Operating limits: 6V to 20V) |
| Digital I/O Breakout Pins | 14 Pins (of which 6 provide hardware PWM output channels) |
| Analog Input Channels | 6 Channels (10-bit resolution Analog-to-Digital Converter) |
| DC Current per I/O Pin | 40 mA maximum |
| Onboard Flash Memory | 32 KB (of which 0.5 KB is utilized by the bootloader code) |
| SRAM & EEPROM | 2 KB SRAM | 1 KB EEPROM internal |
| Core Processing Clock | 16 MHz Crystal Oscillator |
| Main Interface Port | USB Type-B Female Connector |
Arduino Uno R4 Minima
Technical Specification Details
| Parameter | Specification Details |
|---|---|
| Main Processing MCU | Renesas RA4M1 (32-bit Arm Cortex-M4 with FPU) |
| Processor Clock Speed | 48 MHz |
| Onboard Flash Memory | 256 KB (8x capacity increase over Uno R3) |
| Internal Static RAM | 32 KB SRAM (16x capacity increase over Uno R3) |
| System Logic Voltage | 5V DC Operating Level |
| Input DC Voltage Range | 6V to 24V DC via barrel jack or VIN pin |
| Digital I/O Breakout | 14 Pins (with 6 hardware PWM timing channels) |
| Analog Peripherals | 6 Analog Input Pins (14-bit ADC) | 1 True Analog Output Pin (12-bit DAC) |
| HID Communication Mode | Supported (Native Mouse/Keyboard device simulation over USB-C) |

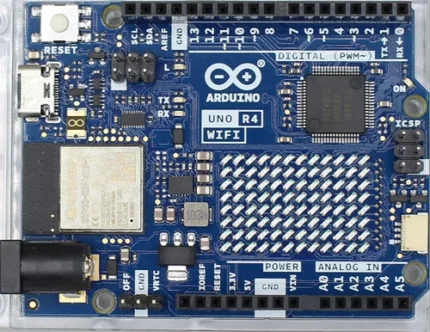

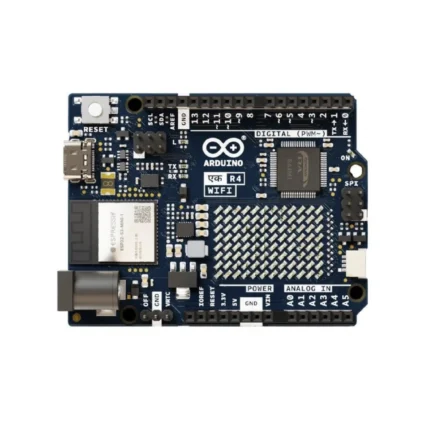

Arduino Uno R4 WiFi Smart Development Board
Technical Specification Details
| Parameter | Specification Details |
|---|---|
| Main Processing MCU | Renesas RA4M1 (32-bit Arm Cortex-M4 with FPU) |
| Processor Clock Speed | 48 MHz |
| Onboard Flash Memory | 256 KB (8x capacity increase over Uno R3) |
| Internal Static RAM | 32 KB SRAM (16x capacity increase over Uno R3) |
| System Logic Voltage | 5V DC Operating Level |
| Input DC Voltage Range | 6V to 24V DC via barrel jack or VIN pin |
| Digital I/O Breakout | 14 Pins (with 6 hardware PWM timing channels) |
| Analog Peripherals | 6 Analog Input Pins (14-bit ADC) | 1 True Analog Output Pin (12-bit DAC) |
| HID Communication Mode | Supported (Native Mouse/Keyboard device simulation over USB-C) |

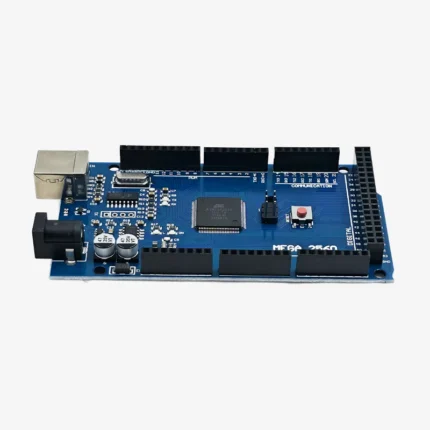

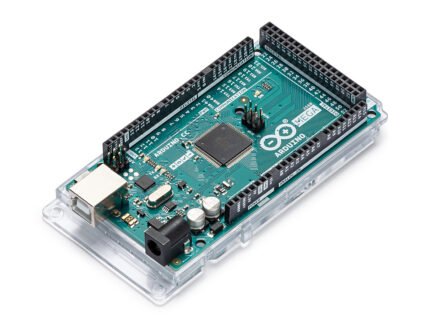

Genuine Arduino Mega 2560 R3 (ATmega16U2 Version)
Technical Specification Details
| Parameter | Specification Details |
|---|---|
| Primary Microcontroller | Microchip ATmega2560 (8-bit AVR architecture) |
| USB-to-Serial Processor | ATmega16U2 (Supports DFU mode and mouse/keyboard emulation configurations) |
| Operating Logic Voltage | 5V DC |
| Recommended Input DC | 7V to 12V Max (Absolute hardware safety boundaries: 6V to 20V) |
| Digital I/O Breakout Pins | 54 Pins (of which 15 deliver true hardware PWM output channels) |
| Analog Input Channels | 16 Channels (10-bit high-accuracy resolution ADC) |
| DC Current per I/O Pin | 20 mA peak tolerance ceiling |
| Onboard Memory Array | 256 KB Flash Storage (of which 8 KB is reserved for bootloader scripts) | 8 KB SRAM | 4 KB EEPROM |
| System Processing Clock | 16 MHz Quartz Crystal Oscillator |
| Physical Dimensions | 101.52 mm × 53.3 mm (Standard Mega structural profile |
