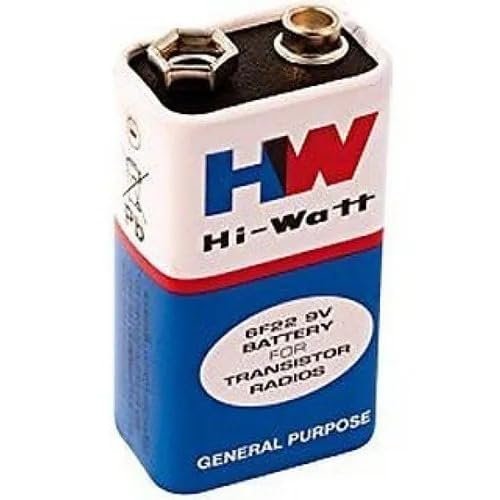

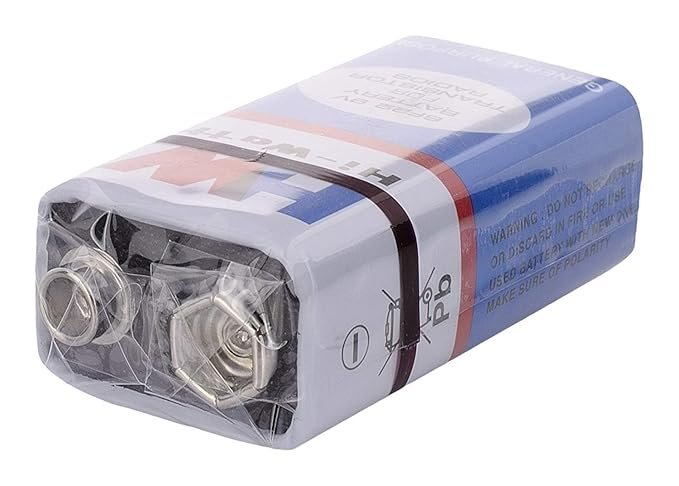

The Hi-Watt (HW) 9V Zinc-Carbon Non-Rechargeable Battery is a general-purpose PP3-sized dry cell power block. Encased inside a protective metal jacket body to shield its chemical core from structural leaking, this classic 6F22 cell uses zinc-carbon chemistry to deliver a steady nominal 9V DC output loop. Because it is exceptionally low cost and globally standard, it serves as the entry-level baseline power supply for multi-meters, wireless doorbells, remote toy cars, transistor radios, and temporary breadboard microcontroller prototypes.
-33%
18650 Lithium-Ion Rechargeable Battery Cell
Original price was: ₹65.00.₹50.00Current price is: ₹50.00.
11.1V 3300mAh Lithium Polymer Battery Pack
Original price was: ₹1,500.00.₹1,200.00Current price is: ₹1,200.00.
Hi-Watt (HW) 9V Non-Rechargeable Battery
Original price was: ₹30.00.₹20.00Current price is: ₹20.00.
Technical Specifications
| Characteristic | Specification Parameters |
|---|---|
| Battery Chemical Profile | Primary Zinc-Carbon (Non-Rechargeable dry cell) |
| Industry Standard Sizing | PP3 Framework / 6F22 Configuration |
| Nominal Output Voltage | 9.0V DC |
| Average Charge Capacity | ~500 mAh to 600 mAh under intermittent test conditions |
| Discharge Resistance Sizing | 620 Ω internal static resistance path |
| Continuous Discharge life | ~9 Hours under reference diagnostic loads |
| Discharge Cut-Off Ceiling | 5.4V DC Lower functional boundary |
| Operational Heat Window | -20°C up to +85°C Operating Limit |
| Module Base Dimensions | Approx. 48.5 mm × 26.5 mm × 17.5 mm |
