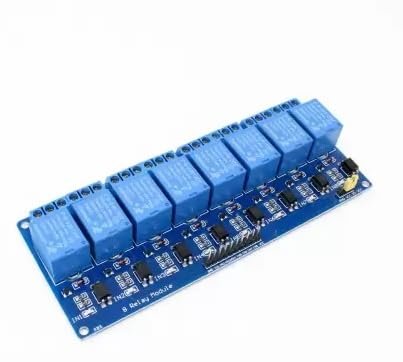

12V 8-Channel Relay Module
⚙️ Technical Specifications
| Characteristic | Specification Parameters |
|---|---|
| Coil Operating Voltage | 12V DC Native |
| Trigger Current Consumption | ~30 mA to 40 mA per individual active channel |
| Total Max Current (All On) | ~300 mA to 350 mA continuous load draw |
| Max AC Switching Load | 10A @ 250V AC or 10A @ 125V AC (Per Channel) |
| Max DC Switching Load | 10A @ 30V DC or 10A @ 28V DC (Per Channel) |
| Output Terminal Blocks | 8 sets of NC (Normally Closed), COM (Common), NO (Normally Open) |
| Input Signal Header | VCC (+12V Power), GND (Ground), IN1 to IN8 (Trigger Signal Pins) |
| Relay Component Model | Typically SRD-12VDC-SL-C (Songle or matching industry standard) |

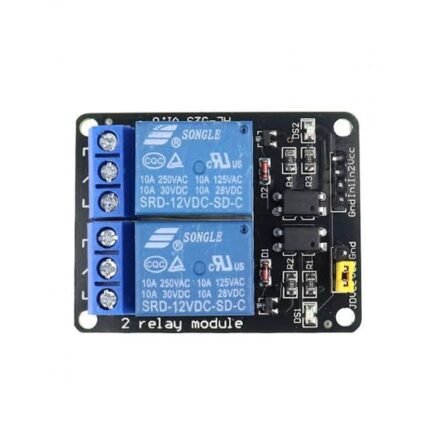

12V Dual-Channel (Double-Channel) Relay Module
⚙️ Technical Specifications
| Characteristic | Specification Parameters |
|---|---|
| Coil Operating Voltage | 12V DC Native |
| Trigger Current Consumption | ~30 mA to 40 mA per individual active channel |
| Total Max Current (Both On) | ~80 mA continuous draw |
| Max AC Switching Load | 10A @ 250V AC or 10A @ 125V AC (Per Channel) |
| Max DC Switching Load | 10A @ 30V DC or 10A @ 28V DC (Per Channel) |
| Output Terminal Arrays | 2 blocks of NC (Normally Closed), COM (Common), NO (Normally Open) |
| Input Signal Header | VCC (+12V Power), GND (Ground), IN1 (Chan 1), IN2 (Chan 2) |
| Relay Component Model | Typically SRD-12VDC-SL-C (Songle or matching industry standard) |

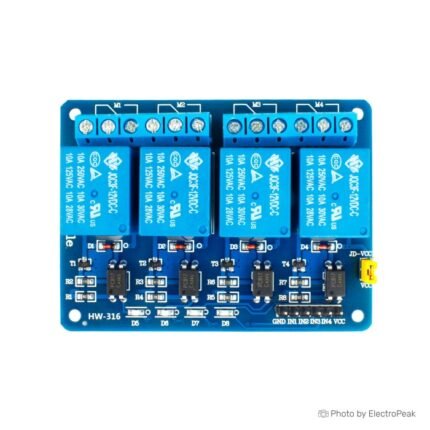

12V Four-Channel Relay Module
⚙️ Technical Specifications
| Characteristic | Specification Parameters |
|---|---|
| Coil Operating Voltage | 12V DC Native |
| Trigger Current Consumption | ~30 mA to 40 mA per individual active channel |
| Total Max Current (All On) | ~150 mA to 180 mA continuous load draw |
| Max AC Switching Load | 10A @ 250V AC or 10A @ 125V AC (Per Channel) |
| Max DC Switching Load | 10A @ 30V DC or 10A @ 28V DC (Per Channel) |
| Output Terminal Arrays | 4 blocks of NC (Normally Closed), COM (Common), NO (Normally Open) |
| Input Signal Header | VCC (+12V Power), GND (Ground), IN1, IN2, IN3, IN4 |
| Relay Component Model | Typically SRD-12VDC-SL-C (Songle or matching industry |
| standard) |

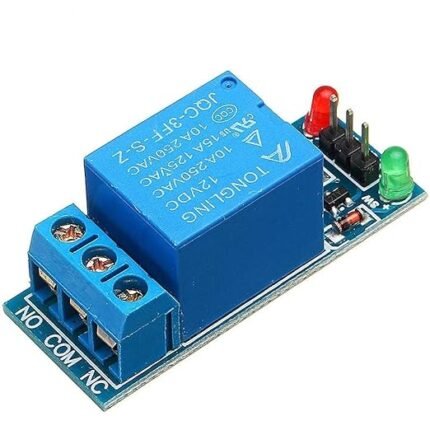

12V Single-Channel Relay Module
Technical Specifications
| Characteristic | Specification Parameters |
|---|---|
| Coil Operating Voltage | 12V DC Native |
| Trigger Current Consumption | ~30 mA to 40 mA when actively energized |
| Max AC Switching Load | 10A @ 250V AC or 10A @ 125V AC |
| Max DC Switching Load | 10A @ 30V DC or 10A @ 28V DC |
| Output Terminals Config | NC (Normally Closed), COM (Common), NO (Normally Open) |
| Input Interface Pins | VCC (+12V Power), GND (Ground), IN (Trigger Input Signal) |
| Relay Component Model | Typically SRD-12VDC-SL-C (Songle or matching industry standard) |

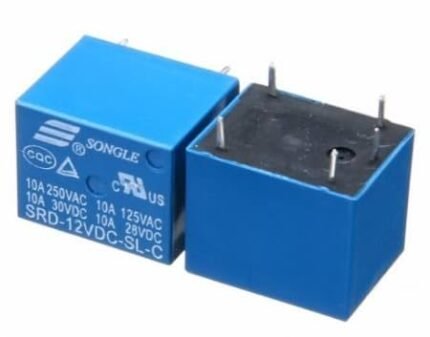

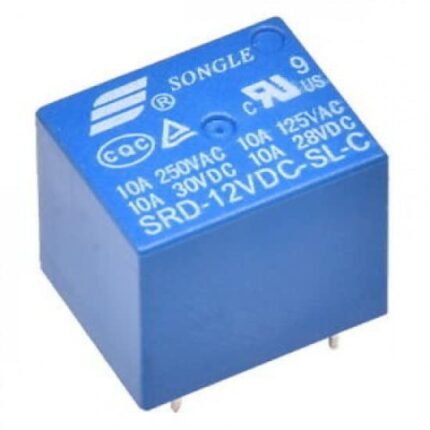

12V SPDT Sugar Cube Relay
Technical Specifications
| Parameter | Specification Value |
|---|---|
| Contact Form / Type | 1 Form C (SPDT - Single Pole Double Throw) |
| Nominal Coil Voltage | 12V DC |
| Coil Resistance | Approx. 400 Ω (±10%) |
| Coil Power Consumption | Approx. 0.36W (360mW) |
| Nominal Operating Current | Approx. 30mA |
| Max Switching Voltage | 250V AC / 30V DC |
| Max AC Switching Current | 10A at 120V/250V AC |
| Max DC Switching Current | 10A at 28V/30V DC |
| Contact Resistance | ≤ 100 mΩ |
| Operate / Release Time | ≤ 10ms / ≤ 5ms |
| Mechanical Life | ~ 10,000,000 operations |
| Electrical Life | ~ 100,000 operations at full rated load |
| Dimensions | Approx. 19.1mm × 15.5mm × 15.5mm |
5V 30A Single-Channel High-Power Relay Module
⚙️ Technical Specifications
| Characteristic | Specification Parameters |
|---|---|
| Coil Operating Voltage | 5V DC Stable |
| Active Working Current | ~180 mA to 190 mA when coil is energized |
| Quiescent/Static Current | ~5 mA baseline idle draw |
| Trigger Current Threshold | 2 mA to 5 mA from microcontroller I/O pin |
| Max AC Switching Load | 30A @ 250V AC (Normally Open contact) |
| Max DC Switching Load | 30A @ 30V DC (Normally Open contact) |
| Output Terminals Config | NC (Normally Closed), COM (Common), NO (Normally Open) |
| Input Interface Pins | DC+ / VCC (+5V), DC- / GND (Ground), IN (Signal Input) |

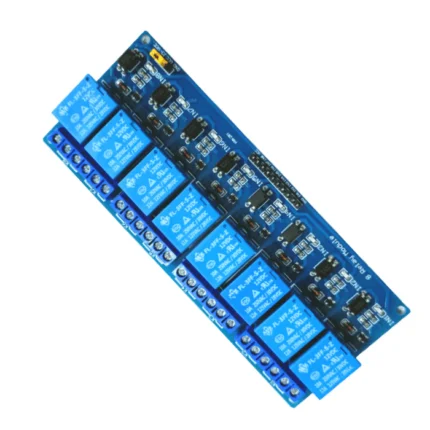

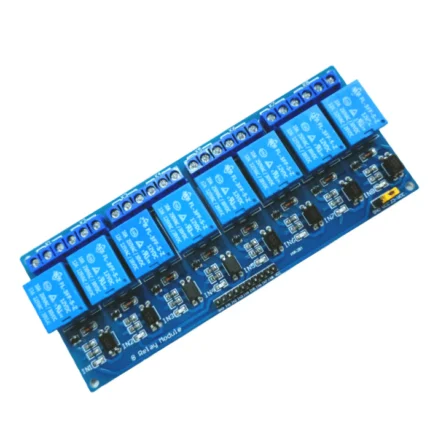

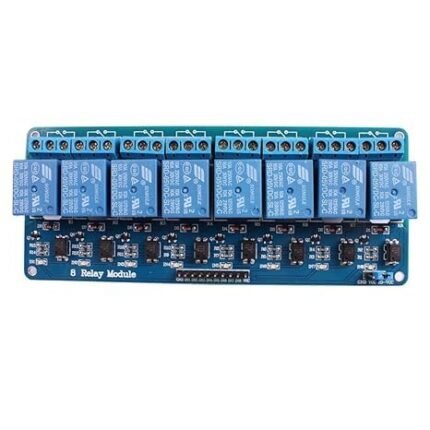

5V 8-Channel Relay Module
Technical Specifications
| Characteristic | Specification Parameters |
|---|---|
| Coil Operating Voltage | 5V DC Stable |
| Trigger Current Consumption | ~15 mA to 20 mA per individual active channel |
| Total Max Current (All On) | ~600 mA to 700 mA continuous load draw |
| Max AC Switching Load | 10A @ 250V AC or 10A @ 125V AC (Per Channel) |
| Max DC Switching Load | 10A @ 30V DC or 10A @ 28V DC (Per Channel) |
| Output Terminal Blocks | 8 sets of NC (Normally Closed), COM (Common), NO (Normally Open) |
| Input Signal Header | VCC, GND, IN1, IN2, IN3, IN4, IN5, IN6, IN7, IN8 |

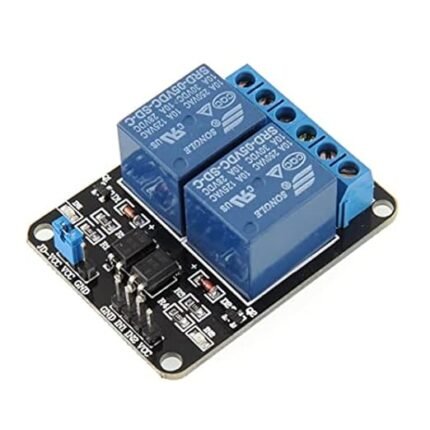

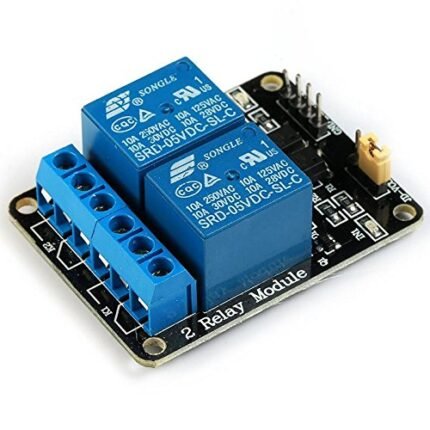

5V Dual-Channel (Double Channel) Relay Module
Technical Specifications
| Characteristic | Specification Parameters |
|---|---|
| Coil Operating Voltage | 5V DC Stable |
| Trigger Current Consumption | ~15 mA to 20 mA per individual active channel |
| Max AC Switching Load | 10A @ 250V AC or 10A @ 125V AC (Per Channel) |
| Max DC Switching Load | 10A @ 30V DC or 10A @ 28V DC (Per Channel) |
| Output Terminal Arrays | 2 sets of NC (Normally Closed), COM (Common), NO (Normally Open) |
| Input Header Pins | VCC (5V Logic), GND (Ground), IN1 (Chan 1), IN2 (Chan 2) |
| Relay Component Model | Typically SRD-05VDC-SL-C (Songle or equivalent standard) |

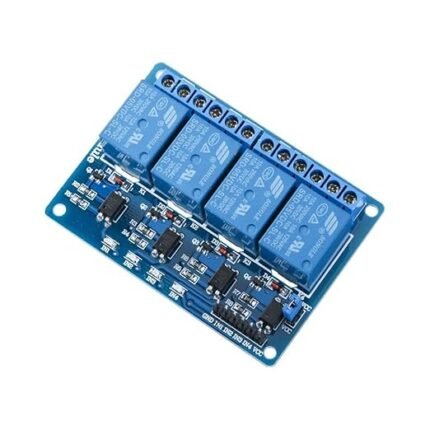

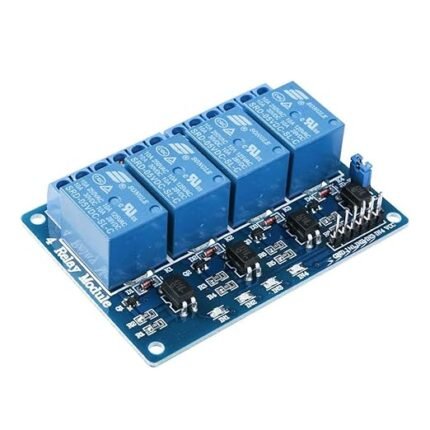

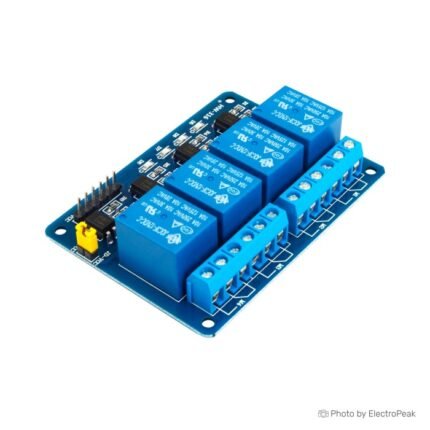

5V Four-Channel Relay Module
Technical Specifications
| Characteristic | Specification Parameters |
|---|---|
| Coil Operating Voltage | 5V DC Stable |
| Trigger Current Draw | ~15 mA to 20 mA per individual active channel |
| Total Max Current (All On) | ~300 mA to 350 mA continuous draw (including logic) |
| Max AC Switching Load | 10A @ 250V AC or 10A @ 125V AC (Per Channel) |
| Max DC Switching Load | 10A @ 30V DC or 10A @ 28V DC (Per Channel) |
| Output Terminal Arrays | 4 blocks of NC (Normally Closed), COM (Common), NO (Normally Open) |
| Input Header Pins | VCC, GND, IN1, IN2, IN3, IN4 |

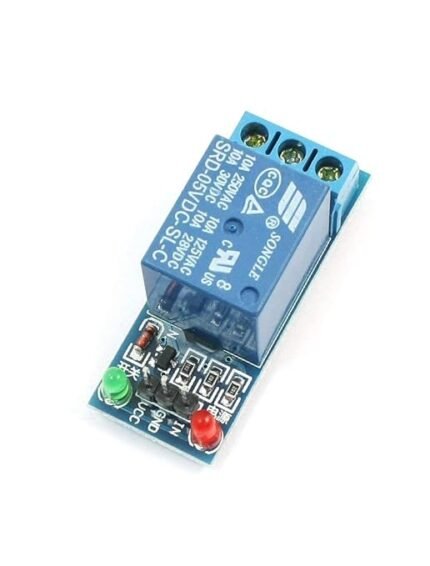

5V Single-Channel Relay Module
⚙️ Technical Specifications
| Characteristic | Specification Parameters |
|---|---|
| Coil Operating Voltage | 5V DC Baseline |
| Trigger Current Draw | ~15 mA to 20 mA when active |
| Max AC Switching Load | 10A @ 250V AC or 10A @ 125V AC |
| Max DC Switching Load | 10A @ 30V DC or 10A @ 28V DC |
| Output Terminals Config | NC (Normally Closed), COM (Common), NO (Normally Open) |
| Input Signal Pins | VCC (5V Power), GND (Ground), IN (Trigger Signal) |
| Response Activation Time | ~10 milliseconds (Pick-up) / ~5 milliseconds (Release) |
5V Sugar Cube Relay
Technical Specifications
| Parameter | Specification Value |
|---|---|
| Contact Form / Type | 1 Form C (SPDT - Single Pole Double Throw) |
| Nominal Coil Voltage | 5V DC |
| Coil Resistance | Approx. 70 Ω to 80 Ω |
| Coil Power Consumption | Approx. 0.36W (360mW) |
| Nominal Operating Current | Approx. 71.4mA to 90mA |
| Max Switching Voltage | 250V AC / 30V DC |
| Max AC Switching Current | 10A at 120V/250V AC |
| Max DC Switching Current | 10A at 28V/30V DC |
| Contact Resistance | ≤ 100 mΩ |
| Operate / Release Time | ≤ 10ms / ≤ 5ms |
| Mechanical Life | ~ 10,000,000 operations |
| Electrical Life | ~ 100,000 operations at max rated load |
| Dimensions | Approx. 19.1mm × 15.5mm × 15.5mm |
