Name: ESP8266 ESP-12E Serial Wi-Fi Transceiver Module
SKU: VE-119
Availability: InStock

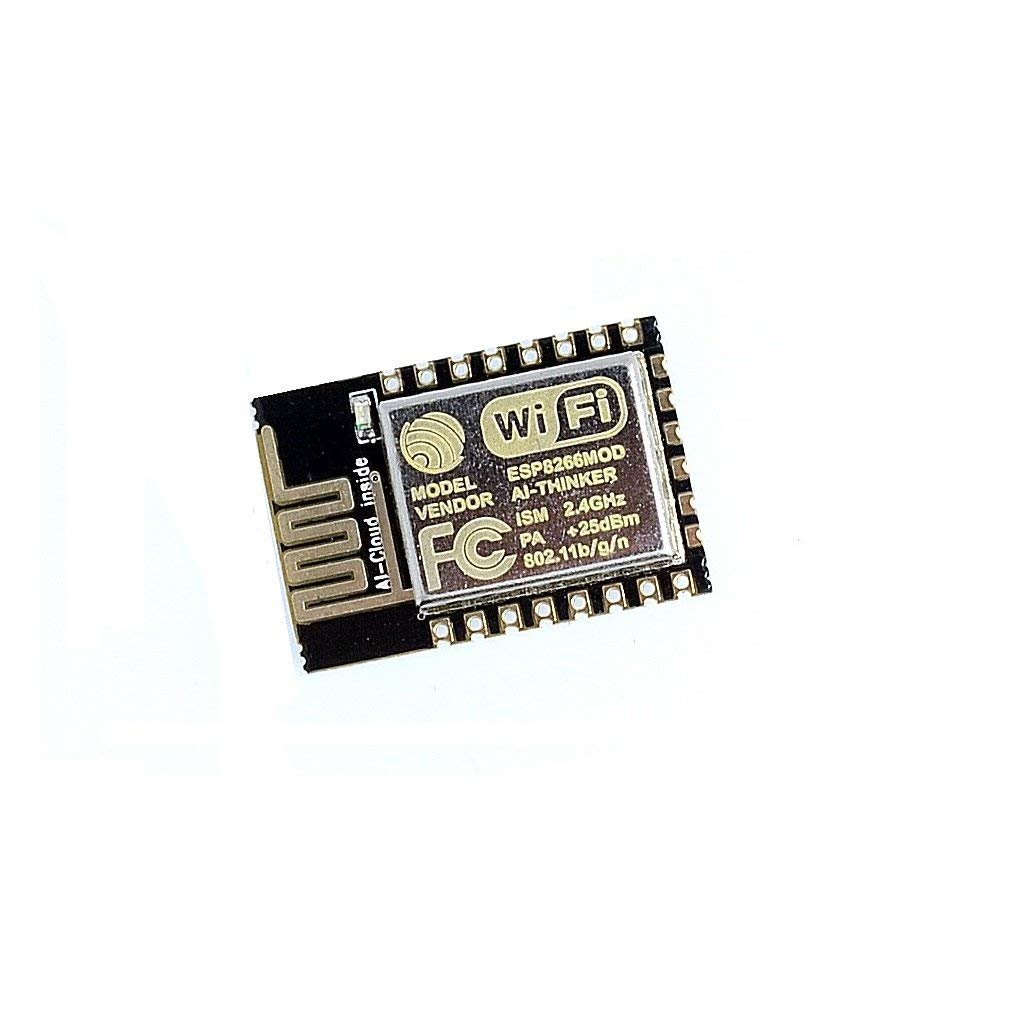

ESP8266 ESP-12E Serial Wi-Fi Transceiver Module

Technical Specifications

Characteristic	Specification Parameters
Core Processor	Tensilica L106 32-bit RISC Microprocessor Core
Operating Frequency	80 MHz (Configurable / overclockable up to 160 MHz)
Storage Memory Space	4 MB (32 Mbits) SPI Flash Memory storage buffer
Operating Voltage (VCC)	3.0V to 3.6V DC (Requires stable 3.3V power supply rail)
Logic Signal Threshold	3.3V TTL (Pins are not 5V logic safe)
Wireless standard	2.4 GHz Wi-Fi IEEE 802.11 b/g/n (STA / AP / STA+AP modes)
Peripheral Interfaces	10-bit ADC, SPI, H-SPI, UART, I2C, I2S, IRDA, PWM

SKU: VE-119 Category: ESP

The ESP8266 ESP-12E Serial Wi-Fi Transceiver Module is an ultra-compact, surface-mount standalone Wi-Fi microchip tailored for Internet of Things (IoT) hardware deployments. Representing the core silicon tracking module found inside standard NodeMCU boards, it wraps an embedded 32-bit application core and a full TCP/IP networking stack into a shielded metal enclosure. It features an optimized peripheral design that exposes a high volume of hardware pins, allowing it to function as a compact standalone edge controller or a powerful Wi-Fi coprocessor for larger host systems.

✨ Key Features

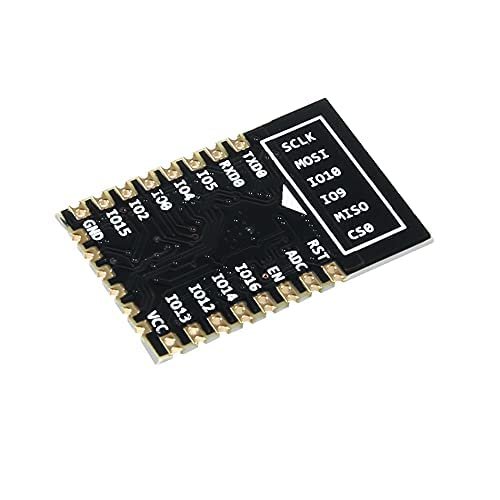

Expanded General-Purpose I/O: Exposes 6 additional GPIO pins compared to standard ESP-12 variants, bringing out dedicated SPI lines for flexible peripheral wiring.

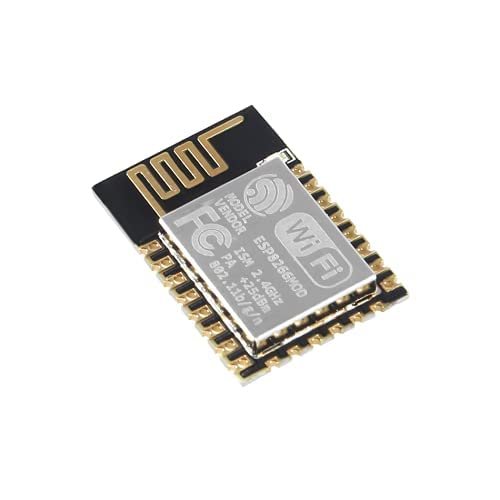

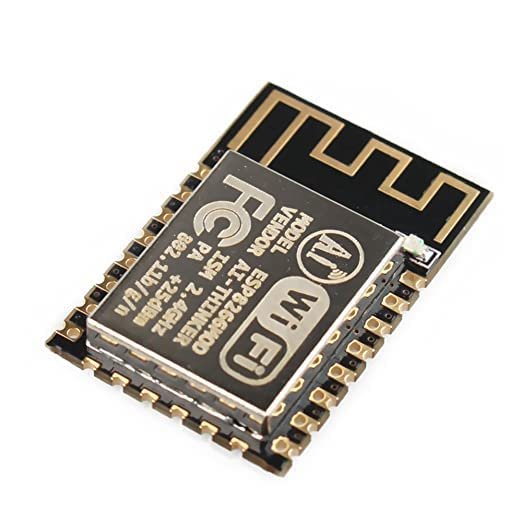

Onboard Shielded PCB Antenna: Features an integrated impedance-matched trace antenna housed beneath a metal shield box to maximize signal noise rejection.
Dual Operation Adaptability: Functions seamlessly as an autonomous, standalone microcontroller unit or acts as a passive Wi-Fi adapter parsing AT commands.
Deep Sleep Power Optimization: Outfitted with advanced power-gating states that drop power consumption below 10µA during standby intervals to save battery life.
