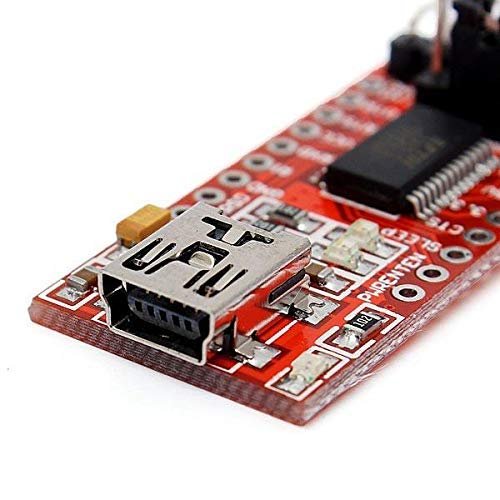

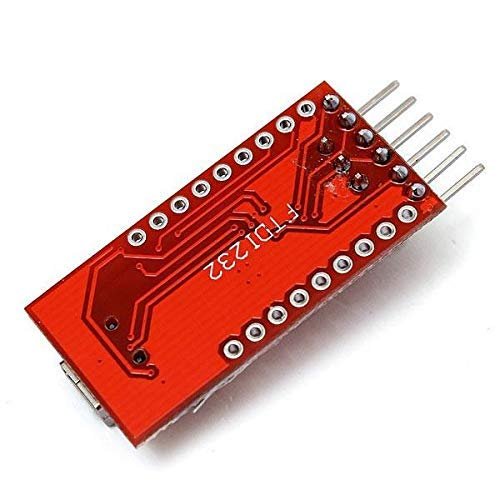

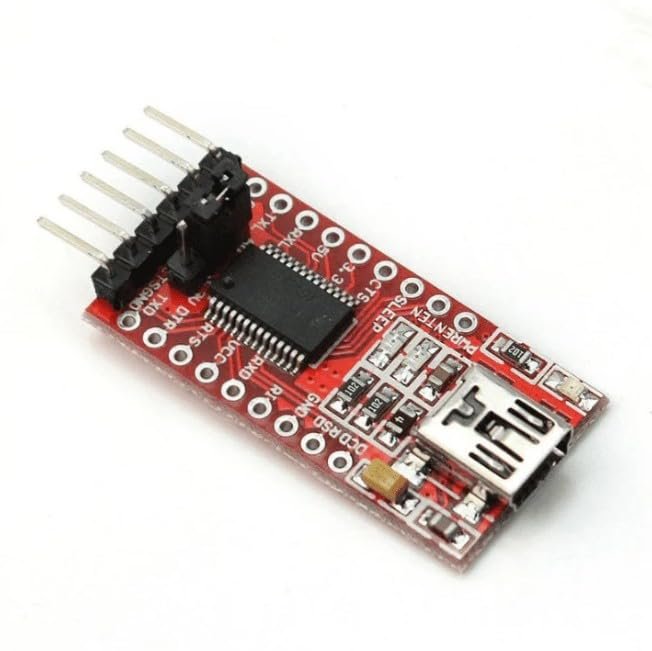

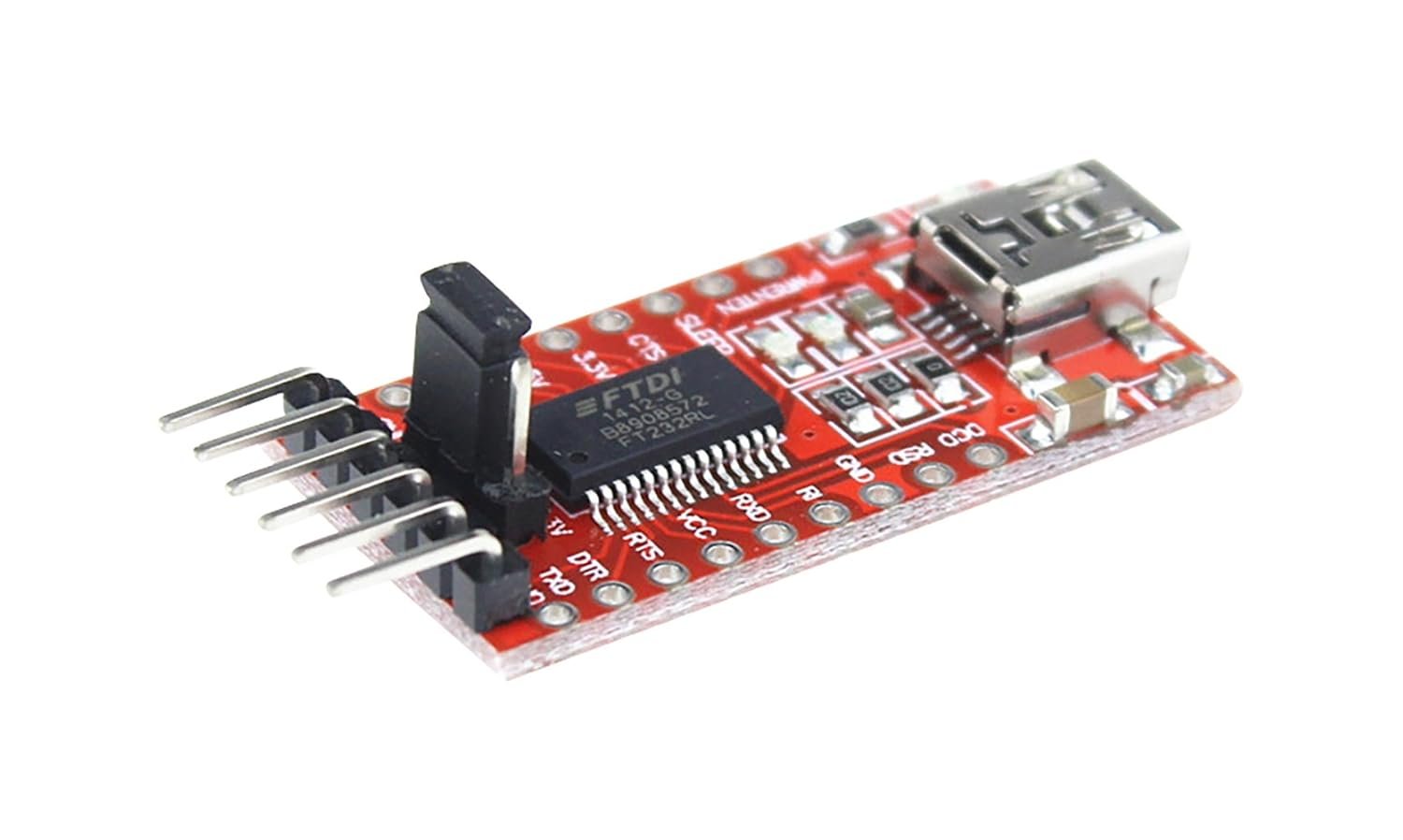

Name: FT232RL FTDI USB to TTL Serial Converter Adapter Module
SKU: VE-123
Availability: InStock

FT232RL FTDI USB to TTL Serial Converter Adapter Module

Technical Specifications

Characteristic	Specification Parameters
Core Protocol Chipset	FTDI FT232RL (Future Technology Devices International)
Physical Input Interface	Mini-USB Female Socket Port Link
Supported Data Rates	300 bps up to 3 Mbps maximum transmission speed
Operating Logic Voltage	Dual 3.3V or 5.0V DC Options (Jumper Selectable)
VCC Output Current Limits	5V mode: Up to ~500mA / 3.3V mode: Up to ~50mA
Host Operating Systems	Windows 10/11, macOS, Linux distributions, and Android
Pin Header Spacing	Standard 2.54 mm (0.1 inch) Pitch

SKU: VE-123 Category: Converters

The FT232RL FTDI USB to TTL Serial Converter Adapter Module is a high-performance USB-to-UART bridging card engineered to establish asynchronous data pipelines between personal computers and microcontrollers. Populated with an authentic FT232RL chipset, this breakout device converts USB signals into standard TTL-level serial data strings. It is widely adopted by engineers and developers across India for debugging embedded firmware, configuring wireless radios, and flashing development boards that lack an integrated USB interface, such as the Arduino Pro Mini or ESP32-CAM.

✨ Key Features

Genuine FTDI Silicon Integration: Built with the original FT232RL processor to guarantee stable communication, broad operating system driver support, and zero connection drops.
Hardware-Selectable Logic Rails: Outfitted with a physical 3-pin header shunt jumper to instantly switch signal logic thresholds between 3.3V and 5V DC.
Onboard Power Isolation Fuse: Equipped with a 500mA self-resettable polyfuse on the main VBUS line to shield your laptop or computer’s USB port from downstream short-circuits.
Real-Time LED Status Monitoring: Features three integrated surface-mount indicator LEDs (Power, RXD, and TXD) to provide immediate visual confirmation of active data transmissions

-20%

Click to enlarge

Back to products

Original price was: ₹150.00.Current price is: ₹120.00.

Characteristic	Specification Parameters
Core Protocol Chipset	FTDI FT232RL (Future Technology Devices International)
Physical Input Interface	Mini-USB Female Socket Port Link
Supported Data Rates	300 bps up to 3 Mbps maximum transmission speed
Operating Logic Voltage	Dual 3.3V or 5.0V DC Options (Jumper Selectable)
VCC Output Current Limits	5V mode: Up to ~500mA / 3.3V mode: Up to ~50mA
Host Operating Systems	Windows 10/11, macOS, Linux distributions, and Android
Pin Header Spacing	Standard 2.54 mm (0.1 inch) Pitch
