Showing all 2 results

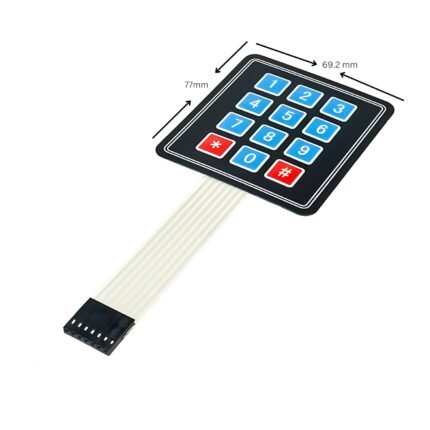

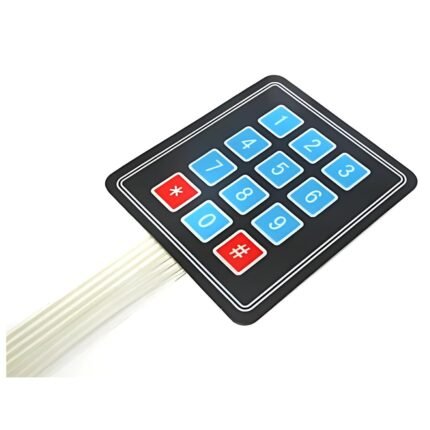

4×3 Matrix Membrane Keypad Module
Technical Specifications
| Characteristic | Specification Parameters |
|---|---|
| Grid Array & Keys | 4 Rows x 3 Columns (12 Total Momentary Keys) |
| I/O Pins Required | 7 Digital Pins (4 Rows + 3 Columns) via Matrix Scanning |
| Max Circuit Rating | 35V DC, 100mA |
| Connector Type | 7-Pin Female Connector (2.54 mm / 0.1" pitch) |
| Dimensions (approx.) | 69 mm × 77 mm × 0.8 mm (Ultra-thin flat profile) |

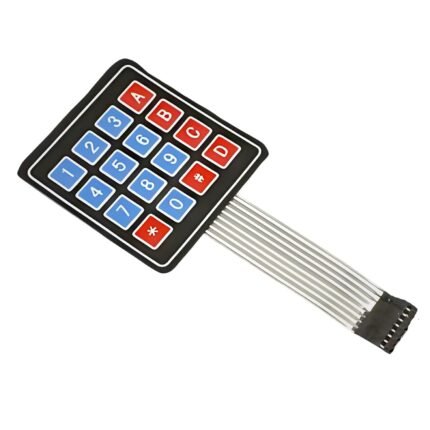

4×4 Matrix Membrane Keypad Module
Technical Specifications
| Characteristic | Specification Parameters |
|---|---|
| Grid Array & Keys | 4 Rows x 4 Columns (16 Total Momentary Keys) |
| I/O Pins Required | 8 Digital Pins (4 Rows + 4 Columns) via Matrix Scanning |
| Max Circuit Rating | 35V DC, 100mA |
| Connector Type | 8-Pin Female Connector (2.54 mm / 0.1" pitch) |
| Dimensions (approx.) | 77 mm × 69 mm × 0.8 mm (Ultra-thin flat profile) |
