Showing all 8 results

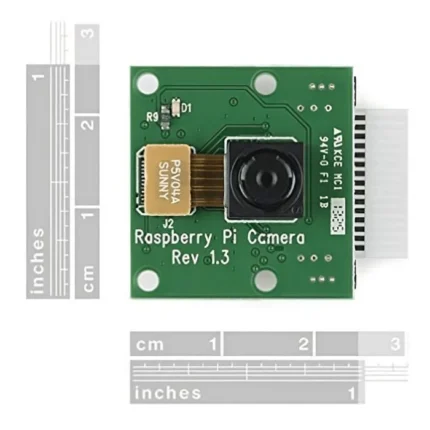

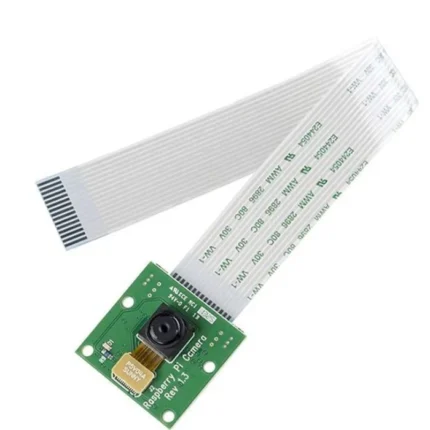

5MP Camera Module for Raspberry Pi
Advanced Data Sheet Specifications
| Parameter | Specification Details |
|---|---|
| Image Sensor Core | OmniVision OV5647 CMOS Sensor |
| Native Resolution | 5 Megapixels |
| Max Static Image Size | 2592 × 1944 Pixels |
| Supported Video Modes | 1080p @ 30fps | 720p @ 60fps | 480p @ 90fps |
| Optical Sensor Size | 1/4-inch format |
| Aperture & FOV | f/2.9 Aperture | 54-degree Horizontal Field of View |
| Lens Focal Type | Fixed Focus |
| Connection Port | 15-pin MIPI Camera Serial Interface (CSI) |
| Physical Dimensions | 25 mm × 23 mm × 9 mm |
ESP32-CAM Wi-Fi + Bluetooth Camera Development Module
Technical Specifications
| Characteristic | Specification Parameters |
|---|---|
| Core Processor | Tensilica 32-bit RISC CPU Xtensa Dual-Core LX6 (Up to 240 MHz) |
| Memory Buffer | 520 KB Internal SRAM + 4 MB External PSRAM (Required for image buffering) |
| Wireless Transceivers | 2.4 GHz Wi-Fi (802.11b/g/n) + Bluetooth v4.2 BR/EDR & BLE standard |
| Supported Image Sensors | OV2640 (Standard choice) and OV7670 camera modules |
| Maximum Resolution | 1600 × 1200 Pixels (UXGA resolution framework) |
| Storage Socket Type | Onboard MicroSD Card Slot (Supports SPI communication paths) |
| Default Image Output | JPEG, BMP, Grayscale formats |
ESP32-CAM-MB Micro USB Programmer Base Board
Technical Specifications
| Characteristic | Specification Parameters |
|---|---|
| Compatible Companion Hardware | AI-Thinker Form-Factor ESP32-CAM W/ OV2640 / OV3660 |
| USB Communication Port | Micro-USB or USB Type-C Interfacing (Variant dependent) |
| Onboard USB-to-Serial Driver | Silicon Labs CH340 Series (CH340G / CH340C) |
| Input Supply Voltage (VBUS) | 5.0V DC via USB Bus line |
| Onboard Voltage Regulation | Drops 5V down to 3.3V Output (Feeds ESP32-CAM power tracks) |
| Hardware Buttons Profile | 1× Reset Button, 1× Boot Button (Varies by hardware revision) |
| Physical Dimensions (approx.) | 40 mm × 27 mm × 16 mm |

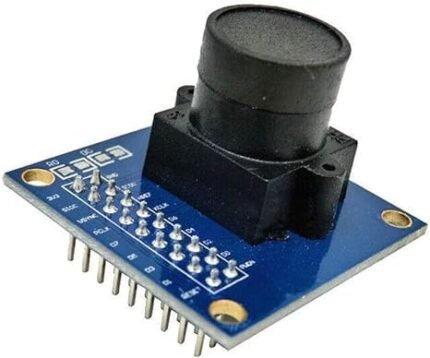

OV7670 VGA Camera Image Sensor Module
Technical Specifications
| Characteristic | Specification Parameters |
|---|---|
| Image Core IC | OmniVision OV7670 CMOS Image Sensor Array |
| Maximum Pixel Resolution | 640 × 480 Pixels (VGA format framework) |
| Maximum Frame Rate | 30 fps at VGA resolution / Up to 60 fps at CIF (352 × 288) resolution |
| Operating Voltage (VDD) | 2.5V to 3.0V DC (Breakout board usually integrates a 3.3V safe regulator) |
| Power Consumption Profile | 60 mW active state / < 20 µA deep-sleep standby mode |
| Optical Lens Array Size | 1/6 inch sensor format with a 25° field of view (FOV) |
| Internal Signal-to-Noise | 46 dB maximum dynamic range |

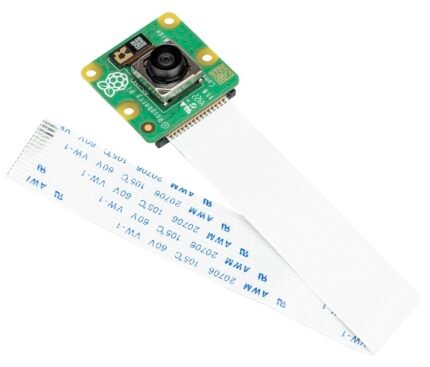

Raspberry Pi Camera Module 3
Technical Specification Details
| Parameter | Specification Details |
|---|---|
| Image Sensor Core | Sony IMX708 Back-Illuminated CMOS Sensor |
| Native Frame Resolution | 11.9 Megapixels |
| Max Image Dimensions | 4608 × 2592 Pixels (Native 16:9 aspect ratio) |
| Supported Video Formats | 1080p @ 50fps | 720p @ 100fps | VGA @ 120fps |
| Focus Mechanism | Phase Detection Autofocus (PDAF) + Contrast Autofocus |
| Aperture & Lens Profile | F2.0 Aperture | 2.75mm Wide Focal Length |
| Field of View (FoV) | 102° Horizontal | 67° Vertical (120° Diagonal) |
| High Dynamic Range (HDR) | Supported (up to 3MP output resolution in HDR mode) |
| Physical Dimensions | 25.0 mm × 24.0 mm × 12.4 mm |
Raspberry Pi Camera Module V2 (8MP)
Technical Specification Details
| Parameter | Specification Details |
|---|---|
| Image Sensor Hardware | Sony IMX219PQ CMOS Sensor Core |
| Native Frame Resolution | 8 Megapixels |
| Max Image Array Dimensions | 3280 × 2464 Pixels |
| Supported Video Formats | 1080p @ 30fps | 720p @ 60fps | 640×480p @ 90fps |
| Optical Lens Profile | 1/4-inch Focal Format |
| Field of View (FoV) | 62.2° Horizontal | 48.8° Vertical |
| Maximum Exposure Speed | 11.76 Seconds (Enables advanced low-light photography) |
| Communication Pipeline | MIPI Camera Serial Interface (CSI-2 protocol) |
| Physical Dimensions | 25.0 mm × 24.0 mm × 9.0 mm |

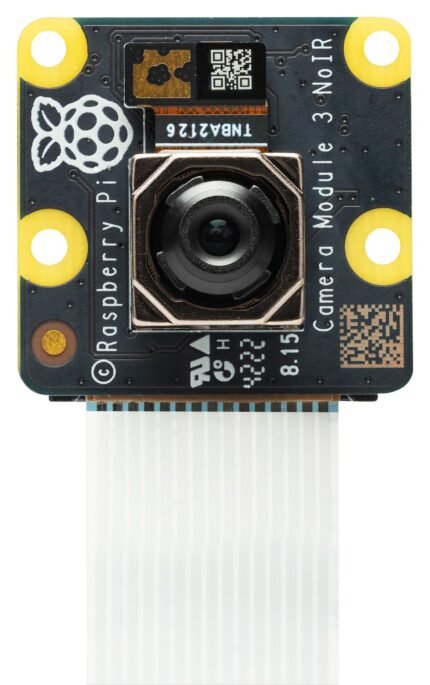

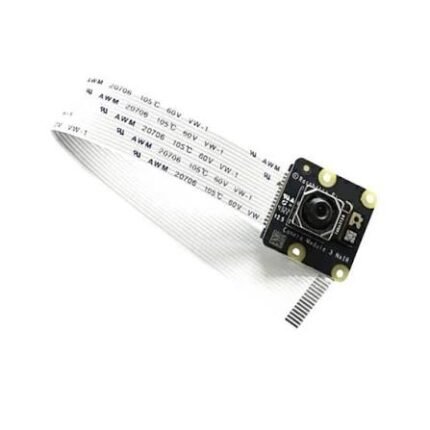

Raspberry Pi NoIR Camera Module 3 (12MP Night Vision).
Technical Specification Details
| Parameter | Specification Details |
|---|---|
| Image Sensor Hardware | Sony IMX708 Back-Illuminated CMOS Sensor Array |
| Native Frame Resolution | 11.9 Megapixels |
| Max Image Array Dimensions | 4608 × 2592 Pixels (Native 16:9 aspect ratio) |
| Supported Video Formats | 1080p @ 50fps | 720p @ 100fps | VGA @ 120fps |
| Focus Mechanism | Phase Detection Autofocus (PDAF) + Contrast Autofocus |
| Aperture & Focal Length | F1.8 Aperture | 4.74mm Focal Length |
| Field of View (FoV) | 66° Horizontal | 41° Vertical (75° Diagonal) |
| High Dynamic Range (HDR) | Supported (up to 3MP output resolution in HDR mode) |
| Physical Dimensions | 25.0 mm × 24.0 mm × 11.5 mm |
Raspberry Pi NoIR Camera Module V2 (8MP)
Technical Specification Details
| Parameter | Specification Details |
|---|---|
| Image Sensor Core | Sony IMX219PQ CMOS Sensor Array |
| Native Frame Resolution | 8 Megapixels |
| Max Image Array Dimensions | 3280 × 2464 Pixels |
| Supported Video Formats | 1080p @ 30fps | 720p @ 60fps | 640×480p @ 90fps |
| Optical Size & F-Stop | 1/4-inch Focal Format | F2.0 Focal Ratio |
| Field of View (FoV) | 62.2° Horizontal | 48.8° Vertical |
| Depth of Field Range | 10 cm to Infinity (Fixed-focus profile) |
| Interface Port Type | MIPI Camera Serial Interface (CSI-2 protocol via flat ribbon) |
| Physical Dimensions | 25.0 mm × 24.0 mm × 9.0 mm |
