Showing all 7 results

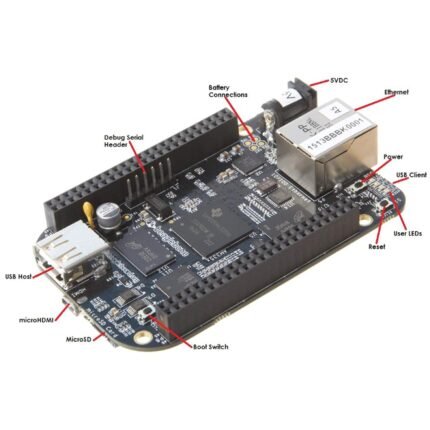

BeagleBone Black Rev C
Technical Specification Details
| Parameter | Specification Details |
|---|---|
| Main Processing SoC | Texas Instruments Sitara AM3358AZCZ100 (ARM Cortex-A8) |
| Clock Processing Speed | 1 GHz Core |
| Co-Processors | 2 × 32-bit Programmable Real-Time Units (PRUs) running at 200MHz |
| System Memories | 512 MB DDR3 RAM + 4 GB eMMC Onboard Flash Storage |
| Graphics Core Hardware | SGX530 3D Graphics Accelerator Engine |
| Video Output Connector | Micro-HDMI interface port (Supports audio channels) |
| Network Interfaces | 10/100M Fast Ethernet (RJ45 Port) |
| USB Hub Interface | 1 × USB 2.0 Type-A Host Port | 1 × Mini-USB Client Port for Power & Debug |
| Storage Expansion | MicroSD Card Slot interface module |
| System Interface Logic | 3.3V Logic Levels (Pins are NOT 5V tolerant) |
| Input DC Power Tolerances | 5V DC via Barrel Jack (2.1mm center positive) or Mini-USB port |
NUCLEO-F411RE – STM32 Nucleo-64 Development Board with STM32F411RE MCU
Technical Specifications
| Specification | Details |
|---|---|
| Product | NUCLEO-F411RE |
| Board Type | STM32 Nucleo-64 |
| MCU | STM32F411RET6 |
| CPU Core | Arm Cortex-M4 with FPU and DSP |
| Maximum Frequency | 100 MHz |
| Flash Memory | 512 KB |
| SRAM | 128 KB |
| Debugger/Programmer | ST-LINK/V2-1 |
| USB | USB connectivity via ST-LINK |
| Expansion | Arduino Uno Rev3-compatible + ST morpho headers |
| ADC | 12-bit ADC |
| USART | 3 |
| SPI/I2S | Up to 5 SPI/I2S interfaces |
| I2C | Up to 3 |
| USB OTG | USB 2.0 Full-Speed |
| Timers | 6 × 16-bit + 2 × 32-bit timers |
| Operating Voltage | 1.7 V – 3.6 V MCU supply |
| Board | MB1136 Nucleo-64 |
| Applications | IoT, robotics, automation, embedded systems, sensor interfacing and prototyping |
ST-LINK/V2 Programmer and Debugger for STM8 & STM32
Technical Specifications
| Specification | Details |
|---|---|
| Product | ST-LINK/V2 |
| Device Type | In-Circuit Programmer & Debugger |
| Supported MCUs | STM8, STM32 |
| STM32 Interface | SWD / JTAG |
| STM8 Interface | SWIM |
| PC Interface | USB Full-Speed |
| Programming | In-Circuit / In-System Programming |
| Debugging | In-Circuit Debugging |
| Software Support | STM32CubeIDE, STM32CubeProgrammer, IAR, Keil and compatible tools |
| Target Connection | SWD/JTAG/SWIM connector |
ST-LINK/V2 Programmer for STM8 and STM32
Technical Specifications
| Specification | Details |
|---|---|
| Product | ST-LINK/V2 Programmer & Debugger |
| Supported MCUs | STM8 and STM32 |
| STM32 Interface | SWD / JTAG |
| STM8 Interface | SWIM |
| USB Interface | USB 2.0 Full Speed |
| USB Connector | USB |
| Target Voltage | Approx. 1.65 V – 5.5 V depending on interface/board version |
| Programming | Supported |
| Debugging | Supported |
| Status Indicator | LED |
| Firmware Update | Supported on compatible versions |
| Dimensions | Approx. 56 × 20.5 × 8.5 mm for common compact versions |
| Weight | Approx. 15 g |
| Applications | Embedded systems, robotics, automation, industrial electronics and prototyping |
STM32F103C8T6 ARM Development Board – Blue Pill
Technical Specifications
| Specification | Details |
|---|---|
| Product | STM32F103C8T6 ARM Development Board |
| Board Type | Blue Pill / Minimum System Development Board |
| MCU | STM32F103C8T6 |
| CPU Core | 32-bit ARM Cortex-M3 |
| Maximum Frequency | 72 MHz |
| Flash Memory | 64 KB |
| SRAM | 20 KB |
| Debug Interface | SWD |
| USB | USB 2.0 interface |
| Operating Voltage | 2.0 V – 3.6 V |
| User Interface | Reset button and LED |
| GPIO | Multiple accessible GPIO pins |
| Board Dimensions | Approx. 53 × 22 mm |
| Applications | Embedded systems, robotics, automation, IoT, sensors, control systems and prototyping |
STM32F407G-DISC1 Discovery Kit
Technical Specifications
| Specification | Details |
|---|---|
| Product | STM32F407G-DISC1 |
| Board Reference | MB997 |
| MCU | STM32F407VGT6 |
| MCU Core | 32-bit Arm Cortex-M4 with FPU and DSP |
| Maximum CPU Frequency | Up to 168 MHz |
| Flash Memory | 1 MB |
| SRAM | Up to 192 KB |
| Debugger/Programmer | On-board ST-LINK/V2-A |
| USB | USB OTG Full-Speed, Micro-AB connector |
| Accelerometer | 3-axis MEMS digital accelerometer |
| Microphone | Digital MEMS microphone |
| Audio | Audio DAC with integrated Class-D speaker driver |
| User Interface | LEDs and push buttons |
| Expansion | Extension header connectors |
| Debug Interfaces | SWD / JTAG |
| Applications | Embedded systems, audio, IoT, robotics, automation, education and prototyping |
| Software Support | STM32CubeF4, STM32CubeIDE and compatible ARM development environments |
STM32F446RE-STM32 Nucleo-64 Development Board
Technical Specifications
| Specification | Details |
|---|---|
| Product | NUCLEO-F446RE |
| Board Type | STM32 Nucleo-64 |
| MCU | STM32F446RE |
| CPU Core | 32-bit Arm Cortex-M4 with FPU and DSP |
| Maximum Frequency | 180 MHz |
| Flash Memory | 512 KB |
| SRAM | 128 KB |
| Debugger/Programmer | ST-LINK/V2-1 |
| User LED | 1 |
| Push Buttons | User + Reset |
| Expansion Interface | Arduino Uno Rev3 compatible |
| Additional Expansion | ST morpho headers |
| Oscillator | 32.768 kHz crystal |
| Power Supply | ST-LINK USB VBUS or external source |
| Development Tools | STM32CubeIDE, IAR, MDK-ARM |
| Applications | IoT, robotics, automation, motor control, sensors, embedded systems and prototyping |
