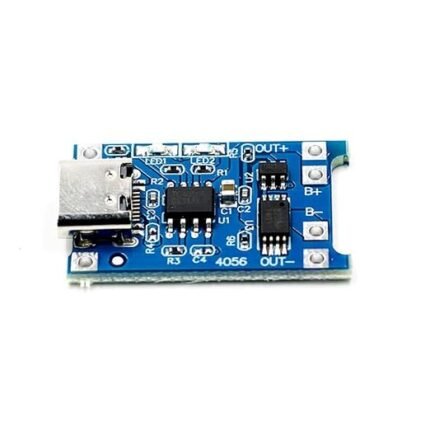

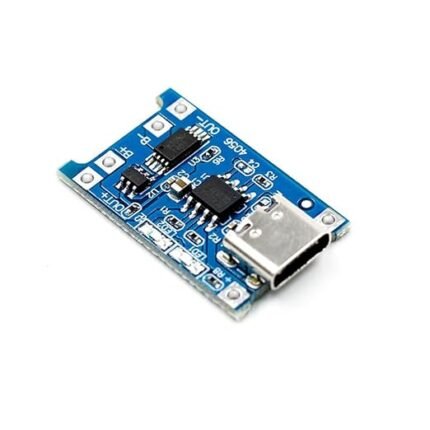

TP4056 1A Lithium Battery Charging Module
Technical Specifications
| Characteristic | Specification Parameters |
|---|---|
| Dedicated Main Controller IC | Top Power TP4056 (Linear Lithium-Ion Charger Chip) |
| Input Supply Voltage (VIN) | 4.5V to 5.5V DC (Highly optimized for standard 5V USB lines) |
| Full-Charge Cut-Off Voltage | 4.2V DC ± 1.5% Precise Accuracy |
| Max Charge Current Capacity | 1,000 mA (1A Default standard output) |
| Under-Voltage Cut-Off (Protection) | ~2.4V to 2.5V DC (Prevents deep discharge battery death) |
| Over-Current Trigger Threshold | ~3.0A Trip Limit (Protects cells against short-circuit spikes) |
| Main Input Interface Variations | Micro-USB, Mini-USB, or modern high-speed USB Type-C |
| Module Physical Frame Footprint | Approx. 25 mm × 19 mm × 5 mm (Ultra-lightweight profile) |
