Name: ESP8266 ESP-01 Serial Wi-Fi Transceiver Module
SKU: VE-118
Availability: InStock

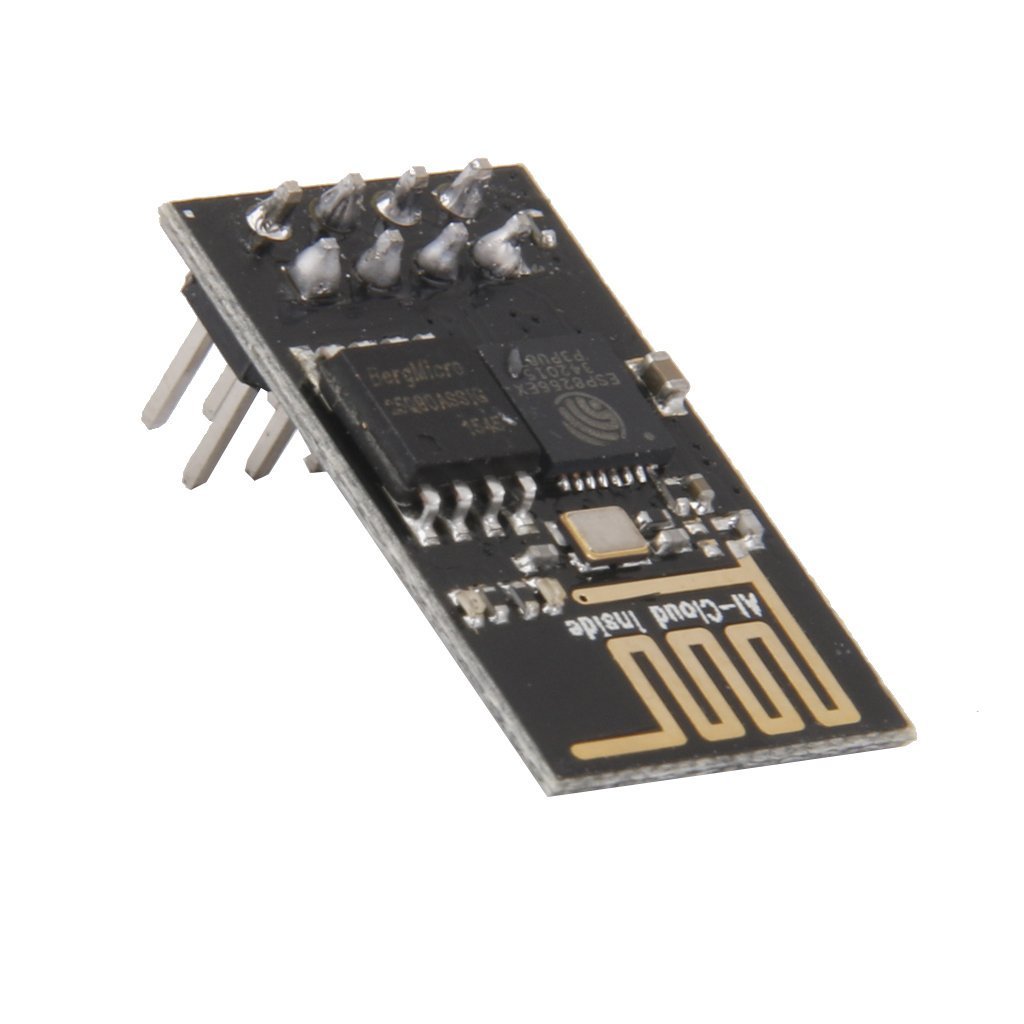

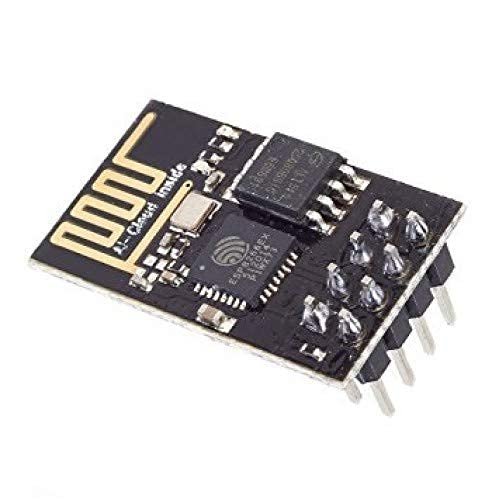

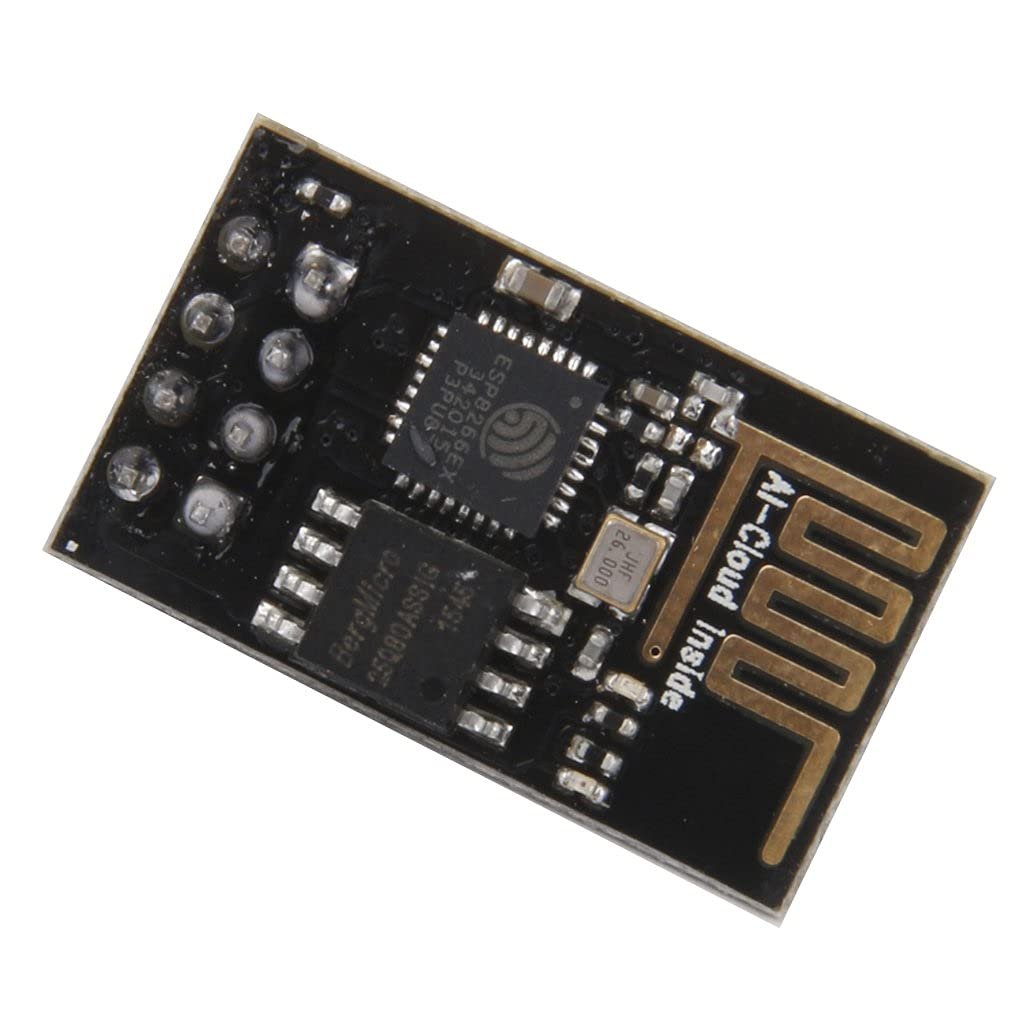

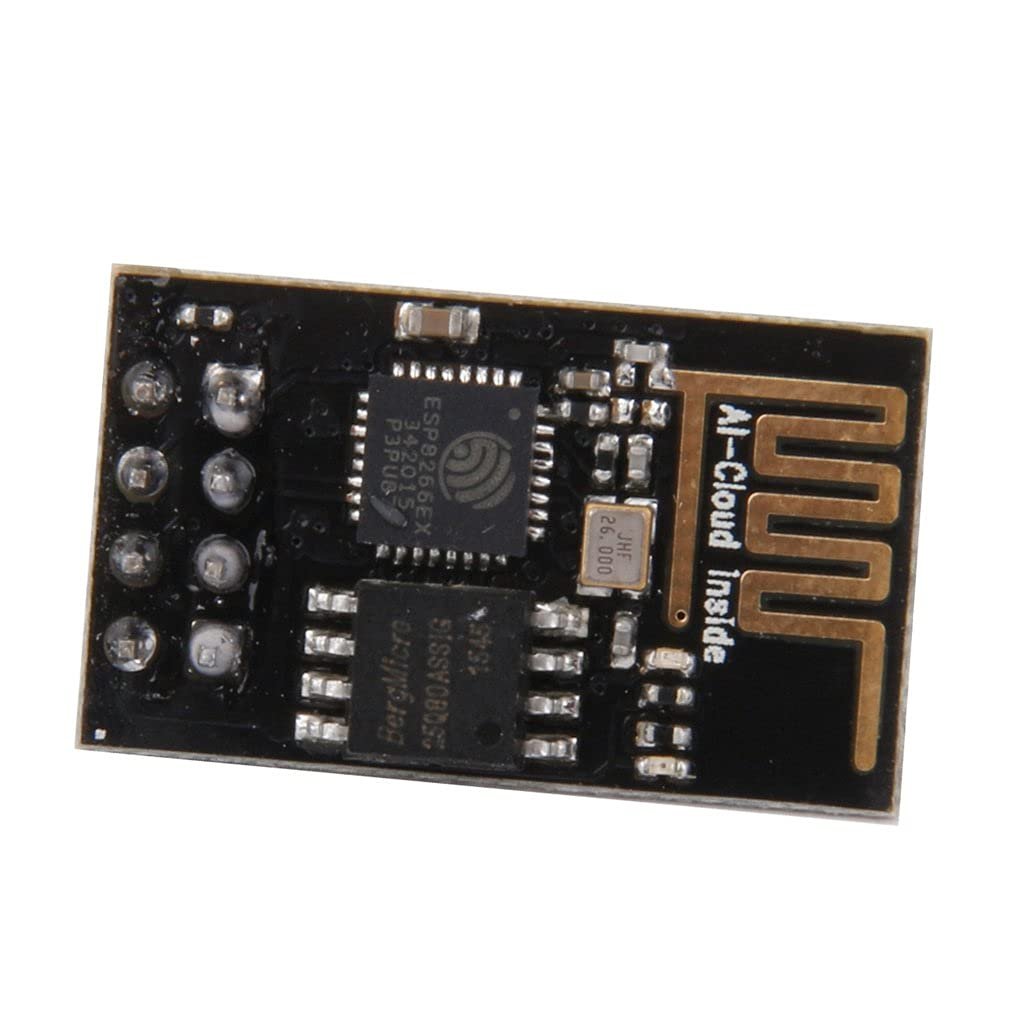

ESP8266 ESP-01 Serial Wi-Fi Transceiver Module

Technical Specifications

Characteristic	Specification Parameters
Core Processor	Tensilica 32-bit RISC CPU Xtensa LX106 (Clocked at 80 MHz)
Onboard Flash Memory	512 KB to 1 MB SPI Flash (Variant dependent)
Operating Voltage (VCC)	Strictly 3.3V DC (Inputs are not 5V tolerant)
Current Consumption	~70 mA average (Spikes up to 200 mA during wireless transmission)
Wi-Fi Protocol Standard	IEEE 802.11 b/g/n (Operating at 2.4 GHz frequency band)
Output Power Capability	+19.5 dBm in 802.11b operational mode
Module Outer Dimensions	Approx. 25 mm × 15 mm × 11 mm

SKU: VE-118 Category: ESP

The ESP8266 ESP-01 Serial Wi-Fi Transceiver Module is a microscopic, self-contained system-on-chip (SoC) designed to provide wireless internet connectivity to electronics projects. Commonly used alongside microcontrollers like Arduino Uno, it runs an integrated TCP/IP protocol stack out-of-the-box. Despite its small footprint, it can function either as a standalone wireless controller or as a Wi-Fi adapter using simple serial AT commands, making it a foundational component for budget-friendly Internet of Things (IoT) nodes.

✨ Key Features

Standalone IoT Capability: Operates as a completely independent, low-power 32-bit application processor to host basic local micro-programs.
Integrated Protocol Stack: Outfitted with a complete on-chip TCP/IP engine, handling wireless networking routines automatically without consuming external memory.
Dual-Mode Networking: Supports Station (STA) mode to join local routers, Soft-Access Point (AP) mode to broadcast its own network, or combined dual-mode operations.
Ultra-Compact Footprint: Features a miniature 2×4 physical pin design layout optimized for space-constrained remote sensors and wearables

-21%

Click to enlarge

Back to products

Original price was: ₹190.00.Current price is: ₹150.00.

Characteristic	Specification Parameters
Core Processor	Tensilica 32-bit RISC CPU Xtensa LX106 (Clocked at 80 MHz)
Onboard Flash Memory	512 KB to 1 MB SPI Flash (Variant dependent)
Operating Voltage (VCC)	Strictly 3.3V DC (Inputs are not 5V tolerant)
Current Consumption	~70 mA average (Spikes up to 200 mA during wireless transmission)
Wi-Fi Protocol Standard	IEEE 802.11 b/g/n (Operating at 2.4 GHz frequency band)
Output Power Capability	+19.5 dBm in 802.11b operational mode
Module Outer Dimensions	Approx. 25 mm × 15 mm × 11 mm
