Name: PL2303 USB to TTL Serial Converter Module
SKU: VE-129
Availability: InStock

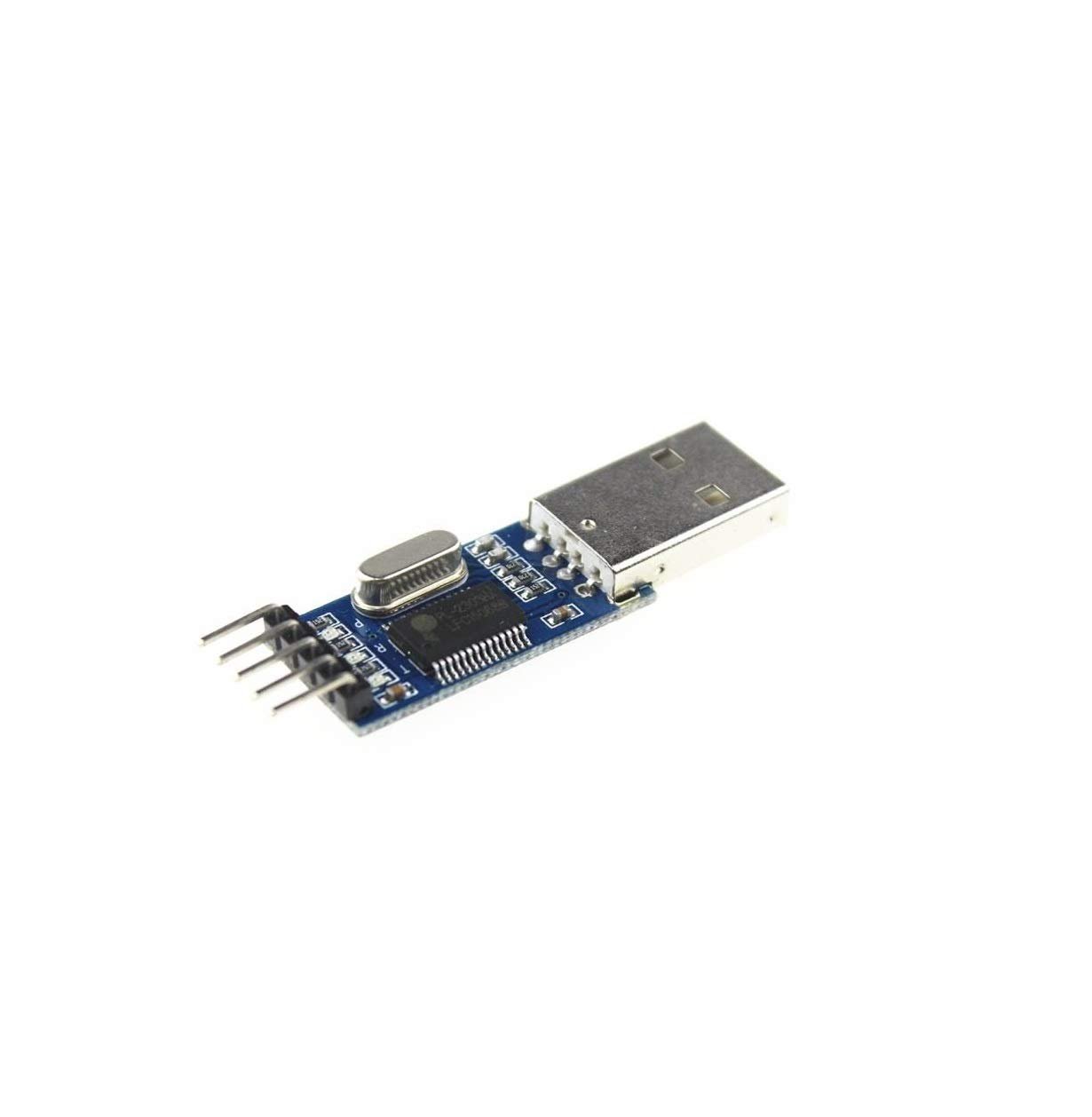

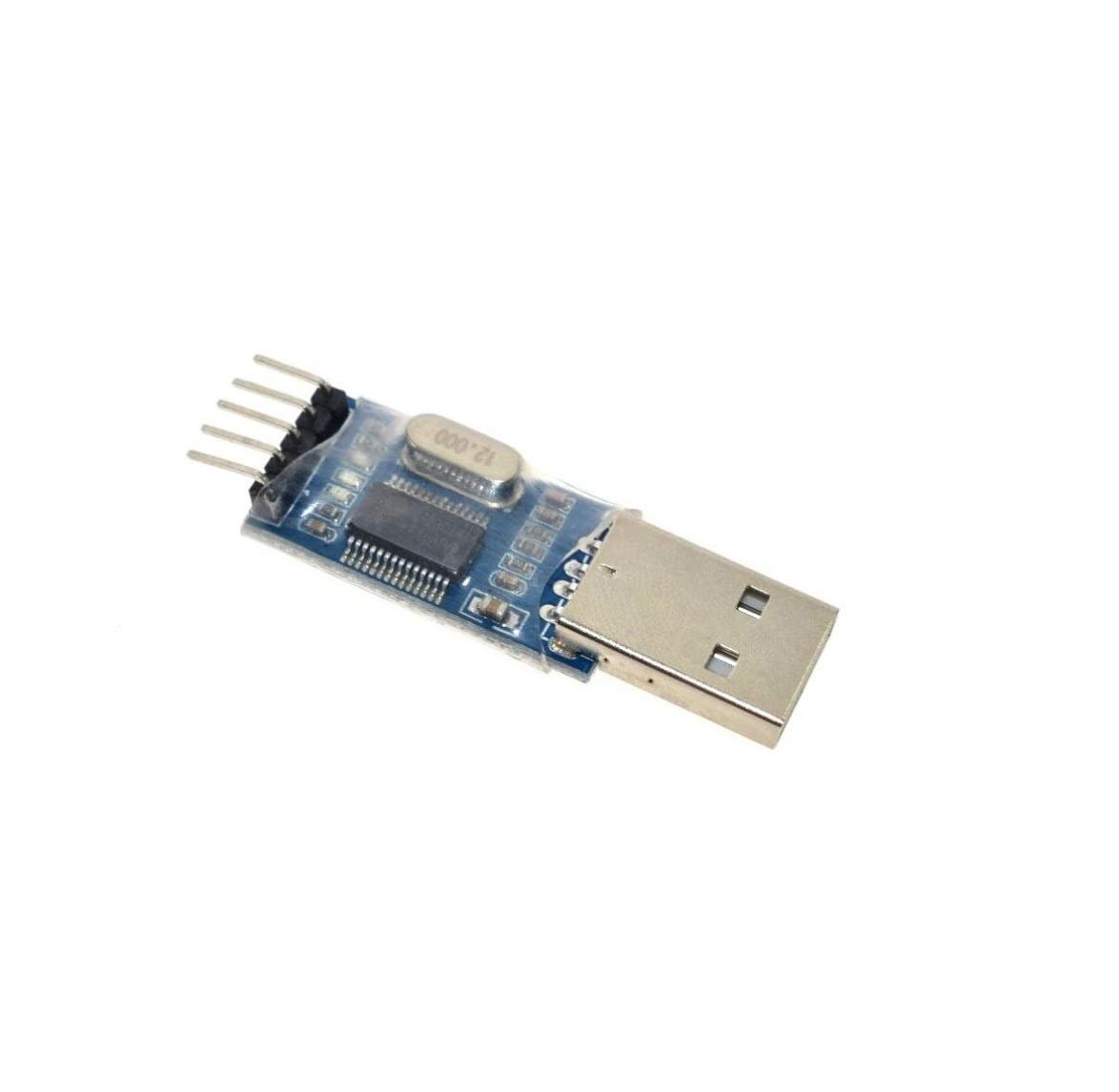

PL2303 USB to TTL Serial Converter Module

Technical Specifications

Characteristic	Specification Parameters
Core Controller IC	Prolific Technology PL2303 / PL2303HX / PL2303TA
Physical Input Interface	USB Type-A Male Plug
Supported Transmission Rates	300 bps up to 1 Mbps standard matching speed limits
Logic Threshold Level	3.3V / 5.0V Dual TTL compatible signals
Power Output Delivery	3.3V DC and 5.0V DC output paths
Data Transmission Buffers	128-byte inbound buffer / 256-byte outbound buffer
Status Monitoring	2 Onboard LEDs for real-time TX and RX traffic logging

SKU: VE-129 Category: Converters

The PL2303 USB to TTL Serial Converter Module (featuring chipsets like the PL2303HX or PL2303TA) is an ultra-low-cost hardware bridge designed to establish asynchronous serial communication between a computer and a microcontroller. Developed by Prolific Technology, it acts as a virtual COM port on your computer, translating USB standard signals into low-voltage serial data streams. It is one of the most widely produced budget tools for flashing firmware on routers, updating hard drive software, configuring Bluetooth modules, and debugging entry-level electronics.

✨ Key Features

High Economic Value: Offers an exceptionally low-cost entry point for basic serial communications compared to premium alternatives.

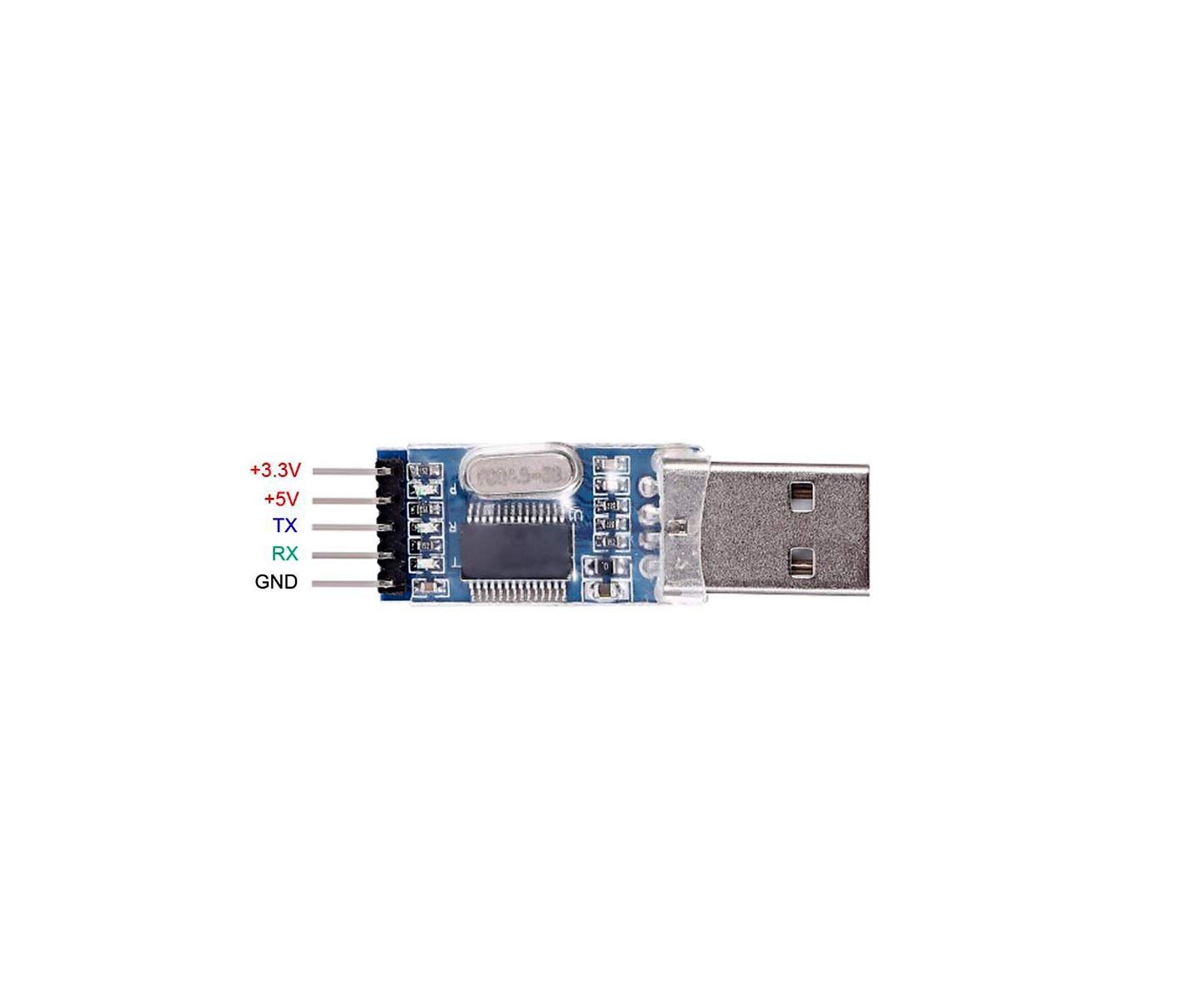

Built-in Power Distribution: Outfitted with independent pins to output both 3.3V and 5V power simultaneously to run small external loads.
Short-Circuit Overload Guard: Populated with an onboard 500mA self-recovery polyfuse that instantly cuts current during short circuits to protect the host PC.
Encapsulated Protective Shield: The module version usually comes pre-installed inside a transparent heat-shrink sleeve to insulate the naked circuit board from loose workbench wires. [

-25%

Click to enlarge

Back to products

Original price was: ₹200.00.Current price is: ₹150.00.

Characteristic	Specification Parameters
Core Controller IC	Prolific Technology PL2303 / PL2303HX / PL2303TA
Physical Input Interface	USB Type-A Male Plug
Supported Transmission Rates	300 bps up to 1 Mbps standard matching speed limits
Logic Threshold Level	3.3V / 5.0V Dual TTL compatible signals
Power Output Delivery	3.3V DC and 5.0V DC output paths
Data Transmission Buffers	128-byte inbound buffer / 256-byte outbound buffer
Status Monitoring	2 Onboard LEDs for real-time TX and RX traffic logging
