Name: CH340 USB to TTL Serial Converter Module
SKU: VE-128
Availability: InStock

CH340 USB to TTL Serial Converter Module

Technical Specifications

Characteristic	Specification Parameters
Core Controller IC	Jiangsu Qinheng Co. (WCH) CH340G / CH340C / CH340E
Physical Input Interface	USB Type-A Male, Micro-USB, or USB Type-C Female Port
Supported Baud Rates	50 bps up to 2 Mbps full hardware speed matching
Signal Logic Threshold	3.3V and 5.0V TTL levels (Jumper or Switch configurable)
Onboard Power Outputs	Direct 5V (USB Bus supply) and an integrated 3.3V power rail line
Hardware Handshaking	Full modem interface support pins (DTR, RTS) broken out on select boards
Module Outer Dimensions	Approx. 38 mm × 16 mm × 11 mm (Standard stick form factor)

SKU: VE-128 Category: Converters

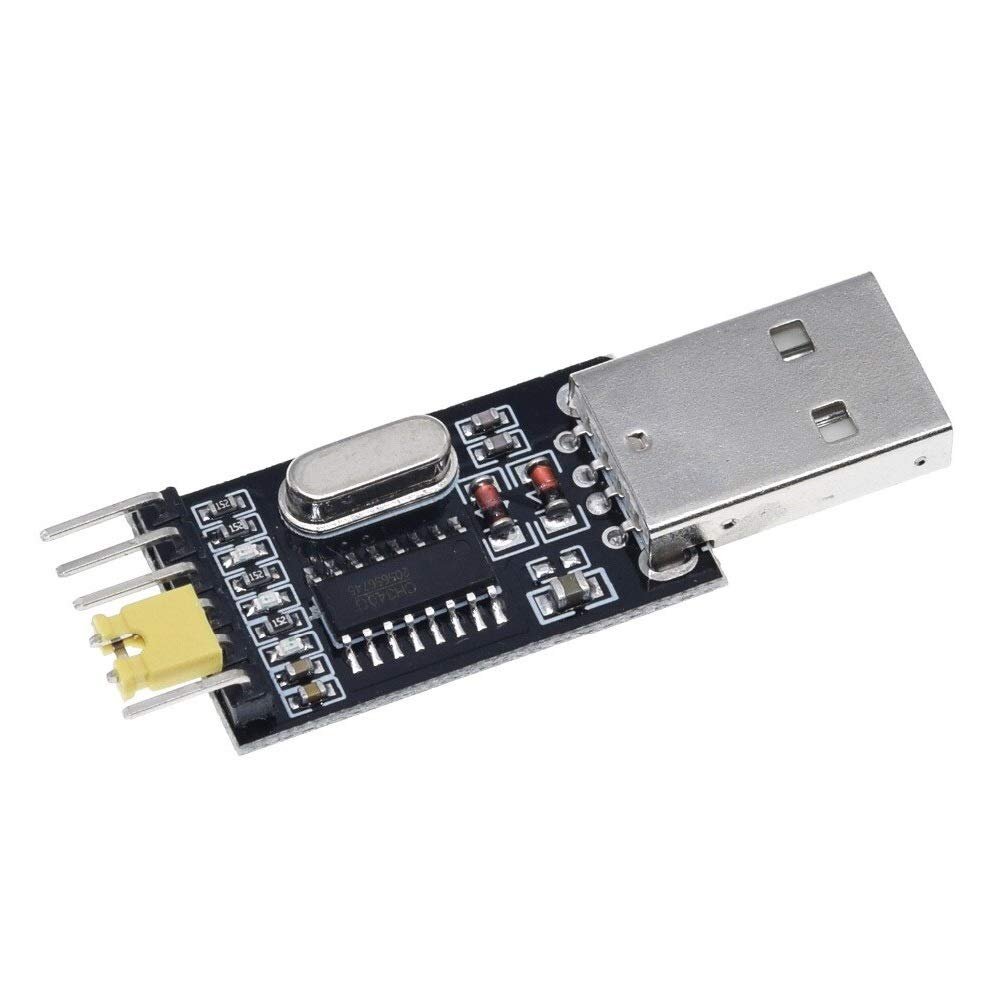

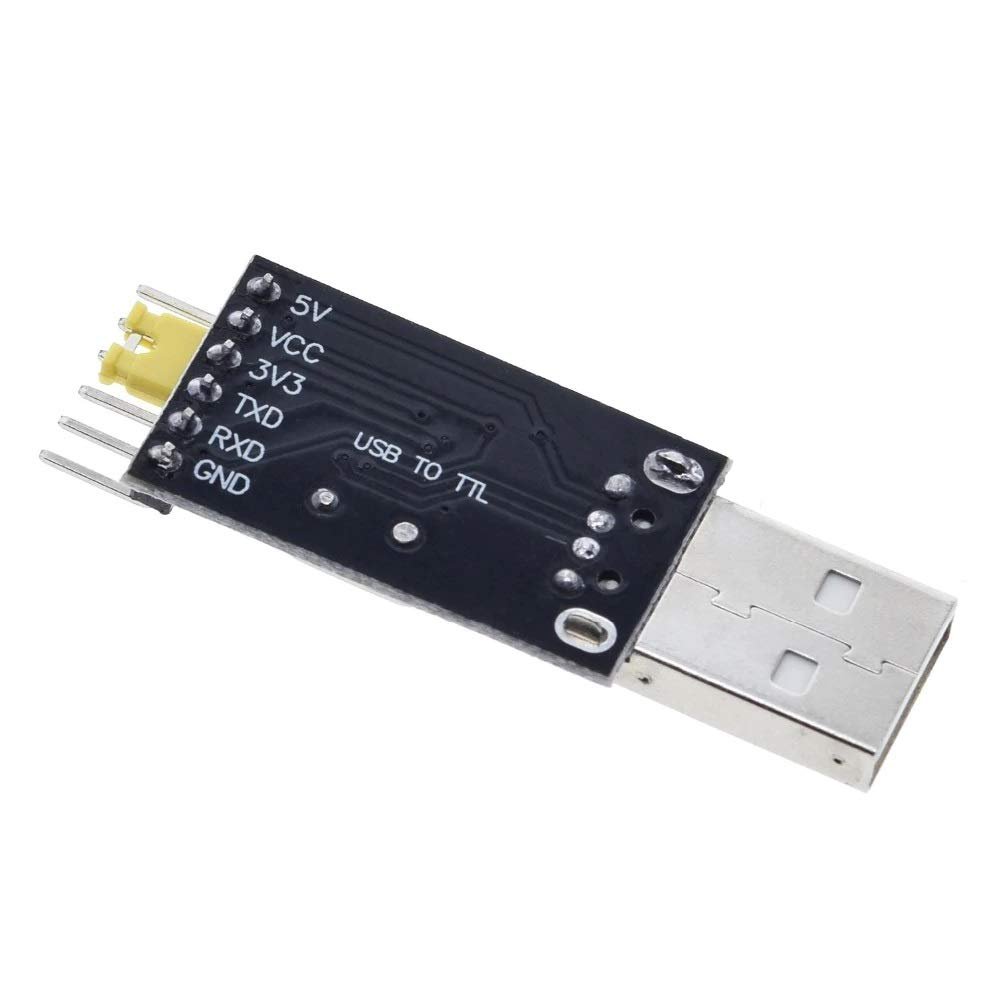

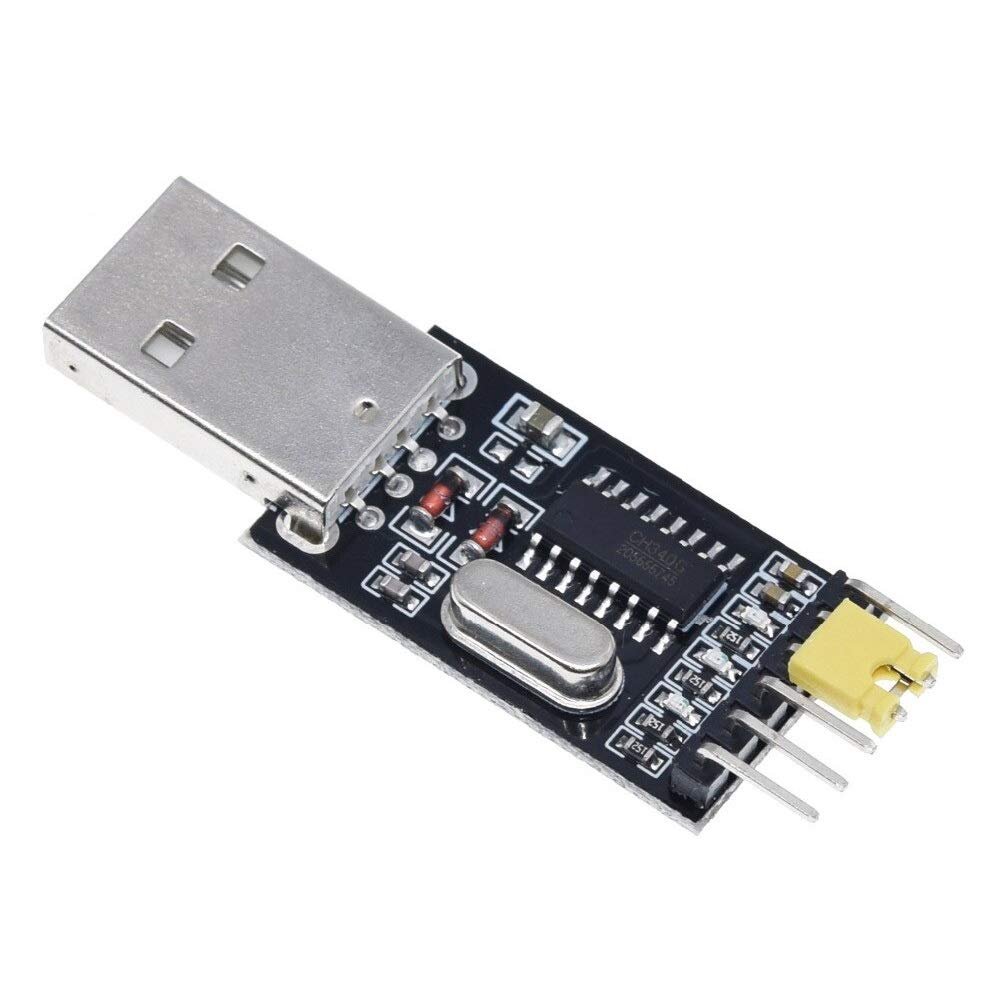

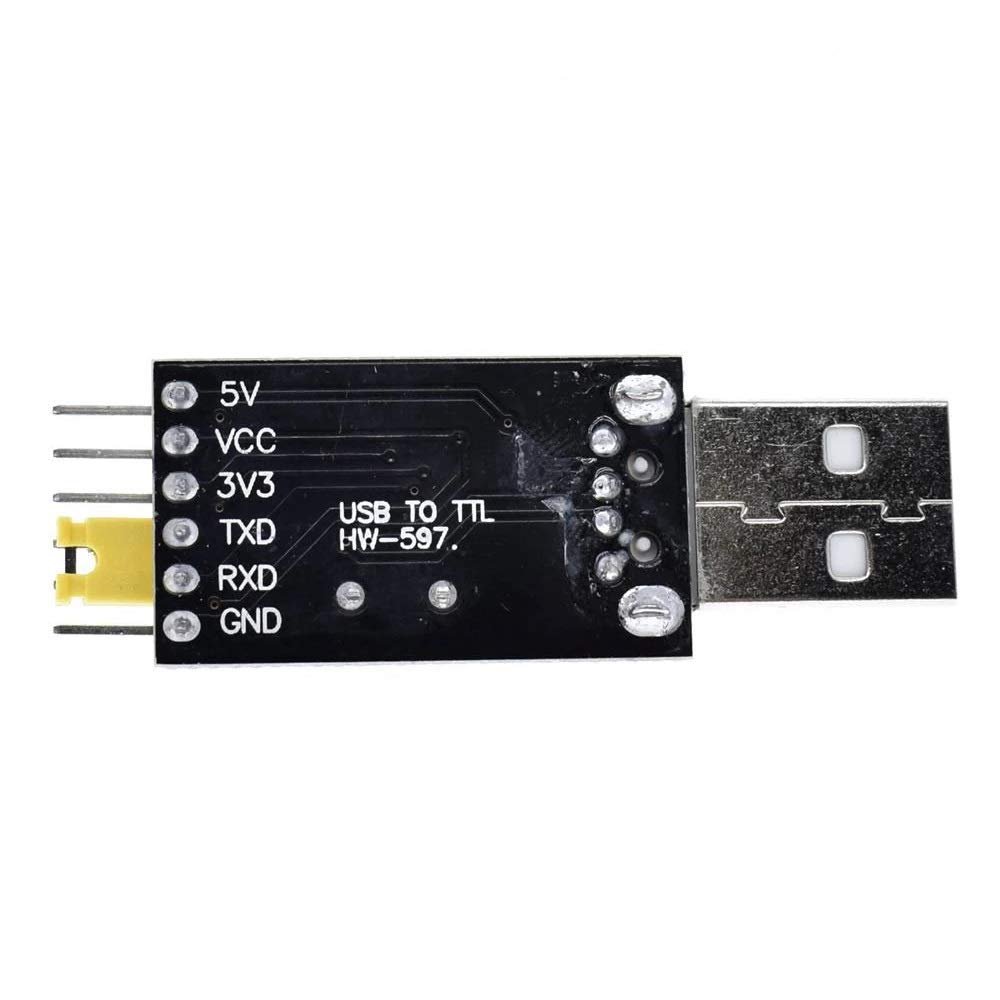

The CH340 USB to TTL Serial Converter Module is a highly cost-effective, durable hardware bridging card designed to establish asynchronous serial data communication between a computer and a microcontroller. Built around the widely adopted WCH CH340 family chipset (such as the CH340G or CH340E), it acts as a virtual COM port on your computer, translating USB signals down to standard transistor-transistor logic (TTL) data streams. It is the absolute industry baseline standard for low-cost firmware programming and real-time serial terminal log debugging.

✨ Key Features

Maximum Cost Efficiency: Delivers reliable asynchronous UART data bridging at a fraction of the cost of premium chipsets, making it standard on hobby boards.
Onboard External Oscillator (CH340G): Employs a dedicated 12MHz crystal oscillator circuit to guarantee stable baud rate clock generation and prevent data parsing drifting.
Dual Operating Logic Selection: Features an onboard slide switch or a manual jumper configuration to instantly shift logic signal voltage between 3.3V and 5V.
Universal OS Driver Ecosystem: Supported across major platforms (Windows, macOS, Linux, and Android) via readily available WCH virtual serial port drivers.

-25%

Click to enlarge

Back to products

Original price was: ₹200.00.Current price is: ₹150.00.

Characteristic	Specification Parameters
Core Controller IC	Jiangsu Qinheng Co. (WCH) CH340G / CH340C / CH340E
Physical Input Interface	USB Type-A Male, Micro-USB, or USB Type-C Female Port
Supported Baud Rates	50 bps up to 2 Mbps full hardware speed matching
Signal Logic Threshold	3.3V and 5.0V TTL levels (Jumper or Switch configurable)
Onboard Power Outputs	Direct 5V (USB Bus supply) and an integrated 3.3V power rail line
Hardware Handshaking	Full modem interface support pins (DTR, RTS) broken out on select boards
Module Outer Dimensions	Approx. 38 mm × 16 mm × 11 mm (Standard stick form factor)
