Name: PL2303 USB to TTL Serial Converter Cable
SKU: VE-130
Availability: InStock

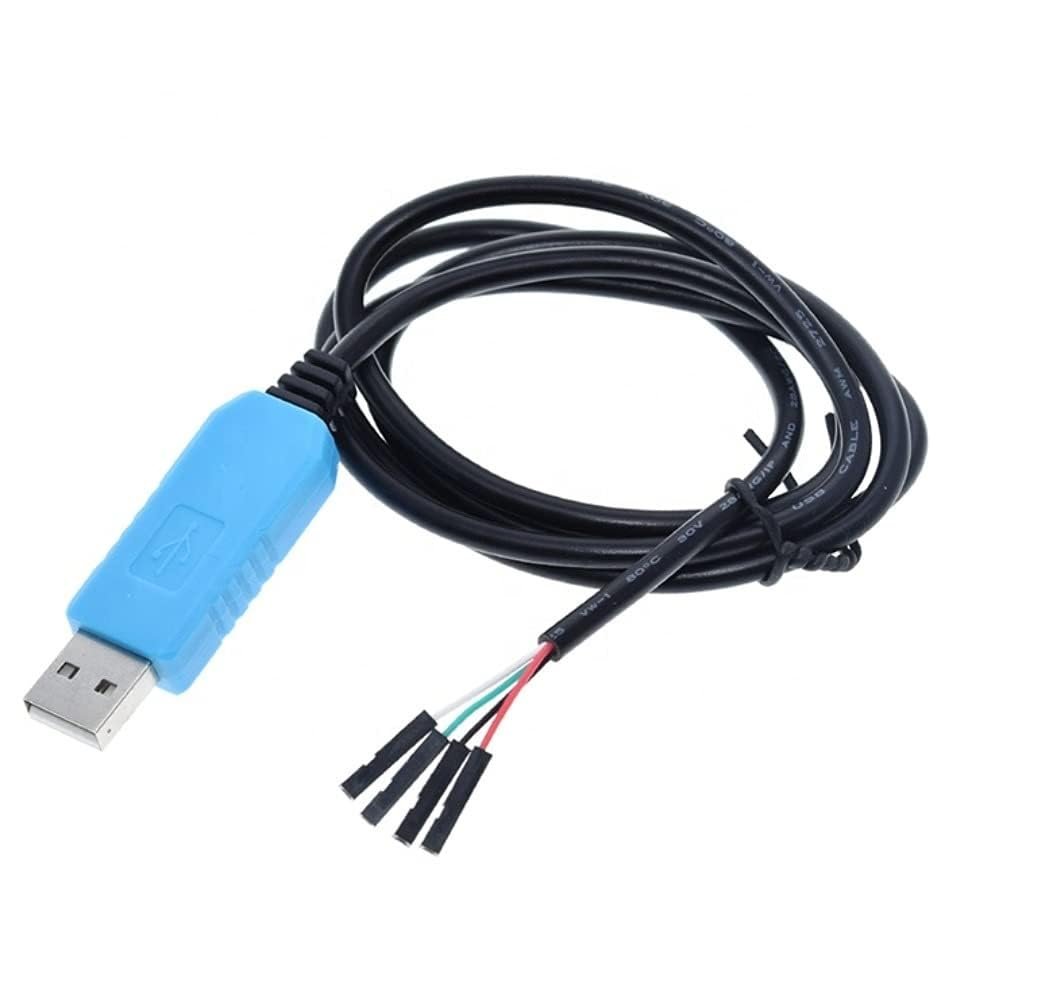

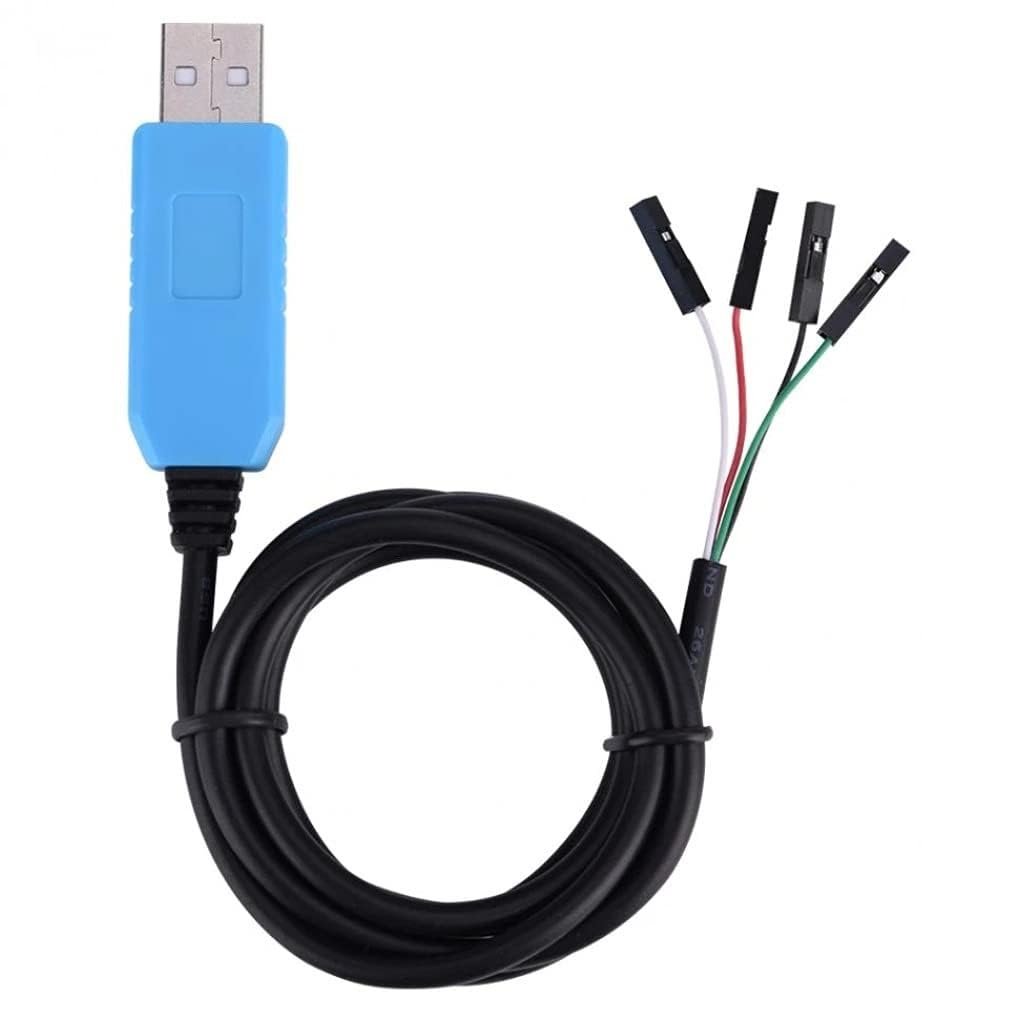

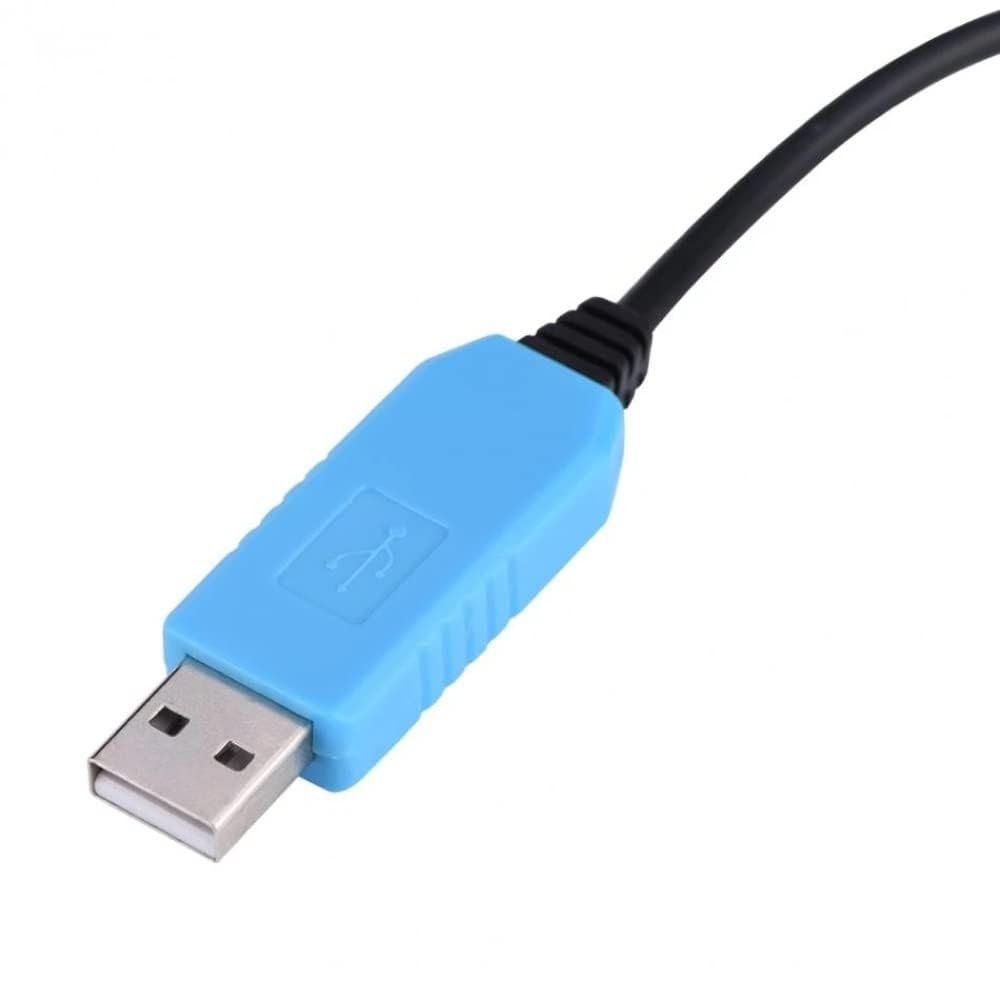

PL2303 USB to TTL Serial Converter Cable

Technical Specifications

Characteristic	Specification Parameters
Embedded Controller IC	Prolific Technology PL2303HX / PL2303TA / PL2303GS
Host Computer Port	Standard USB Type-A Male Interface
Cable Length Profile	Approximately 1.0 Meter (3.3 Feet)
Logic Signal Threshold	3.3V TTL Level Logic (Standard model assignment)
Integrated Power Output	Fixed 5.0V DC output path pulled from host USB port
Supported Baud Rates	300 bps up to 1 Mbps or 6 Mbps (Depending on PL2303 generation)
Wire Terminal Interface	4 Pin Individual Female JST/Dupont Receptacles

SKU: VE-130 Category: Converters

The PL2303 USB to TTL Serial Converter Cable is an all-in-one data bridge that embeds a Prolific serial converter chip directly inside its USB Type-A housing. Instead of breaking out into a naked circuit board with pin headers, this module terminates in a 1-meter insulated cable with independent female jumper connectors. It acts as a virtual COM port on a computer, translating standard USB signals into low-voltage asynchronous serial data. This rugged form factor makes it the top choice for accessing headless Linux consoles on a Raspberry Pi, unbricking network routers, and flashing firmware onto set-top boxes.

✨ Key Features

Fully Encapsulated Form Factor: Houses the converter electronics safely inside the molded plastic USB connector shell, protecting the silicon from workbench shorts.
Direct Breadboard Interfacing: Terminated with four color-coded, 0.1-inch pitch female header receptacles to allow quick connection without loose wiring paths.
Tough Insulated Shielding: Outfitted with a flexible, 1-meter PVC protective jacket that safeguards internal signal paths against physical strain and tangles.
Low-Cost Diagnostic Tool

-25%

Click to enlarge

Back to products

Original price was: ₹200.00.Current price is: ₹150.00.

Characteristic	Specification Parameters
Embedded Controller IC	Prolific Technology PL2303HX / PL2303TA / PL2303GS
Host Computer Port	Standard USB Type-A Male Interface
Cable Length Profile	Approximately 1.0 Meter (3.3 Feet)
Logic Signal Threshold	3.3V TTL Level Logic (Standard model assignment)
Integrated Power Output	Fixed 5.0V DC output path pulled from host USB port
Supported Baud Rates	300 bps up to 1 Mbps or 6 Mbps (Depending on PL2303 generation)
Wire Terminal Interface	4 Pin Individual Female JST/Dupont Receptacles
