Name: Multi-Output DC-DC 12V to 3.3V / 5V / 12V Step-Down Power Module
SKU: VE-137
Availability: InStock

Multi-Output DC-DC 12V to 3.3V / 5V / 12V Step-Down Power Module

Technical Specifications

Characteristic	Specification Parameters
Converter Circuit Form	Non-Isolated Multi-Rail Step-Down (Buck) Power Distribution Hub
Input Supply Voltage (VIN)	6.0V to 12.0V DC (12V recommended to ensure full pass-through tracking)
Available Output Rails	3.3V DC, 5.0V DC, and 12.0V DC Fixed Channels
Output Current Limit	~800 mA per individual low-voltage rail channel
Chassis Interface Format	Standard Red or Black Double-Sided PCB Layout
Onboard Voltage Regulators	AMS1117-3.3 (3.3V rail) and AMS1117-5.0 (5.0V rail) Linear Drops
Module Frame Footprint	Approx. 31 mm × 26 mm × 12 mm (Compact workspace profile)

SKU: VE-137 Category: Converters

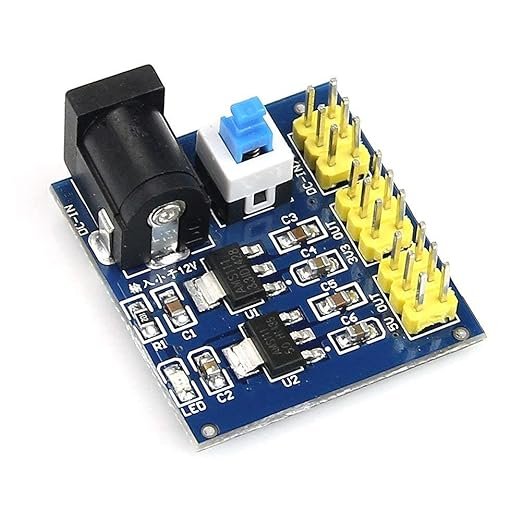

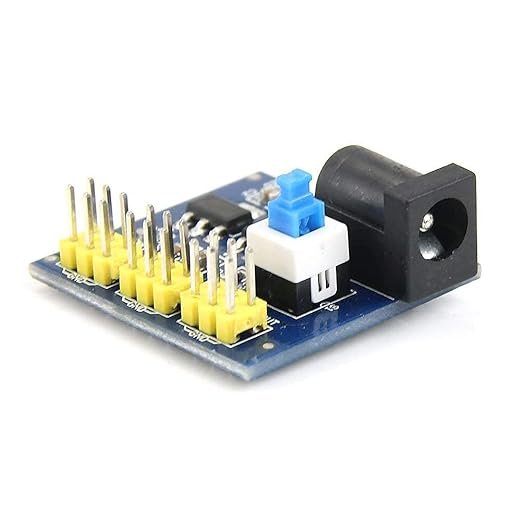

The Multi-Output DC-DC 12V to 3.3V / 5V / 12V Power Module is a multi-rail, fixed-distribution buck converter board designed to supply multiple independent voltage rails from a single power source. Instead of adjusting trim potentiometers or wiring separate buck regulators, this all-in-one distribution card houses fixed linear or switching drops on a single PCB. It acts as an efficient power hub, making it a foundational tool for breadboard prototyping, complex sensor networks, smart home nodes, and multi-component setups that require different voltages simultaneously.

✨ Key Features

Simultaneous Multi-Rail Output: Delivers steady 3.3V, 5V, and 12V power paths at the same time from one central input plug.
Direct 12V Voltage Pass-Through: Features a native bypass lane that routes your input power directly to a 12V terminal, maintaining a dedicated high-voltage rail for motors or fans.
Standard 2.54mm Pin Outbreak: Outfitted with neat rows of pre-soldered male pin headers, enabling easy connection with standard Dupont jumper cables.
Integrated Hardware Power Indicator: Populated with an onboard status LED that glows when the main input line is active, simplifying system troubleshooting.

-23%

Click to enlarge

Back to products

Original price was: ₹65.00.Current price is: ₹50.00.

Characteristic	Specification Parameters
Converter Circuit Form	Non-Isolated Multi-Rail Step-Down (Buck) Power Distribution Hub
Input Supply Voltage (VIN)	6.0V to 12.0V DC (12V recommended to ensure full pass-through tracking)
Available Output Rails	3.3V DC, 5.0V DC, and 12.0V DC Fixed Channels
Output Current Limit	~800 mA per individual low-voltage rail channel
Chassis Interface Format	Standard Red or Black Double-Sided PCB Layout
Onboard Voltage Regulators	AMS1117-3.3 (3.3V rail) and AMS1117-5.0 (5.0V rail) Linear Drops
Module Frame Footprint	Approx. 31 mm × 26 mm × 12 mm (Compact workspace profile)
