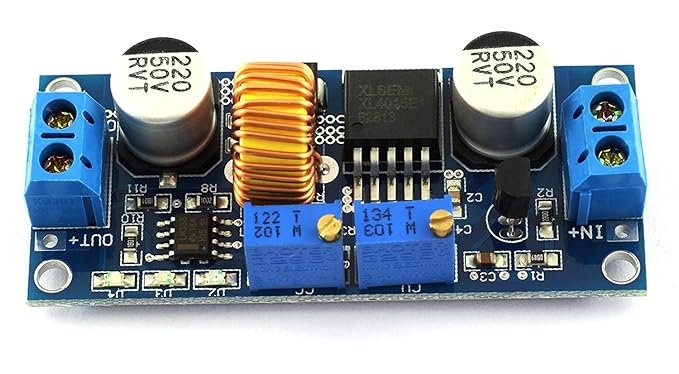

The XL4015 5A DC-DC Adjustable Step-Down Buck Converter Module is a high-power, high-efficiency switching regulator board designed to lower a higher input DC voltage to a stable, lower output DC voltage. Driven by the XL4015 monolithic switching chip, it operates at a fixed frequency of 180 kHz and supports up to 5A loads. It serves as a direct, heavy-duty upgrade to the standard LM2596 module, providing double the current capacity for powering demanding loads like high-power LED matrices, large RC servo networks, and custom battery chargers.
✨ Key Features
- High-Current 5A Output Power: Delivers up to 5A peak output current, easily handling heavy power distribution demands that stall standard 2A buck modules.
- Low Heat Generation Layout: Built with low internal resistance switching paths, achieving up to 96% energy conversion efficiency to keep operating temperatures low.
- Multi-Turn Trimmer Potentiometer: Populated with a precision 25-turn adjustable screw trimmer to accurately lock in your required target output voltage.
- Excellent Line and Load Regulation: Features an active operational layout that limits output voltage ripple, keeping power rails smooth during high load transitions.
