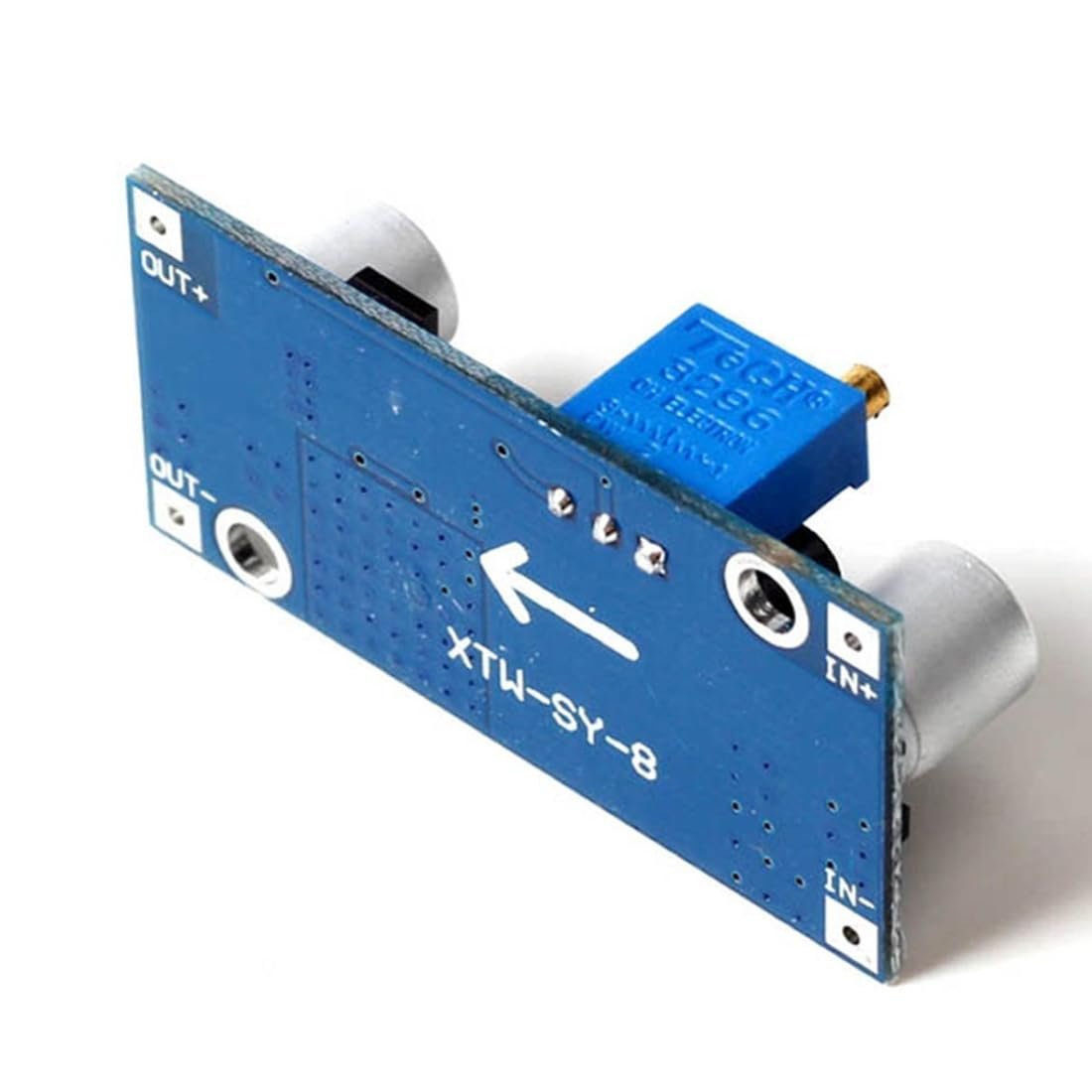

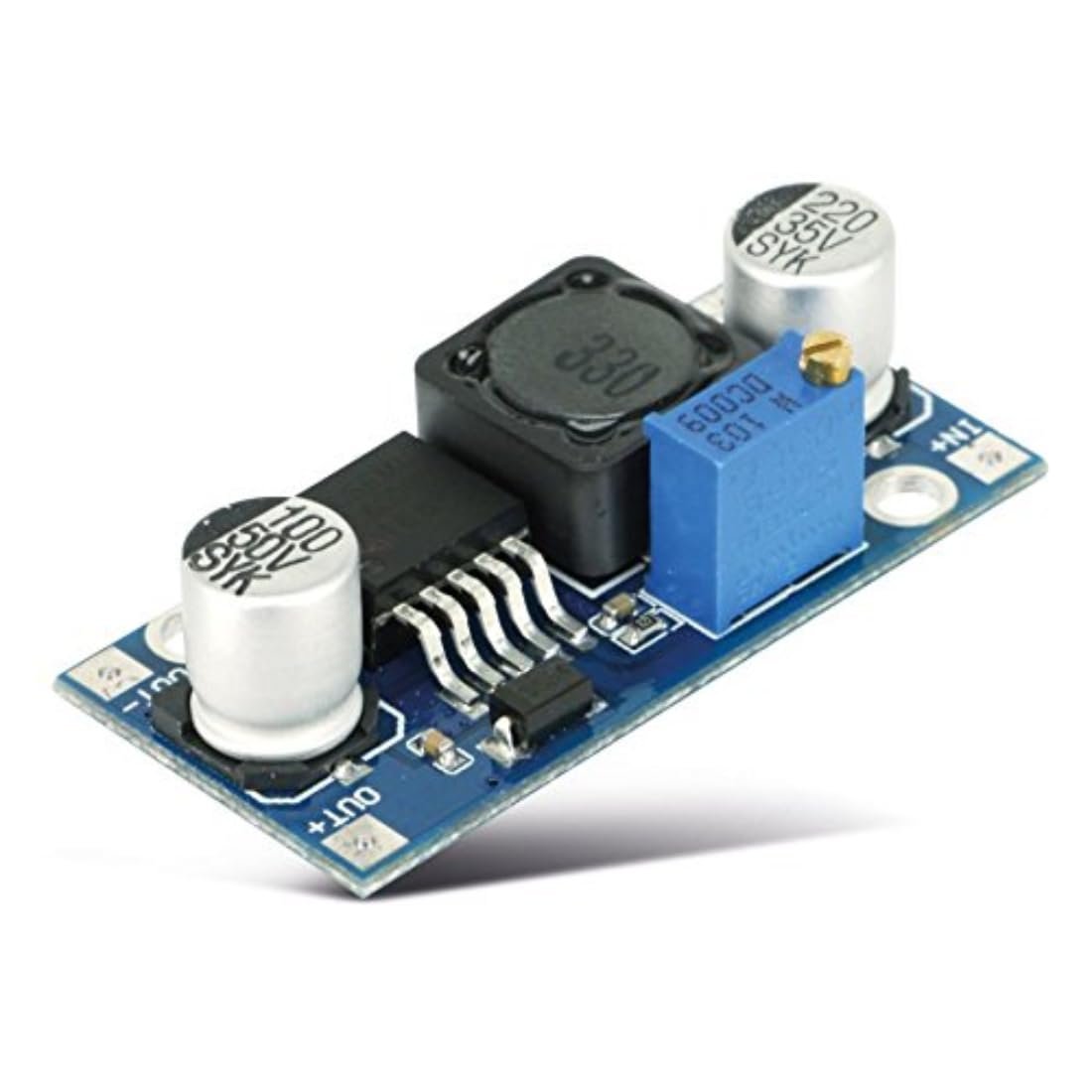

Name: CN6009 / XL6009 DC-DC Adjustable Step-Up Boost Converter Module
SKU: VE-133
Availability: InStock

CN6009 / XL6009 DC-DC Adjustable Step-Up Boost Converter Module

Technical Specifications

Characteristic	Specification Parameters
Converter Circuit Topology	Non-Isolated Step-Up Boost Regulator
Input Supply Voltage (VIN)	3.0V to 32.0V DC (Optimal performance configuration begins at 5.0V)
Adjustable Output (VOUT)	5.0V to 35.0V DC (Output voltage must remain higher than input)
Switch Output Current Limit	4.0A Maximum peak load tracking current (Continuous output rated at 2.0A–3.0A without external cooling)
Fixed Internal Clock	400 kHz Switching Frequency
Maximum Efficiency Profile	Up to 94% Conversion Performance
Output Ripple Voltage	~50 mV to 100 mV peak-to-peak frequency ripple
Chassis Main Dimensions	Approx. 43 mm × 21 mm × 14 mm

SKU: VE-133 Category: Converters

The CN6009 / XL6009 DC-DC Adjustable Step-Up Boost Converter Module is a high-performance power regulation board designed to increase a lower input DC voltage up to a stable, higher output DC voltage. Powered by the second-generation high-frequency XL6009E1 switching regulator chip, it operates as a non-isolated boost circuit running at a fixed frequency of 400 kHz. It serves as a direct, highly efficient upgrade to legacy modules like the LM2577, making it the preferred solution for powering 12V or 24V electronics from basic 3.7V Lithium-ion batteries or 5V USB rails.

✨ Key Features

High-Frequency Switching Core: Operates at 400 kHz, allowing the use of small filtering capacitors while producing minimal output voltage ripple compared to legacy 50 kHz regulators.
Onboard Trimpot Customisation: Outfitted with a precision multi-turn trimmer potentiometer to dynamically dial in your targeted output voltage scale.
Exceptional Power Delivery: Features a built-in 4A high-efficiency MOSFET switch that delivers a significant conversion efficiency rating up to 94%.
