Name: CP2102 USB to TTL Serial Converter Module 6-pin (Black PCB Edition)
SKU: VE-127
Availability: InStock

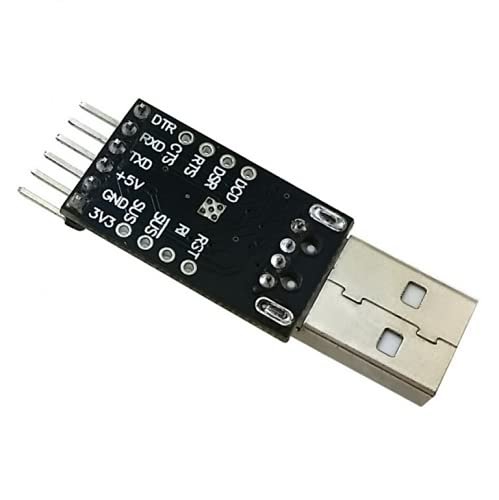

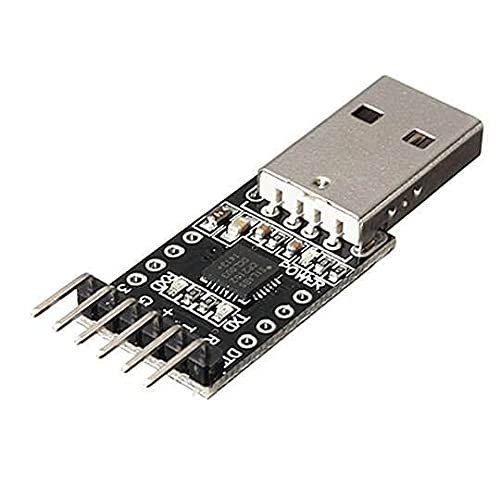

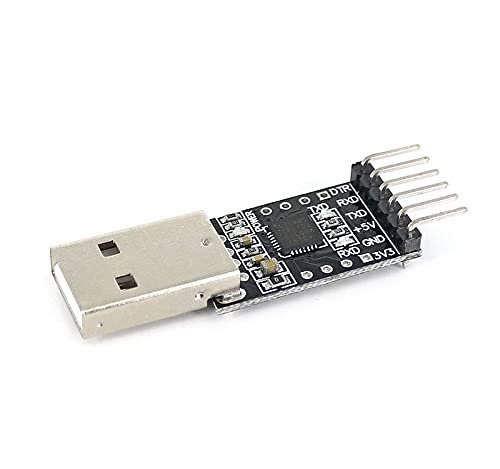

CP2102 USB to TTL Serial Converter Module 6-pin (Black PCB Edition)

Technical Specifications

Characteristic	Specification Parameters
Core Protocol Chipset	Silicon Labs CP2102 USB-to-UART Bridge Controller
PCB Soldermask Color	Matte Black / Glossy Black
PC Input Connector	Standard USB Type-A Male Interface
Data Rate Range	300 bps up to 1.0 Mbps or 1.5 Mbps stable operations
Internal Data Buffers	512-Byte Receive Buffer / 640-Byte Transmit Buffer
Logic Signal Voltage	3.3V TTL Level Logic (Inputs are safely 5V tolerant)
Module Length & Width	Approx. 42 mm × 15 mm

SKU: VE-127 Category: Converters

The CP2102 USB to TTL Serial Converter Module (Black PCB Edition) is a premium version of the standard Silicon Labs CP2102 hardware bridge. While functionally identical to the standard red variant, the black circuit board version is highly popular among developers due to an optimized hardware layout. It exposes the critical DTR (Data Terminal Ready) pin directly on the main 6-pin header instead of a legacy RST pin. This eliminates the need for soldering extra side pins and allows it to plug directly into boards like the Arduino Pro Mini or ESP32 for automated, hands-free firmware flashing.

✨ Key Features

Native Auto-Reset Pin Alignment: Features the DTR pin directly inline with the main 6-pin layout block, enabling instant auto-reset execution without user button coordination.
Silicon Labs Signal Integrity: Uses authentic CP2102 silicon to maintain continuous, high-speed asynchronous data streams up to 1 Mbps without frame corruption.
Dual Simultaneous Power Taps: Provides dedicated, parallel 3.3V and 5V power pads on the chassis to directly energize distinct low-power target sensors.
Computer Port Over-Current Shielding: Includes a surface-mounted self-recovery fuse that automatically trips during short-circuits, safeguarding host PC USB hardware.

-25%

Click to enlarge

Back to products

Original price was: ₹200.00.Current price is: ₹150.00.

Characteristic	Specification Parameters
Core Protocol Chipset	Silicon Labs CP2102 USB-to-UART Bridge Controller
PCB Soldermask Color	Matte Black / Glossy Black
PC Input Connector	Standard USB Type-A Male Interface
Data Rate Range	300 bps up to 1.0 Mbps or 1.5 Mbps stable operations
Internal Data Buffers	512-Byte Receive Buffer / 640-Byte Transmit Buffer
Logic Signal Voltage	3.3V TTL Level Logic (Inputs are safely 5V tolerant)
Module Length & Width	Approx. 42 mm × 15 mm
