Name: ESP32-CAM-MB Micro USB Programmer Base Board
SKU: VE-122
Availability: InStock

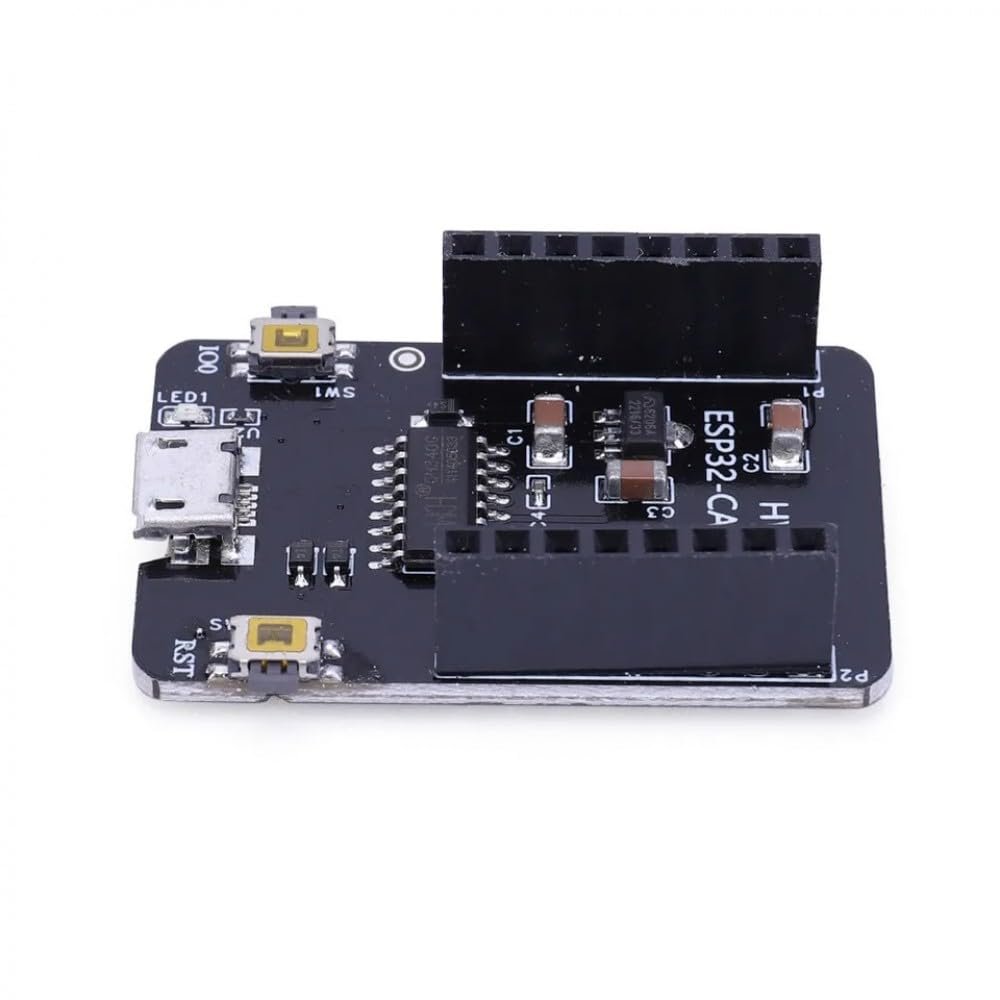

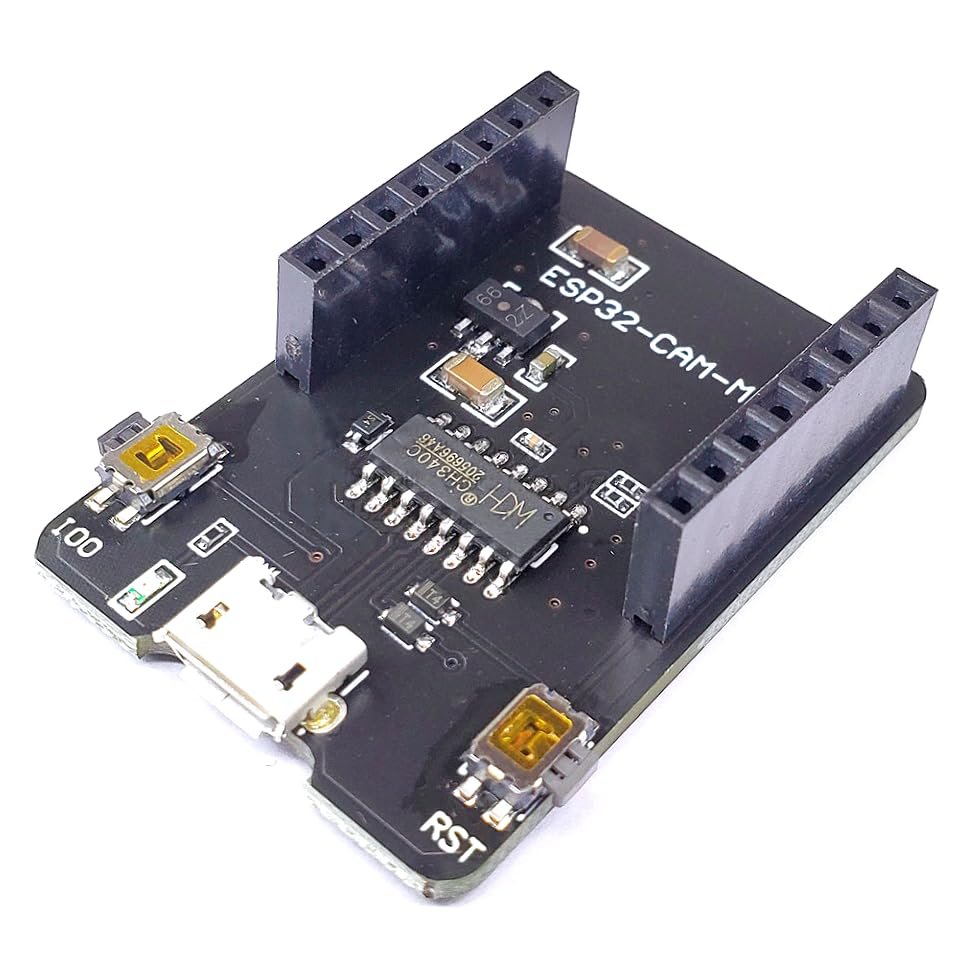

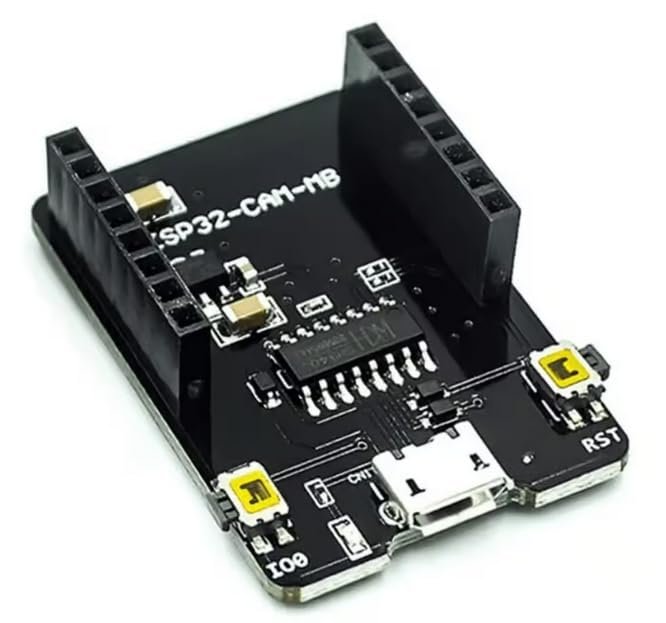

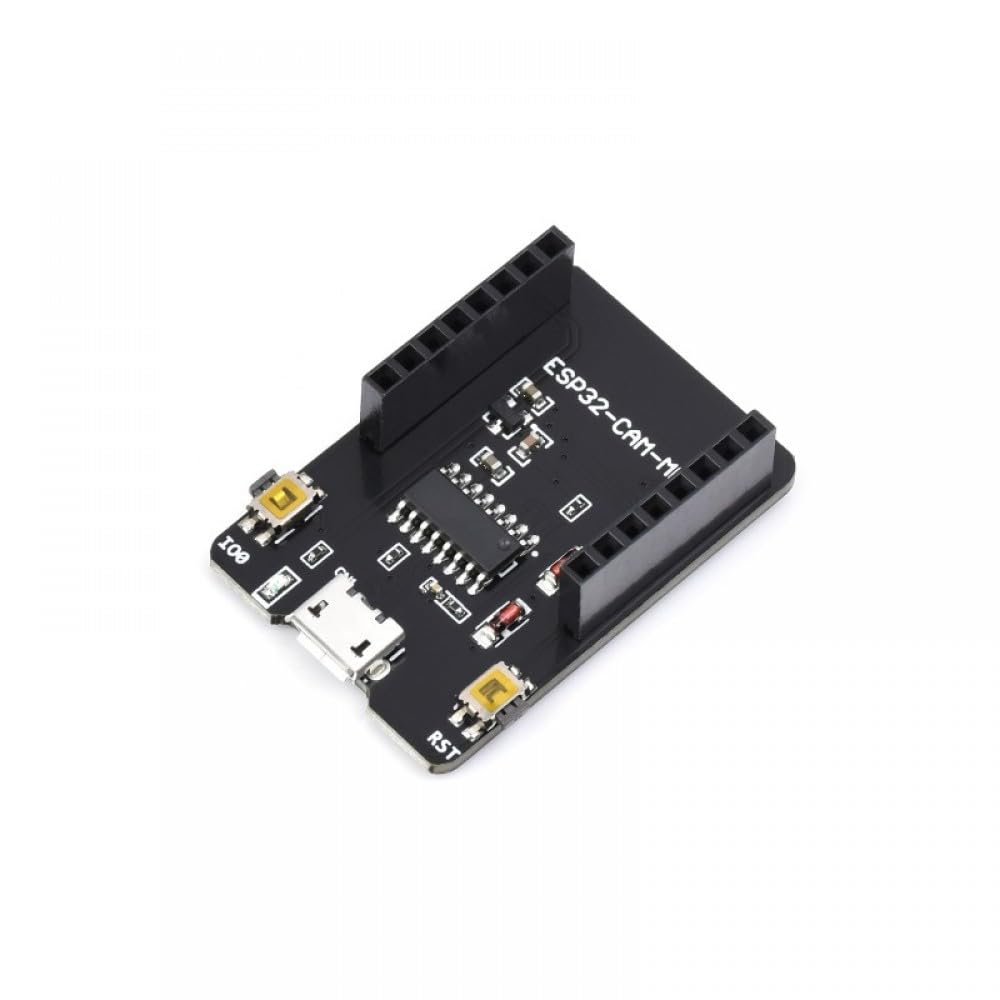

ESP32-CAM-MB Micro USB Programmer Base Board

Technical Specifications

Characteristic	Specification Parameters
Compatible Companion Hardware	AI-Thinker Form-Factor ESP32-CAM W/ OV2640 / OV3660
USB Communication Port	Micro-USB or USB Type-C Interfacing (Variant dependent)
Onboard USB-to-Serial Driver	Silicon Labs CH340 Series (CH340G / CH340C)
Input Supply Voltage (VBUS)	5.0V DC via USB Bus line
Onboard Voltage Regulation	Drops 5V down to 3.3V Output (Feeds ESP32-CAM power tracks)
Hardware Buttons Profile	1× Reset Button, 1× Boot Button (Varies by hardware revision)
Physical Dimensions (approx.)	40 mm × 27 mm × 16 mm

SKU: VE-122 Categories: Camera Module, ESP

The ESP32-CAM-MB Micro USB Programmer Base Board is a custom daughter-shield adapter designed specifically to streamline the code-flashing and power delivery process for the standalone ESP32-CAM module. Because standard ESP32-CAM modules lack an integrated USB port, developers historically relied on cumbersome manual jumper wiring and external FTDI USB-to-TTL breakout tools to load code. This base board completely eliminates that hassle by acting as a direct plug-and-play cradle, adding a standardized USB port, an automated bootloader circuit, and dedicated control buttons.

✨ Key Features

Integrated Hardware Serial Converter: Populated with an onboard CH340G or CH340C USB-to-UART bridge chip to establish clean serial terminal pipelines over a single cable.
Zero-Jumper Auto-Flash Sequencing: Features an automatic data-line strapping circuit that handles the BOOT (GPIO 0 to GND) transition automatically, allowing one-click uploads from software IDEs.
Dedicated Onboard Micro-Tactile Switches: Outfitted with a physical mechanical Reset (RST) button and sometimes a Boot switch to allow manual runtime reboots and flashing entry overrides.
Stable Dual-Stage Power Conditioning: Includes onboard step-down low-dropout (LDO) linear regulators that convert standard 5V USB line power into a clean, high-current 3.3V rail.
