Name: ESP32-CAM Wi-Fi + Bluetooth Camera Development Module
SKU: VE-121
Availability: InStock

ESP32-CAM Wi-Fi + Bluetooth Camera Development Module

Technical Specifications

Characteristic	Specification Parameters
Core Processor	Tensilica 32-bit RISC CPU Xtensa Dual-Core LX6 (Up to 240 MHz)
Memory Buffer	520 KB Internal SRAM + 4 MB External PSRAM (Required for image buffering)
Wireless Transceivers	2.4 GHz Wi-Fi (802.11b/g/n) + Bluetooth v4.2 BR/EDR & BLE standard
Supported Image Sensors	OV2640 (Standard choice) and OV7670 camera modules
Maximum Resolution	1600 × 1200 Pixels (UXGA resolution framework)
Storage Socket Type	Onboard MicroSD Card Slot (Supports SPI communication paths)
Default Image Output	JPEG, BMP, Grayscale formats

SKU: VE-121 Categories: Camera Module, ESP

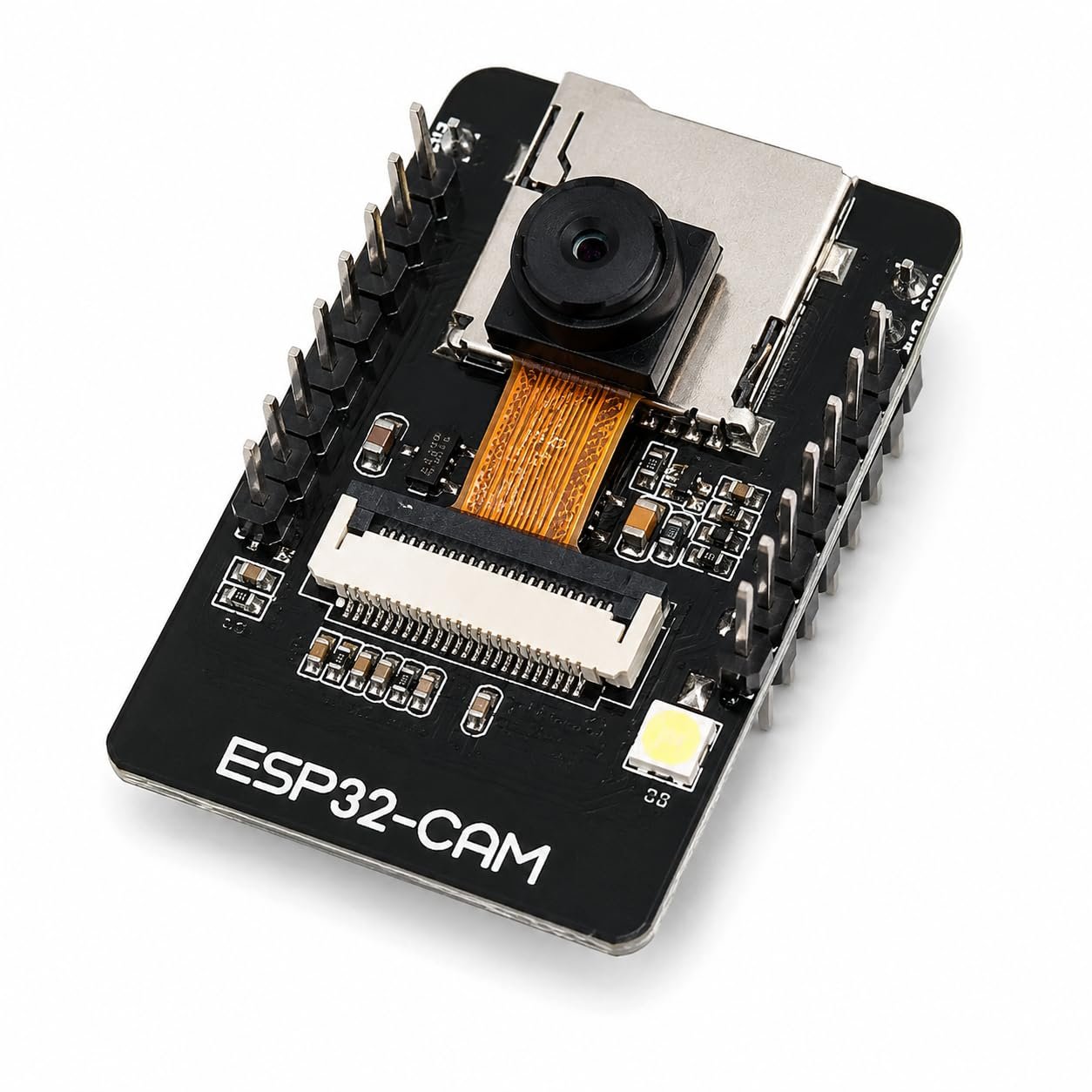

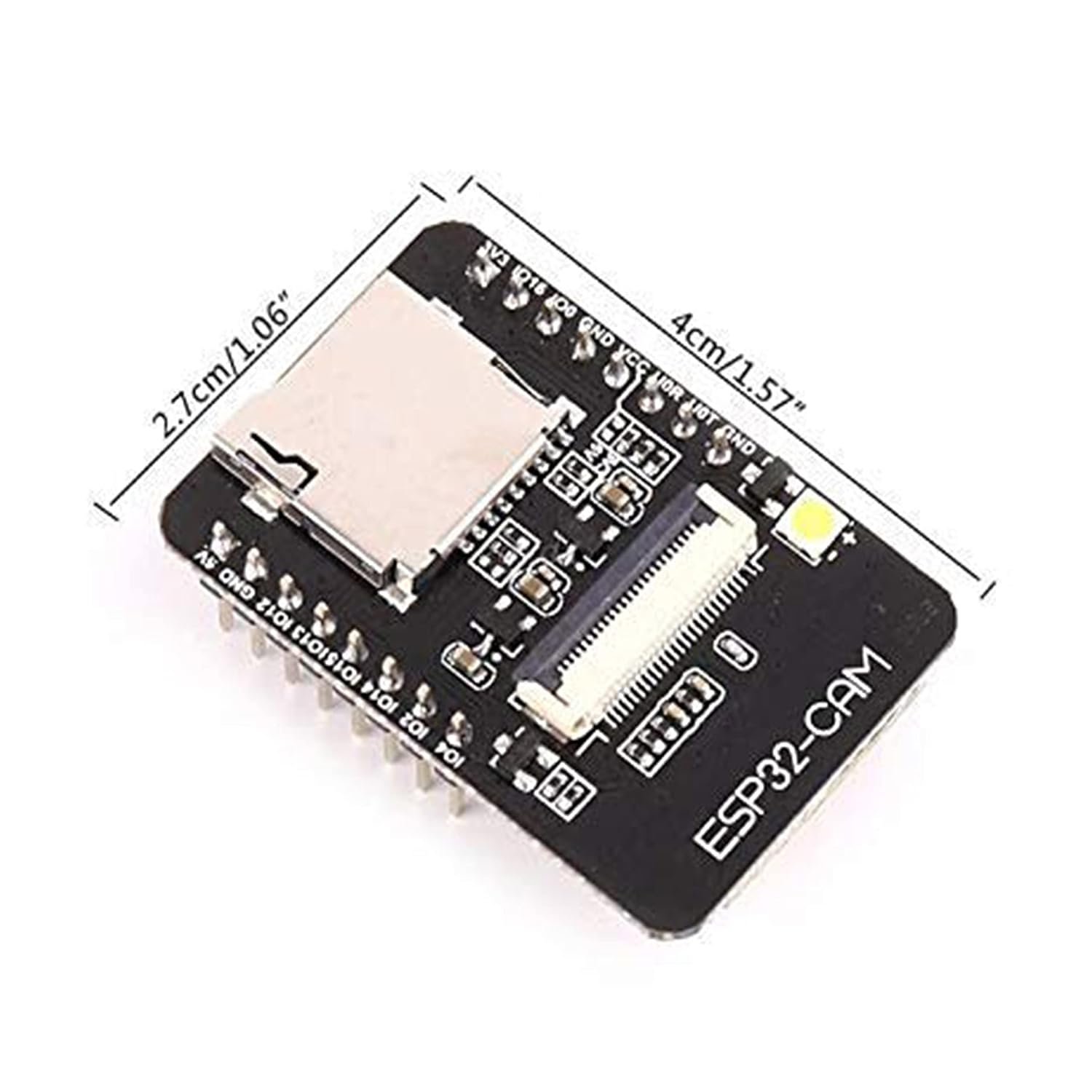

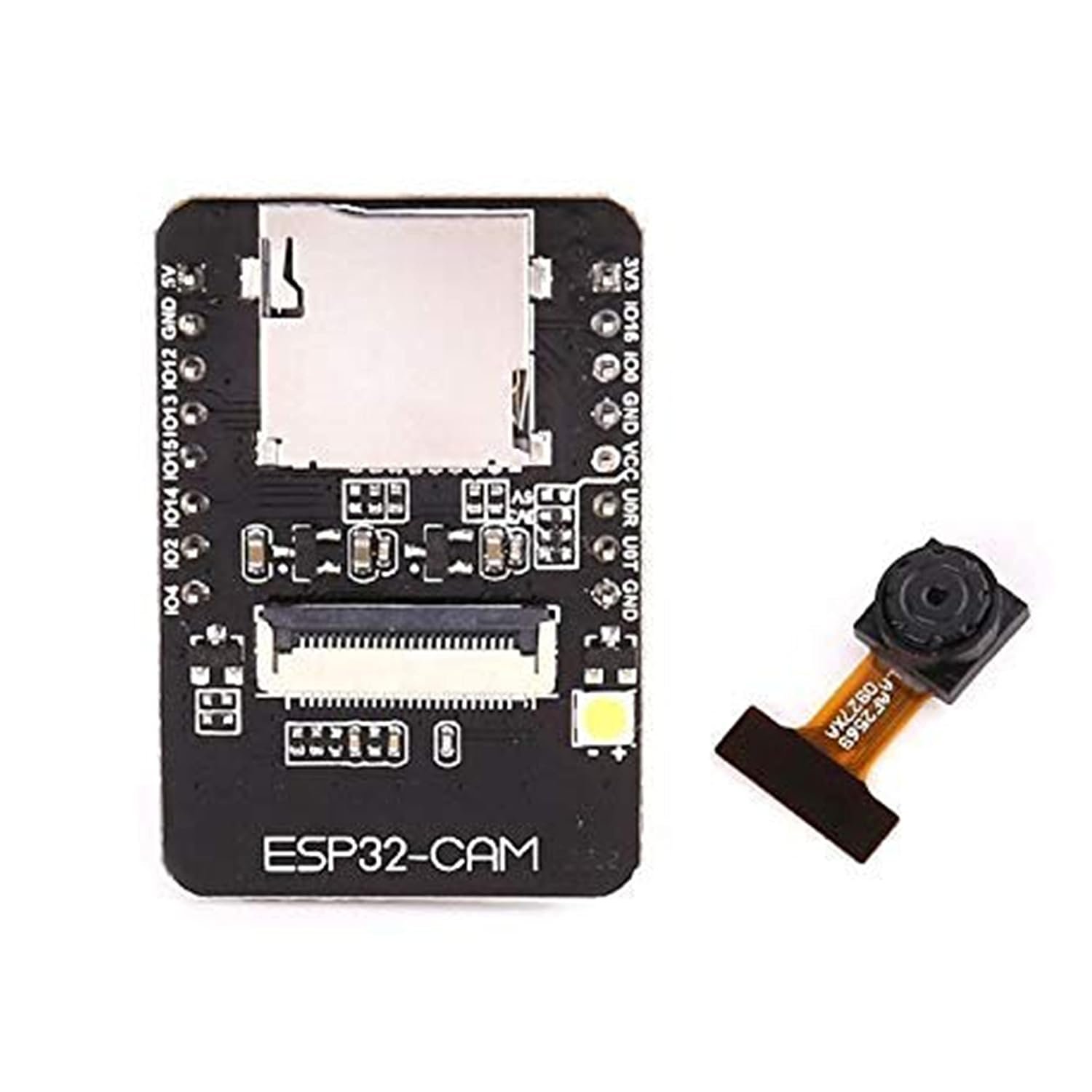

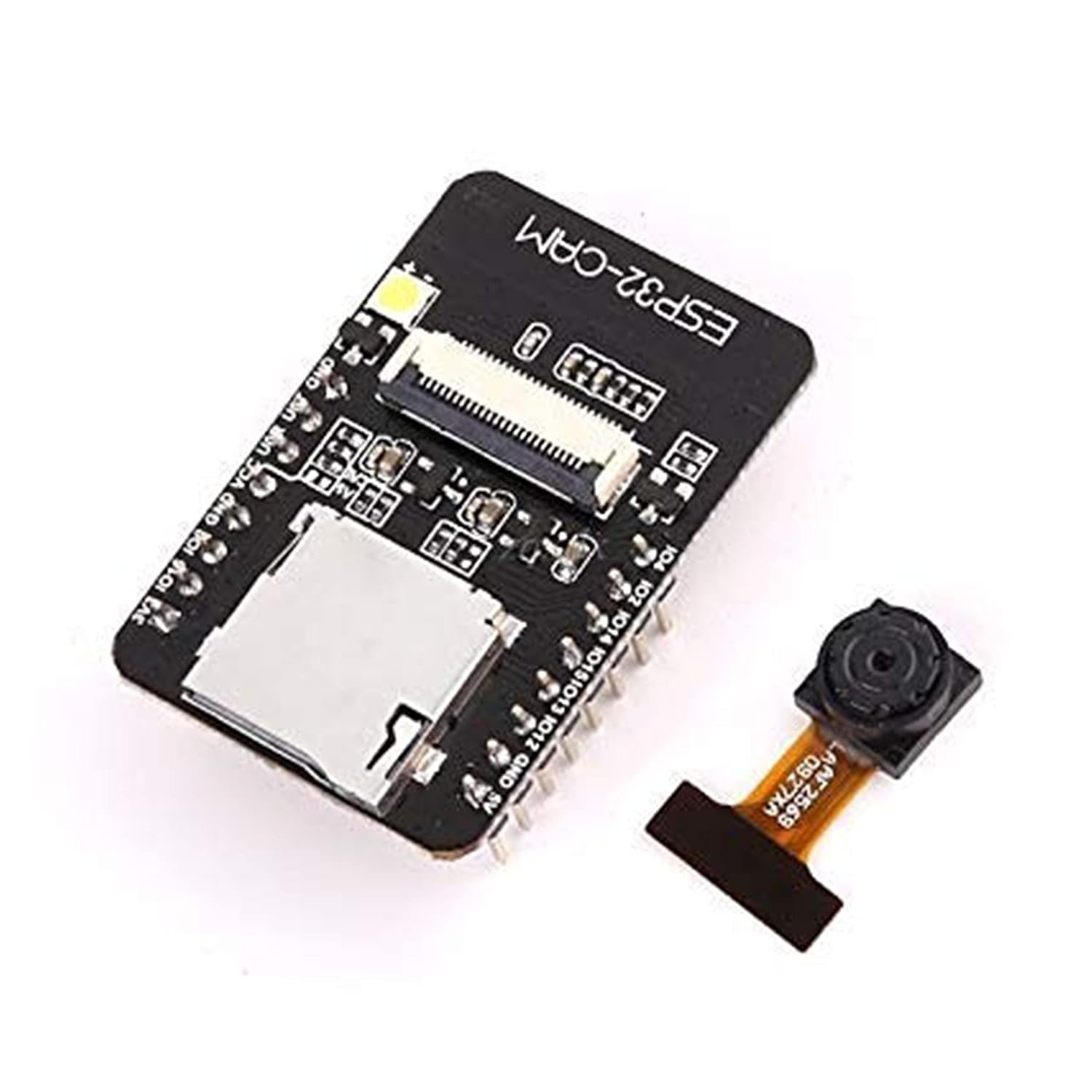

The ESP32-CAM Wi-Fi + Bluetooth Camera Development Module is an ultra-small, full-featured microcontroller card designed for wireless image recognition and video streaming. Built around the powerful ESP32 system-on-chip, it bundles an integrated OV2640 camera interface and a MicroSD card slot into a footprint barely larger than a coin. It functions as a complete standalone system for face detection, security tracking, QR code scanning, and local smart-home monitoring without needing secondary video processors.

✨ Key Features

Integrated OV2640 Image Sensor: Includes a bundle package with a 2-Megapixel camera lens capable of streaming live video up to UXGA resolution.
Onboard MicroSD Expansion: Houses a spring-loaded TF card slot that supports external storage expansion up to 4GB for offline photo and video logging.
Bright Flash Assist LED: Features a high-intensity surface-mount white LED that serves as both a camera flash for dark environments and a clear status indicator.
Low-Power Image Processing: Highly optimized sleep-state profiles allow the module to remain in deep-sleep, waking up only upon receiving external hardware or timer interrupts to capture pictures.

-19%

Click to enlarge

Back to products

Original price was: ₹800.00.Current price is: ₹650.00.

Characteristic	Specification Parameters
Core Processor	Tensilica 32-bit RISC CPU Xtensa Dual-Core LX6 (Up to 240 MHz)
Memory Buffer	520 KB Internal SRAM + 4 MB External PSRAM (Required for image buffering)
Wireless Transceivers	2.4 GHz Wi-Fi (802.11b/g/n) + Bluetooth v4.2 BR/EDR & BLE standard
Supported Image Sensors	OV2640 (Standard choice) and OV7670 camera modules
Maximum Resolution	1600 × 1200 Pixels (UXGA resolution framework)
Storage Socket Type	Onboard MicroSD Card Slot (Supports SPI communication paths)
Default Image Output	JPEG, BMP, Grayscale formats
