Home Camera Module Raspberry Pi NoIR Camera Module 3 (12MP Night Vision).
Raspberry Pi NoIR Camera Module V2 (8MP)
Raspberry Pi NoIR Camera Module V2 (8MP) ₹2,537.00 Original price was: ₹2,537.00.₹2,180.00Current price is: ₹2,180.00.
Back to products
Raspberry Pi Camera Module 3
Raspberry Pi Camera Module 3 ₹4,720.00 Original price was: ₹4,720.00.₹4,000.00Current price is: ₹4,000.00.

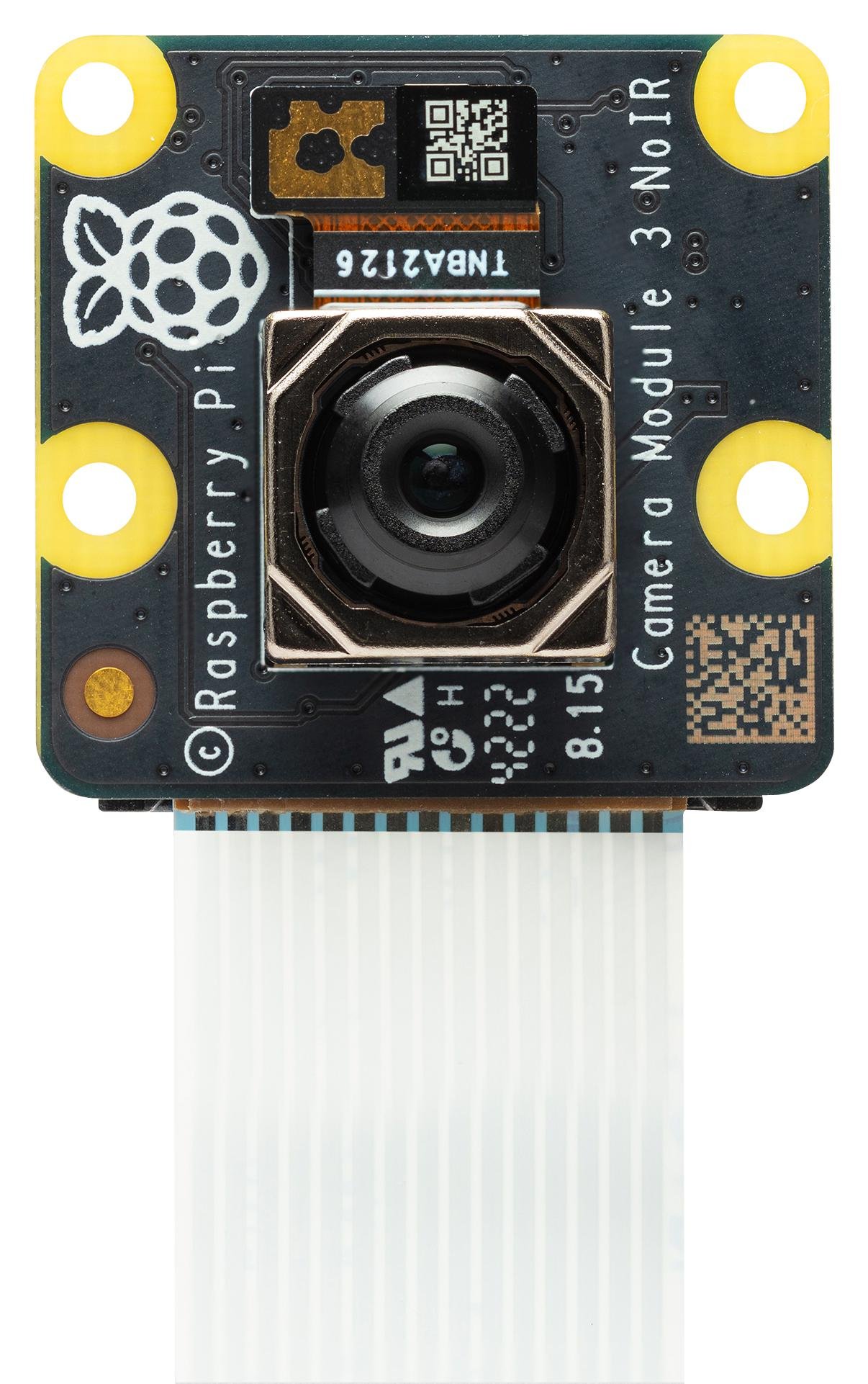

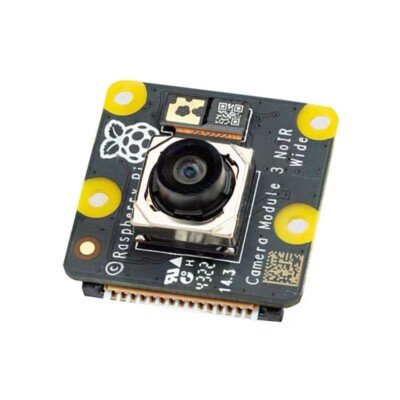

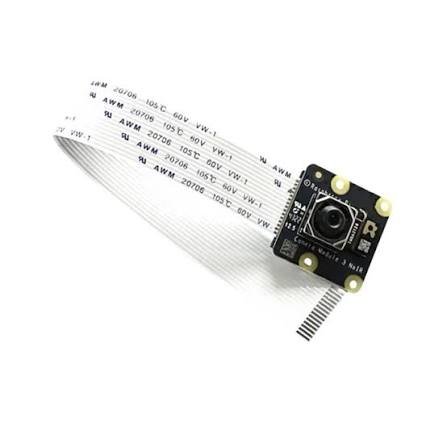

Raspberry Pi NoIR Camera Module 3 (12MP Night Vision).

₹5,310.00 Original price was: ₹5,310.00.₹4,500.00Current price is: ₹4,500.00.

Technical Specification Details

Parameter  Specification Details
Image Sensor Hardware Sony IMX708 Back-Illuminated CMOS Sensor Array
Native Frame Resolution 11.9 Megapixels
Max Image Array Dimensions 4608 × 2592 Pixels (Native 16:9 aspect ratio)
Supported Video Formats 1080p @ 50fps | 720p @ 100fps | VGA @ 120fps
Focus Mechanism Phase Detection Autofocus (PDAF) + Contrast Autofocus
Aperture & Focal Length F1.8 Aperture | 4.74mm Focal Length
Field of View (FoV) 66° Horizontal | 41° Vertical (75° Diagonal)
High Dynamic Range (HDR) Supported (up to 3MP output resolution in HDR mode)
Physical Dimensions 25.0 mm × 24.0 mm × 11.5 mm
Compare
Add to wishlist
SKU: VE-022 Category: Camera Module
Share:
  • Description
  • Reviews (0)
  • Shipping & Delivery
Description

Bring high-resolution night vision and infrared imaging to your maker projects with the Official Raspberry Pi NoIR Camera Module 3. Featuring a massive 12-megapixel Sony IMX708 sensor, this specialized variant lacks an infrared (IR) cut-off filter (NoIR = No Infrared). This allows the camera to “see” invisible infrared light, making it the premier choice for nocturnal wildlife tracking, security monitoring in pitch darkness, and scientific plant health analytics. Unlike legacy fixed-focus boards, it features a powered phase-detect autofocus (PDAF) system for pin-sharp imaging in any lighting environment.

Key Product Features
  • Infrared & Night Vision Ready: Engineered without an IR filter, allowing the sensor to capture raw infrared illumination for surveillance or photography in absolute darkness.
  • Powered Auto-Focus Lens: Equipped with an internal voice-coil actuator that moves the lens dynamically, giving you sharp images for objects ranging from 10cm away up to infinity.
  • Massive 12MP Sony Sensor: Powered by the ultra-sensitive Sony IMX708 sensor core, providing enhanced low-light performance, minimized pixel noise, and a native 16:9 widescreen output format.
  • High Dynamic Range (HDR) Support: Capable of merging multiple exposures simultaneously to balance harsh shadows and bright highlights perfectly.
  • Modern Software Integration: Designed natively for the modern, high-performance libcamera architecture and Python Picamera2 stack inside official Raspberry Pi
Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “Raspberry Pi NoIR Camera Module 3 (12MP Night Vision).” Cancel reply

Your email address will not be published. Required fields are marked *

Shipping & Delivery
