Name: ESP32-C3 Mini Development Board
SKU: VE-114
Availability: InStock

ESP32-C3 Mini Development Board

Technical Specifications

Characteristic	Specification Parameters
Microprocessor Core	Espressif ESP32-C3 32-bit RISC-V Single-Core (Up to 160 MHz)
On-Chip Memory Array	400 KB SRAM / 384 KB ROM / 4 MB Onboard Flash
Wireless Transceivers	2.4 GHz Wi-Fi 4 (802.11 b/g/n) + Bluetooth 5.0 & BLE
Operating Voltage	3.3V DC Logic level (Internal regulator converts input power)
External Power Input	5V via USB-C or 3.3V to 6.0V via VIN pin
Peripheral Interfacing	11 Accessible GPIOs, 6-ch PWM, 2× 12-bit ADCs, SPI, I2C, UART

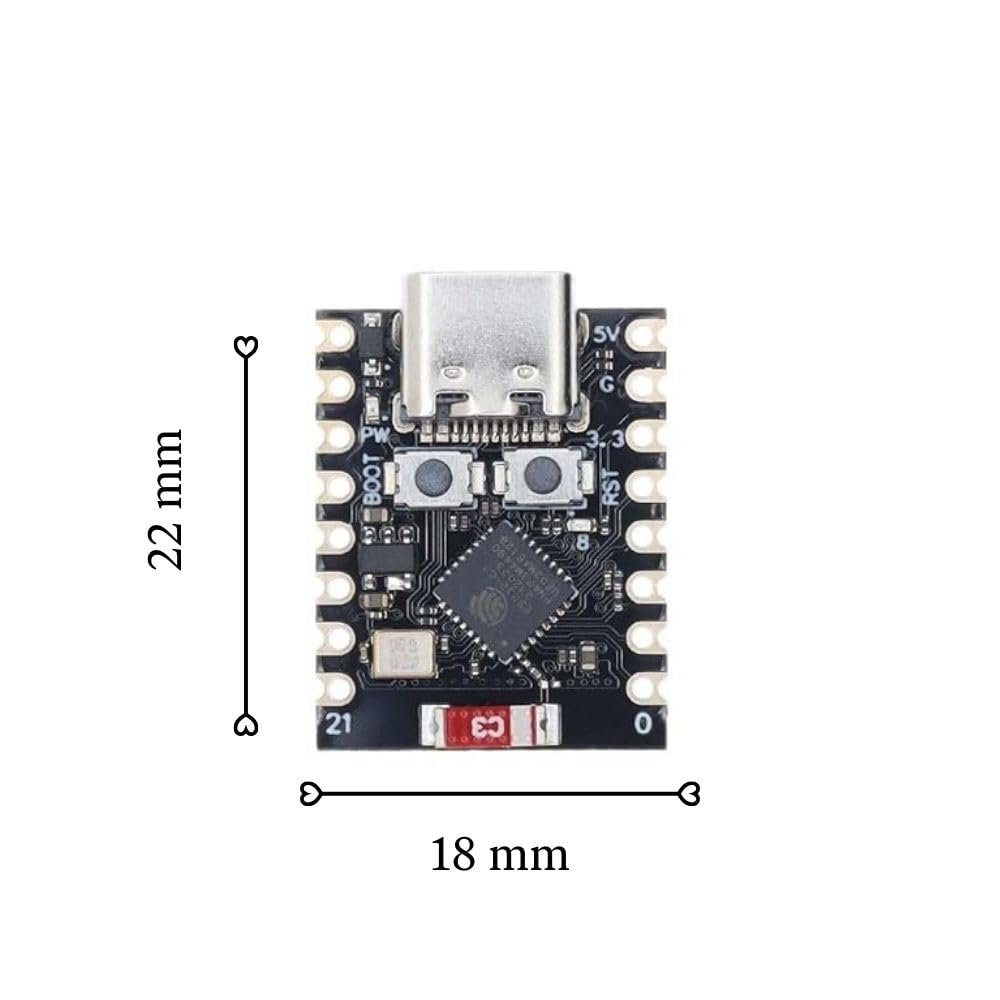

Module Dimensions	Approx. 22.5 mm × 18 mm (Super-mini form factor)

SKU: VE-114 Category: ESP

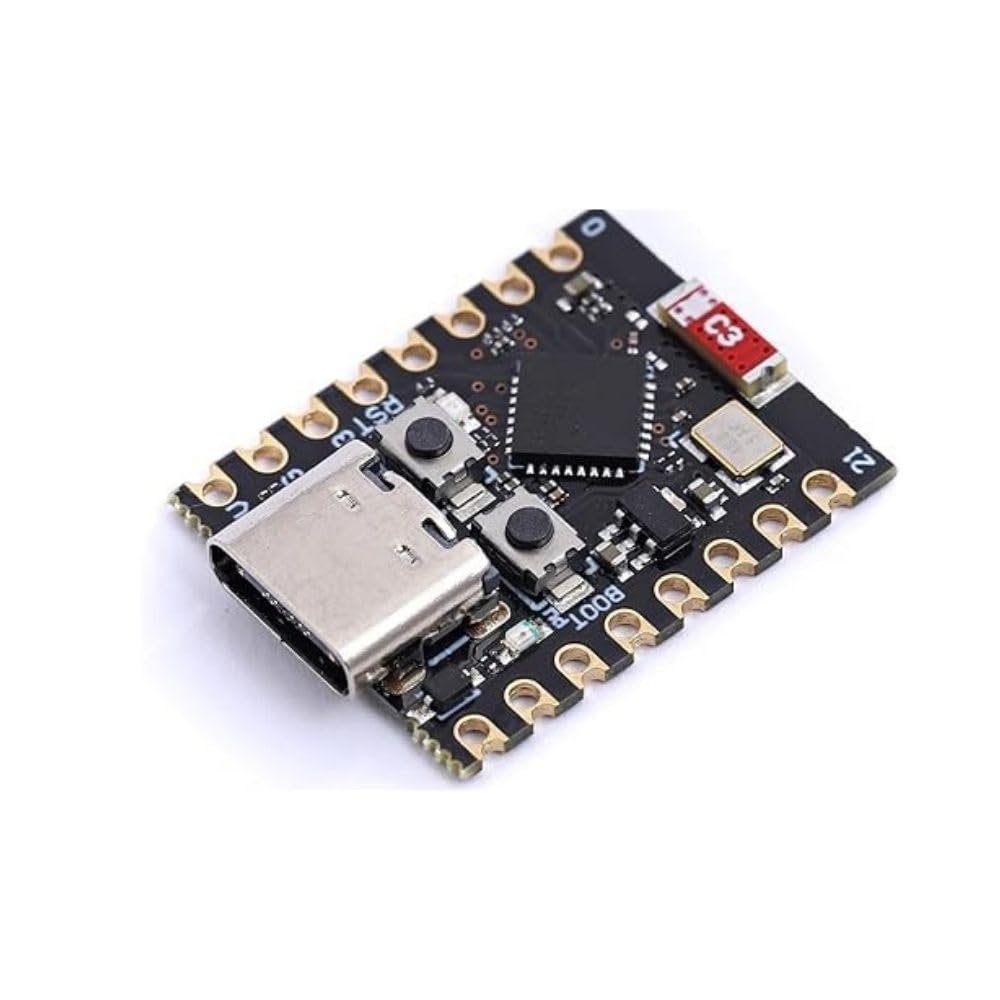

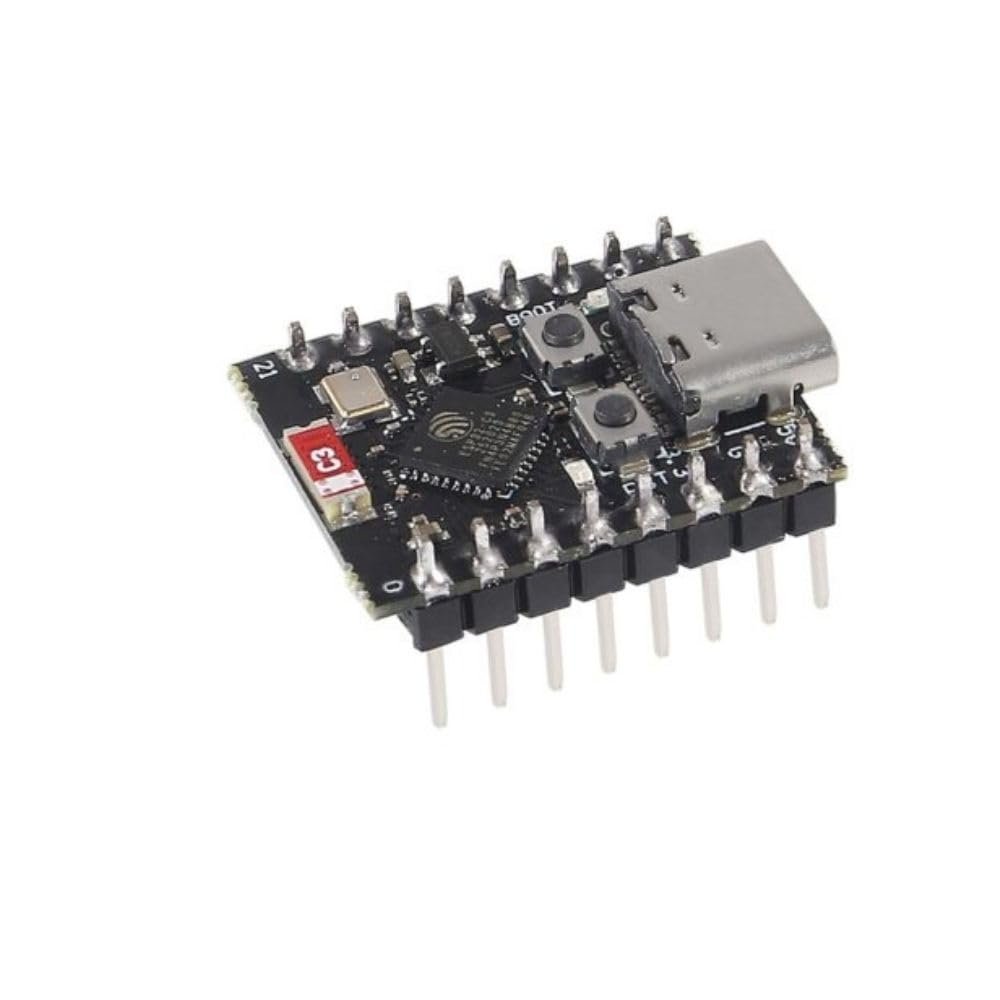

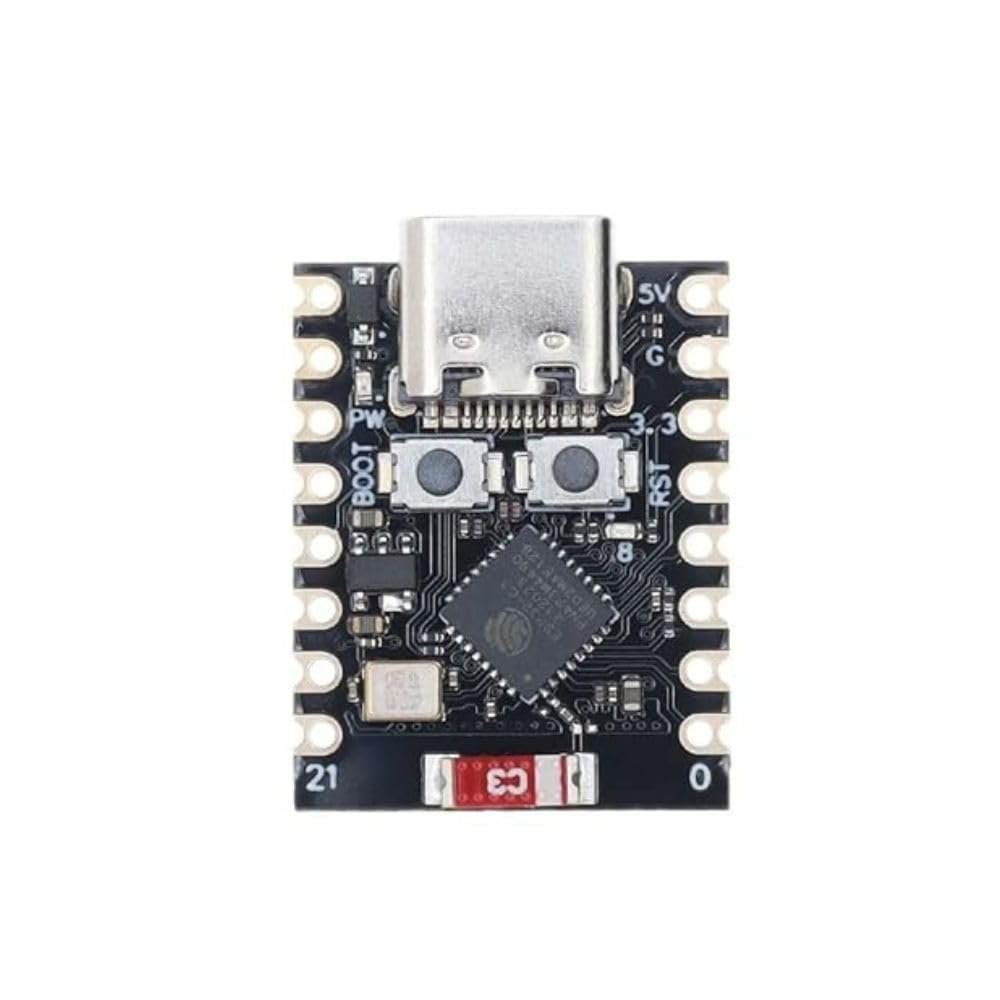

The ESP32-C3 Mini Development Board is an ultra-compact, thumb-sized internet-of-things (IoT) microcontroller designed for small-scale smart devices. Shifting away from legacy architecture, it is powered by an advanced open-source 32-bit RISC-V single-core processor. It integrates full 2.4 GHz Wi-Fi and Bluetooth 5.0 (LE) into a microscopic, single-sided PCB footprint. Outfitted with a modern USB Type-C connector, it is highly optimized for ultra-low power consumption, making it the premier choice for wireless wearables, compact edge sensors, and smart keychains.

✨ Key Features

Next-Gen RISC-V Architecture: Driven by a modern, single-core 32-bit RISC-V open standard instruction-set processor clocking up to 160 MHz.
Upgraded Bluetooth 5.0 (LE): Supports long-range and high-throughput Bluetooth 5.0 Low Energy mesh configurations for low-latency pairing.
Microscopic Space-Saving Profile: Features a miniature single-sided layout that lets you mount the controller flat onto other carrier boards or fit it into tight enclosures.
Extreme Battery Efficiency: Draws an exceptionally low current of just ~43µA during deep-sleep states, maximizing battery-powered life cycle runtimes

-17%

Click to enlarge

Back to products

Original price was: ₹300.00.Current price is: ₹250.00.

Characteristic	Specification Parameters
Microprocessor Core	Espressif ESP32-C3 32-bit RISC-V Single-Core (Up to 160 MHz)
On-Chip Memory Array	400 KB SRAM / 384 KB ROM / 4 MB Onboard Flash
Wireless Transceivers	2.4 GHz Wi-Fi 4 (802.11 b/g/n) + Bluetooth 5.0 & BLE
Operating Voltage	3.3V DC Logic level (Internal regulator converts input power)
External Power Input	5V via USB-C or 3.3V to 6.0V via VIN pin
Peripheral Interfacing	11 Accessible GPIOs, 6-ch PWM, 2× 12-bit ADCs, SPI, I2C, UART
Module Dimensions	Approx. 22.5 mm × 18 mm (Super-mini form factor)
