Home Camera Module Raspberry Pi NoIR Camera Module V2 (8MP)
Raspberry Pi Camera Module V2 (8MP)
Raspberry Pi Camera Module V2 (8MP) ₹1,239.00 Original price was: ₹1,239.00.₹1,050.00Current price is: ₹1,050.00.
Back to products
Raspberry Pi NoIR Camera Module 3 (12MP Night Vision).
Raspberry Pi NoIR Camera Module 3 (12MP Night Vision). ₹5,310.00 Original price was: ₹5,310.00.₹4,500.00Current price is: ₹4,500.00.

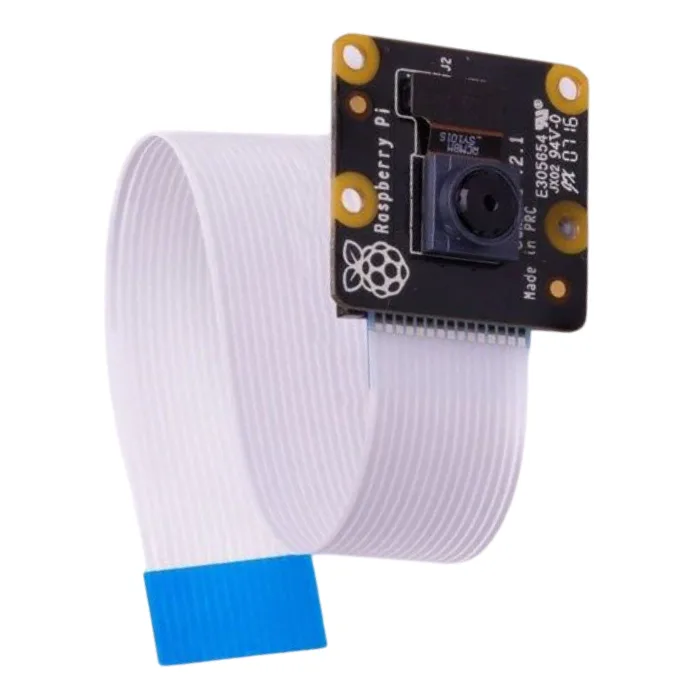

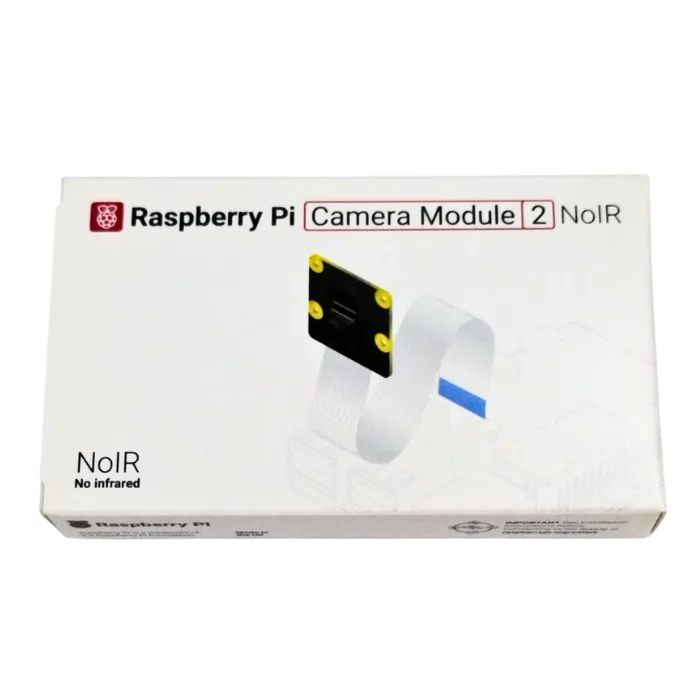

Raspberry Pi NoIR Camera Module V2 (8MP)

₹2,537.00 Original price was: ₹2,537.00.₹2,180.00Current price is: ₹2,180.00.

Technical Specification Details

Parameter  Specification Details
Image Sensor Core Sony IMX219PQ CMOS Sensor Array
Native Frame Resolution 8 Megapixels
Max Image Array Dimensions 3280 × 2464 Pixels
Supported Video Formats 1080p @ 30fps | 720p @ 60fps | 640×480p @ 90fps
Optical Size & F-Stop 1/4-inch Focal Format | F2.0 Focal Ratio
Field of View (FoV) 62.2° Horizontal | 48.8° Vertical
Depth of Field Range 10 cm to Infinity (Fixed-focus profile)
Interface Port Type MIPI Camera Serial Interface (CSI-2 protocol via flat ribbon)
Physical Dimensions 25.0 mm × 24.0 mm × 9.0 mm
Compare
Add to wishlist
SKU: VE-021 Category: Camera Module
Share:
  • Description
  • Reviews (0)
  • Shipping & Delivery
Description

Unlock low-light surveillance and infrared photography with the Official Raspberry Pi NoIR Camera Module V2. Built with a high-definition 8-megapixel Sony IMX219 sensor, this custom add-on board is identical to the standard V2 camera but lacks an infrared (IR) cut-off filter (NoIR = No Infrared). This configuration enables the sensor to “see” invisible infrared light, making it the premier choice for nocturnal wildlife tracking, security monitoring in pitch darkness, and specialized scientific plant health analytics.



Key Product Features
  • Infrared & Night Vision Ready: Engineered without an IR filter, allowing the sensor to capture raw infrared illumination for surveillance in absolute darkness.
  • Sony IMX219 Silicon Stack: Employs premium Sony image sensor technology to reduce noise, prevent image smearing, and deliver pristine uncompressed pixel layouts.
  • Plant Health Monitoring Bonus: Includes a small square of blue gel filter inside the retail box, allowing students and agricultural researchers to perform NDVI plant health analysis.
  • Tiny Footprint & Lightweight: Weighing only 3 grams, this microscopic board seamlessly integrates into custom drone frames, compact security enclosures, and motion-detecting wildlife boxes.
  • Universal Software Compatibility: Out-of-the-box support across standard Raspberry Pi OS branches, leveraging modern backend architectures like libcamera and Python
Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “Raspberry Pi NoIR Camera Module V2 (8MP)” Cancel reply

Your email address will not be published. Required fields are marked *

Shipping & Delivery
