Name: NodeMCU ESP8266 CP2102 Wi-Fi Development Board
SKU: VE-116
Availability: InStock

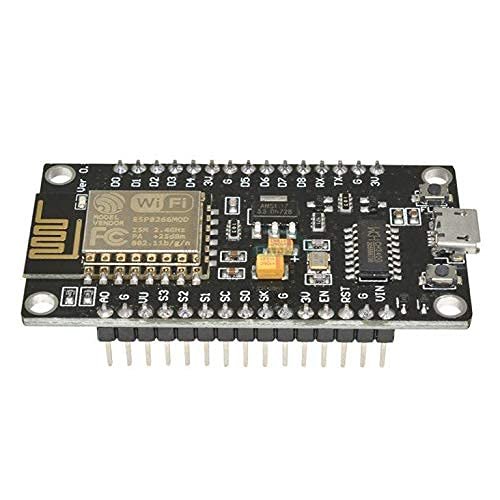

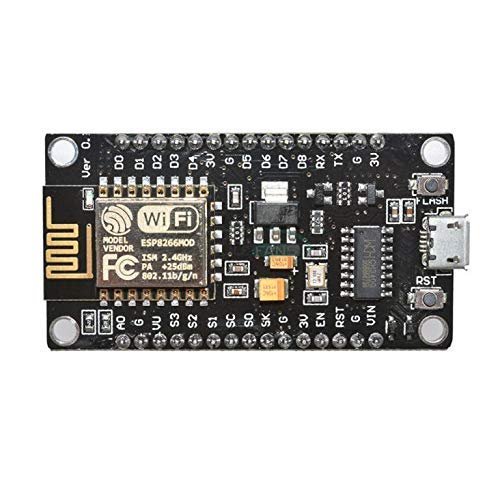

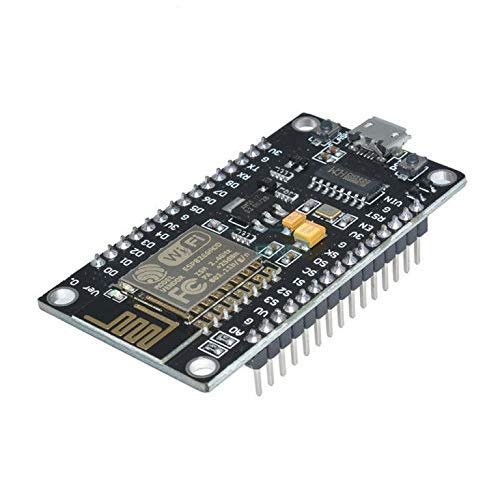

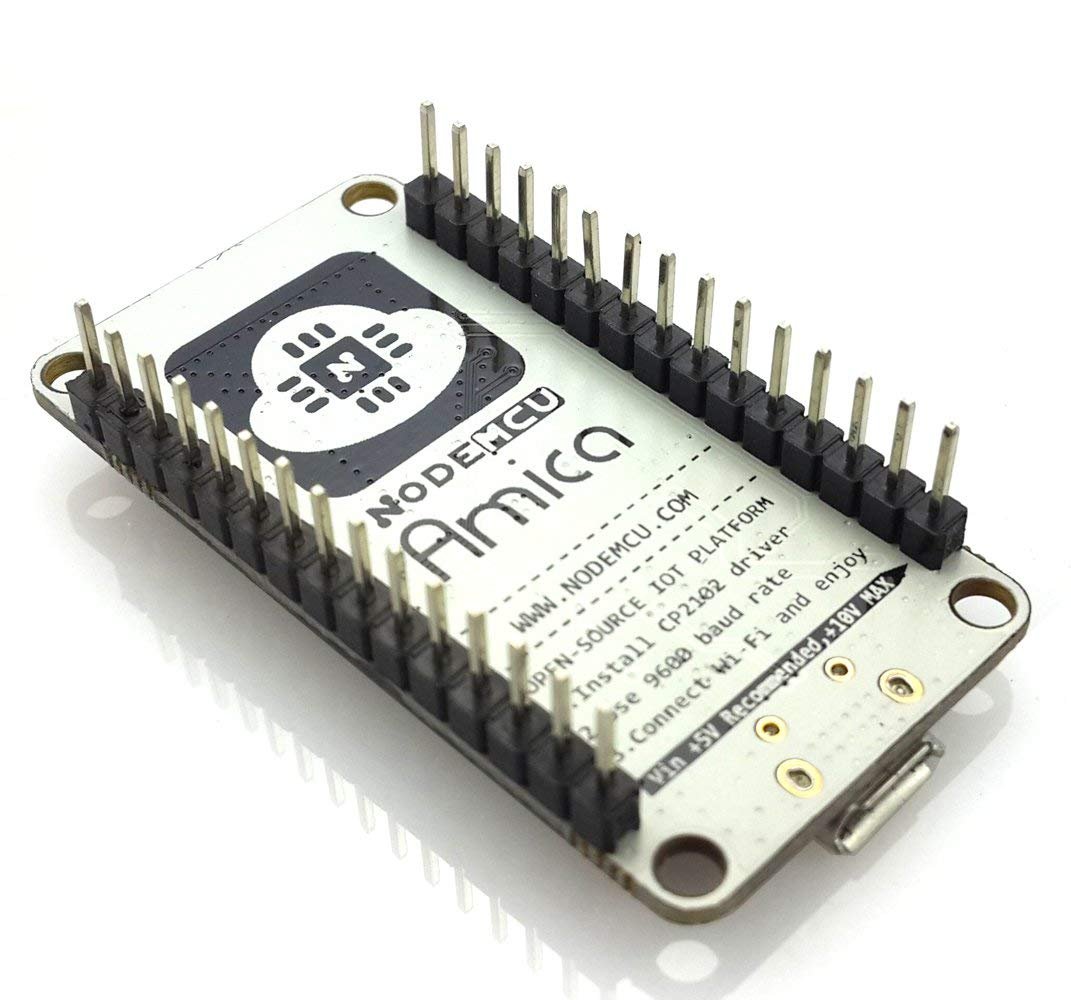

NodeMCU ESP8266 CP2102 Wi-Fi Development Board

Technical Specifications

Characteristic	Specification Parameters
Core Processor	Tensilica 32-bit RISC CPU Xtensa LX106 (Clocked at 80 MHz to 160 MHz)
Storage Capacity	4 MB (32 Mbit) SPI Flash Memory / 64 KB SRAM
USB-UART Bridge	Silicon Labs CP2102 Chip
Operating Voltage	3.3V DC internal logic (Onboard LDO regulates 5V USB input)
Digital I/O Layout	16 General Purpose Input/Output Pins (including PWM and 1-ch ADC)
Wi-Fi Networking	IEEE 802.11 b/g/n (Supports Station, Soft-AP, and Dual modes)
Dimensions (approx.)	49 mm × 24.5 mm × 13 mm

SKU: VE-116 Category: ESP

The NodeMCU ESP8266 CP2102 Wi-Fi Development Board is an open-source, interactive internet-of-things (IoT) microcontroller module built around the Espressif ESP-12E Wi-Fi system-on-chip. This specific “V2” variant integrates a highly stable Silicon Labs CP2102 USB-to-UART bridge controller instead of cheaper alternative chips, offering superior driver stability and faster baud rates during programming. It is the global entry-level standard for developing smart home automation devices, simple web servers, wireless sensor nodes, and data logging systems.

✨ Key Features

Silicon Labs CP2102 Interface: Features a premium USB-to-serial conversion layout that automatically syncs with modern operating systems without manual driver configuration crashes.
Native Wi-Fi Connectivity: Equipped with an integrated 2.4 GHz 802.11 b/g/n radio transceiver and an onboard PCB trace antenna for immediate network attachment.
Breadboard-Friendly Layout: Engineered with a narrow physical chassis frame that plugs perfectly into standard breadboards while leaving one row of tie-points exposed on each side.
Multi-Language Support: Fully compatible with the Arduino IDE (C++), MicroPython, and its native Lua script firmware, making it approachable for both beginners and professionals.

-22%

Click to enlarge

Back to products

Original price was: ₹320.00.Current price is: ₹250.00.

Characteristic	Specification Parameters
Core Processor	Tensilica 32-bit RISC CPU Xtensa LX106 (Clocked at 80 MHz to 160 MHz)
Storage Capacity	4 MB (32 Mbit) SPI Flash Memory / 64 KB SRAM
USB-UART Bridge	Silicon Labs CP2102 Chip
Operating Voltage	3.3V DC internal logic (Onboard LDO regulates 5V USB input)
Digital I/O Layout	16 General Purpose Input/Output Pins (including PWM and 1-ch ADC)
Wi-Fi Networking	IEEE 802.11 b/g/n (Supports Station, Soft-AP, and Dual modes)
Dimensions (approx.)	49 mm × 24.5 mm × 13 mm
