Name: DRV8833 Dual H-Bridge DC Motor Driver Module
SKU: VE-106
Availability: InStock

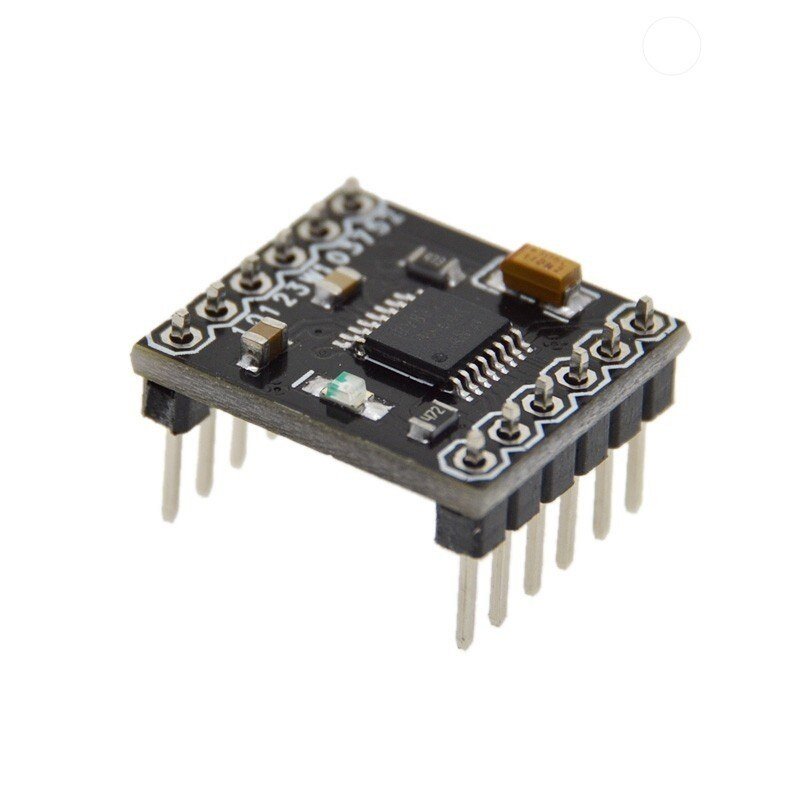

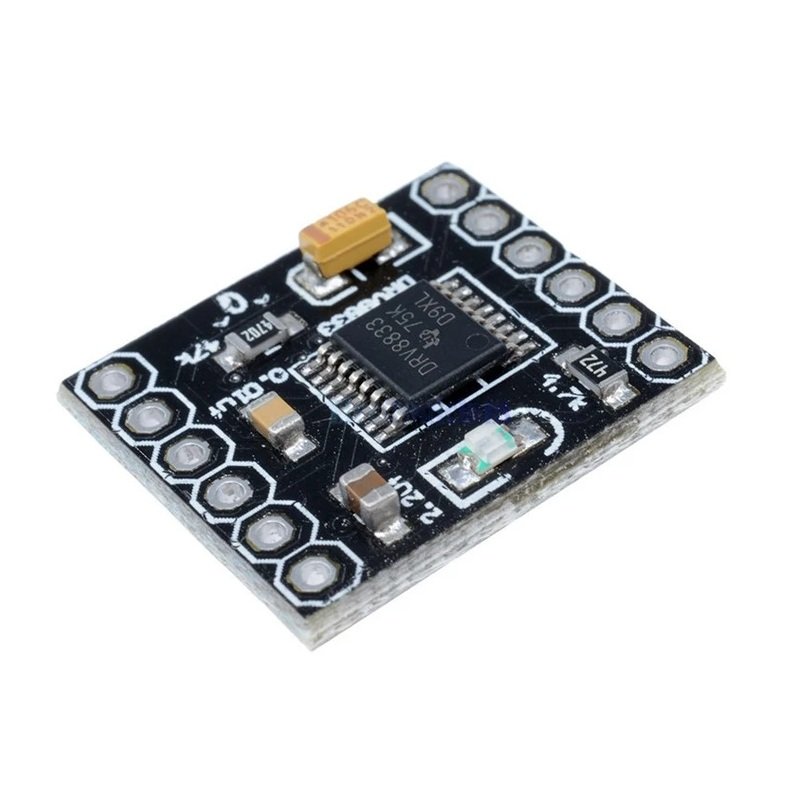

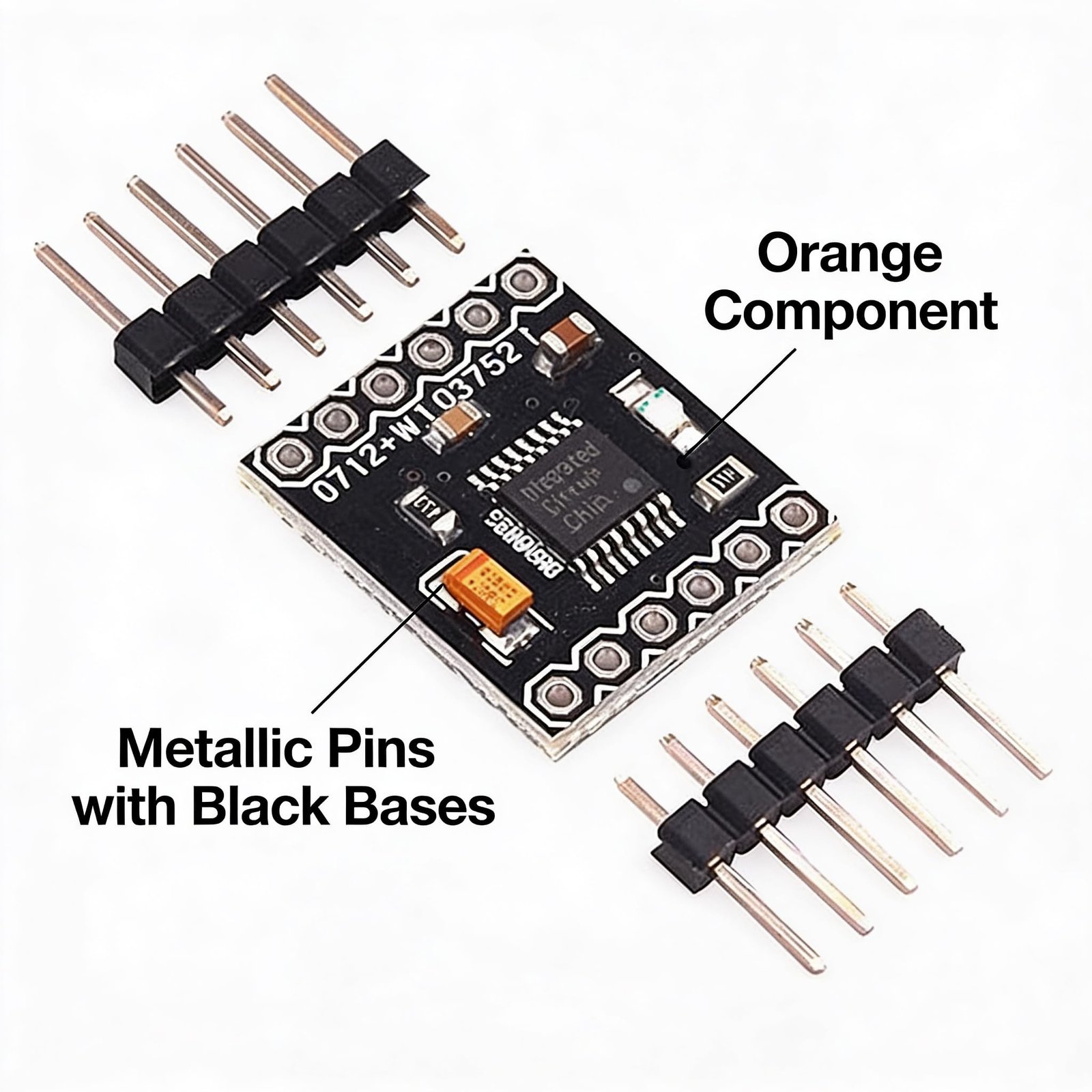

DRV8833 Dual H-Bridge DC Motor Driver Module

Technical Specifications

Characteristic	Specification Parameters
Driver Driver IC	Texas Instruments DRV8833 Dual H-Bridge Chip
Motor Supply Voltage (VM)	2.7V to 10.8V DC (Ideal for Li-Ion, NiMH, or AA battery packs)
Continuous Output Current	1.2A per individual motor channel (at 25°C room temperature)
Peak Pulse Current Limit	2.0A per channel for short pulse durations
Control Logic Input Level	3.3V and 5V Logic Compatible (Works with Arduino, ESP32, Raspberry Pi)
PWM Frequency Support	Up to 50 kHz for smooth speed adjustments
Module Dimensions (approx.)	18.5 mm × 16 mm × 3.5mm

The DRV8833 Dual H-Bridge DC Motor Driver Module is a high-efficiency, low-voltage electronic control breakout board designed to manage the speed and bi-directional rotation of two independent brushed DC motors or a single 4-wire bipolar stepper motor. Built around the advanced Texas Instruments DRV8833 IC, it utilizes low-resistance MOSFET H-bridges instead of older bipolar transistors. This design eliminates the large voltage drop common in legacy drivers like the L298N, making it the perfect low-heat choice for battery-powered toy cars, smart locks, and compact mobile robots.

✨ Key Features

High-Efficiency Low-RDS(on) MOSFETs: Features exceptionally low internal output resistance, ensuring nearly all battery voltage reaches the motor while generating minimal heat.
Smart Current Limiting Control: Houses an advanced, configurable internal current-regulation circuit that automatically limits output current to prevent motor damage or power brownouts.
Low-Power Sleep Optimization: Outfitted with a dedicated hardware sleep pin (ULT or SLP) that drops the module’s power drain down to micro-amps when idle to preserve battery life.
Comprehensive Fault Protections: Equipped with internal safeguards against thermal over-temperature conditions, short-circuits, charge-pump under-voltage, and cross-conduction.

-52%

Click to enlarge

Back to products

Original price was: ₹250.00.Current price is: ₹120.00.

Characteristic	Specification Parameters
Driver Driver IC	Texas Instruments DRV8833 Dual H-Bridge Chip
Motor Supply Voltage (VM)	2.7V to 10.8V DC (Ideal for Li-Ion, NiMH, or AA battery packs)
Continuous Output Current	1.2A per individual motor channel (at 25°C room temperature)
Peak Pulse Current Limit	2.0A per channel for short pulse durations
Control Logic Input Level	3.3V and 5V Logic Compatible (Works with Arduino, ESP32, Raspberry Pi)
PWM Frequency Support	Up to 50 kHz for smooth speed adjustments
Module Dimensions (approx.)	18.5 mm × 16 mm × 3.5mm
