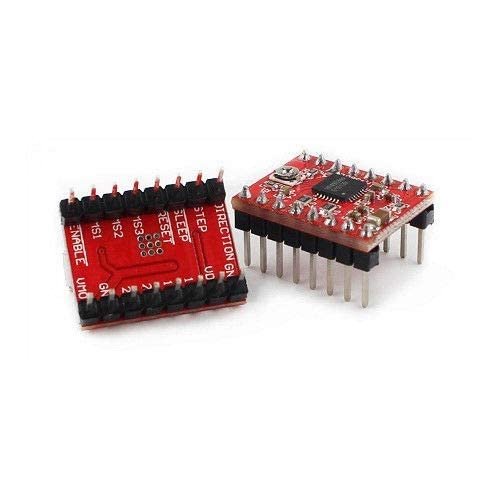

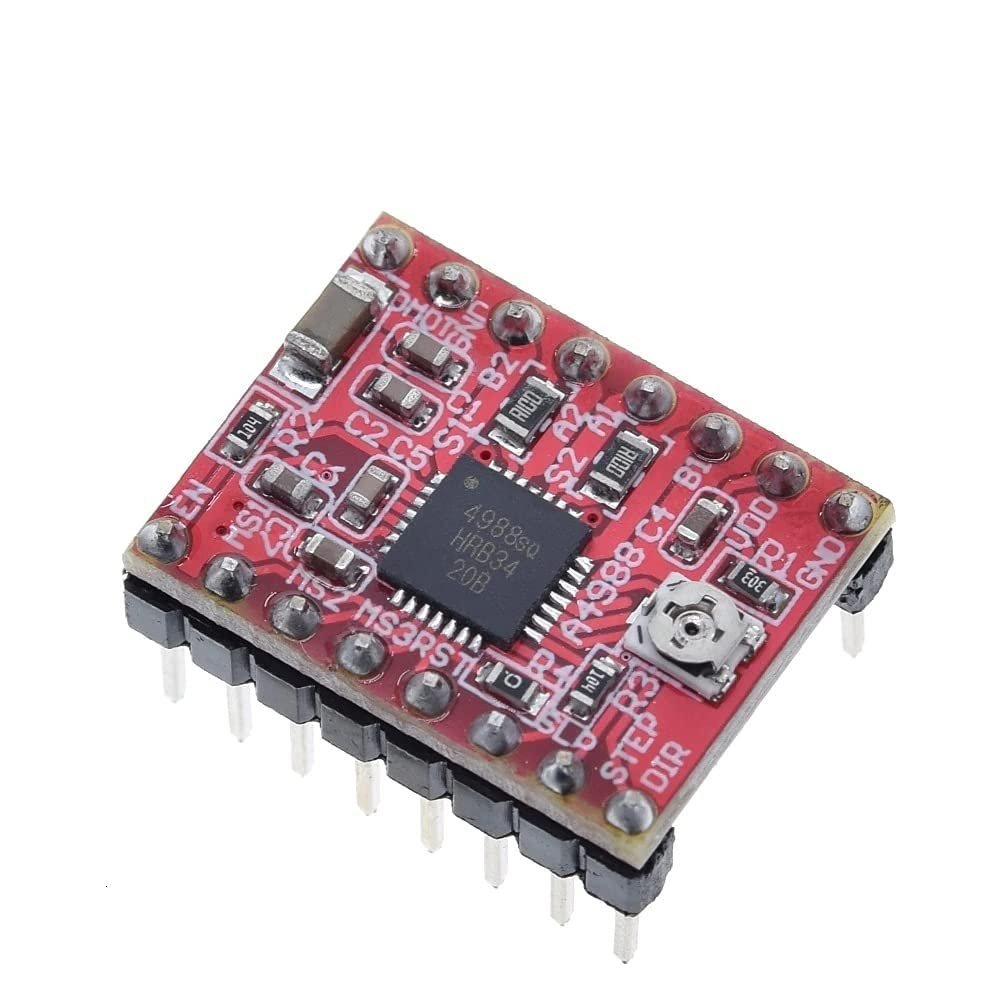

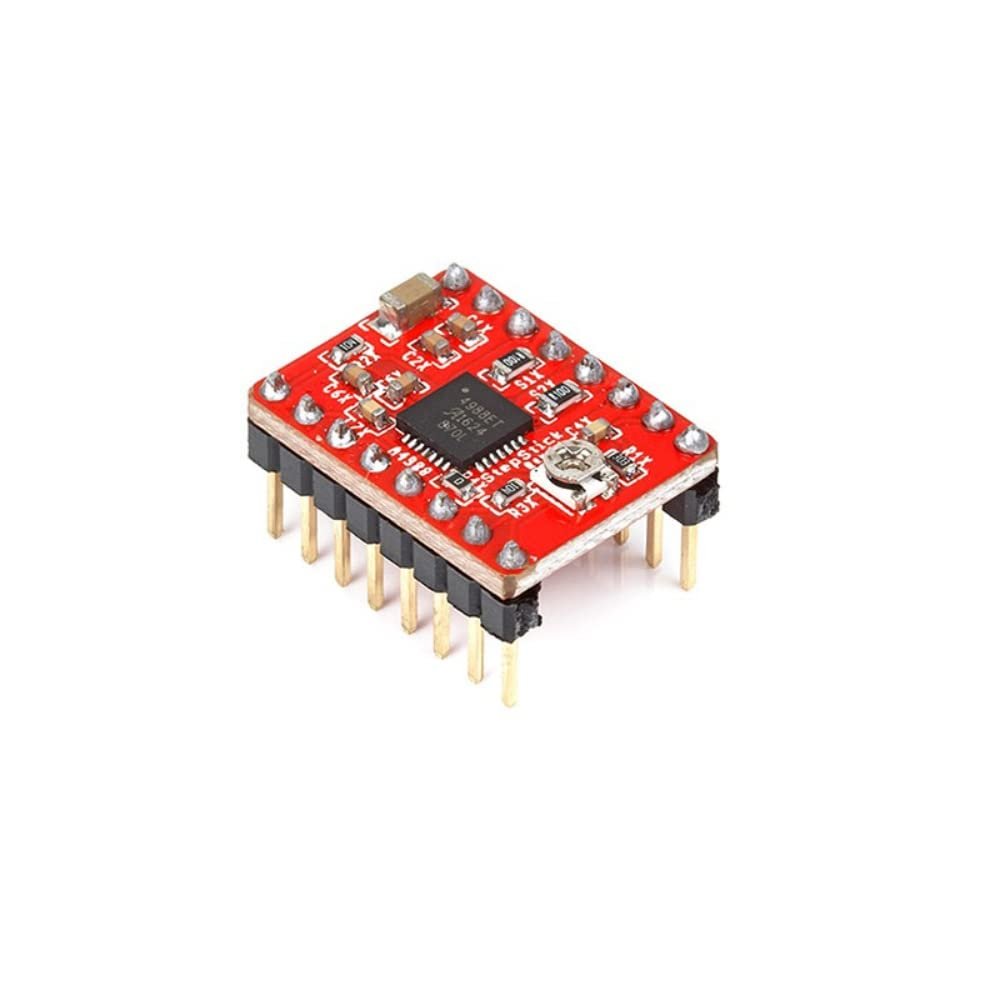

Name: A4988 DMOS Microstepping Stepper Motor Driver Module
SKU: VE-107
Availability: InStock

A4988 DMOS Microstepping Stepper Motor Driver Module

Technical Specifications

Characteristic	Specification Parameters
Driver Driver IC	Allegro A4988 Microstepping Driver Chip
Motor Supply Voltage (VMOT)	8.0V to 35.0V DC (External power rail for driven actuators)
Logic Supply Voltage (VDD)	3.0V to 5.5V DC (Fully compatible with 3.3V and 5V microchips)

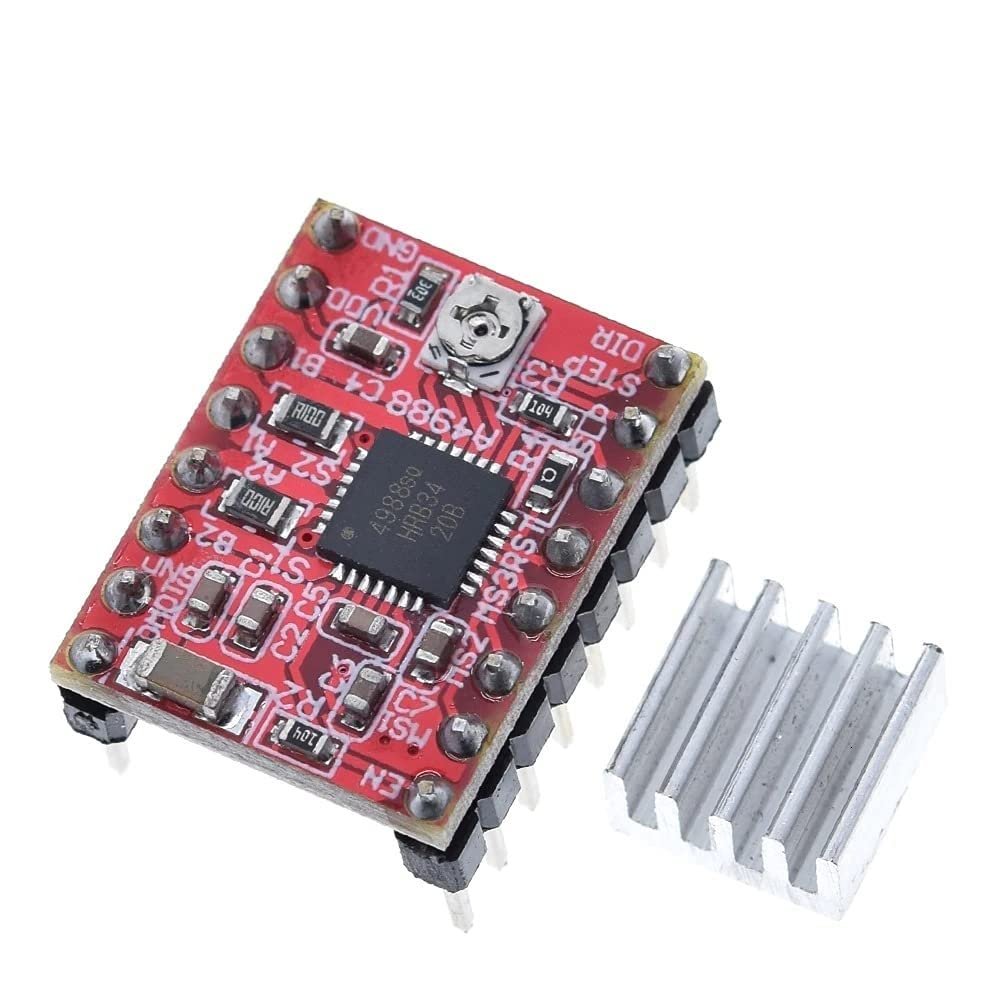

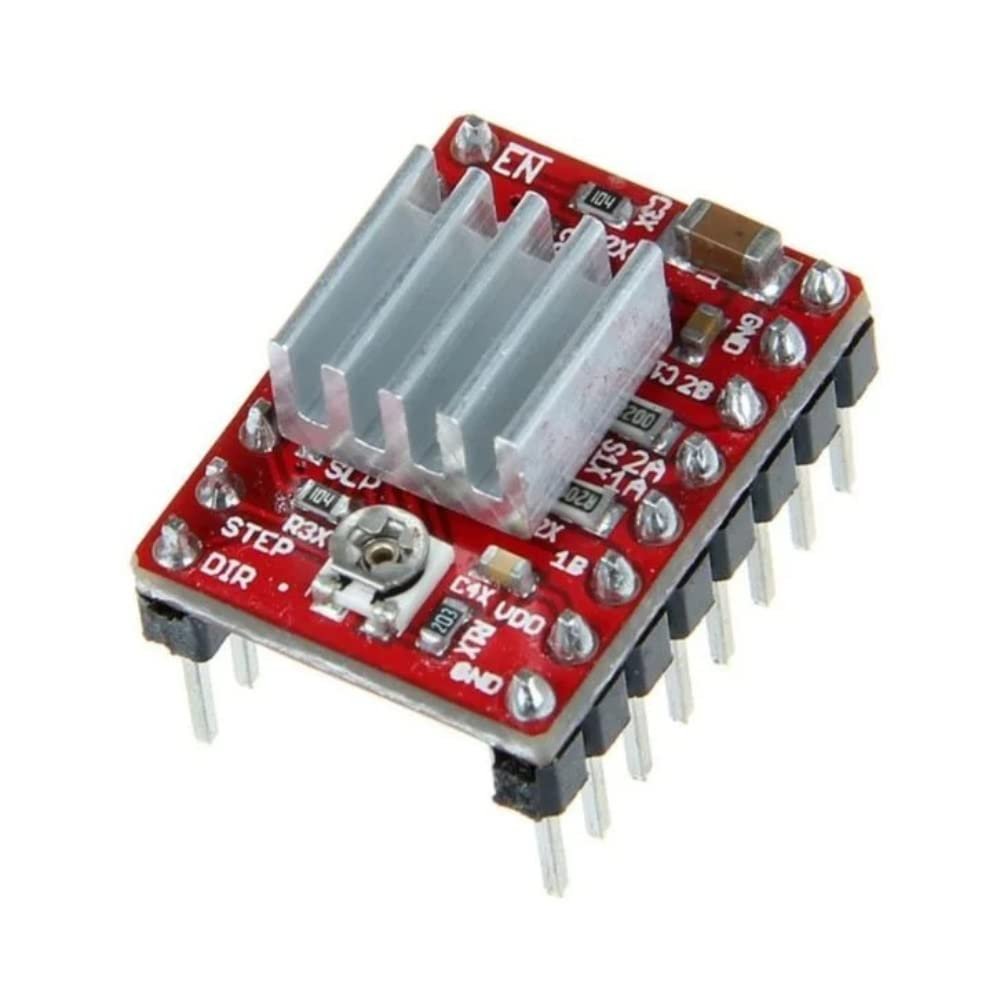

Continuous Output Current	1.0A per phase winding (Up to 2.0A with attached heatsink and active cooling)
Microstep Resolutions	Full-step, Half-step, Quarter-step, Eighth-step, and Sixteenth-step
Onboard Fault Protection	Thermal shutdown, crossover-current protection, and under-voltage lockout
Module Dimensions (approx.)	20 mm × 15 mm × 11 mm (Ultra-compact DIP carrier form factor)

The A4988 DMOS Microstepping Stepper Motor Driver Module is a complete, easy-to-operate electronic breakout card designed to control bipolar stepper motors. Populated with an Allegro A4988 microstepping IC, it features a built-in translator that translates simple step and direction inputs into complex motor coil sequencing. This design eliminates the need for phase sequence tables or high-frequency control lines, making it the global baseline standard for driving axes on hobby 3D printers, desktop CNC systems, and small camera panning rigs.

✨ Key Features

Simplified Step/Direction Interface: Requires only two digital control pins from a microcontroller to manage physical positioning and rotation path updates.
Five Discrete Microstep Modes: Supports mechanical configuration down to 1/16 microstepping, allowing for fluid motion profiles and decreased motor vibration.
Adjustable Output Current Limit: Features an on-board miniature trimpot potentiometer to scale peak current draw, guarding windings against thermal failure.
Intelligent Chopping Management: Utilizes an internal synchronous-rectification control circuit that automatically switches between fast, slow, and mixed current-decay modes.

-20%

Click to enlarge

Back to products

Original price was: ₹150.00.Current price is: ₹120.00.

Characteristic	Specification Parameters
Driver Driver IC	Allegro A4988 Microstepping Driver Chip
Motor Supply Voltage (VMOT)	8.0V to 35.0V DC (External power rail for driven actuators)
Logic Supply Voltage (VDD)	3.0V to 5.5V DC (Fully compatible with 3.3V and 5V microchips)
Continuous Output Current	1.0A per phase winding (Up to 2.0A with attached heatsink and active cooling)
Microstep Resolutions	Full-step, Half-step, Quarter-step, Eighth-step, and Sixteenth-step
Onboard Fault Protection	Thermal shutdown, crossover-current protection, and under-voltage lockout
Module Dimensions (approx.)	20 mm × 15 mm × 11 mm (Ultra-compact DIP carrier form factor)

Compare

Add to wishlist

SKU: VE-107 Category: Motor Driver module

Description

Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “A4988 DMOS Microstepping Stepper Motor Driver Module”

Shipping & Delivery

Related products

-17%

ULN2003 Driver

Motor Driver module

Characteristic	Specification Parameters
Driver Driver IC	ULN2003A (High-Voltage, High-Current Array)
Operating Input Voltage	5.0V to 12.0V DC (Power supply lines isolated from logic inputs)
Max Output Sinking Current	500 mA per channel (Peak current capacity up to 600 mA)
Max Output Standing Voltage	50V DC Peak
Compatible Motor Styles	4-Phase, 5-Wire Unipolar Stepper Motors (e.g., 28BYJ-48)
Logic Control Formats	5V CMOS and TTL Level Logic Inputs
Module Dimensions (approx.)	35 mm × 32 mm × 10 mm

Add to cart

Quick view

L298N Dual H-Bridge Motor Driver Module

Characteristic	Specification Parameters
Driver Driver IC	L298N Dual H-Bridge Power IC
Motor Supply Voltage (VMS)	5.0V to 35.0V DC (External power input)
Logic Supply Voltage (VSS)	5.0V DC
Peak Output Current	2.0A per individual channel (up to 3.0A peak surge duration)
Total Power Dissipation	25W (at max thermal capacity with integrated aluminum heatsink)
Control Logic Input Level	5V TTL and CMOS Compatible Logic inputs
Module Frame Footprint	43 mm × 43 mm × 27 mm

-18%

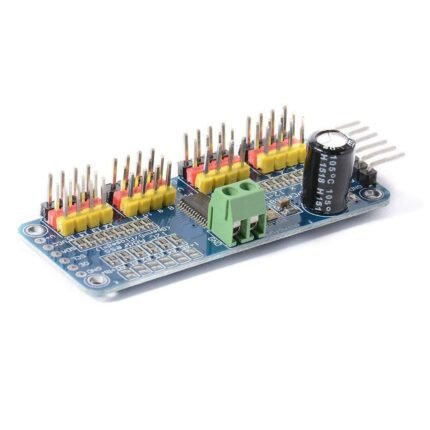

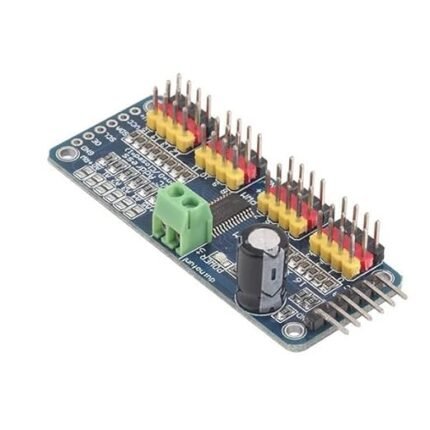

PCA9685 16-Channel 12-bit PWM Servo Driver Module
