Name: DRV8825 Microstepping Stepper Motor Driver Module
SKU: VE-105
Availability: InStock

DRV8825 Microstepping Stepper Motor Driver Module

Technical Specifications

Characteristic	Specification Parameters
Driver Driver IC	Texas Instruments DRV8825 Motor Driver
Motor Driving Voltage (VMOT)	8.2V to 45.0V DC (External motor power feed)
Logic Working Voltage	0V to 5.5V DC (Does not require a separate VCC logic pin)
Continuous Output Current	1.5A per phase winding (Up to 2.2A with active cooling fan/heatsink)
Microstep Resolutions	Full-step, 1/2, 1/4, 1/8, 1/16, and 1/32 steps (3 Selectable Pins)
Hardware Safety Checks	Over-temperature shutdown, over-current fault, and short-circuit protection
Module Dimensions (approx.)	20 mm × 15 mm × 11 mm

The DRV8825 Microstepping Stepper Motor Driver Module is a high-performance electronic breakdown carrier board designed to control bipolar stepper motors. Built around the advanced Texas Instruments DRV8825 chip, it acts as a significant power upgrade to the legacy A4988 driver. It utilizes a regular constant-current chopper circuit layout to drive demanding motors from low-power controllers, making it highly optimal for 3D printers, precision medical pumps, camera sliders, and small CNC engraving machinery.

✨ Key Features

Advanced 1/32 Microstepping: Breaks down physical steps into 32 fractional micro-steps per pulse to ensure silent motor tracking and eliminate resonance.
Onboard Current Limit Potentiometer: Outfitted with an adjustable screw potentiometer trimmer to set the maximum current limits, preventing motor burnout.
4-Layer Thick Copper PCB: Manufactured using an enhanced multi-layer printed circuit layout that significantly improves internal heat dissipation.
Drop-In A4988 Replacement: Matches the identical physical pinout and dimensions of the A4988 driver, allowing immediate drop-in performance upgrades.

-20%

Click to enlarge

Back to products

Original price was: ₹150.00.Current price is: ₹120.00.

Characteristic	Specification Parameters
Driver Driver IC	Texas Instruments DRV8825 Motor Driver
Motor Driving Voltage (VMOT)	8.2V to 45.0V DC (External motor power feed)
Logic Working Voltage	0V to 5.5V DC (Does not require a separate VCC logic pin)
Continuous Output Current	1.5A per phase winding (Up to 2.2A with active cooling fan/heatsink)
Microstep Resolutions	Full-step, 1/2, 1/4, 1/8, 1/16, and 1/32 steps (3 Selectable Pins)
Hardware Safety Checks	Over-temperature shutdown, over-current fault, and short-circuit protection
Module Dimensions (approx.)	20 mm × 15 mm × 11 mm

Compare

Add to wishlist

SKU: VE-105 Category: Motor Driver module

Description

Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “DRV8825 Microstepping Stepper Motor Driver Module”

Shipping & Delivery

Related products

-18%

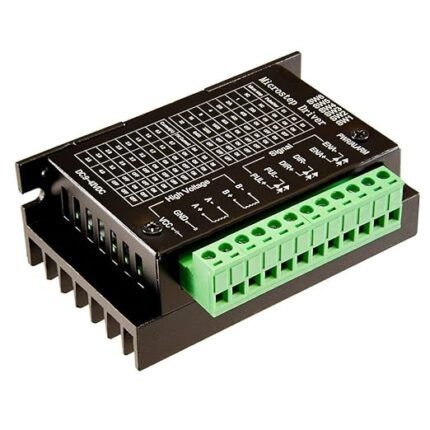

TB6600 4A Stepper Motor Driver Controller

Motor Driver module

Characteristic	Specification Parameters
Driver Topology Type	Bipolar Constant-Current H-Bridge Chopper Drive
Input Operating Voltage	9.0V to 42.0V DC (12V to 24V DC highly recommended)
Adjustable Peak Current	0.5A to 4.0A Max (8 selectable current steps via DIP choices)
Microstep Resolutions	1, 2/A, 2/B, 4, 8, 16, 32 (Up to 6400 pulses per single revolution)
Control Signal Input Level	3.3V to 24.0V DC (Fully logic compatible with 5V Arduino / 3.3V ESP32)
Maximum Pulse Frequency	Up to 200 kHz
Onboard Fault Protection	Over-temperature parking, over-current, under-voltage, and short-circuit protection

Add to cart

Quick view

-17%

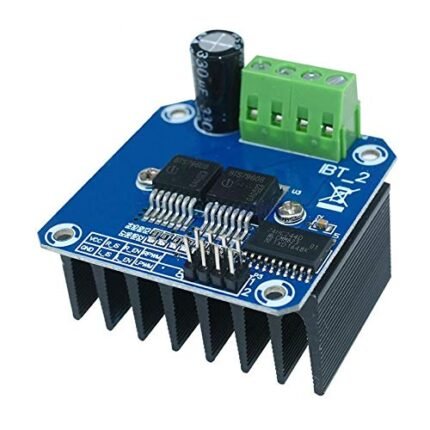

BTS7960 43A High-Power H-Bridge Motor Driver Module

Characteristic	Specification Parameters
Driver Configuration	Dual BTS7960 Half-Bridge Chips (Forming one Full H-Bridge)
Motor Supply Voltage (B+)	5.5V to 27.0V DC (External high-power battery or SMPS)
Logic Operating Voltage	5.0V DC
Continuous Current Rating	15A to 20A (Up to 43A maximum instantaneous peak surge)
PWM Frequency Limit	Up to 25 kHz (Supports smooth and precise duty cycles)
Output MOSFET RDS(on)	16 mΩ typical (Ultra-low internal resistance for low heat)
Module Frame Footprint	50 mm × 50 mm × 43 mm

L293D Dual H-Bridge Motor Driver Module

Characteristic	Specification Parameters
Driver Board IC	L293D Quadruple Half-H Power Driver Chip
Motor Driving Voltage (VCC2)	4.5V to 36.0V DC (External power input)
Logic Supply Voltage (VCC1)	4.5V to 7.0V DC (Typically 5V from logic controller)
Continuous Current Rating	600 mA maximum per individual channel
Peak Output Current Limit	1.2A per channel for short pulse durations
Thermal Protection Safety	Integrated automatic over-temperature thermal shutdown
Module Dimensions (approx.)	48 mm × 34 mm × 14 mm

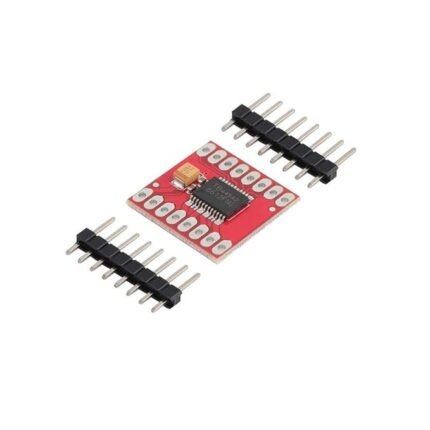

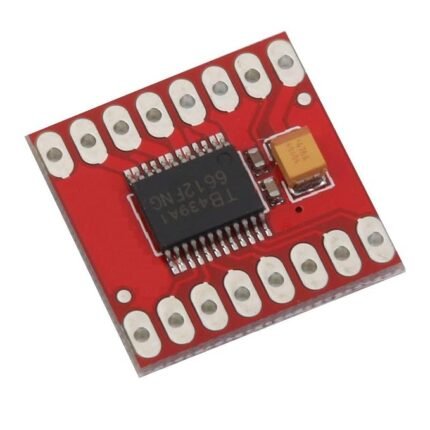

TB6612FNG Dual DC Motor Driver

Characteristic	Specification Parameters
Driver Driver IC	Toshiba TB6612FNG Dual H-Bridge Chip
Motor Supply Voltage (VM)	2.5V to 15.0V DC (Power feed for driven actuators)
Logic Supply Voltage (VCC)	2.7V to 5.5V DC (Compatible with 3.3V and 5V microchips)
Continuous Output Current	1.2A per individual motor channel
Peak Pulse Current Limit	3.2A per individual channel (for short single-pulse durations)
Maximum PWM Frequency	Up to 100 kHz (Supports silent motor operation profiles)
Module Dimensions (approx.)	20 mm × 20 mm × 10 mm (Ultra-compact footprint)

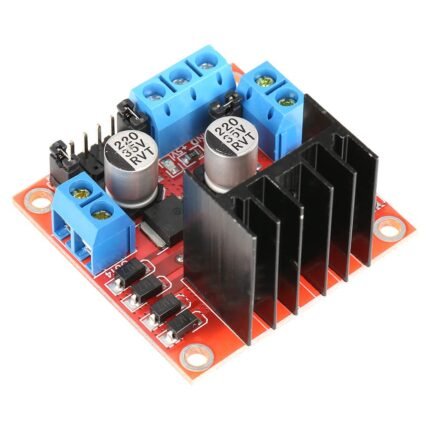

L298N Dual H-Bridge Motor Driver Module

Characteristic	Specification Parameters
Driver Driver IC	L298N Dual H-Bridge Power IC
Motor Supply Voltage (VMS)	5.0V to 35.0V DC (External power input)
Logic Supply Voltage (VSS)	5.0V DC
Peak Output Current	2.0A per individual channel (up to 3.0A peak surge duration)
Total Power Dissipation	25W (at max thermal capacity with integrated aluminum heatsink)
Control Logic Input Level	5V TTL and CMOS Compatible Logic inputs
Module Frame Footprint	43 mm × 43 mm × 27 mm

-52%

DRV8833 Dual H-Bridge DC Motor Driver Module

Characteristic	Specification Parameters
Driver Driver IC	Texas Instruments DRV8833 Dual H-Bridge Chip
Motor Supply Voltage (VM)	2.7V to 10.8V DC (Ideal for Li-Ion, NiMH, or AA battery packs)
Continuous Output Current	1.2A per individual motor channel (at 25°C room temperature)
Peak Pulse Current Limit	2.0A per channel for short pulse durations
Control Logic Input Level	3.3V and 5V Logic Compatible (Works with Arduino, ESP32, Raspberry Pi)
PWM Frequency Support	Up to 50 kHz for smooth speed adjustments
Module Dimensions (approx.)	18.5 mm × 16 mm × 3.5mm

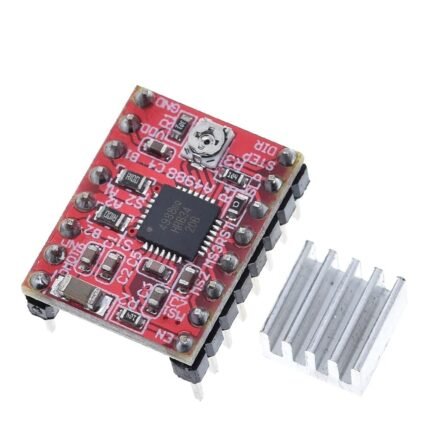

A4988 DMOS Microstepping Stepper Motor Driver Module

Characteristic	Specification Parameters
Driver Driver IC	Allegro A4988 Microstepping Driver Chip
Motor Supply Voltage (VMOT)	8.0V to 35.0V DC (External power rail for driven actuators)
Logic Supply Voltage (VDD)	3.0V to 5.5V DC (Fully compatible with 3.3V and 5V microchips)
Continuous Output Current	1.0A per phase winding (Up to 2.0A with attached heatsink and active cooling)
Microstep Resolutions	Full-step, Half-step, Quarter-step, Eighth-step, and Sixteenth-step
Onboard Fault Protection	Thermal shutdown, crossover-current protection, and under-voltage lockout
Module Dimensions (approx.)	20 mm × 15 mm × 11 mm (Ultra-compact DIP carrier form factor)

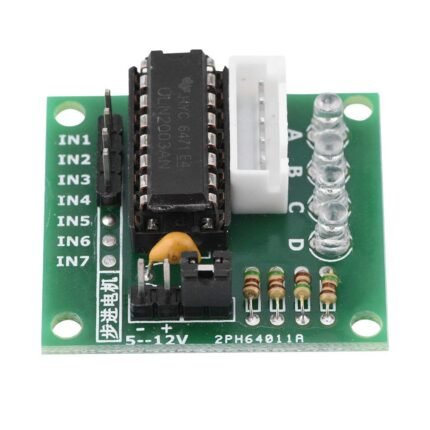

ULN2003 Driver
