Name: BTS7960 43A High-Power H-Bridge Motor Driver Module
SKU: VE-109
Availability: InStock

BTS7960 43A High-Power H-Bridge Motor Driver Module

Technical Specifications

Characteristic	Specification Parameters
Driver Configuration	Dual BTS7960 Half-Bridge Chips (Forming one Full H-Bridge)
Motor Supply Voltage (B+)	5.5V to 27.0V DC (External high-power battery or SMPS)
Logic Operating Voltage	5.0V DC
Continuous Current Rating	15A to 20A (Up to 43A maximum instantaneous peak surge)
PWM Frequency Limit	Up to 25 kHz (Supports smooth and precise duty cycles)
Output MOSFET RDS(on)	16 mΩ typical (Ultra-low internal resistance for low heat)
Module Frame Footprint	50 mm × 50 mm × 43 mm

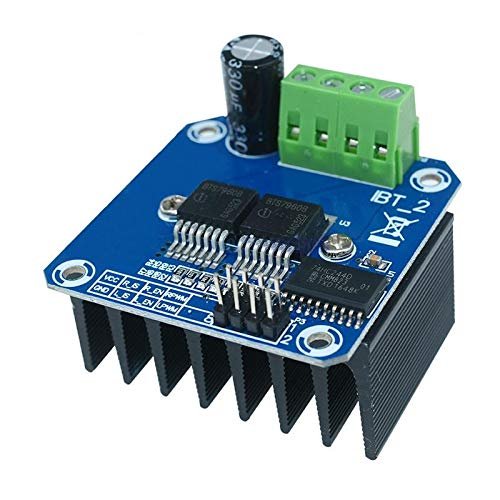

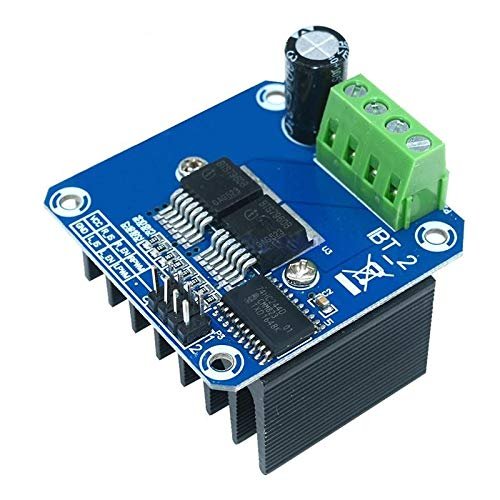

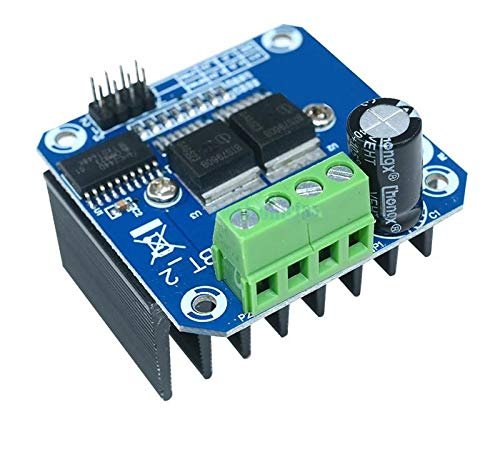

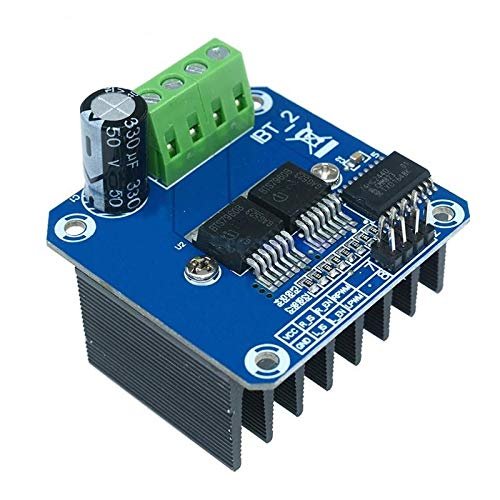

The BTS7960 43A High-Power H-Bridge Motor Driver Module is an industrial-grade electronic power controller designed to govern the speed and direction of heavy-duty brushed DC motors. Built around two Infeneon BTS7960 high-current chips configured into a full H-bridge, it operates as a heavy thermal dissipation unit capable of handling immense current paths. It is the gold standard driver module for high-load projects like RS-775 motors, combat robots, electric wheelchairs, and automated agricultural machinery.

Key Features

Massive Current Capacity: Handles up to 43A peak current surge, allowing it to easily drive large high-torque motors without burning out.
Complete Microcontroller Isolation: Utilizes a 74HC244 chip to optically/electrically isolate incoming 5V microcontroller signals from high-voltage motor feedback loops.

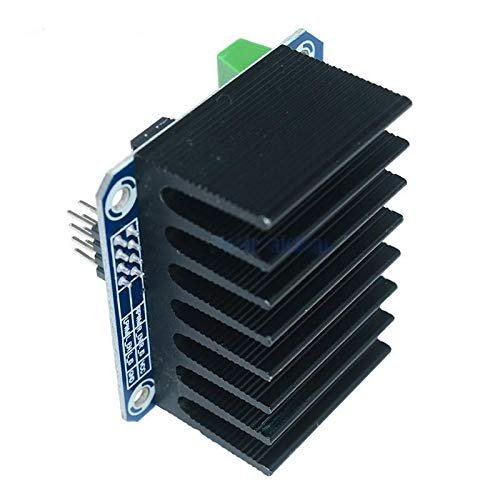

Massive Aluminum Heatsink: Outfitted with a thick pre-installed aluminum block heat exchanger that actively pulls thermal energy away from the driver FETs.
Real-Time Diagnostics: Includes active over-current, over-voltage, under-voltage, over-temperature, and short-circuit protection with error flag outputs.
