Name: Single Shaft BO Motor - (Battery Operated Geared DC Motor)
SKU: VE-094
Price: 50.00 INR
Availability: InStock

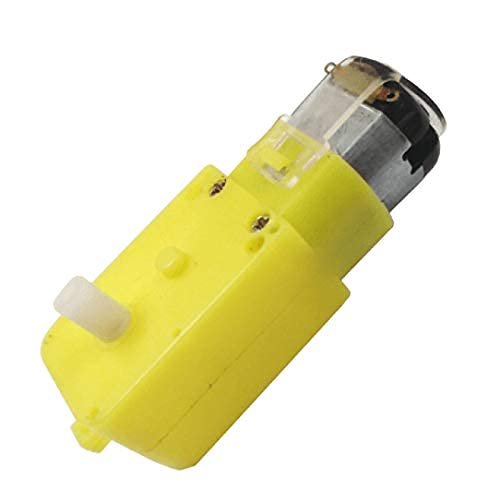

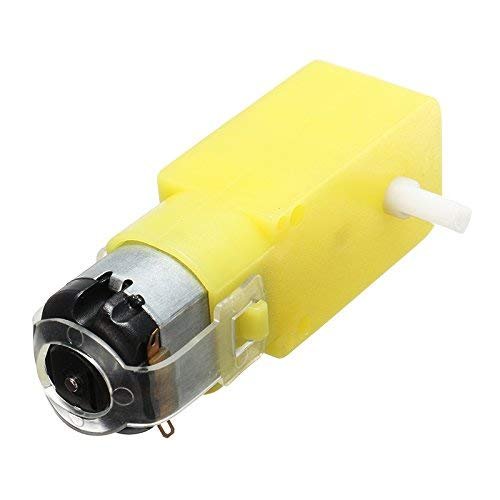

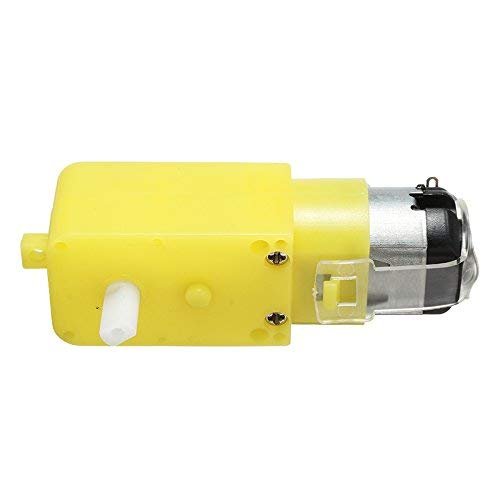

Single Shaft BO Motor – (Battery Operated Geared DC Motor)

Technical Specifications

Characteristic	Specification Parameters
Motor & Gearbox Type	Permanent-Magnet Brushed DC Motor with Plastic Spur Gears
Operating Voltage Range	3.0V to 9.0V DC (6V DC Nominal Standard)
Common Rated Speeds	60 / 100 / 150 / 200 / 300 RPM (Depending on Voltage)
Current Draw Profile	~60mA No-Load Current / ~700mA at full mechanical stall
Output Torque (approx.)	~0.35 kg-cm up to 1.9 kg-cm (Ratio-dependent scaling)
Shaft Profile & Shape	Slotted Flat-Sided Dual Output Axles (5.5 mm to 6 mm Diameter)
Casing Dimensions	55 mm × 48 mm × 23 mm

SKU: VE-094 Category: Motors

The Single Shaft BO Motor (Battery Operated) is a lightweight, budget-friendly DC motor combined with a built-in plastic reduction gearbox. Known as a “straight” or “in-line” motor, it features an output axle projecting out of both sides of the casing. This distinct dual-shaft engineering allows you to mount a drive wheel on one side while attaching a digital speed encoder or position-tracking disc on the other. It is the benchmark choice for basic STEM education, autonomous line-following cars, and obstacle-avoidance robot chassis.

✨ Key Features

Low-Voltage Efficiency: Engineered to produce high-torque translation at minimal operating voltages, extending battery runtime.
Impact-Absorbing Housing: The injection-molded plastic gear layout acts as an elastic cushion, absorbing structural shock waves and ground vibrations.
Featherweight Form Factor: Minimizes total vehicle bulk and chassis drag, enhancing the agility and runtime of small autonomous cars.
