Name: RS-775 Heavy-Duty High-Speed DC Motor
SKU: VE-092
Availability: InStock

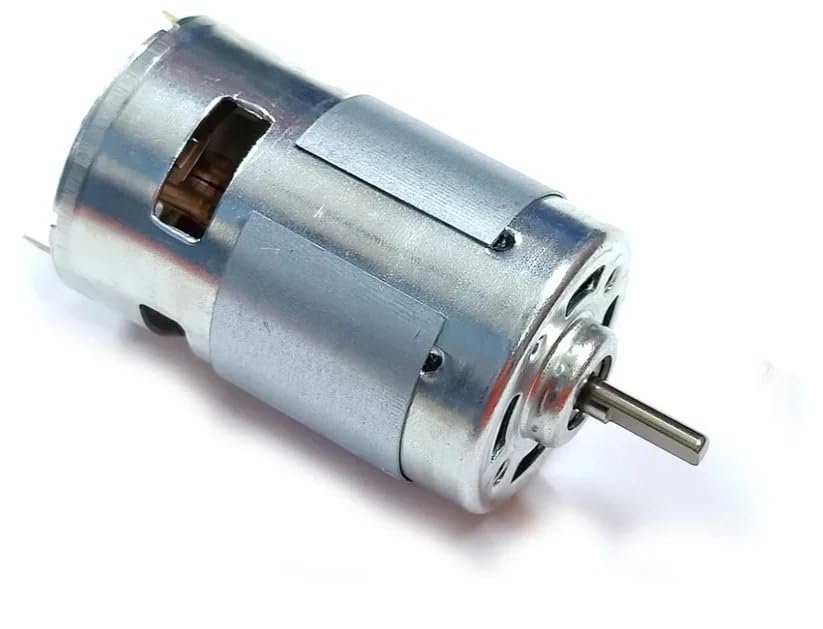

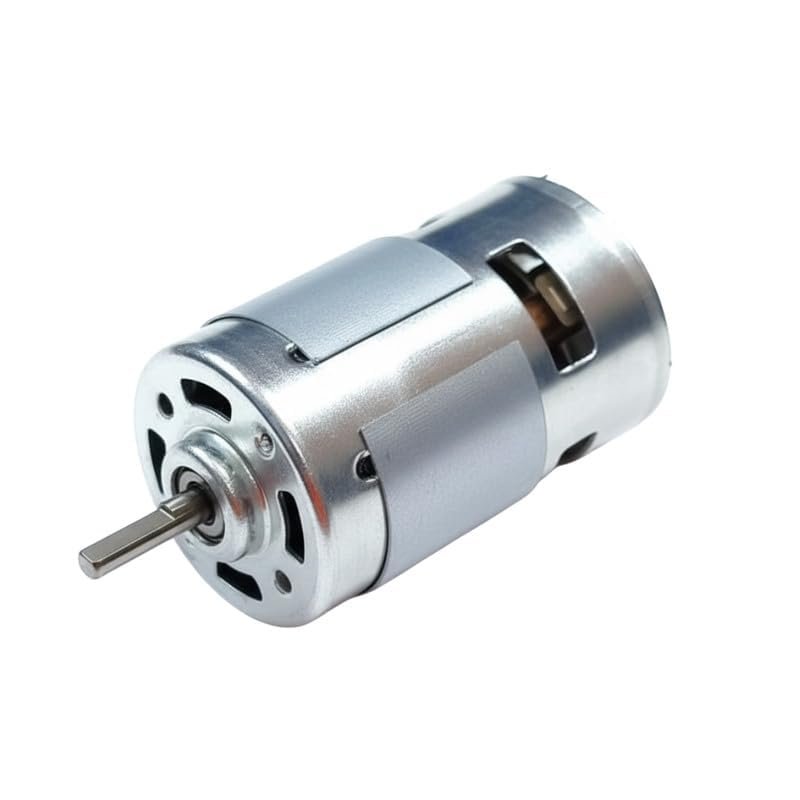

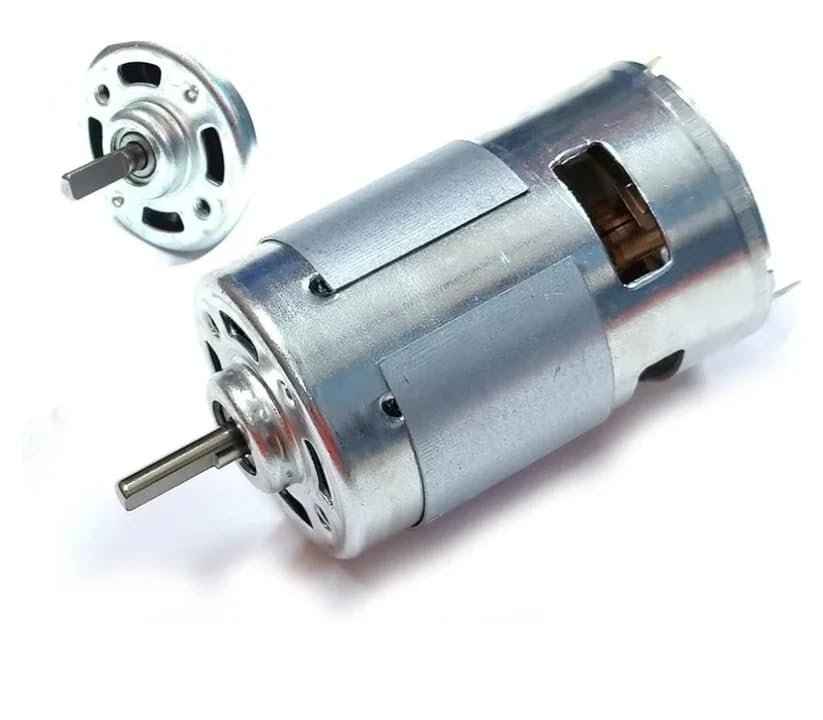

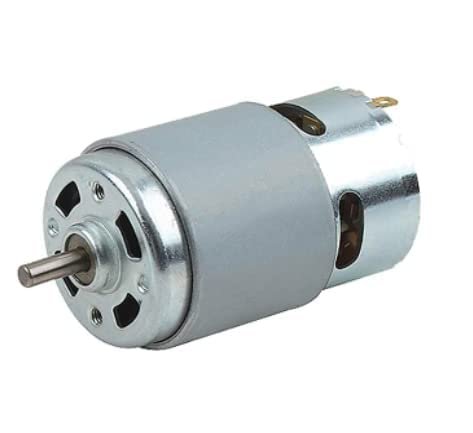

RS-775 Heavy-Duty High-Speed DC Motor

Technical Specifications

Characteristic	Specification Parameters
Motor Classification	RS-775 High-Power Brushed Carbon DC Motor
Operating Voltage Range	12.0V to 24.0V DC (12V/24V Dual-Nominal Support)
No-Load Angular Speed	~10,000 RPM (at 12V) to ~20,000 RPM (at 24V)
Current Limits (at 12V)	~1.2A No-Load / 5A Rated Peak / Up to 20A+ full stall surge
Output Shaft Dimensions	5.0 mm Diameter × 16 mm Length (Round Shaft)
Mounting Blueprint	2 × M4 Bolt Holes spaced 29 mm apart on faceplate
Main Body Dimensions	42 mm Housing Diameter × 67 mm Frame Length

SKU: VE-092 Category: Motors

The RS-775 Heavy-Duty High-Speed DC Motor is a premium, industrial-grade brushed direct-current motor packed into a large 42mm cylindrical housing. Driven by an integrated internal cooling fan and thick carbon brushes, it is engineered to handle massive power throughput without failing. It is the gold standard actuator for high-load power tools, benchtop circular saws, heavy-duty cordless drills, lawnmowers, and large-scale combat robots.

✨ Key Features

High Torque & Velocity Output: Offers extreme starting torque and can reach intense angular speeds up to 20,000 RPM depending on the voltage feed.
Built-in Internal Cooling Fan: Features a dedicated rotor-mounted fan blades assembly that continuously forces air through front ventilation slots for active thermal dissipation.
Dual Ball Bearing Architecture: Built with precision dual ball bearings flanking the front and rear shaft entry points to eliminate mechanical friction and minimize shaft wobble.
Robust 5mm Hardened Spindle: Employs a thick, heavy-duty 5mm steel axle designed to withstand high radial shocks and torque strain from heavy pulley belts or tool chucks.

-17%

Click to enlarge

Back to products

Original price was: ₹300.00.Current price is: ₹250.00.

Characteristic	Specification Parameters
Motor Classification	RS-775 High-Power Brushed Carbon DC Motor
Operating Voltage Range	12.0V to 24.0V DC (12V/24V Dual-Nominal Support)
No-Load Angular Speed	~10,000 RPM (at 12V) to ~20,000 RPM (at 24V)
Current Limits (at 12V)	~1.2A No-Load / 5A Rated Peak / Up to 20A+ full stall surge
Output Shaft Dimensions	5.0 mm Diameter × 16 mm Length (Round Shaft)
Mounting Blueprint	2 × M4 Bolt Holes spaced 29 mm apart on faceplate
Main Body Dimensions	42 mm Housing Diameter × 67 mm Frame Length
