Name: Raindrop Detection Sensor Module
SKU: VE-073
Availability: InStock

Raindrop Detection Sensor Module

Technical Specifications

Characteristic	Specification Parameters
Sensor Principle	Resistance-Based Variable Conductivity
Operating Voltage	3.3V to 5.0V DC
Operating Current	~15 mA to 20 mA (Low consumption)
Comparator IC	LM393 Wide-Voltage Operational Amplifier
Sensing Pad Area	Approx. 40 mm × 50 mm (Double-sided FR4 layer)
Output Formats	Digital TTL (0 / 1) and Analog Voltage (AO)

SKU: VE-073 Category: Sensors

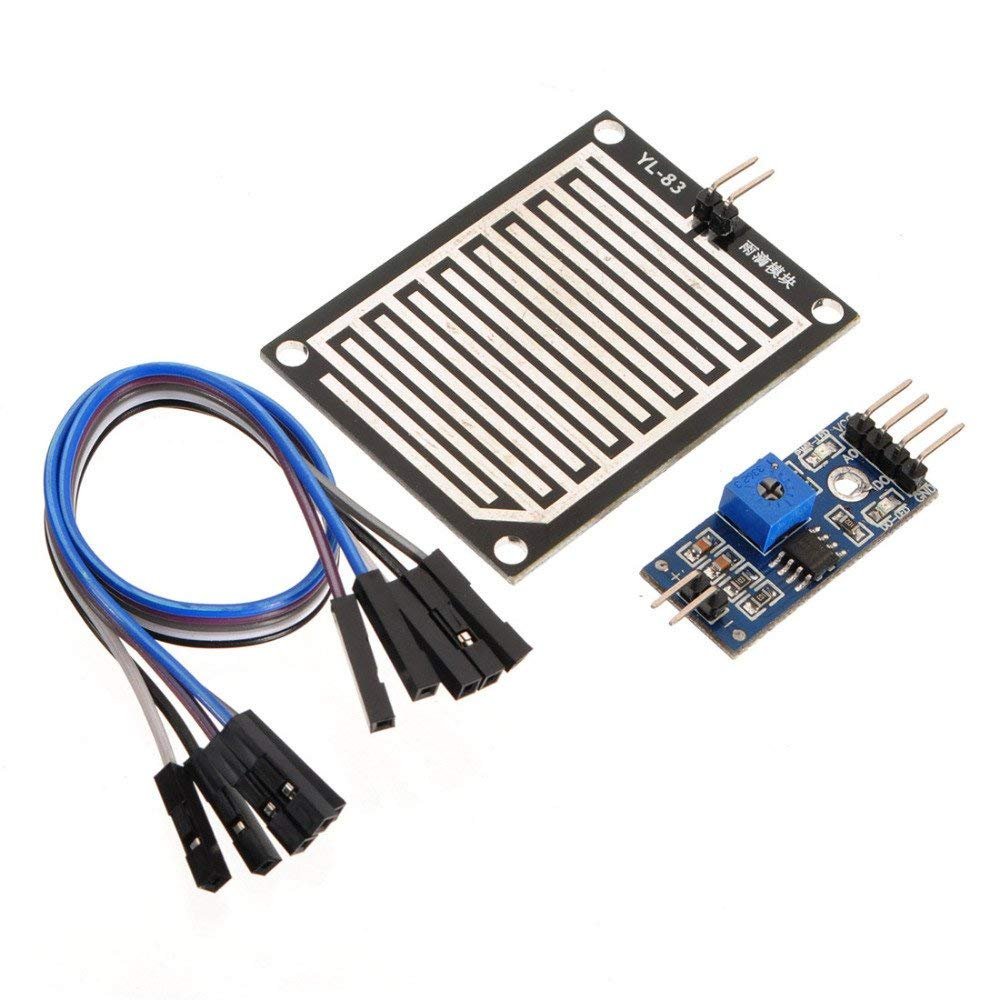

The Raindrop Detection Sensor Module is an easy-to-use, dual-module weather monitoring peripheral designed to sense the presence and relative intensity of precipitation. It consists of a dedicated nickel-coated sensing pad connected to an electronic driver board utilizing an LM393 voltage comparator chip. Operating on a resistance-bridging principle, the module detects moisture whenever water droplets bridge the exposed conductive tracks, allowing developers to automate systems based on real-time rainfall data.

✨ Key Features

Dual Output Modes: Provides both a simple high/low digital switching signal and an informative analog voltage output for tracking rainfall severity.
Adjustable Threshold Sensitivity: Integrated onboard potentiometer allows precise fine-tuning of the rain detection trigger point.
Dual LED Indicators: Features independent onboard LEDs to provide visual feedback for system power and active digital output triggering.
Weather-Resistant Sensing Surface: The large tracking pad features a durable, anti-oxidation nickel coating to prevent premature corrosion over outdoor lifespans

-18%

Click to enlarge

Back to products

Original price was: ₹85.00.Current price is: ₹70.00.

Characteristic	Specification Parameters
Sensor Principle	Resistance-Based Variable Conductivity
Operating Voltage	3.3V to 5.0V DC
Operating Current	~15 mA to 20 mA (Low consumption)
Comparator IC	LM393 Wide-Voltage Operational Amplifier
Sensing Pad Area	Approx. 40 mm × 50 mm (Double-sided FR4 layer)
Output Formats	Digital TTL (0 / 1) and Analog Voltage (AO)
