Name: MG995 High-Torque Standard Servo Motor
SKU: VE-071
Price: 270.00 INR
Availability: InStock

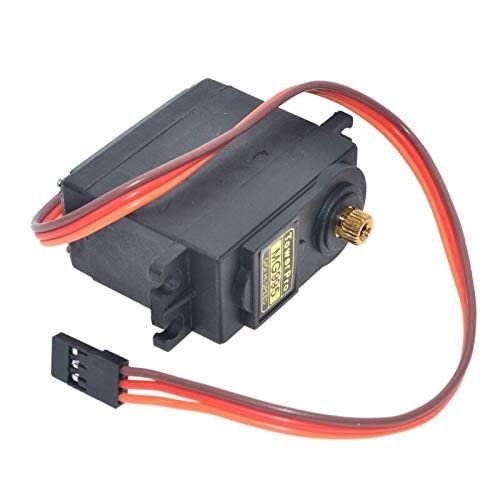

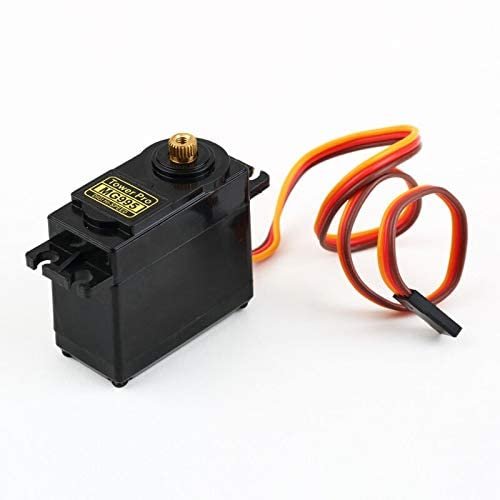

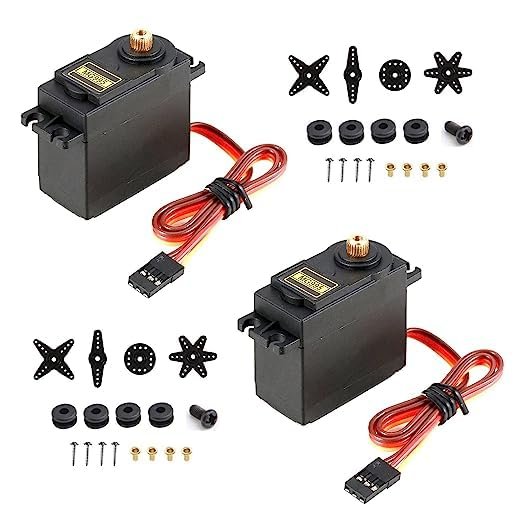

MG995 High-Torque Standard Servo Motor

Technical Specifications

Characteristic	Specification Parameters
Motor Type	Standard-Size High-Torque Servo
Operating Voltage	4.8V to 7.2V DC
Stall Torque	10 kg-cm (at 4.8V) to 12 kg-cm (at 6.0V)
Operating Speed	0.20 sec / 60° (at 4.8V) to 0.16 sec / 60° (at 6.0V)
Gear Train Material	Metal / Semi-Metal Gears
Dimensions (approx.)	40.7 mm × 19.7 mm × 42.9 mm

SKU: VE-071 Category: Motors

The MG995 High-Torque Standard Servo Motor is a heavy-duty, high-performance actuator designed for projects requiring substantial mechanical force. Moving past the limitations of sub-micro variants, this standard-sized servo combines a coreless DC motor with robust internal gearing. It is widely used by developers for driving heavy mechanical links, including steerage controls in large RC vehicles, industrial automation prototypes, and multi-axis robotic arms.

✨ Key Features

High Operational Torque: Delivers a powerful stall force of up to 12 kg-cm, making it capable of handling large structural loads easily.
Metal Gear Construction: Employs heavy-duty internal metal gears (brass and alloy composite) that offer exceptional wear resistance and protect against stripped teeth under shock loads.
Dual Ball Bearing Design: Supported by stable, shock-proof double ball bearings on the output shaft to reduce friction and eliminate lateral play.

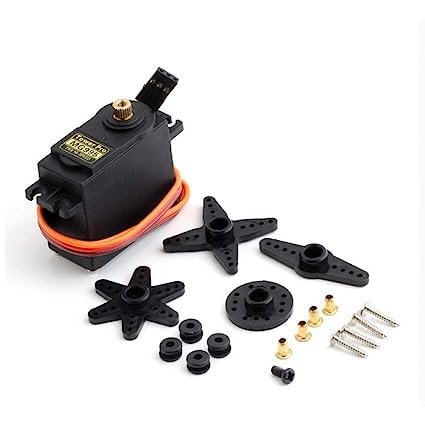

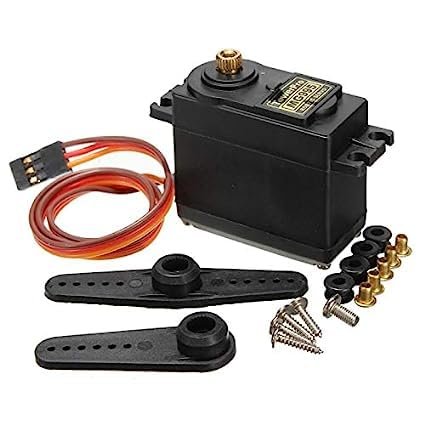

Universal Hardware Mounting: Supplied with a comprehensive assortment of standard multi-arm nylon servo horns, mounting grommets, and brass eyelets for immediate chassis installation

-15%

Click to enlarge

Back to products

Original price was: ₹318.00.Current price is: ₹270.00.

Characteristic	Specification Parameters
Motor Type	Standard-Size High-Torque Servo
Operating Voltage	4.8V to 7.2V DC
Stall Torque	10 kg-cm (at 4.8V) to 12 kg-cm (at 6.0V)
Operating Speed	0.20 sec / 60° (at 4.8V) to 0.16 sec / 60° (at 6.0V)
Gear Train Material	Metal / Semi-Metal Gears
Dimensions (approx.)	40.7 mm × 19.7 mm × 42.9 mm
