Name: MG90S Metal Gear Micro Servo Motor
SKU: VE-070
Availability: InStock

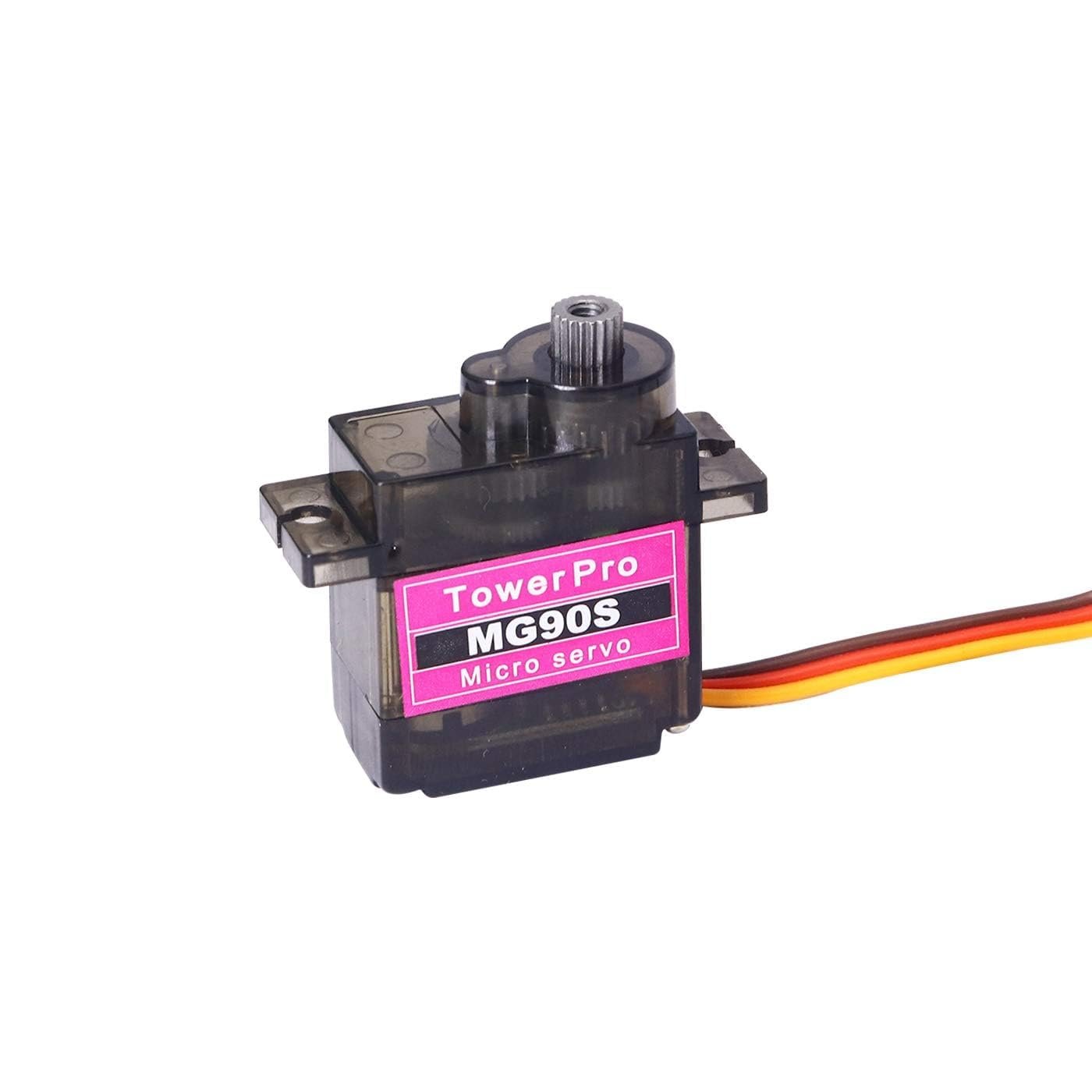

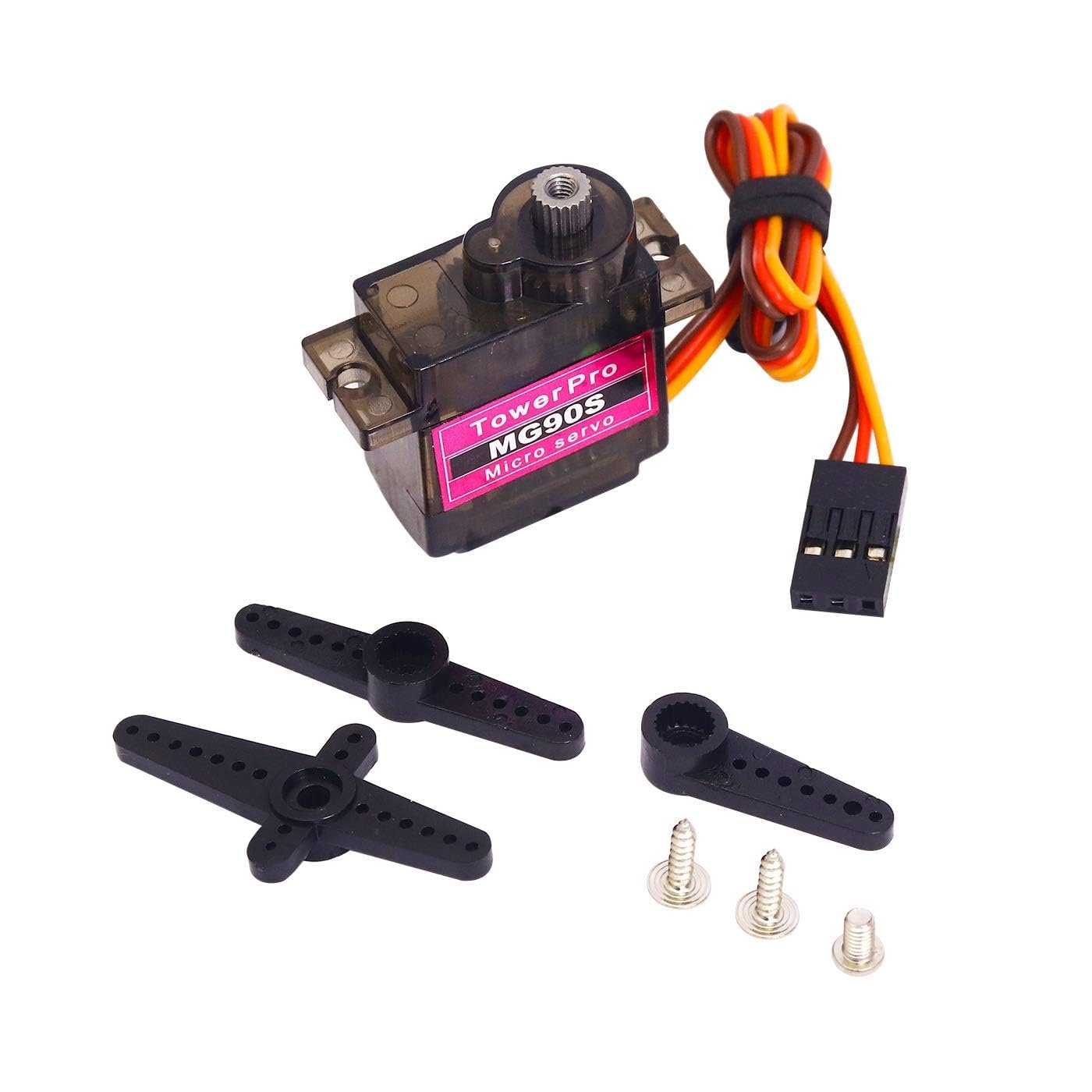

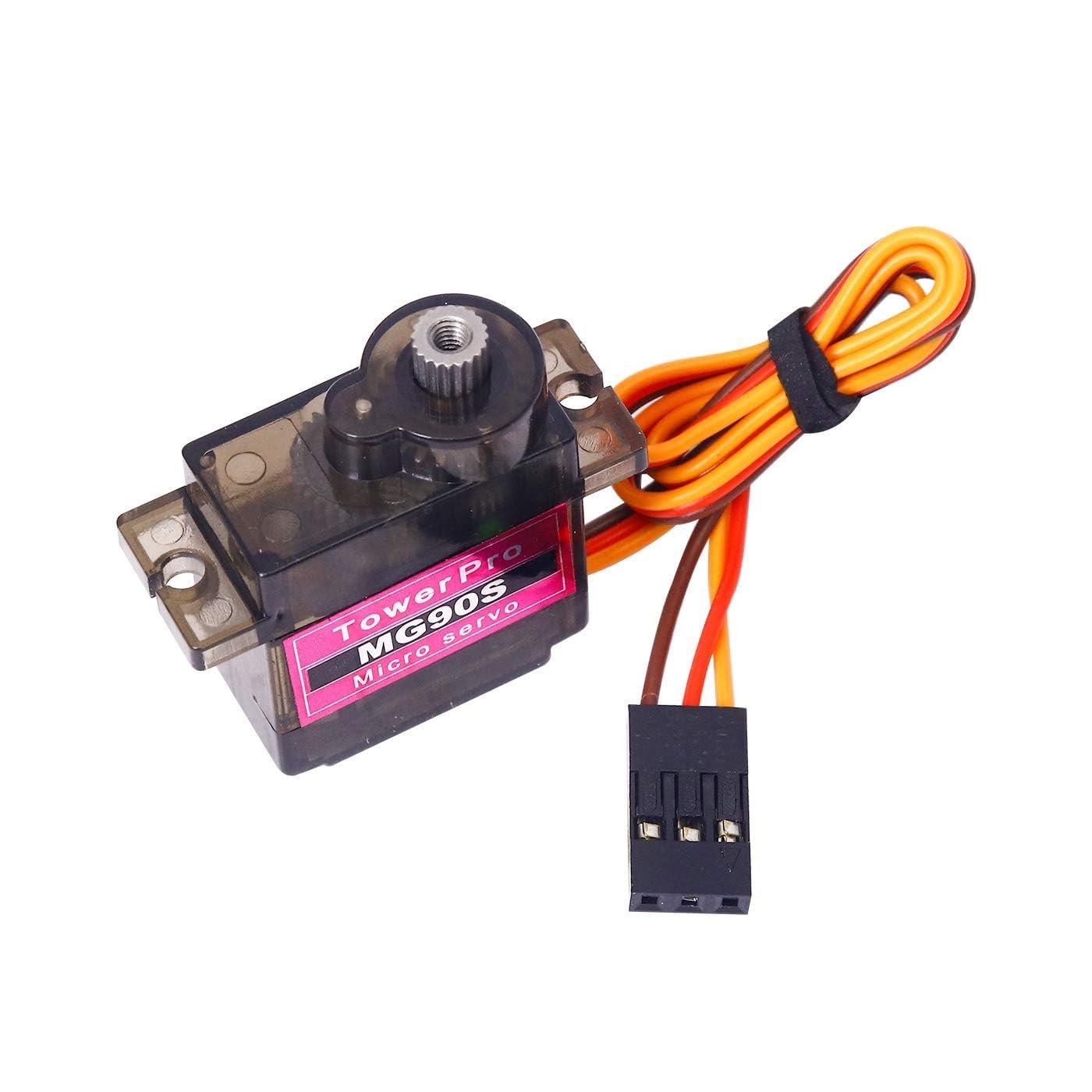

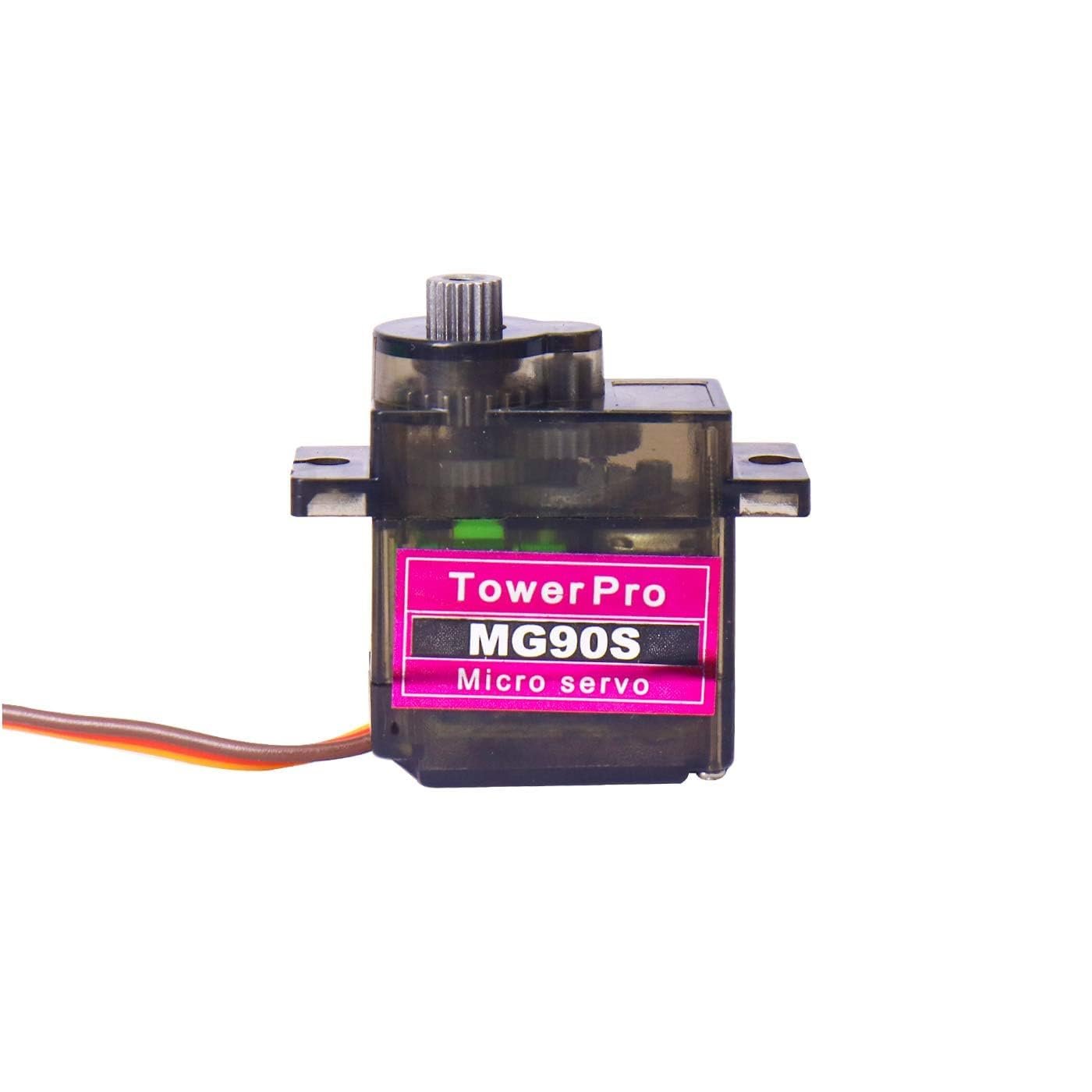

MG90S Metal Gear Micro Servo Motor

Technical Specifications

Characteristic	Specification Parameters
Motor Type	13.4g Digital Micro Servo
Operating Voltage	4.8V to 6.6V DC
Stall Torque	1.8 kg-cm (at 4.8V) to 2.2 kg-cm (at 6.0V)
Operating Speed	0.10 sec / 60° (at 4.8V) to 0.08 sec / 60° (at 6.0V)
Gear Train Material	Metal Gears (Copper/Alloy)
Dimensions (approx.)	22.8 mm × 12.2 mm × 28.5 mm

SKU: VE-070 Category: Motors

The MG90S Metal Gear Micro Servo Motor is an upgraded, high-torque variant of the classic 9g micro servo. It features a digital control system that processes Pulse Width Modulation (PWM) positioning signals faster and with tighter precision than traditional analog models. This micro-sized actuator is highly popular among hobbyists for compact applications demanding increased resilience against physical wear, such as remote-controlled (RC) cars, small robotic arms, and aircraft steering flaps.

✨ Key Features

Metal Gear Durability: Equipped with a rugged metal gear train (often semi-metal with a combination of brass or alloy gears) that dramatically reduces stripped teeth under mechanical load.
Digital Signal Precision: Features an optimized digital internal circuit that delivers faster position updates, stronger holding power, and minimal dead bandwidth.
Double Ball Bearing Design: Built with integrated ball bearings to provide smooth output shaft rotation and improved shock resistance.
Drop-in SG90 Replacement: Maintains nearly identical casing dimensions as the plastic SG90 motor, allowing an immediate hardware upgrade without redesigning mounts.

-15%

Click to enlarge

Back to products

Original price was: ₹177.00.Current price is: ₹150.00.

Characteristic	Specification Parameters
Motor Type	13.4g Digital Micro Servo
Operating Voltage	4.8V to 6.6V DC
Stall Torque	1.8 kg-cm (at 4.8V) to 2.2 kg-cm (at 6.0V)
Operating Speed	0.10 sec / 60° (at 4.8V) to 0.08 sec / 60° (at 6.0V)
Gear Train Material	Metal Gears (Copper/Alloy)
Dimensions (approx.)	22.8 mm × 12.2 mm × 28.5 mm
