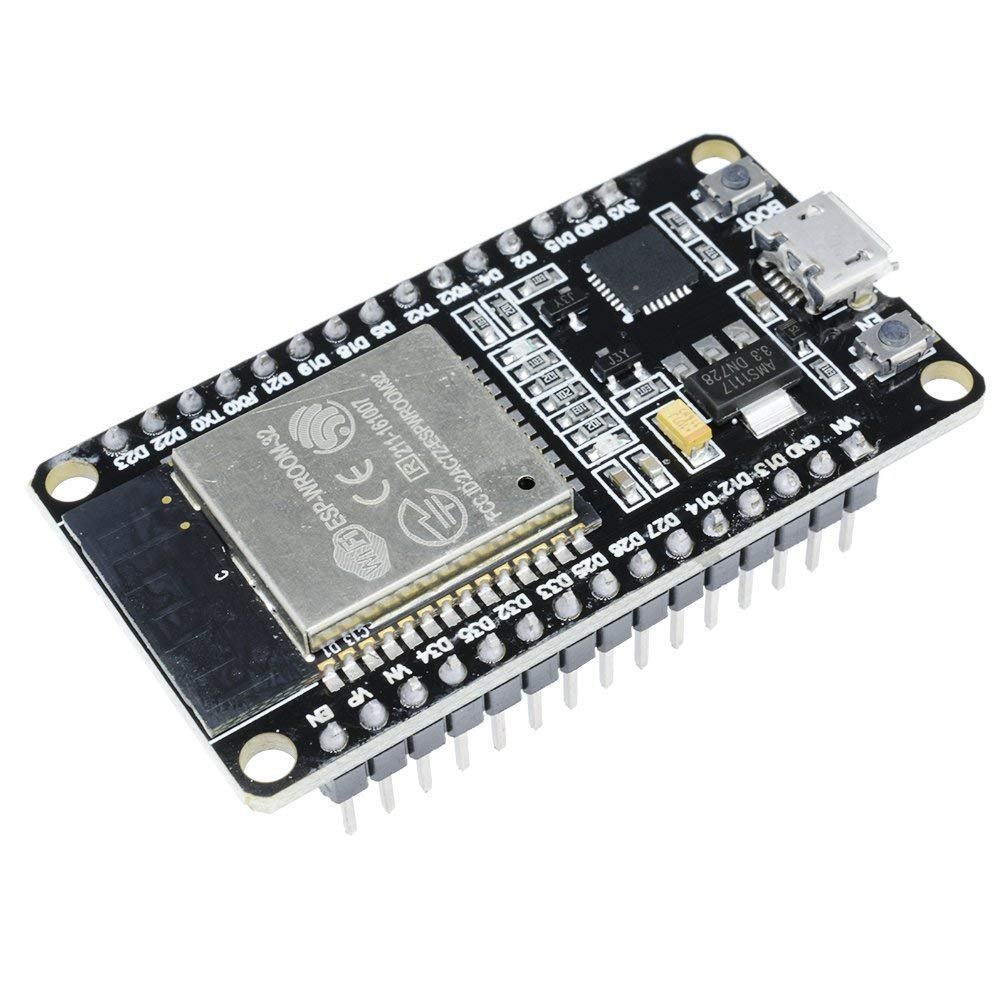

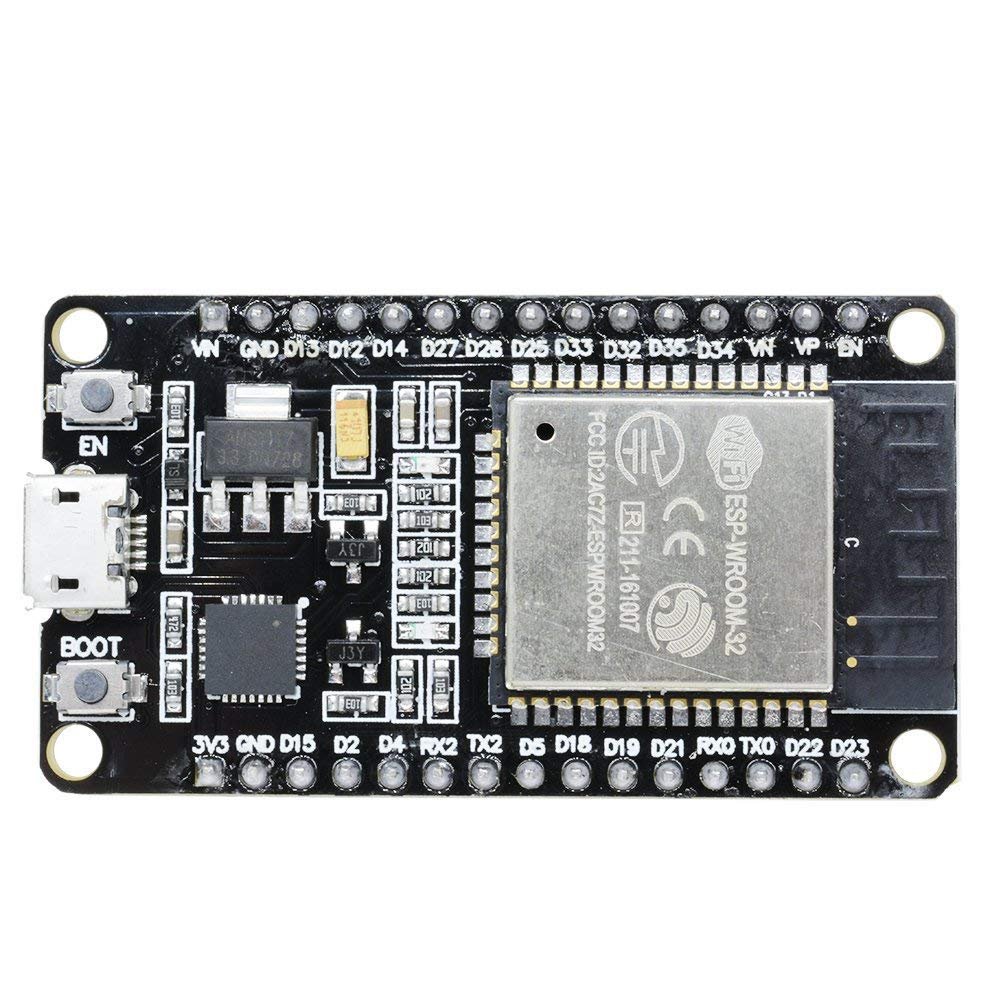

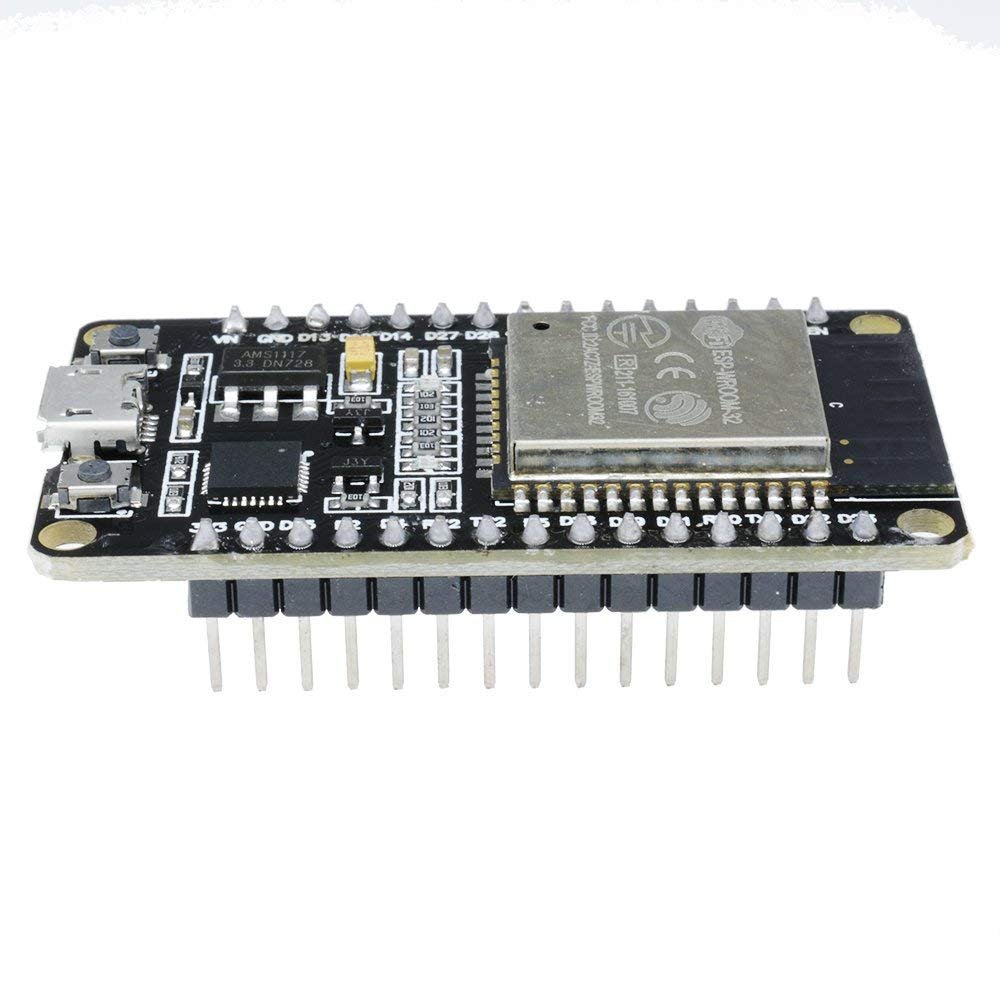

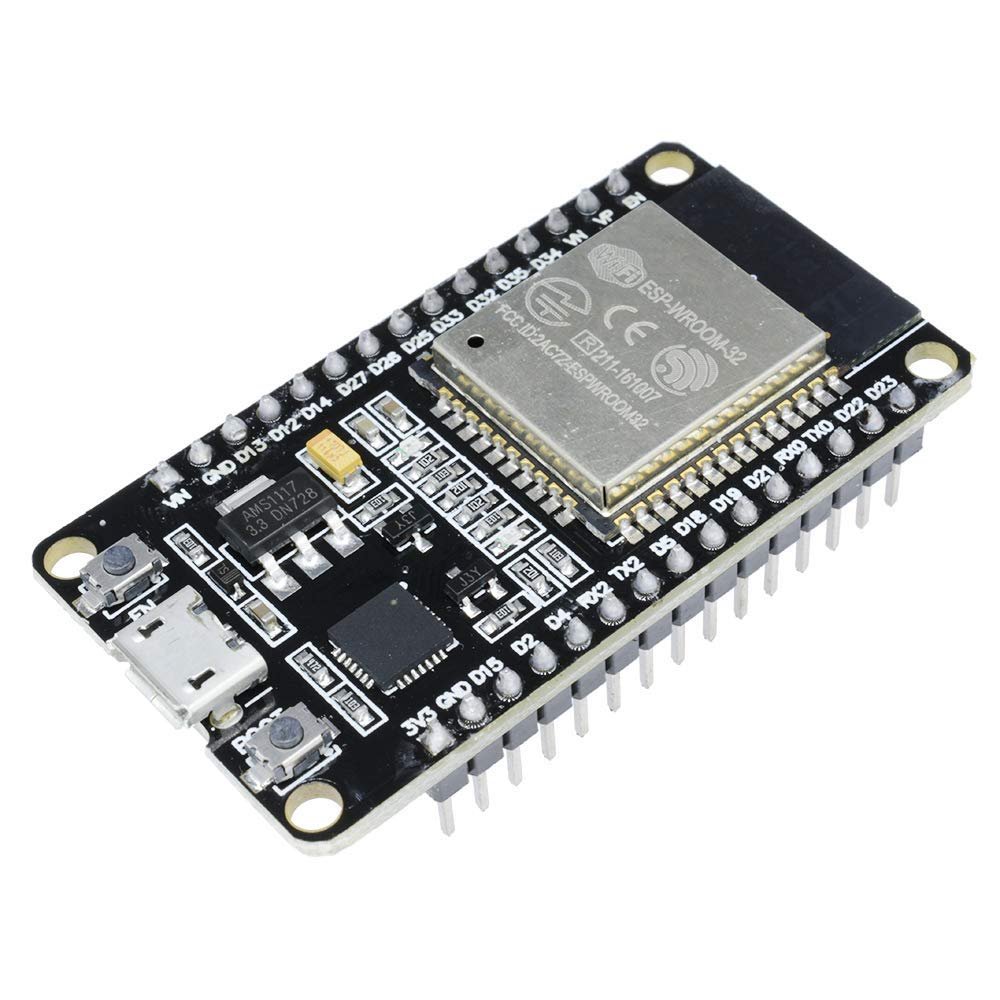

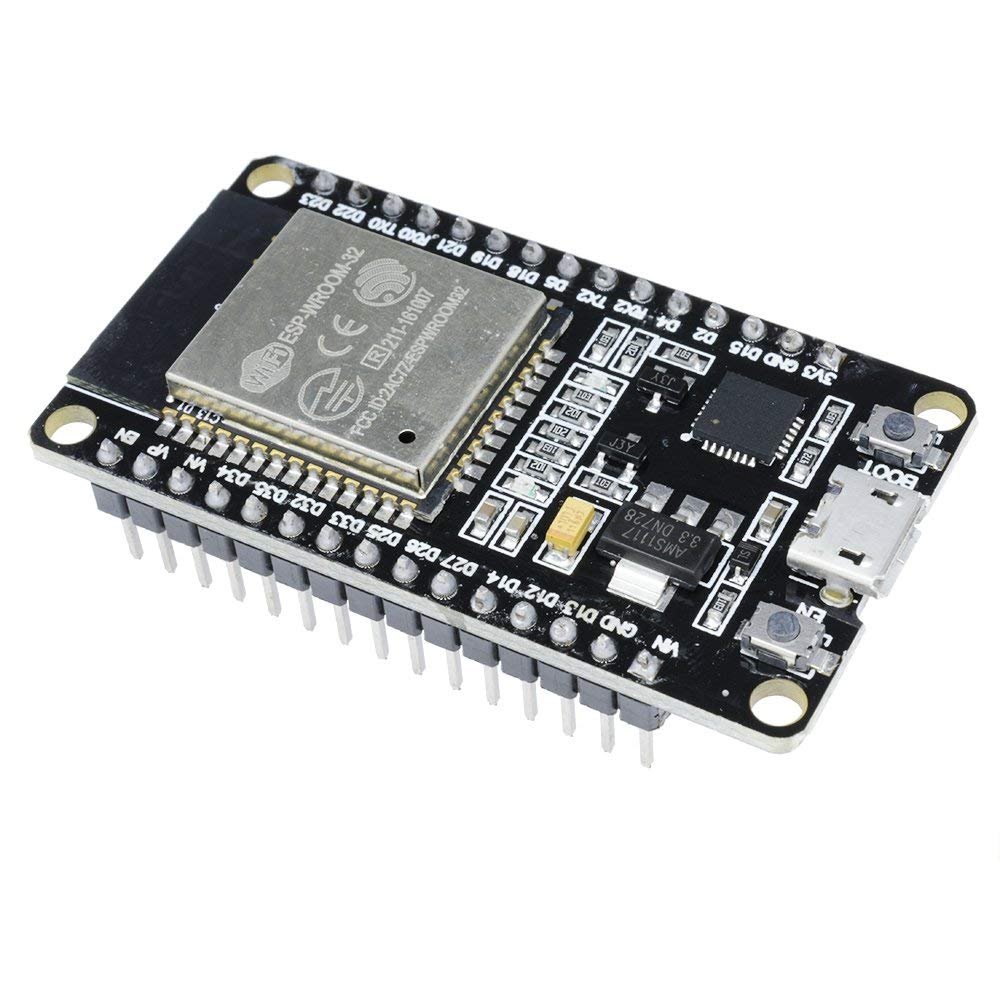

Name: ESP32 NodeMCU Wi-Fi + Bluetooth Development Board 30 pin
SKU: VE-111
Availability: InStock

ESP32 NodeMCU Wi-Fi + Bluetooth Development Board 30 pin

Technical Specifications

Characteristic	Specification Parameters
Microprocessor Core	Xtensa Dual-Core 32-bit LX6 Microprocessor (Up to 240 MHz)
Memory Capacity	520 KB SRAM / 4 MB External Flash Storage Memory
Wireless Protocols	Wi-Fi 802.11 b/g/n (Up to 150 Mbps) + Bluetooth v4.2 & BLE
Logic Working Voltage	3.3V DC (Onboard 1117 regulator accepts 5V USB input)
GPIO Interface Array	30-Pin layout with multi-functional breakout mappings
USB-UART Interface	Onboard Silabs CP2102 USB-to-Serial converter chip
Module Dimensions	Approx. 51 mm × 28 mm × 13 mm (Breadboard friendly)

SKU: VE-111 Category: ESP

The ESP32 NodeMCU Wi-Fi + Bluetooth Development Board is a highly integrated, low-cost, low-power system-on-chip (SoC) microcontroller module designed for internet-of-things (IoT) applications. Populated with a high-performance Tensilica Xtensa 32-bit dual-core processor, it seamlessly bridges ultra-low-power standby modes with dual wireless protocols. It features a built-in CP2102 USB-to-UART bridge controller, allowing developers to program it directly over USB via the Arduino IDE, MicroPython, or ESP-IDF for smart home automation, remote logging, and wearable tech.

✨ Key Features

Dual Wireless Connectivity: Features a fully integrated 2.4 GHz Wi-Fi transceiver (802.11 b/g/n) along with Bluetooth v4.2 BR/EDR and Bluetooth Low Energy (BLE).
High-Speed Dual-Core Architecture: Powered by two independently controllable CPU cores running up to 240 MHz to handle compute-heavy sensor math and network tasks simultaneously.
Rich Peripheral Subsystem: Outfitted with dynamic capacitive touch sensors, Hall effect sensors, high-speed SPI, I2C, UART, DAC, and 12-bit analog-to-digital (ADC) channels.
Ultra-Low Power Operations: Features fine-grained clock gating, dynamic power scaling, and multiple sleep modes that drop current consumption under 5µA for battery preservation.

-17%

Click to enlarge

Back to products

Original price was: ₹420.00.Current price is: ₹350.00.

Characteristic	Specification Parameters
Microprocessor Core	Xtensa Dual-Core 32-bit LX6 Microprocessor (Up to 240 MHz)
Memory Capacity	520 KB SRAM / 4 MB External Flash Storage Memory
Wireless Protocols	Wi-Fi 802.11 b/g/n (Up to 150 Mbps) + Bluetooth v4.2 & BLE
Logic Working Voltage	3.3V DC (Onboard 1117 regulator accepts 5V USB input)
GPIO Interface Array	30-Pin layout with multi-functional breakout mappings
USB-UART Interface	Onboard Silabs CP2102 USB-to-Serial converter chip
Module Dimensions	Approx. 51 mm × 28 mm × 13 mm (Breadboard friendly)
