Name: TTP223 Capacitive Touch Sensor Module
SKU: VE-060
Availability: InStock

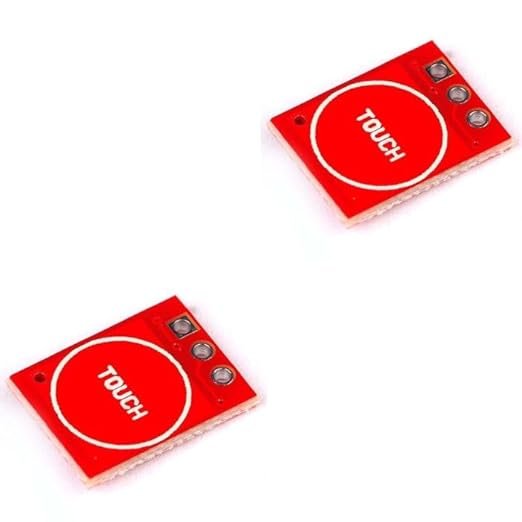

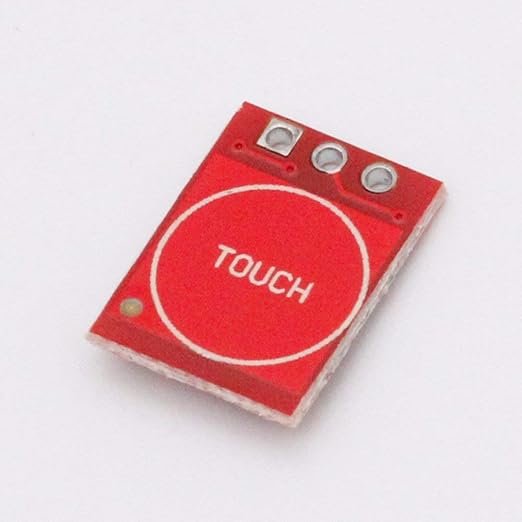

TTP223 Capacitive Touch Sensor Module

Technical Specification Details

Parameter	Specification Details
Sensing IC Chipset	TTP223-BA6 TonTouch Capacitive Detector
Operating Voltage Range	2.0V to 5.5V DC
Response Time Max	~60ms at fast mode \| ~220ms at low-power standby mode
Output Logic Mode	Default: Momentary Active-High (Configurable via solder pads)
Current Consumption	Ultra-low 1.5 µA to 3.0 µA baseline power draw
Default Jumper State A	Open: Active-High Output \| Shorted: Active-Low Output
Default Jumper State B	Open: Momentary Switch \| Shorted: Self-Locking / Latching Toggle
Physical Dimensions	15.0 mm × 11.0 mm micro-footprint layout profile

SKU: VE-060 Category: Sensors

Replace your traditional mechanical buttons with the modern, wear-free TTP223 Capacitive Touch Sensor Module. Driven by the responsive TTP223 touch detector IC, this single-channel board acts as a solid-state digital switch that triggers instantly upon proximity or contact. Because it measures variations in electrical capacitance, it can detect human touch even when hidden behind glass, plastic, acrylic, or wooden surfaces. This makes it an indispensable choice for waterproof panels, hidden smart home switches, clean room automation, and sleek interactive project enclosures.

Key Product Features

Hidden Through-Body Activation: Detects touch through thin non-conductive panels (up to 3mm thick), keeping your electronics sealed away from dust, water, and debris.

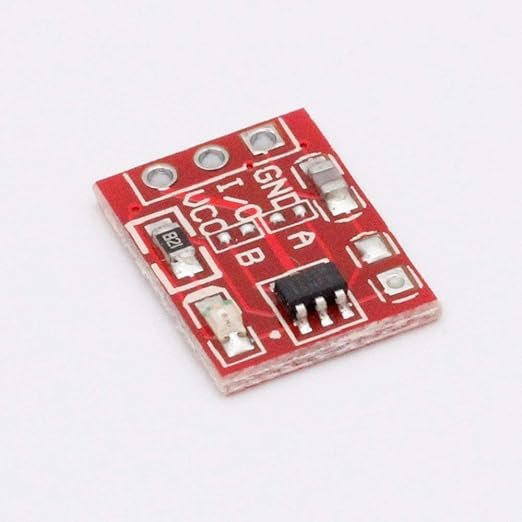

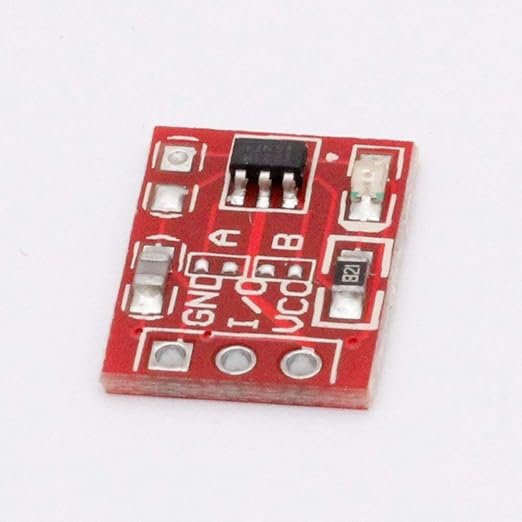

Onboard Solder Jumpers (A & B): Features dual configuration solder pads to easily toggle between latching/momentary modes and active-high/active-low output states.
Universal System Voltage: Natively supports power inputs from 2.0V to 5.5V DC, letting you interface directly with an Arduino, Raspberry Pi, ESP32, or MSP430 without logic shifters.
Zero Mechanical Wear: Lacks physical moving parts, eliminating the mechanical fatigue and contact bounce common with old tactile push-buttons.
Visual Calibration Feedback: Integrated with a bright onboard red SMD LED that illuminates immediately when the sensing pad is triggered.

-15%

Click to enlarge

Back to products

Original price was: ₹17.70.Current price is: ₹15.00.

Parameter	Specification Details
Sensing IC Chipset	TTP223-BA6 TonTouch Capacitive Detector
Operating Voltage Range	2.0V to 5.5V DC
Response Time Max	~60ms at fast mode \| ~220ms at low-power standby mode
Output Logic Mode	Default: Momentary Active-High (Configurable via solder pads)
Current Consumption	Ultra-low 1.5 µA to 3.0 µA baseline power draw
Default Jumper State A	Open: Active-High Output \| Shorted: Active-Low Output
Default Jumper State B	Open: Momentary Switch \| Shorted: Self-Locking / Latching Toggle
Physical Dimensions	15.0 mm × 11.0 mm micro-footprint layout profile
