Name: RC522 RFID Card Reader Module Kit
SKU: VE-062
Availability: InStock

RC522 RFID Card Reader Module Kit

Technical Specification Details

Parameter	Specification Details
Primary Chipset Silicon	NXP Semiconductors MFRC522
Radio Frequency Band	13.56 MHz ISM Proximity Band
Operating Logic Voltage	3.3V DC (Pins are 5V tolerant for signal inputs)
Current Draw Profile	13–26mA (Active read) \| 10–13mA (Idle) \| <80µA (Sleep mode)
Maximum Data Rate	Up to 10 Mbps over the SPI interface protocol
Effective Sensing Range	≥ 50 mm (Subject to tag antenna geometry configurations)
Supported Card Arrays	MIFARE 1 S50 \| MIFARE 1 S70 \| MIFARE Ultralight \| MIFARE Pro
System Interface Bus	Serial Peripheral Interface (SPI) default mode
Physical Proportions	40.0 mm × 60.0 mm compact footprint card layout

SKU: VE-062 Category: Sensors

Build custom security setups, contactless biometric check-ins, and smart tracking systems with the RC522 RFID Module Kit. Powered by the highly reliable NXP MFRC522 transceiver chip, this board operates over a high-frequency 13.56 MHz electromagnetic field to safely read and write data to passive tags. Communicating over a streamlined SPI protocol, it plugs easily into microcontrollers without cluttering your wiring. It is the ultimate choice for smart door locks, automated parking barriers, inventory scanning, and interactive museum exhibits.

Key Product Features

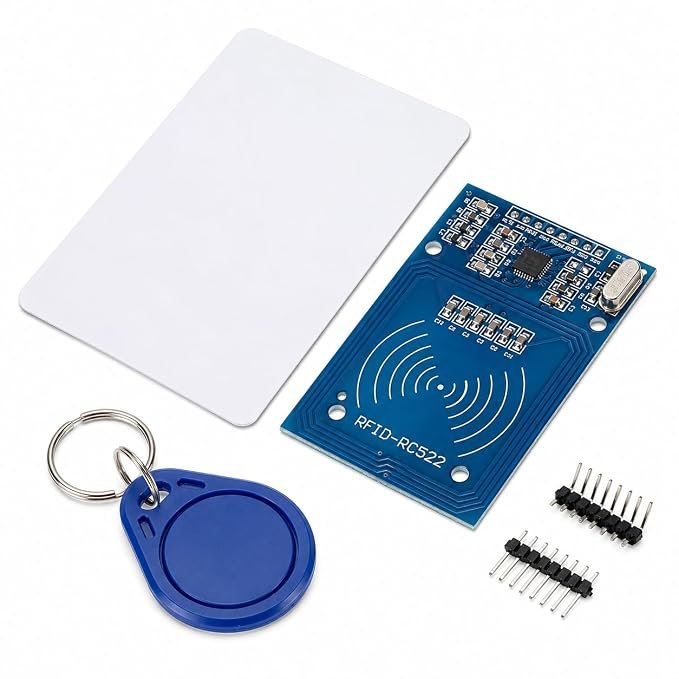

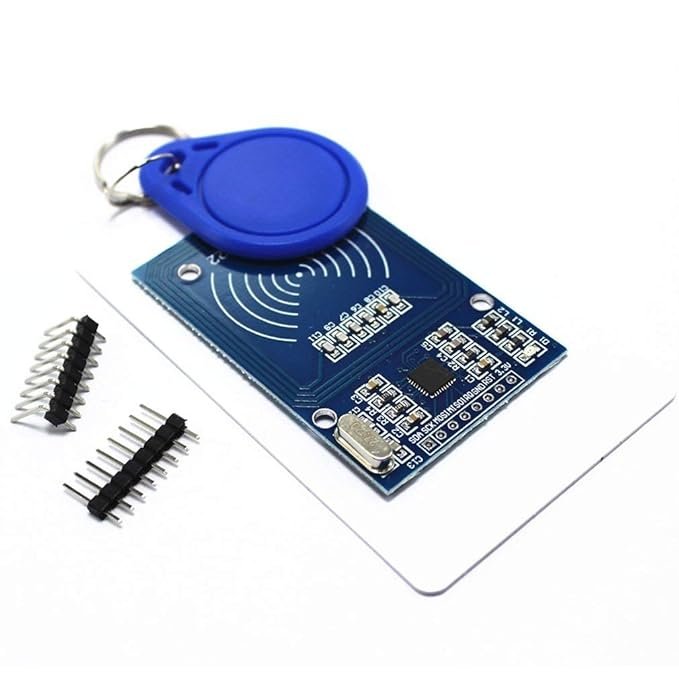

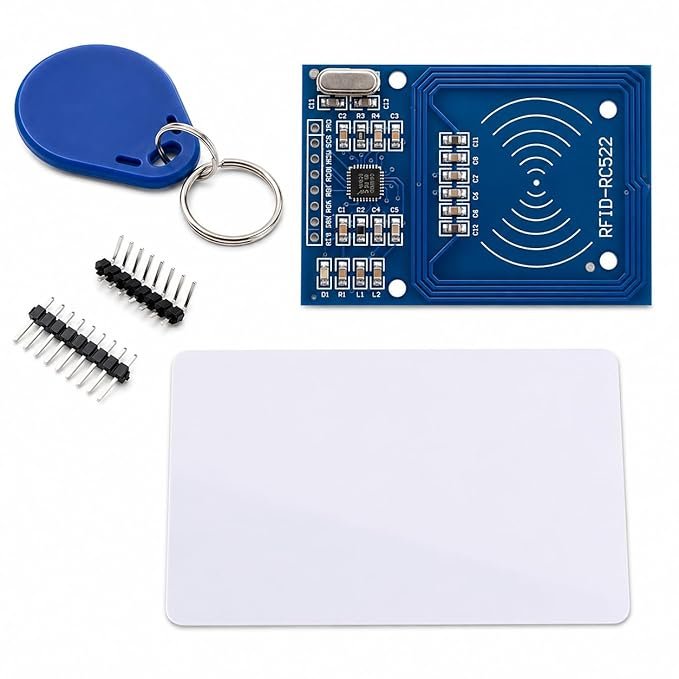

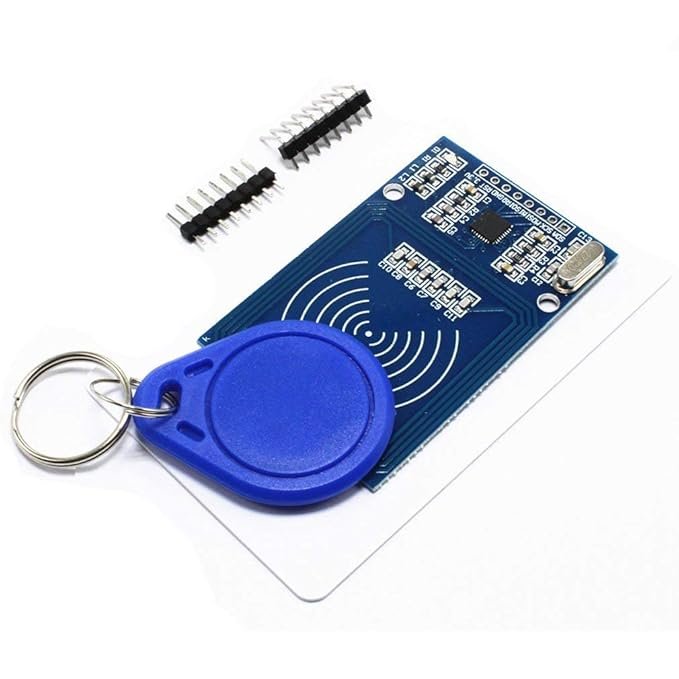

Complete Prototyping Kit: Ships with both a standard plastic card format and a rugged blue key fob tag, allowing you to build and test multiple form factors out of the box.
Secure Crypto1 Encryption: Natively supports high-speed Crypto1 encryption algorithms to safely validate keys and prevent data spoofing on commercial tag networks.
Bypass Loose Connections: Uses the standard Serial Peripheral Interface (SPI) bus loop to minimize required connection paths and save valuable board footprint space.
Universal Platform Compatibility: Supported by a massive open-source library array, allowing plug-and-play code compilation across Arduino, ESP32, Raspberry Pi, and Pico.
Efficient Standby Sumping: Integrated power management circuits draw under 13mA during passive operations and drop down to 80µA in deep sleep, making it ideal for battery-operated locks

-16%

Click to enlarge

Back to products

Original price was: ₹95.00.Current price is: ₹80.00.

Parameter	Specification Details
Primary Chipset Silicon	NXP Semiconductors MFRC522
Radio Frequency Band	13.56 MHz ISM Proximity Band
Operating Logic Voltage	3.3V DC (Pins are 5V tolerant for signal inputs)
Current Draw Profile	13–26mA (Active read) \| 10–13mA (Idle) \| <80µA (Sleep mode)
Maximum Data Rate	Up to 10 Mbps over the SPI interface protocol
Effective Sensing Range	≥ 50 mm (Subject to tag antenna geometry configurations)
Supported Card Arrays	MIFARE 1 S50 \| MIFARE 1 S70 \| MIFARE Ultralight \| MIFARE Pro
System Interface Bus	Serial Peripheral Interface (SPI) default mode
Physical Proportions	40.0 mm × 60.0 mm compact footprint card layout
