Name: KY-040 Rotary Encoder Module
SKU: VE-061
Availability: InStock

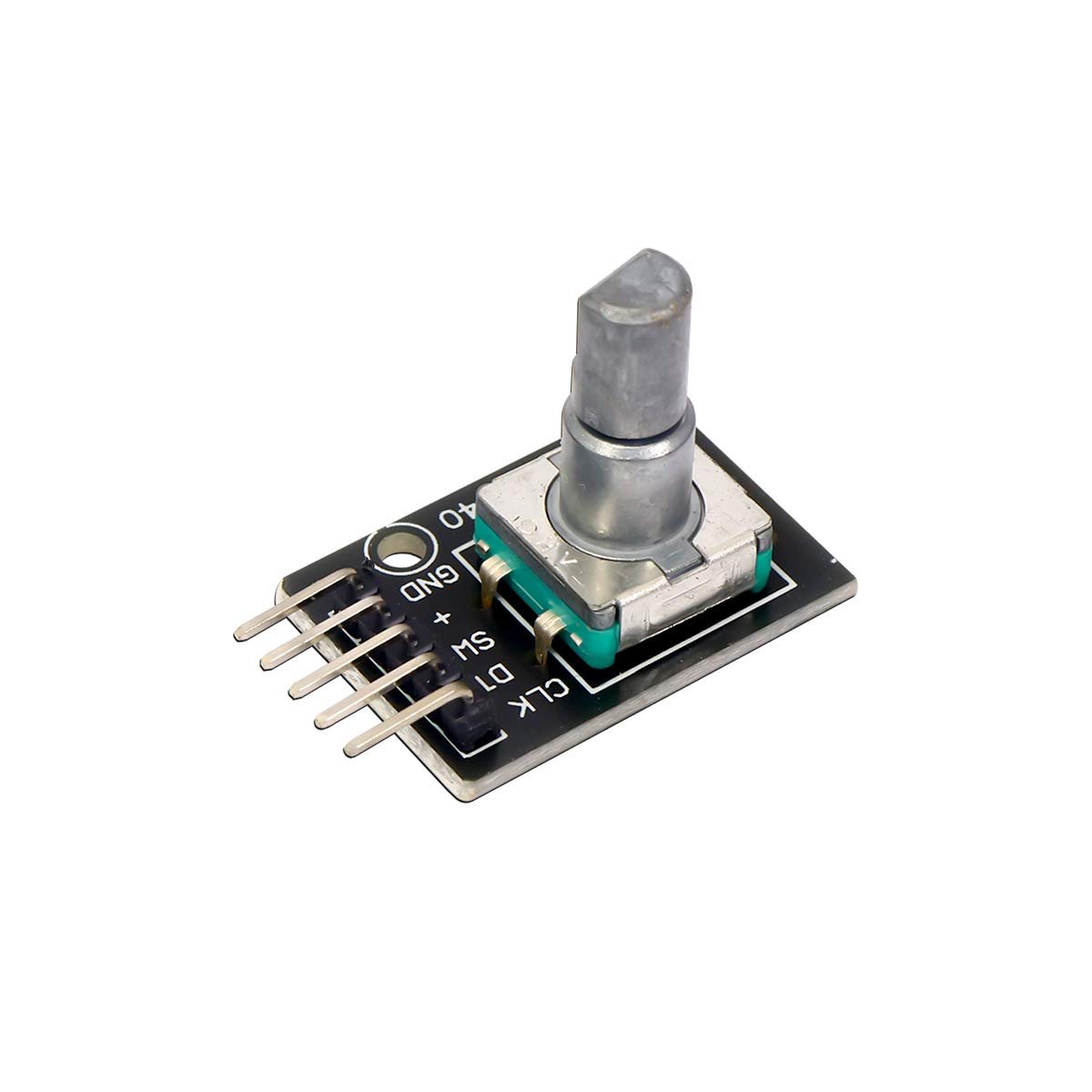

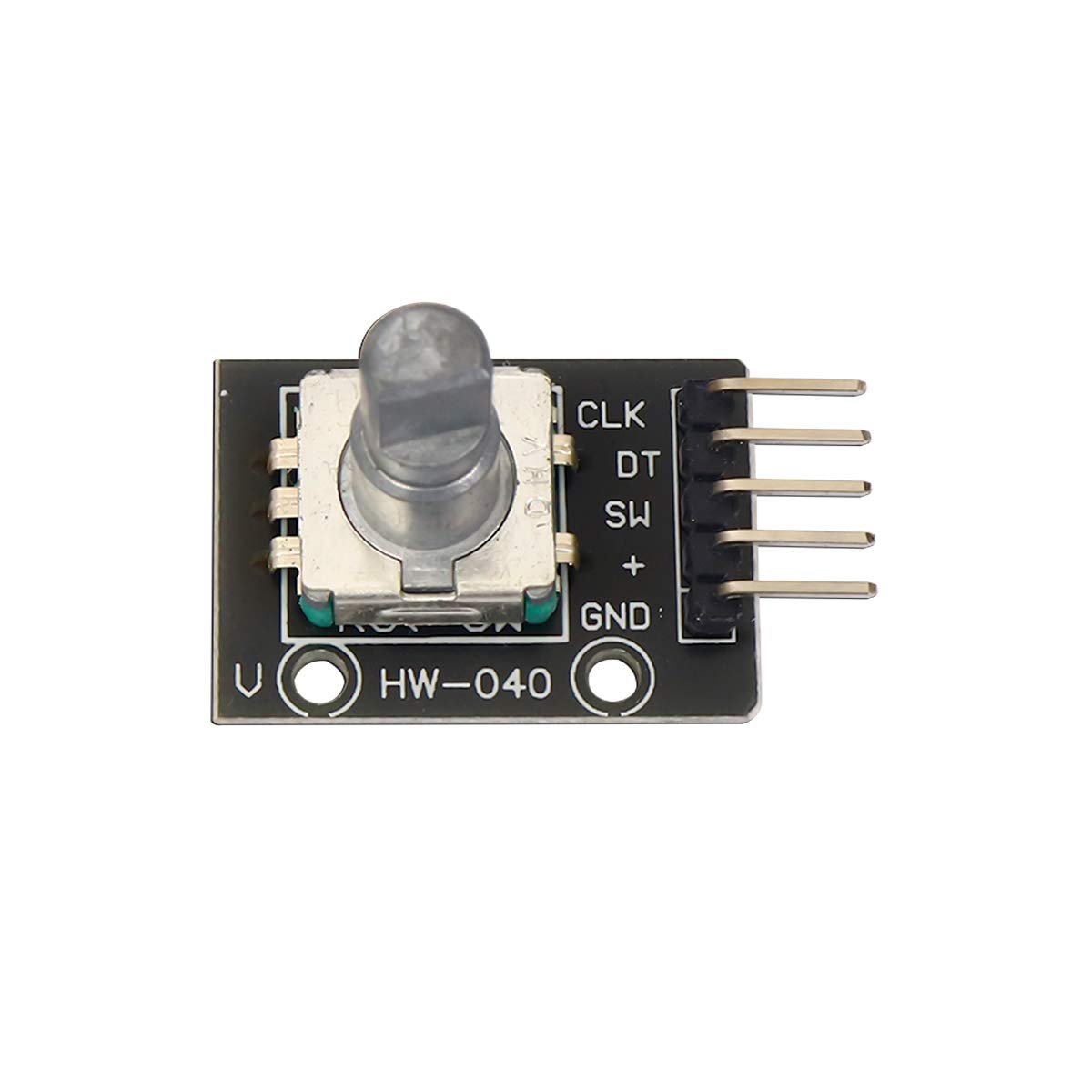

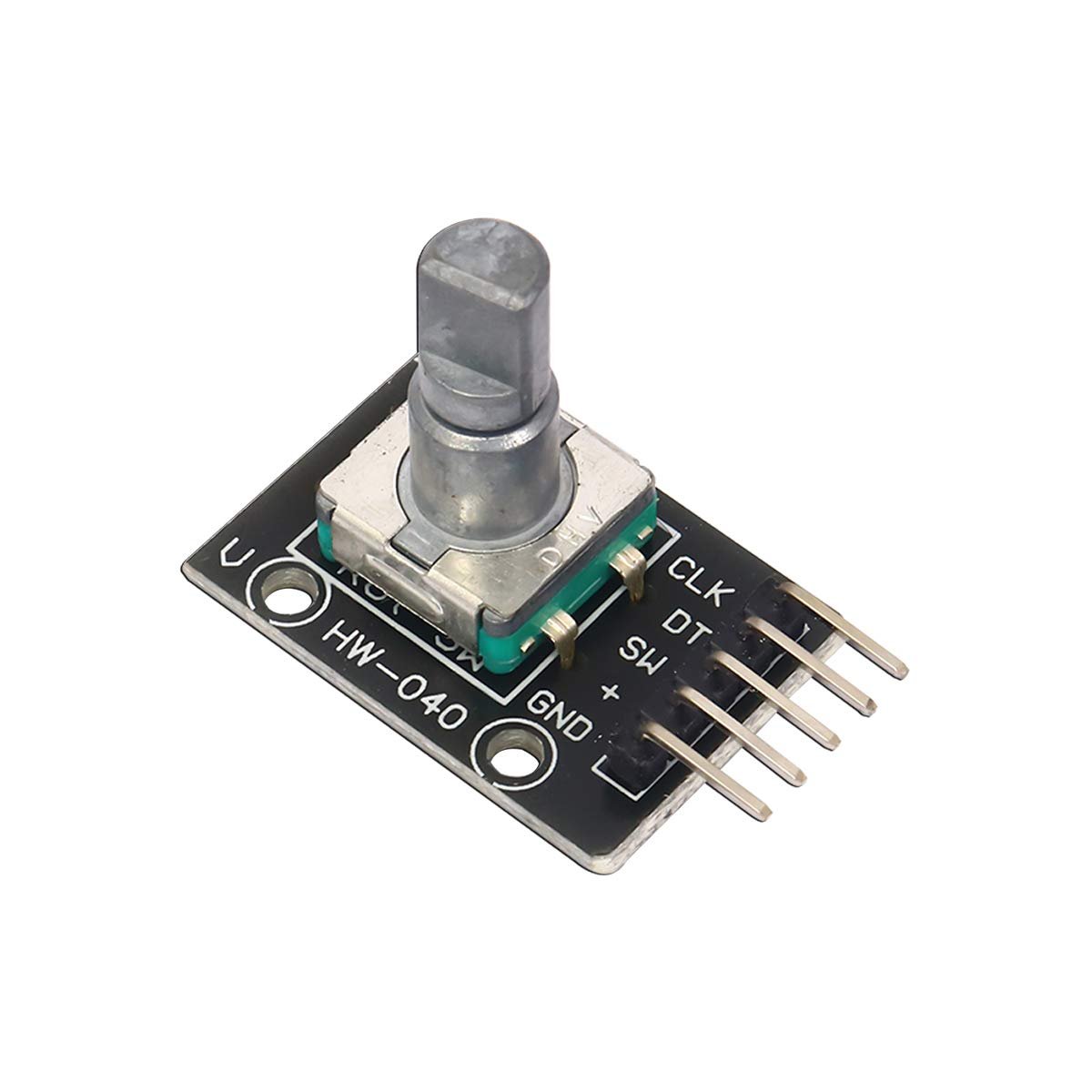

KY-040 Rotary Encoder Module

Technical Specification Details

Parameter	Specification Details
Operating Input Voltage	3.3V to 5.0V DC (Logic-level matched to your host microcontroller)
Pulses Per Revolution	20 PPR (20 full digital steps per 360° cycle)
Output Data Type	2-Channel Quadrature Digital Output (CLK, DT) \| 1-Channel Push Switch (SW)
Switch Operation Style	Momentary Tactile (Outputs LOW when pressed down, HIGH when at rest)

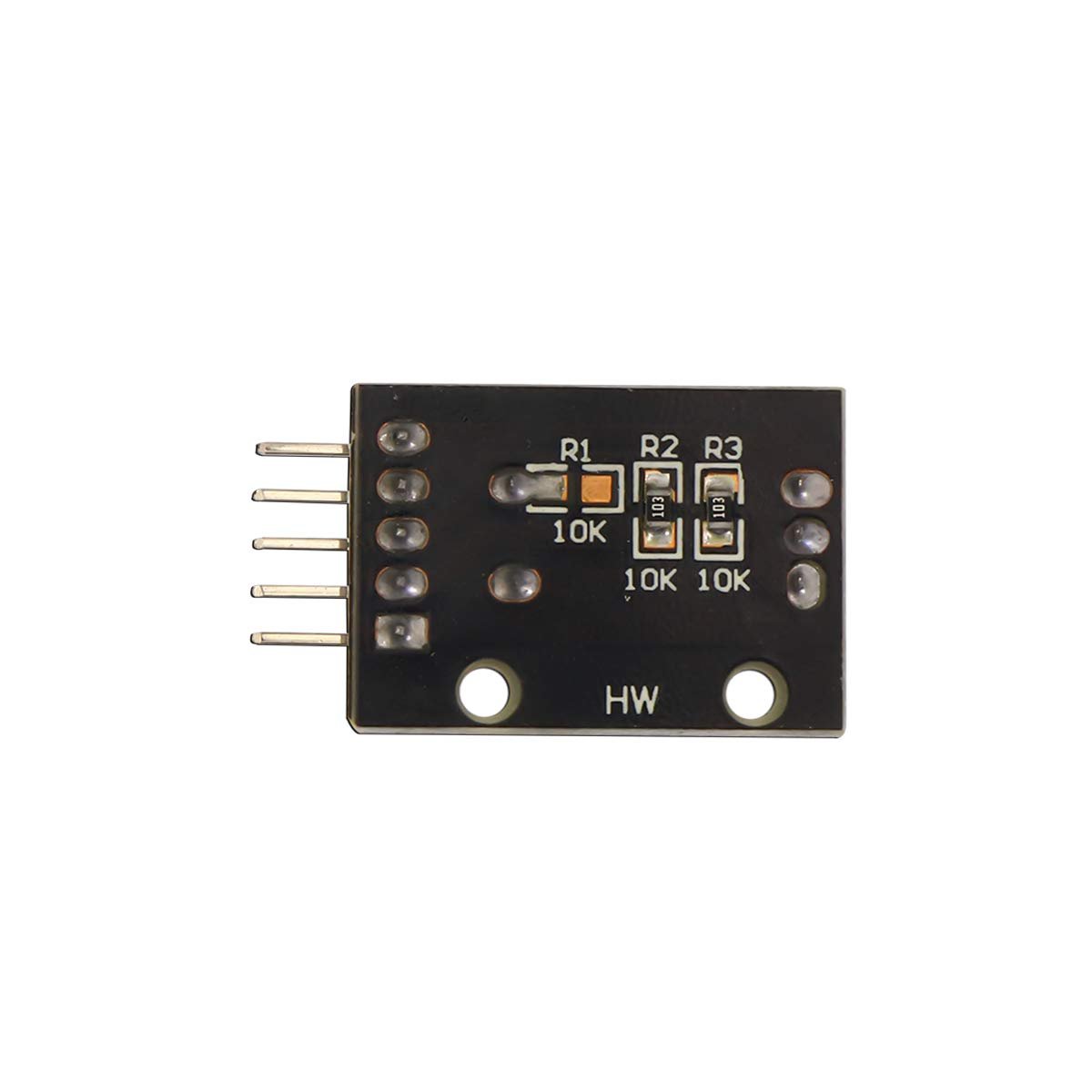

Onboard Pull-up Array	Dual 10kΩ resistors pre-soldered on data channels
Shaft Profile Construction	High-durability D-shape metal shaft (6mm diameter)
Physical Proportions	32.0 mm × 19.0 mm × 30.0 mm

SKU: VE-061 Category: Sensors

Short Description

Bring precise, digital navigation control to your electronics projects with the KY-040 Rotary Encoder Module. Unlike standard analog potentiometers that have a fixed physical stopping point, this incremental digital encoder can rotate 360 degrees continuously in either direction. It operates by generating quadrature digital pulses that track exactly how much the knob has turned and in which direction (clockwise or counter-clockwise). It also features an integrated momentary push-button switch under the shaft, making it the perfect choice for navigating graphical display menus, adjusting volume levels, controlling stepper motors, and fine-tuning smart home dashboards.

Key Product Features

360-Degree Continuous Rotation: Rotates infinitely in both directions without any physical limits, preventing mechanical strain or damage from over-turning.
Tactile Detent Feedback: Engineered with satisfying internal indexing clicks (detents) that provide crisp tactile feedback to the user on every step.
Integrated Push-Button Switch: Features a hidden digital tactile switch under the metal shaft that registers an active-low signal when the knob is pressed straight down.
Onboard Pull-Up Resistors: Outfitted with 10kΩ internal pull-up resistors for the CLK (Clock) and DT (Data) pins, saving you breadboard space and reducing extra wiring steps.
Universal System Voltage: Natively supports power inputs from 3.3V to 5.0V DC, allowing it to interface directly with an Arduino, ESP32, Raspberry Pi, or STM32

-15%

Click to enlarge

Back to products

Original price was: ₹82.00.Current price is: ₹70.00.

Parameter	Specification Details
Operating Input Voltage	3.3V to 5.0V DC (Logic-level matched to your host microcontroller)
Pulses Per Revolution	20 PPR (20 full digital steps per 360° cycle)
Output Data Type	2-Channel Quadrature Digital Output (CLK, DT) \| 1-Channel Push Switch (SW)
Switch Operation Style	Momentary Tactile (Outputs LOW when pressed down, HIGH when at rest)
Onboard Pull-up Array	Dual 10kΩ resistors pre-soldered on data channels
Shaft Profile Construction	High-durability D-shape metal shaft (6mm diameter)
Physical Proportions	32.0 mm × 19.0 mm × 30.0 mm

Compare

Add to wishlist

Description

Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “KY-040 Rotary Encoder Module”
