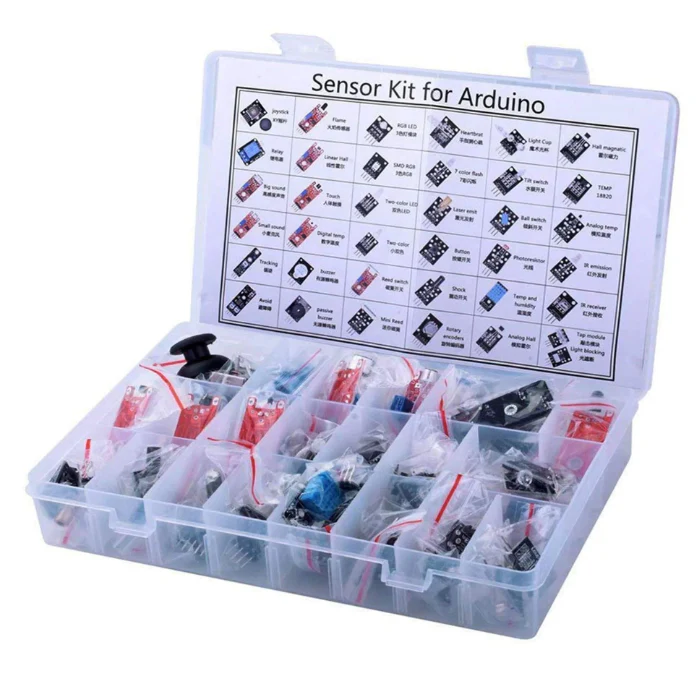

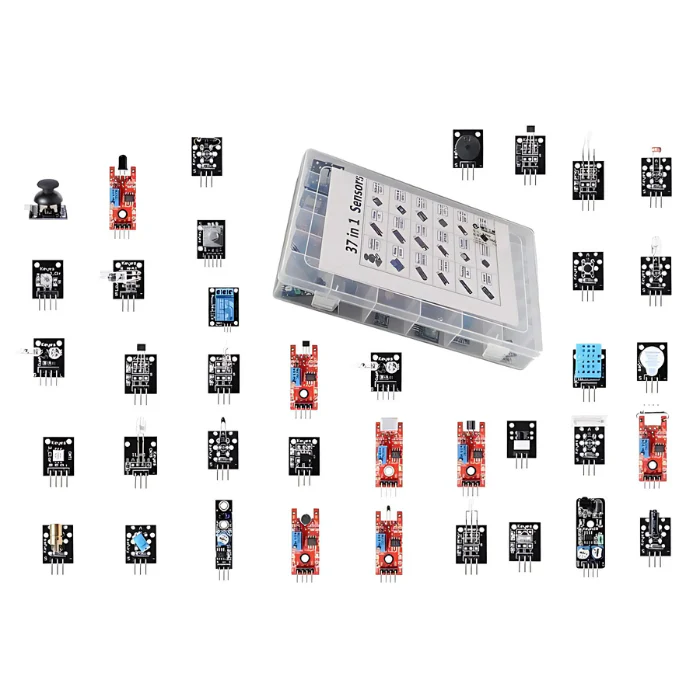

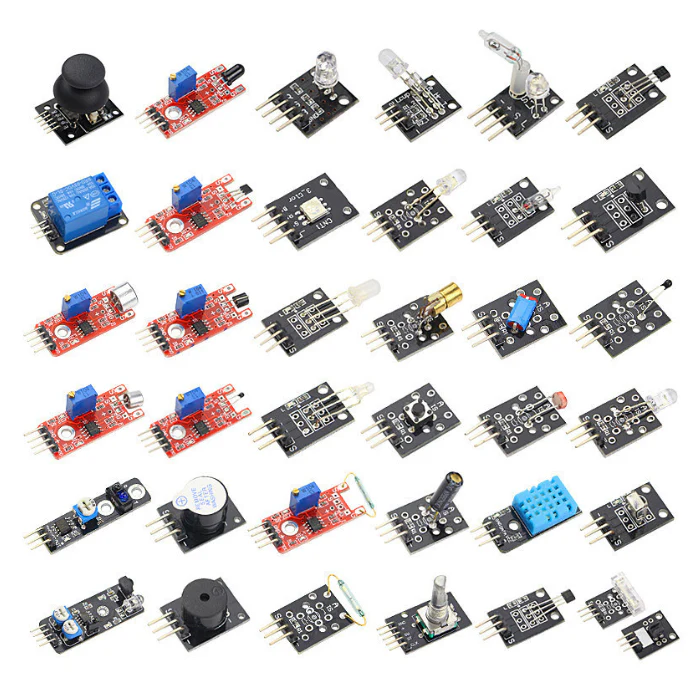

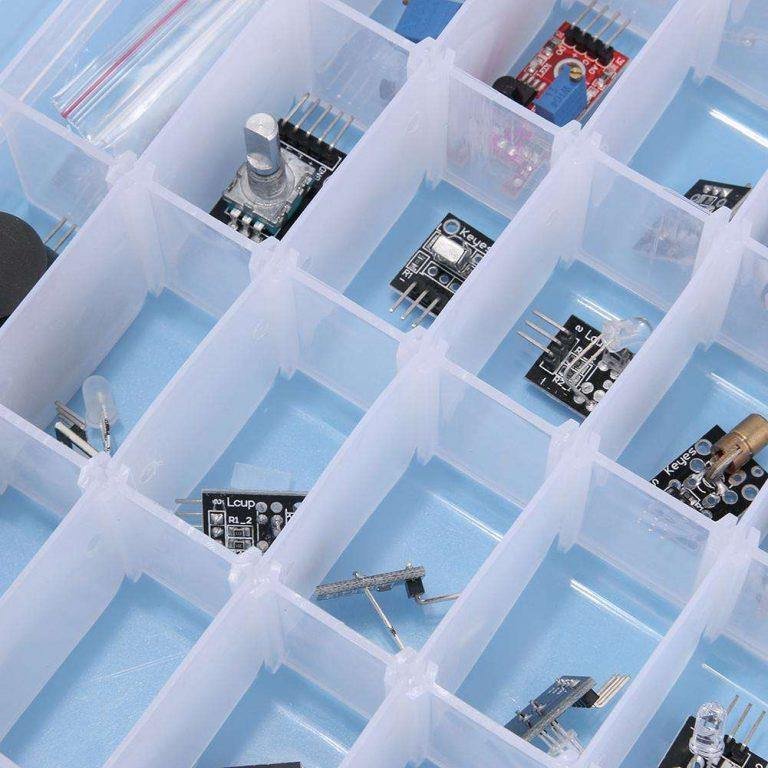

The 37-in-1 Sensor Modules Kit is a comprehensive, plug-and-play electronics suite designed for rapid prototyping with Arduino, Raspberry Pi, and ESP32. Featuring 37 individually PCB-mounted sensor and actuator modules, it eliminates complex breadboard wiring by utilizing standard pre-soldered 2.54mm header pins. Operating between 3.3V to 5V DC, the kit provides an array of digital, analog, and communication-bus interfaces (such as single-wire DHT protocol). It covers environmental metrics (DHT11 temperature/humidity, flame tracking), motion/tactile inputs (XY-axis joystick, vibration, tilt), optoelectronics (650nm laser, 38kHz IR transceiver, RGB LEDs), and load switching (5V relay capable of handling 250VAC/10A). This kit is highly optimized for STEM education, IoT development, and smart automation engineering.
-23%
MEAN WELL LRS-35-24 Enclosed Switching Power Supply (SMPS)
Original price was: ₹3,000.00.₹2,200.00Current price is: ₹2,200.00.
STM32F407G-DISC1 Discovery Kit
Original price was: ₹4,950.00.₹3,950.00Current price is: ₹3,950.00.
37-in-1 Sensor Modules Kit
Original price was: ₹1,500.00.₹1,150.00Current price is: ₹1,150.00.
Technical Specifications
Electrical & Mechanical Parameters
- Supply Voltage (\(V_{CC}\)): Dual-compatible 3.3V DC to 5.0V DC (safely matches both low-power ARM architecture and standard 5V AVR logic).
- Signal Output Formats: Analog Voltage (\(0\text{V} – V_{CC}\)), Digital High/Low (\(V_{CC}/\text{GND}\)), and Serial Bus streams.
- Pin Configuration: Industry-standard 3-Pin or 4-Pin layouts with clear PCB silk-screen markings (
Sfor Signal,+orVCCfor Power,-orGNDfor Ground). - Header Type: Pre-soldered straight male headers, 2.54mm (0.1″) pitch.
- Mounting Ease: Selected complex modules include pre-drilled M2/M3 screw holes for permanent chassis or enclosure installation.
