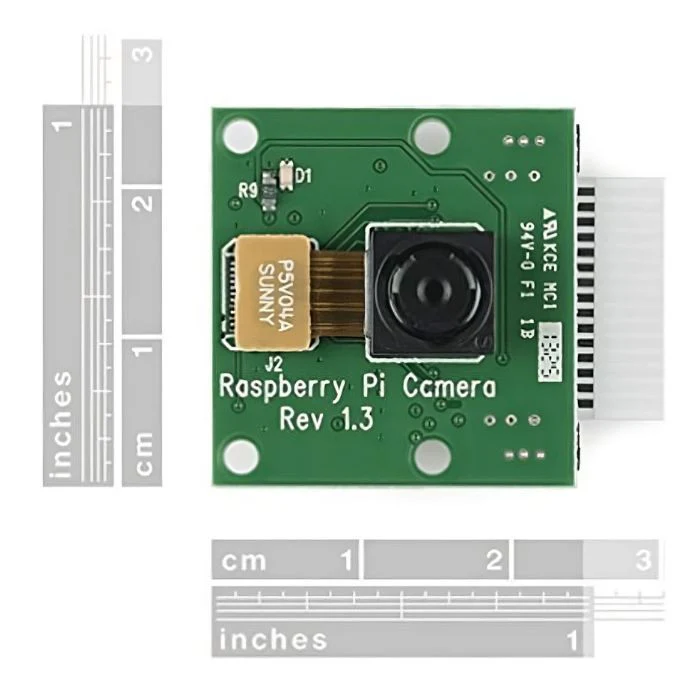

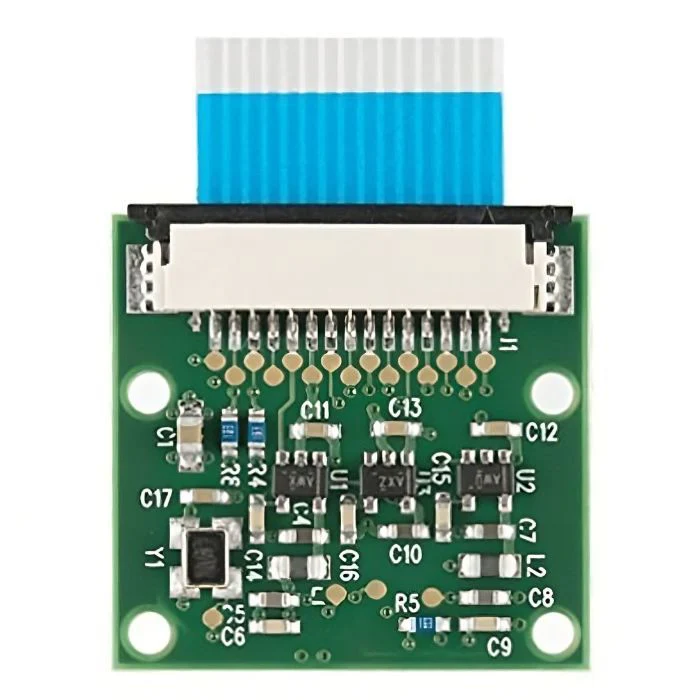

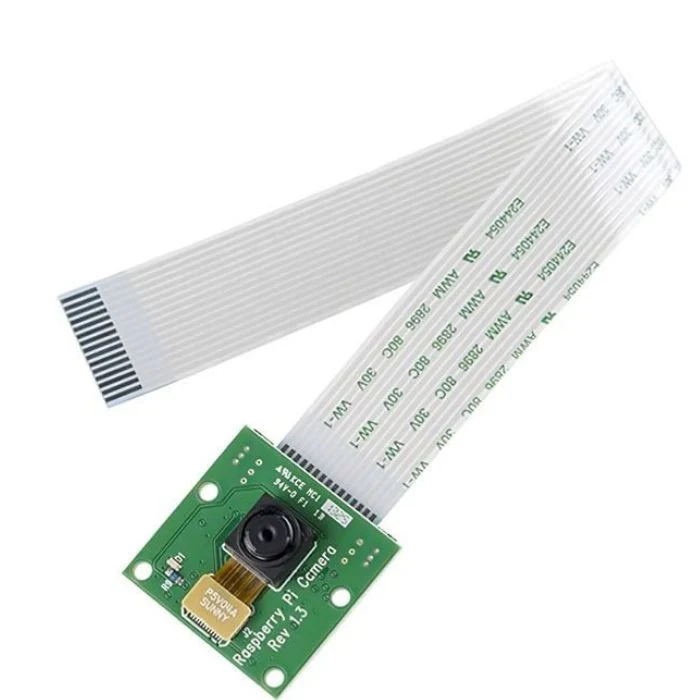

Name: 5MP Camera Module for Raspberry Pi
SKU: VE-019
Availability: InStock

5MP Camera Module for Raspberry Pi

Advanced Data Sheet Specifications

Parameter	Specification Details
Image Sensor Core	OmniVision OV5647 CMOS Sensor
Native Resolution	5 Megapixels
Max Static Image Size	2592 × 1944 Pixels
Supported Video Modes	1080p @ 30fps \| 720p @ 60fps \| 480p @ 90fps
Optical Sensor Size	1/4-inch format
Aperture & FOV	f/2.9 Aperture \| 54-degree Horizontal Field of View
Lens Focal Type	Fixed Focus
Connection Port	15-pin MIPI Camera Serial Interface (CSI)
Physical Dimensions	25 mm × 23 mm × 9 mm

SKU: VE-019 Category: Camera Module

Short Description

Capture high-definition stills and smooth HD video with the compact 5MP Raspberry Pi Camera Module. Powered by the reliable OmniVision OV5647 sensor, this cost-effective fixed-focus camera plugs directly into the MIPI Camera Serial Interface (CSI). It serves as an excellent, budget-friendly entry point for core computer vision applications, automated time-lapse captures, security monitoring, and robotics mapping setups.

Key Product Features

High-Definition Media: Captures sharp static photos up to 2592 x 1944 pixels and supports multiple crisp video modes including full HD 1080p at 30 frames per second.
Low Latency Data Stream: Interoperates through the dedicated hardware CSI bus, carrying uncompressed raw pixel data straight back to the Pi’s main processor for fast rendering.
Ultra-Lightweight & Tiny: Weighing just over 3 grams with a microscopic footprint, it easily embeds into tight spaces like compact drone frames, hidden wildlife trackers, or custom cases.
Native Software Frameworks: Fully supported by modern libcamera environments and legacy stacks across standard Linux distributions like Raspberry Pi OS.

-15%

Click to enlarge

Back to products

Original price was: ₹413.00.Current price is: ₹350.00.

Parameter	Specification Details
Image Sensor Core	OmniVision OV5647 CMOS Sensor
Native Resolution	5 Megapixels
Max Static Image Size	2592 × 1944 Pixels
Supported Video Modes	1080p @ 30fps \| 720p @ 60fps \| 480p @ 90fps
Optical Sensor Size	1/4-inch format
Aperture & FOV	f/2.9 Aperture \| 54-degree Horizontal Field of View
Lens Focal Type	Fixed Focus
Connection Port	15-pin MIPI Camera Serial Interface (CSI)
Physical Dimensions	25 mm × 23 mm × 9 mm
