Showing 25–28 of 28 results
RS-555 Multipurpose High-Torque DC Motor
Technical Specifications
| Characteristic | Specification Parameters |
|---|---|
| Motor Classification | RS-555 Heavy-Duty Brushed Carbon DC Motor |
| Operating Voltage Range | 6.0V to 18.0V DC (12V Nominal Power) |
| No-Load Angular Speed | ~4000 RPM to 6000 RPM (at 12V DC) |
| Current Limits (at 12V) | 0.2A No-Load / 1.2A Rated Peak / up to 3.0A Stall |
| Output Shaft Dimensions | 3.17 mm Diameter × 16 mm Length |
| Mounting Blueprint | 2 × M3 Bolt Holes spaced 25 mm apart on faceplate |
| Main Body Diameter | 36 mm (37 mm with magnetic sleeve insulation) |

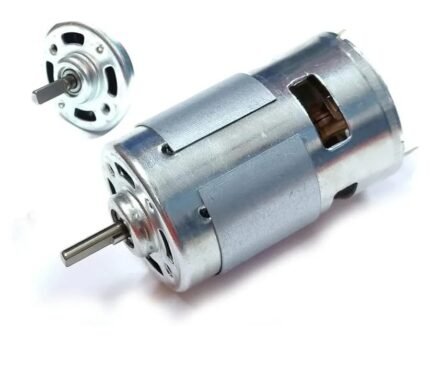

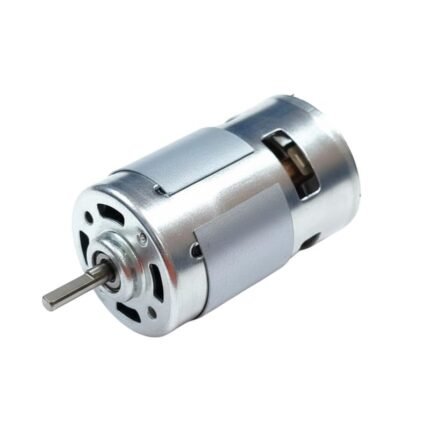

RS-775 Heavy-Duty High-Speed DC Motor
Technical Specifications
| Characteristic | Specification Parameters |
|---|---|
| Motor Classification | RS-775 High-Power Brushed Carbon DC Motor |
| Operating Voltage Range | 12.0V to 24.0V DC (12V/24V Dual-Nominal Support) |
| No-Load Angular Speed | ~10,000 RPM (at 12V) to ~20,000 RPM (at 24V) |
| Current Limits (at 12V) | ~1.2A No-Load / 5A Rated Peak / Up to 20A+ full stall surge |
| Output Shaft Dimensions | 5.0 mm Diameter × 16 mm Length (Round Shaft) |
| Mounting Blueprint | 2 × M4 Bolt Holes spaced 29 mm apart on faceplate |
| Main Body Dimensions | 42 mm Housing Diameter × 67 mm Frame Length |
SG90 9g Micro Servo Motor
Technical Specifications
| Characteristic | Specification Parameters |
|---|---|
| Motor Type | 9g Analog Micro Servo |
| Operating Voltage | 4.8V to 6.0V DC |
| Stall Torque | 1.2 kg-cm to 1.8 kg-cm (at 4.8V) |
| Operating Speed | 0.12 seconds / 60 degrees (at 4.8V) |
| Gear Train Material | Nylon / Hard Plastic |
| Dimensions (approx.) | 23 mm × 12.2 mm × 29 mm |
Single Shaft BO Motor – (Battery Operated Geared DC Motor)
Technical Specifications
| Characteristic | Specification Parameters |
|---|---|
| Motor & Gearbox Type | Permanent-Magnet Brushed DC Motor with Plastic Spur Gears |
| Operating Voltage Range | 3.0V to 9.0V DC (6V DC Nominal Standard) |
| Common Rated Speeds | 60 / 100 / 150 / 200 / 300 RPM (Depending on Voltage) |
| Current Draw Profile | ~60mA No-Load Current / ~700mA at full mechanical stall |
| Output Torque (approx.) | ~0.35 kg-cm up to 1.9 kg-cm (Ratio-dependent scaling) |
| Shaft Profile & Shape | Slotted Flat-Sided Dual Output Axles (5.5 mm to 6 mm Diameter) |
| Casing Dimensions | 55 mm × 48 mm × 23 mm |
