Showing 13–24 of 28 results
Johnson High-Torque Side Shaft DC Geared Motor – 100 RPM
Technical Specifications
| Characteristic | Specification Parameters |
|---|---|
| Motor & Gearbox Type | Heavy-Duty Brushed DC Motor with Side Shaft Spur Gearhead |
| Operating Voltage Range | 6.0V to 18.0V DC (12V Nominal Power) |
| Available Output Speeds | 100 |
| Current Limits (at 12V) | ~800 mA No-Load Current / Up to 7.5A Maximum Load Current |
| Output Shaft Style | Off-Centered 6 mm Diameter Shaft with an internal M3 threaded hole |
| Gearbox Dimensions | 37 mm Outer Diameter |
Johnson High-Torque Side Shaft DC Geared Motor – 1000 RPM
Technical Specifications
| Characteristic | Specification Parameters |
|---|---|
| Motor & Gearbox Type | Heavy-Duty Brushed DC Motor with Side Shaft Spur Gearhead |
| Operating Voltage Range | 6.0V to 18.0V DC (12V Nominal Power) |
| Available Output Speeds | 1000 |
| Current Limits (at 12V) | ~800 mA No-Load Current / Up to 7.5A Maximum Load Current |
| Output Shaft Style | Off-Centered 6 mm Diameter Shaft with an internal M3 threaded hole |
| Gearbox Dimensions | 37 mm Outer Diameter |
Johnson High-Torque Side Shaft DC Geared Motor – 150 RPM
Technical Specifications
| Characteristic | Specification Parameters |
|---|---|
| Motor & Gearbox Type | Heavy-Duty Brushed DC Motor with Side Shaft Spur Gearhead |
| Operating Voltage Range | 6.0V to 18.0V DC (12V Nominal Power) |
| Available Output Speeds | 150 |
| Current Limits (at 12V) | ~800 mA No-Load Current / Up to 7.5A Maximum Load Current |
| Output Shaft Style | Off-Centered 6 mm Diameter Shaft with an internal M3 threaded hole |
| Gearbox Dimensions | 37 mm Outer Diameter |
Johnson High-Torque Side Shaft DC Geared Motor – 30 RPM
Technical Specifications
| Characteristic | Specification Parameters |
|---|---|
| Motor & Gearbox Type | Heavy-Duty Brushed DC Motor with Side Shaft Spur Gearhead |
| Operating Voltage Range | 6.0V to 18.0V DC (12V Nominal Power) |
| Available Output Speeds | 30 |
| Current Limits (at 12V) | ~800 mA No-Load Current / Up to 7.5A Maximum Load Current |
| Output Shaft Style | Off-Centered 6 mm Diameter Shaft with an internal M3 threaded hole |
| Gearbox Dimensions | 37 mm Outer Diameter |
Johnson High-Torque Side Shaft DC Geared Motor – 300 RPM
Technical Specifications
| Characteristic | Specification Parameters |
|---|---|
| Motor & Gearbox Type | Heavy-Duty Brushed DC Motor with Side Shaft Spur Gearhead |
| Operating Voltage Range | 6.0V to 18.0V DC (12V Nominal Power) |
| Available Output Speeds | 300 |
| Current Limits (at 12V) | ~800 mA No-Load Current / Up to 7.5A Maximum Load Current |
| Output Shaft Style | Off-Centered 6 mm Diameter Shaft with an internal M3 threaded hole |
| Gearbox Dimensions | 37 mm Outer Diameter |
Johnson High-Torque Side Shaft DC Geared Motor – 500 RPM
Technical Specifications
| Characteristic | Specification Parameters |
|---|---|
| Motor & Gearbox Type | Heavy-Duty Brushed DC Motor with Side Shaft Spur Gearhead |
| Operating Voltage Range | 6.0V to 18.0V DC (12V Nominal Power) |
| Available Output Speeds | 500 |
| Current Limits (at 12V) | ~800 mA No-Load Current / Up to 7.5A Maximum Load Current |
| Output Shaft Style | Off-Centered 6 mm Diameter Shaft with an internal M3 threaded hole |
| Gearbox Dimensions | 37 mm Outer Diameter |
Johnson High-Torque Side Shaft DC Geared Motor – 60 RPM
Technical Specifications
| Characteristic | Specification Parameters |
|---|---|
| Motor & Gearbox Type | Heavy-Duty Brushed DC Motor with Side Shaft Spur Gearhead |
| Operating Voltage Range | 6.0V to 18.0V DC (12V Nominal Power) |
| Available Output Speeds | 60 |
| Current Limits (at 12V) | ~800 mA No-Load Current / Up to 7.5A Maximum Load Current |
| Output Shaft Style | Off-Centered 6 mm Diameter Shaft with an internal M3 threaded hole |
| Gearbox Dimensions | 37 mm Outer Diameter |
MG90S Metal Gear Micro Servo Motor
Technical Specifications
| Characteristic | Specification Parameters |
|---|---|
| Motor Type | 13.4g Digital Micro Servo |
| Operating Voltage | 4.8V to 6.6V DC |
| Stall Torque | 1.8 kg-cm (at 4.8V) to 2.2 kg-cm (at 6.0V) |
| Operating Speed | 0.10 sec / 60° (at 4.8V) to 0.08 sec / 60° (at 6.0V) |
| Gear Train Material | Metal Gears (Copper/Alloy) |
| Dimensions (approx.) | 22.8 mm × 12.2 mm × 28.5 mm |

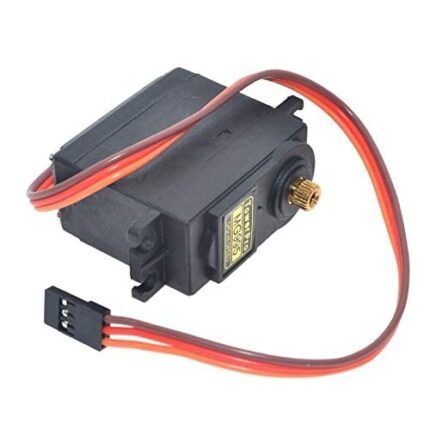

MG995 High-Torque Standard Servo Motor
Technical Specifications
| Characteristic | Specification Parameters |
|---|---|
| Motor Type | Standard-Size High-Torque Servo |
| Operating Voltage | 4.8V to 7.2V DC |
| Stall Torque | 10 kg-cm (at 4.8V) to 12 kg-cm (at 6.0V) |
| Operating Speed | 0.20 sec / 60° (at 4.8V) to 0.16 sec / 60° (at 6.0V) |
| Gear Train Material | Metal / Semi-Metal Gears |
| Dimensions (approx.) | 40.7 mm × 19.7 mm × 42.9 mm |

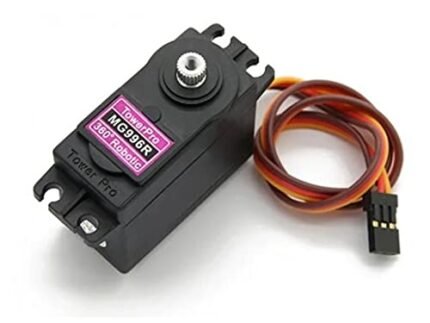

MG996R High-Torque Digital Servo Motor
Technical Specifications
| Characteristic | Specification Parameters |
|---|---|
| Motor Type | Standard-Size High-Torque Digital Servo |
| Operating Voltage | 4.8V to 7.2V DC (5V to 6V externally powered recommended) |
| Stall Torque | 9.4 kg-cm (at 4.8V) to 11.0 kg-cm (at 6.0V) |
| Operating Speed | 0.17 sec / 60° (at 4.8V) to 0.14 sec / 60° (at 6.0V) |
| Gear Train Material | Heavy-Duty All-Metal Gearing |
| Dimensions (approx.) | 40.7 mm × 19.7 mm × 42.9 mm |
NEMA 17 Bipolar Hybrid Stepper Motor
Technical Specifications
| Characteristic | Specification Parameters |
|---|---|
| Motor Category & Phase | 2-Phase Bipolar Hybrid Stepper Motor |
| Step Resolution Angle | 1.8° per step (200 Steps/Revolution) |
| Nominal Operating Voltages | 12V to 24V DC (Dynamic Driving Range via Chopper) |
| Rated Operating Current | 1.5A to 1.7A per internal coil phase |
| Holding Torque Profile | ~40 N-cm up to 59 N-cm (Depending on body length configuration) |
| Output Shaft Geometry | 5.0 mm Flat D-Cut Spindle (Prevents mechanical pulley slipping) |
| Chassis Main Frame Footprint | 42 mm × 42 mm × 40 mm (Standard Length Frame) |
NEMA 23 Bipolar Hybrid Stepper Motor
Technical Specifications
| Characteristic | Specification Parameters |
|---|---|
| Motor Type | 2-Phase Bipolar Hybrid Stepper Motor |
| Native Step Angle | 1.8° Per Step (Exactly 200 discrete steps per full 360° turn) |
| Rated Phase Current | 2.8A to 4.0A per internal coil winding |
| Standard Holding Torque | ~19 kg-cm to 23 kg-cm (Up to 30+ kg-cm in extended body configurations) |
| Coil Resistance / Inductance | ~0.9 Ω to 1.13 Ω / 3.6 mH to 5.6 mH per phase |
| Output Shaft Profile | 6.35 mm or 8.0 mm Diameter (D-Cut Anti-Slip Shape) |
| Faceplate Form Factor | 57 mm × 57 mm (Standard NEMA 23 Frame Dimension) |
