Name: RS-555 Multipurpose High-Torque DC Motor
SKU: VE-091
Availability: InStock

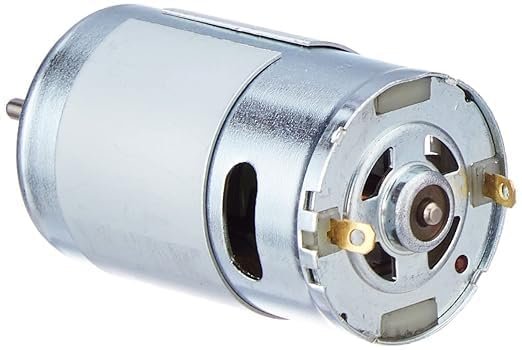

RS-555 Multipurpose High-Torque DC Motor

Technical Specifications

Characteristic	Specification Parameters
Motor Classification	RS-555 Heavy-Duty Brushed Carbon DC Motor
Operating Voltage Range	6.0V to 18.0V DC (12V Nominal Power)
No-Load Angular Speed	~4000 RPM to 6000 RPM (at 12V DC)
Current Limits (at 12V)	0.2A No-Load / 1.2A Rated Peak / up to 3.0A Stall
Output Shaft Dimensions	3.17 mm Diameter × 16 mm Length
Mounting Blueprint	2 × M3 Bolt Holes spaced 25 mm apart on faceplate
Main Body Diameter	36 mm (37 mm with magnetic sleeve insulation)

SKU: VE-091 Category: Motors

The RS-555 Multipurpose High-Torque DC Motor is a robust, high-speed brushed direct-current motor housed in a standard 36mm cylindrical metal casing. It is highly regarded by hardware developers for its intense starting torque, high efficiency, and wide operational voltage capability. Unlike lower-grade toy motors, the 555-class motor delivers enough raw mechanical force to directly drive micro-drilling rigs (such as custom PCB drills), compact water pumps, handheld vacuum sweepers, and heavy-duty electric vehicle prototypes.

✨ Key Features

High Operational Torque: Delivers substantial rotational power, preventing the spindle from easily binding or choking under direct work loads.
Integrated Magnetic Shielding: Equipped with an exterior anti-magnetic ring wrapper that reduces electromagnetic interference (EMI) with nearby logic circuitry.
Ventilated Cooling Design: Features dedicated ventilation slots at the front end cap to dissipate heat rapidly during sustained high-speed operations.
Standard 3.17mm Shaft: Implements a standard precision round axle dimension compatible with standard drill chucks, gear pinions, and wheel couplers.

-33%

Click to enlarge

Back to products

Original price was: ₹300.00.Current price is: ₹200.00.

Characteristic	Specification Parameters
Motor Classification	RS-555 Heavy-Duty Brushed Carbon DC Motor
Operating Voltage Range	6.0V to 18.0V DC (12V Nominal Power)
No-Load Angular Speed	~4000 RPM to 6000 RPM (at 12V DC)
Current Limits (at 12V)	0.2A No-Load / 1.2A Rated Peak / up to 3.0A Stall
Output Shaft Dimensions	3.17 mm Diameter × 16 mm Length
Mounting Blueprint	2 × M3 Bolt Holes spaced 25 mm apart on faceplate
Main Body Diameter	36 mm (37 mm with magnetic sleeve insulation)
