Home Batteries, Accessories Raspberry Pi 5 Case with Integrated Temperature-Controlled Fan
Raspberry Pi 5 27W USB-C Power Adapter
Raspberry Pi 5 27W USB-C Power Adapter ₹1,475.00 Original price was: ₹1,475.00.₹1,250.00Current price is: ₹1,250.00.
Back to products
Raspberry Pi 4 Protective Case
Raspberry Pi 4 Protective Case ₹448.00 Original price was: ₹448.00.₹380.00Current price is: ₹380.00.

Raspberry Pi 5 Case with Integrated Temperature-Controlled Fan

₹1,003.00 Original price was: ₹1,003.00.₹850.00Current price is: ₹850.00.

Technical Specification Details

Parameter Specification Details
Enclosure Materials Structural Grade ABS (Base, Frame, Lid) + Polycarbonate (Fan Assembly)
Input Supply Voltage 5V DC (Supplied through the 4-pin fan header)
Fan Speed Protocol Pulse Width Modulation (PWM) with tachometer loopback feedback
Maximum Airflow 2.79 Cubic Feet per Minute (CFM)
Maximum Fan Speed 8000 RPM (±15%)
Expansion Cutouts Exposes fan airflow path, composite cable breakout, and GPIO slots
Physical Proportions Standard 70.3 mm × 98.5 mm × 33.0 mm profile

Compare
Add to wishlist
SKU: VE-017 Category: Batteries, Accessories
Share:
  • Description
  • Reviews (0)
  • Shipping & Delivery
Description

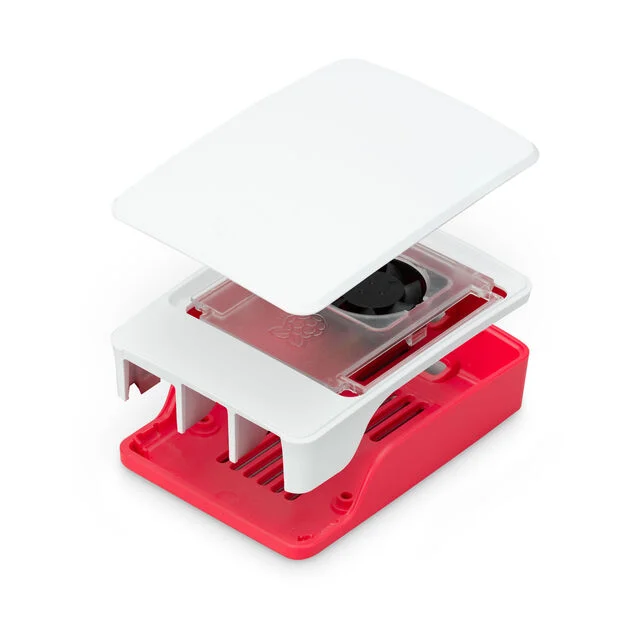

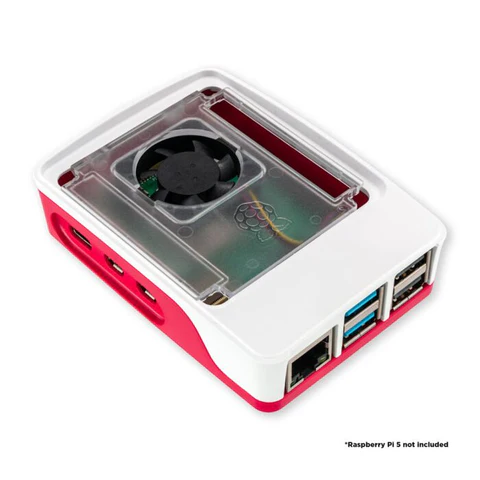

Protect and actively cool your system with the Official Raspberry Pi 5 Case. Redesigned to manage the increased thermal footprint of the Raspberry Pi 5 processor, this premium enclosure features a tool-less, clip-together four-part layout. Most importantly, it comes equipped with an internal temperature-controlled cooling fan that plugs right into the board’s dedicated fan header, maintaining standard operating temperatures even under relentless computing benchmarks



Key Product Features
  • Intelligent Active Cooling: Built-in PWM cooling fan yields up to 2.79 CFM of maximum airflow, adjusting rotation speed dynamically based on actual chip temperatures.
  • Tool-Less Assembly: Rigid, high-quality ABS body panels snap together seamlessly without requiring screws, brackets, or tools.
  • Modular Layout: Features a removable top lid and a clear fan insert layer. Take off the outer lid to route breakout wiring and access the 40-pin GPIO array for physical prototyping.
  • Perfect Port Mapping: Precision-molded structural paths allow access to the Raspberry Pi 5 power button, MicroSD card slot, dual Micro-HDMI slots, and status LEDs.
  • Solid Workstation Grip: Packaged with four soft silicone rubber feet to absorb vibration and keep your hardware anchored firmly to the desk.
Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “Raspberry Pi 5 Case with Integrated Temperature-Controlled Fan” Cancel reply

Your email address will not be published. Required fields are marked *

Shipping & Delivery

Related products

-15%
Compare

Raspberry Pi 4 15.3W USB-C Power Adapter (5.1V 3A)

Batteries, Accessories
₹944.00 Original price was: ₹944.00.₹800.00Current price is: ₹800.00.
Specification Details Output Voltage : +5.1 V DC Maximum Current: 3.0 Amps Total Power Capacity: 15.3 Watts Input AC Range: 96V AC to 264V AC (Supports global standards) AC Frequency Range: 50 / 60 Hz (±3Hz) Cable Specifications1.5 Meter Long, 18 AWG Gauge Output Connection: Fixed Captive USB Type-C Connector No-Load Consumption: Less than 0.075 Watts maximum Ripple & Noise: 120 mVp-p maximum Efficiency Rating: Meets Energy Star Level VI high-efficiency standards
Add to wishlist
Add to cart
Quick view
-14%
Compare

Raspberry Pi 3 Model B+ Case

Batteries, Accessories
₹350.00 Original price was: ₹350.00.₹300.00Current price is: ₹300.00.
Technical Specification Details
Parameter  Specification Details
Board Compatibility Raspberry Pi 3 Model B+ | Raspberry Pi 3 Model B | Raspberry Pi 2 Model B
Material Construction High-durability, impact-resistant ABS Plastic
Access Openings Power, Full HDMI, Audio, Ethernet, 4x USB, MicroSD slot, Dual Camera/Display FPC slots
Assembly Style 5-Piece interlocking snap-fit panel matrix
Ventilation Profile Passive internal air cavity (Sufficient clearance for low-profile aluminum heatsinks)
Physical Dimensions 96.0 mm × 70.0 mm × 26.0 mm
Product Weight ~50 Grams (unloaded)
Add to wishlist
Add to cart
Quick view
-15%
Compare

Raspberry Pi 5 27W USB-C Power Adapter

Batteries, Accessories
₹1,475.00 Original price was: ₹1,475.00.₹1,250.00Current price is: ₹1,250.00.
Parameter Specification Details Primary Output (Pi 5 Exclusive Mode) : 5.1V DC @ 5.0A (Max Power Capacity: 25.5W) Alternative Standard PD Output Modes :9.0V @ 3.0A Input AC Range: 100V AC to 240V AC (50/60 Hz global compatibility) Cable Specifications: 1.2 Meter captive length, heavy-duty 17/18 AWG low-resistance wire Output Connection Interface: Fixed USB Type-C Connector with extended structural neck Protections Built-in: Complete Overcurrent, Overvoltage, and Short-Circuit physical trip paths Efficiency Certification: Meets international Energy Star Level VI benchmarks
Add to wishlist
Add to cart
Quick view
-20%
Compare

Duracell Ultra Alkaline AA 1.5V Battery

Batteries, Accessories
₹50.00 Original price was: ₹50.00.₹40.00Current price is: ₹40.00.
Technical Specifications
Characteristic  Specification Parameters
Battery Chemical Profile Premium High-Performance Alkaline Manganese Dioxide (Zn/MnOâ‚‚)
Global Standard Sizing AA / LR6 / MX1500 / 15A
Nominal Output Voltage 1.5V DC
Internal Static Impedance ~81 m-Ohm @ 1 kHz
Average Rated Capacity ~1,500 mAh down to a 0.8V cut-off threshold
Operating Temperature Reliable performance from -20°C up to 54°C
Rechargeable Attributes No (Strictly single-use disposable; attempting to charge may explode)
Average Unit Component Weight Approx. 24.0 grams to 25.0 grams per cell
Add to wishlist
Add to cart
Quick view
-15%
Compare

Raspberry Pi Zero Case

Batteries, Accessories
₹295.00 Original price was: ₹295.00.₹250.00Current price is: ₹250.00.
 Technical Specification Details
Parameter  Specification Details
Board Compatibility Raspberry Pi Zero | Raspberry Pi Zero W | Raspberry Pi Zero 2 W
Material Construction Impact-resistant, high-durability ABS Plastic
Lid Configuration 1 Solid plain cover for complete dust-proof protection
Lid Configuration 2 Camera mount cover with custom slot to embed a camera module flush
Lid Configuration 3 GPIO breakout cover exposing the full 40-pin array for prototyping
Assembly Profile Interlocking snap-fit frame alignment matrix
Physical Dimensions 78.8 mm × 37.0 mm × 15.5 mm
Product Weight ~28 Grams (unloaded)
Add to wishlist
Add to cart
Quick view
-15%
Compare

Raspberry Pi Zero W Case

Batteries, Accessories
₹295.00 Original price was: ₹295.00.₹250.00Current price is: ₹250.00.
🔧 Advanced Data Sheet Specifications (For Technical Tabs)
Parameter  Specification Details
Board Compatibility Raspberry Pi Zero W | Raspberry Pi Zero 2 W | Raspberry Pi Zero
Material Construction Impact-resistant, high-durability ABS Plastic
Lid Configuration 1 Solid plain cover for complete dust-proof protection
Lid Configuration 2 Camera mount cover with custom slot to embed a camera module flush
Lid Configuration 3 GPIO breakout cover exposing the full 40-pin array for prototyping
Assembly Profile Interlocking snap-fit frame alignment matrix
Physical Dimensions 78.8 mm × 37.0 mm × 15.5 mm
Product Weight ~28 Grams (unloaded)
Add to wishlist
Add to cart
Quick view
-15%
Compare

12V Lithium-Ion Battery Pack with DC Barrel Jack

Batteries, Accessories
₹650.00 Original price was: ₹650.00.₹550.00Current price is: ₹550.00.
Technical Specifications
Characteristic  Specification Parameters
Internal Cell Assembly Lithium-Ion 18650 Format in a 3S arrangement (3 Series)
Nominal System Voltage 11.1V DC to 12.0V DC
Full Charge Peak Ceiling 12.6V DC Max Voltage Profile
Discharge Cut-Off Safety ~9.0V DC BMS Threshold Limit
Popular Capacity Offerings Ranges of 2000mAh
Interface Port Connector 5.5 mm × 2.1 mm DC Barrel Plug (Center-Positive configuration)
Continuous Discharge Limit ~2A to 5A Continuous Output Current (BMS variant dependent)

Add to wishlist
Add to cart
Quick view
-23%
Compare

18650 Lithium-Ion Rechargeable Battery Cell

Batteries, Accessories
₹65.00 Original price was: ₹65.00.₹50.00Current price is: ₹50.00.
Technical Specifications
Characteristic  Specification Parameters
Battery Chemistry Type Lithium-Ion (Li-Ion) Cylindrical Cell
Standard Core Sizing 18650 Baseline (Protected layout extended to ~18675 sizing)
Nominal Voltage Rating 3.6V to 3.7V DC
Full Charge Voltage Ceiling 4.2V DC Max
Discharge Cut-off Limit 2.5V to 3.0V DC (Going below this can permanently kill the cell)
Average Capacity Range 1,200 mAh (Budget) up to 3,500+ mAh (Premium cells)
Maximum Discharge Rate Variable by grade (Typically 1C for storage cells up to 10C+ for power tool cells)
Add to wishlist
Add to cart
Quick view
