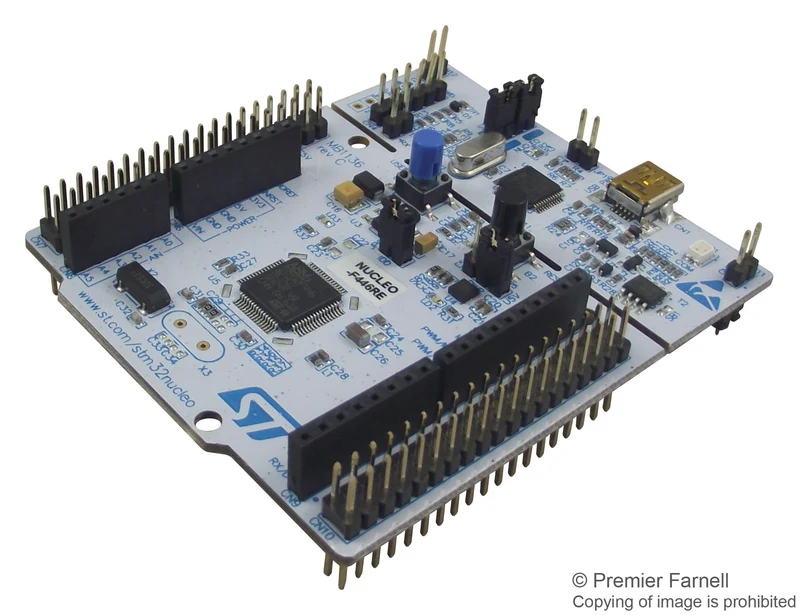

The NUCLEO-F446RE is an STM32 Nucleo-64 development board based on the STM32F446RE Arm Cortex-M4 microcontroller. It provides a flexible platform for developing and prototyping embedded applications, with integrated ST-LINK debugging/programming, Arduino Uno Rev3-compatible expansion connectors and ST morpho headers for access to the MCU I/Os. The board is suitable for embedded systems, industrial automation, IoT, motor control, sensor interfacing, robotics and rapid prototyping.
Key Features
- STM32F446RE Arm Cortex-M4 MCU
- Up to 180 MHz CPU frequency
- 512 KB Flash memory
- 128 KB SRAM
- Integrated ST-LINK/V2-1 debugger/programmer
- STM32 Nucleo-64 board format
- Arduino Uno Rev3-compatible expansion connectors
- ST morpho extension headers
- User LED and push-buttons
- 32.768 kHz crystal oscillator
- Flexible USB and external power options
- Compatible with STM32CubeIDE and STM32Cube ecosystem
- Supports IAR Embedded Workbench and MDK-ARM IDEs
