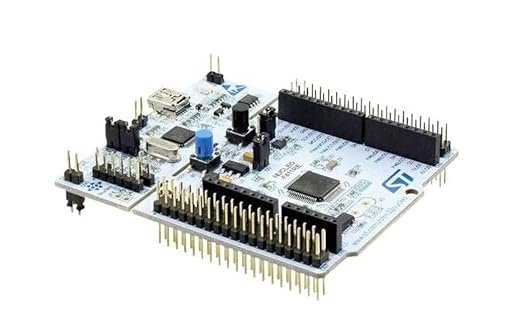

The NUCLEO-F411RE is an STM32 Nucleo-64 development board based on the STM32F411RET6 Arm Cortex-M4 microcontroller, operating at up to 100 MHz with 512 KB Flash memory and 128 KB SRAM. The board includes an integrated ST-LINK/V2-1 debugger/programmer, Arduino Uno Rev3-compatible expansion connectors and ST morpho headers, providing easy access to the MCU I/O. It is designed for rapid prototyping, embedded-system development, IoT, automation, sensor interfacing, robotics and educational applications.
Key Features
- STM32F411RET6 Arm Cortex-M4 MCU
- 100 MHz maximum CPU frequency
- 512 KB Flash memory
- 128 KB SRAM
- Integrated ST-LINK/V2-1 debugger/programmer
- STM32 Nucleo-64 board format
- Arduino Uno Rev3-compatible connectors
- ST morpho expansion headers
- USB connectivity
- User LED and push-button
- SWD debugging interface
- Wide range of MCU peripherals and GPIOs
- Compatible with STM32CubeIDE and STM32Cube software ecosystem
