Name: Official- Arduino Uno R3 DIP
SKU: VE-037
Availability: InStock

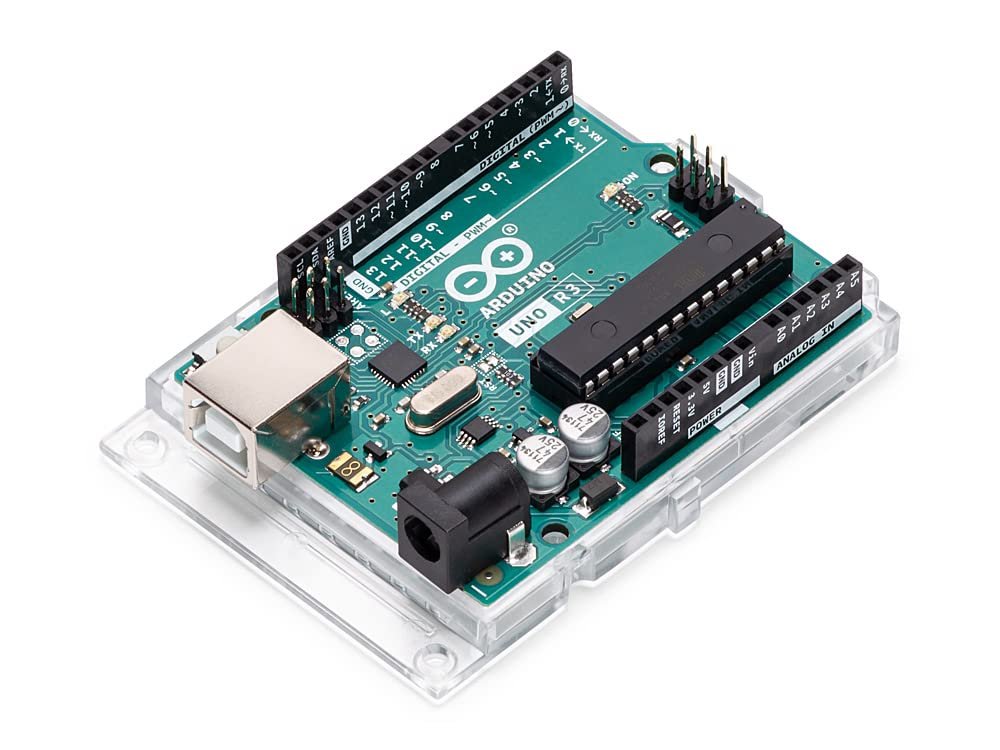

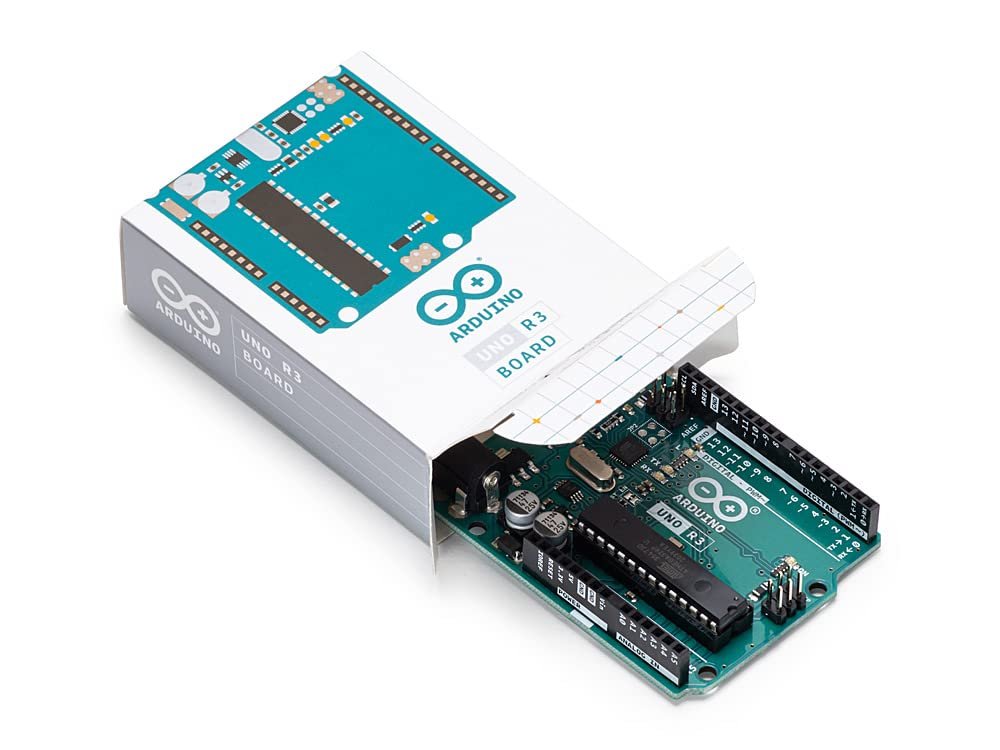

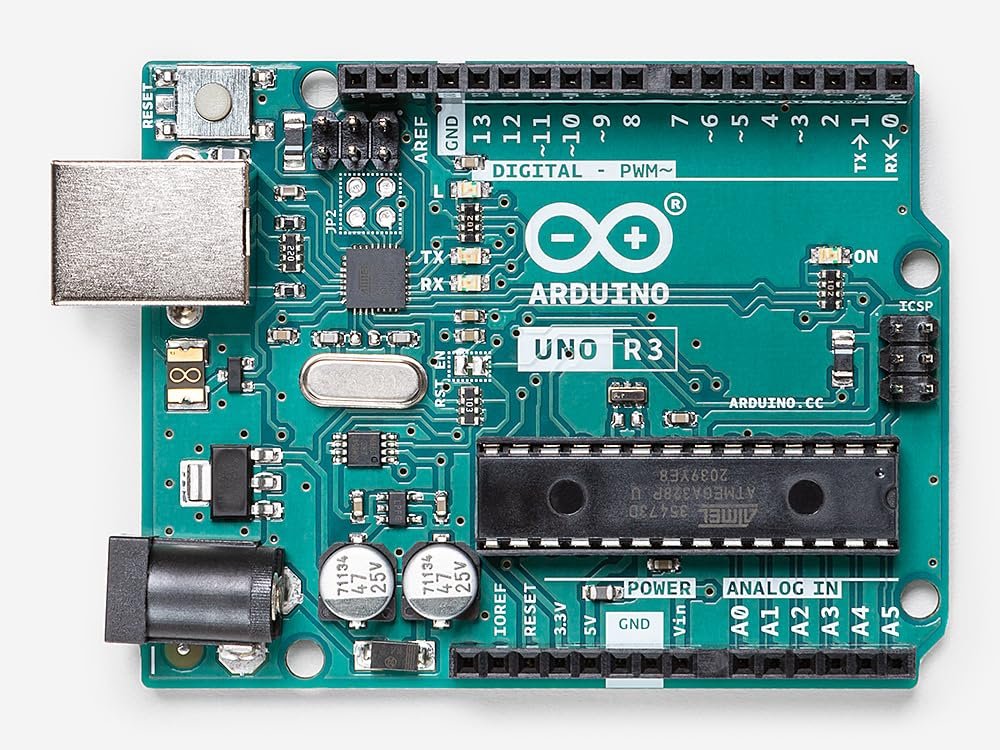

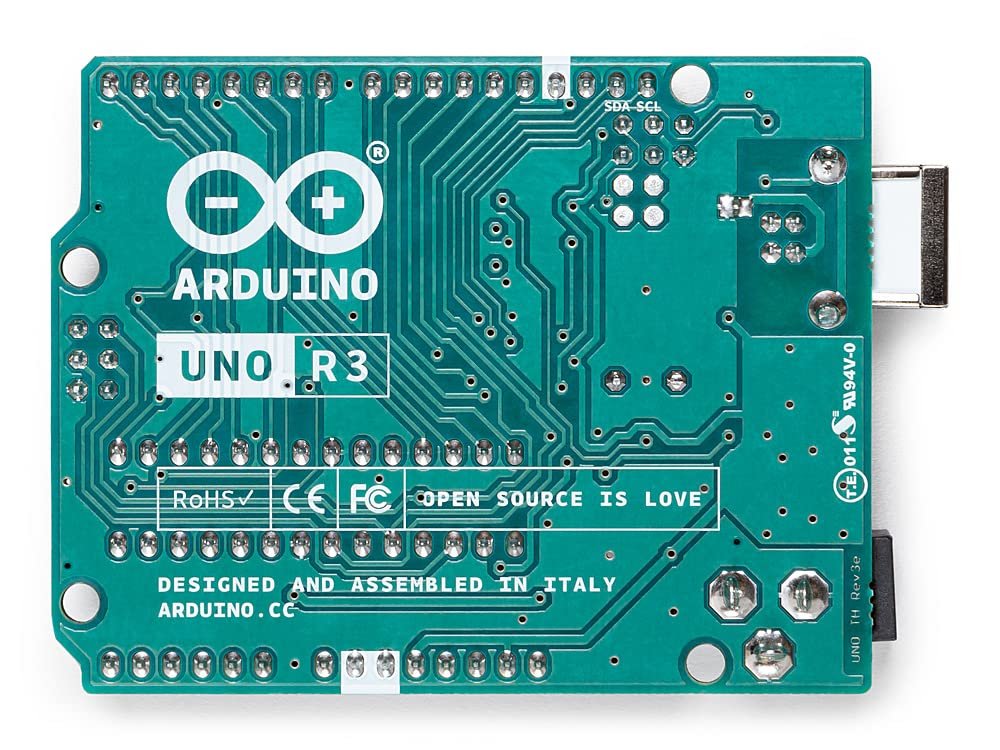

Official- Arduino Uno R3 DIP

Technical Specification Details

Parameter	Specification Details
Primary Microcontroller	Microchip ATmega328P (Removable DIP Package)
USB-to-Serial Processor	ATmega16U2 (Supports keyboard/mouse emulation configurations)
Operating Logic Voltage	5V DC
Recommended Input DC	7V to 12V Max (Absolute hardware safety thresholds: 6V to 20V)
Digital I/O Breakout Pins	14 Pins (of which 6 deliver true hardware PWM output signals)
Analog Input Channels	6 Channels (10-bit high-accuracy resolution ADC)
DC Current per I/O Pin	40 mA peak tolerance ceiling
Onboard Memory Array	32 KB Flash Storage \| 2 KB SRAM \| 1 KB EEPROM
System Processing Clock	16 MHz Quartz Crystal Oscillator
Physical Dimensions	68.6 mm × 53.4 mm (Standard Uno structural profile)

SKU: VE-037 Category: Arduino

Experience premium hardware reliability with the Official Arduino Uno R3 (DIP Edition), manufactured natively in Italy. As the iconic, definitive reference model for global open-source electronics, this genuine board features a socketed, easily replaceable ATmega328P microcontroller chip. Engineered with superior multi-layer PCB components and a dedicated ATmega16U2 processor for lightning-fast USB serial conversion, it provides unmatched system stability. It is the elite choice for industrial prototyping, university research laboratories, and dependable STEM robotics.

Key Product Features

100% Genuine Italian Quality: Authentic trademark branding, teal PCB layout accents, and high-tolerance internal copper tracing protect against unexpected overvoltages.
Replaceable Socketed Brain: Built with a standard 28-pin Dual Inline Package (DIP) socket, allowing students and engineers to swap the core chip effortlessly if a severe electrical short happens.
Driver-Free USB Architecture: Employs an ATmega16U2 chip instead of budget USB-clones, allowing it to instantly connect to Linux, macOS, and Windows without manual driver files.
Complete Shield Interoperability: Conforms exactly to the official R3 pin-spacing layout standards, seating perfectly with all standard sensor expansions, relays, and motor drivers.
Advanced Dynamic Power Paths: Automatically shifts its core system power inputs between the standard USB Type-B tether line and an external 12V DC barrel power jack.

-13%

Click to enlarge

Back to products

Original price was: ₹2,127.50.Current price is: ₹1,850.00.

Parameter	Specification Details
Primary Microcontroller	Microchip ATmega328P (Removable DIP Package)
USB-to-Serial Processor	ATmega16U2 (Supports keyboard/mouse emulation configurations)
Operating Logic Voltage	5V DC
Recommended Input DC	7V to 12V Max (Absolute hardware safety thresholds: 6V to 20V)
Digital I/O Breakout Pins	14 Pins (of which 6 deliver true hardware PWM output signals)
Analog Input Channels	6 Channels (10-bit high-accuracy resolution ADC)
DC Current per I/O Pin	40 mA peak tolerance ceiling
Onboard Memory Array	32 KB Flash Storage \| 2 KB SRAM \| 1 KB EEPROM
System Processing Clock	16 MHz Quartz Crystal Oscillator
Physical Dimensions	68.6 mm × 53.4 mm (Standard Uno structural profile)
