Name: Mini USB Microphone for Raspberry Pi
SKU: VE-031
Availability: InStock

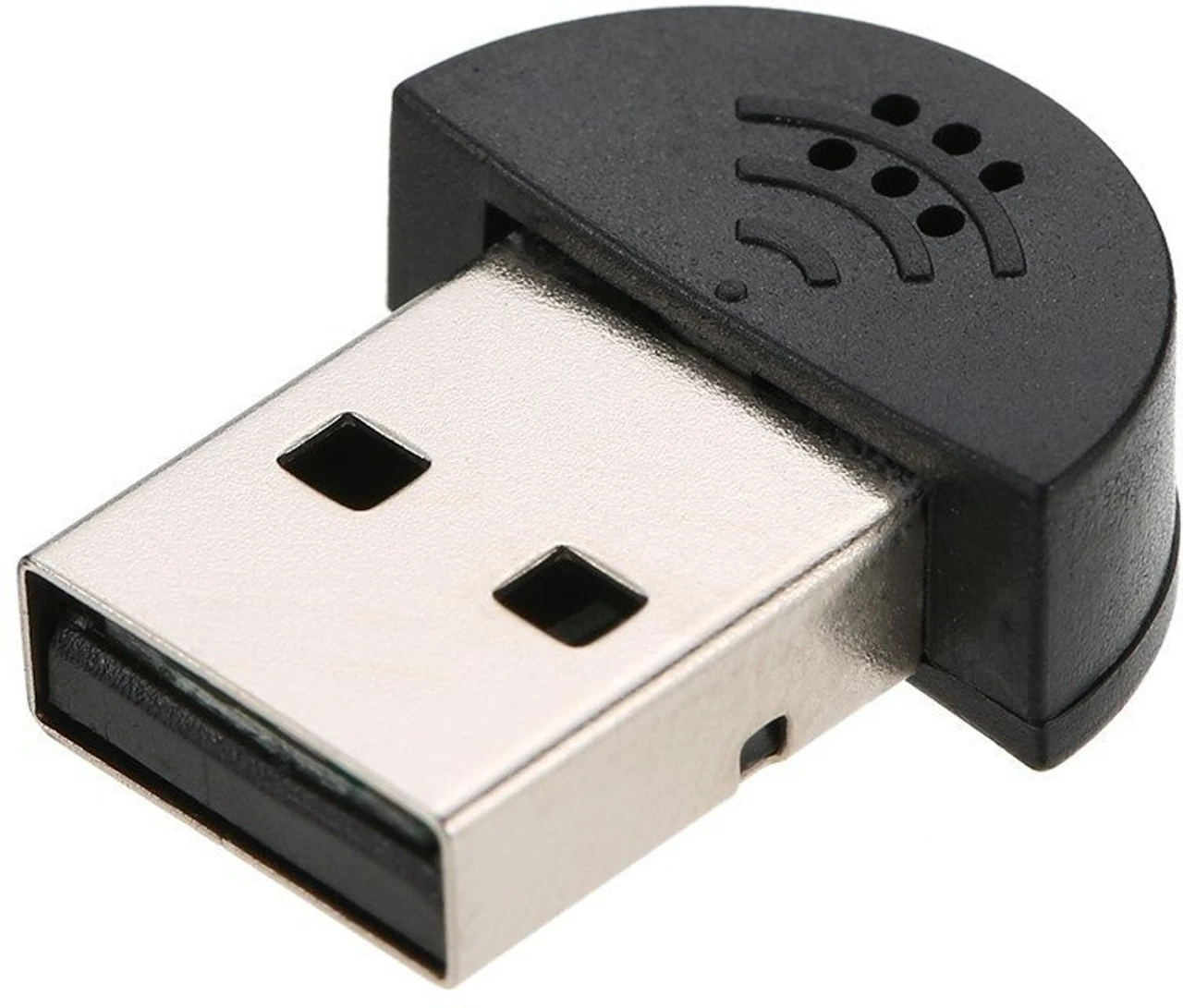

Mini USB Microphone for Raspberry Pi

Technical Specification Details

Parameter	Specification Details
Interface Protocol	USB 2.0 / Backward compatible with USB 1.1 & 3.0
Audio Capture Mode	Omnidirectional (360-degree coverage field)
Sensitivity Profile	-67 dBV/pA, -47 dBV/Pascal ± 4dB
Frequency Response	100 Hz to 16,000 Hz
Signal-to-Noise Ratio	Greater than 67 dB
Operating Voltage	5V DC (Power drawn directly from the USB port)
Physical Dimensions	22.0 mm × 18.0 mm × 7.0 mm

SKU: VE-031 Category: Raspberry Pi

Add voice recognition, audio recording, or smart assistant capabilities to your projects with this Mini USB Plug-and-Play Microphone. Specifically curated for the Raspberry Pi ecosystem, this ultra-compact microphone bypasses the lack of an onboard analog audio input on Pi boards. Simply plug it into any open USB port, and it is instantly recognized by the operating system—no drivers, extra power cables, or external soundcards required. It is the perfect low-profile solution for smart AI assistants, voice-controlled home automation, and acoustic monitoring projects.

Key Product Features

True Plug-and-Play Simplicity: Instantly recognized as a native USB audio input device by Raspberry Pi OS, Ubuntu, Retropie, and Windows without manual driver configurations.
Ultra-Compact Audio Capture: Measuring just over two centimeters in length, its minimalist footprint ensures it won’t block adjacent USB or Ethernet ports on your board.
Advanced Ambient Noise Filtering: Engineered with a specialized noise-canceling microphone element designed to effectively isolate clear voice audio from low-frequency background noise.
Universal System Compatibility: Works flawlessly across all standard development boards equipped with a functional USB port, including Raspberry Pi 5, 4, 3, and Raspberry Pi Zero series.

-15%

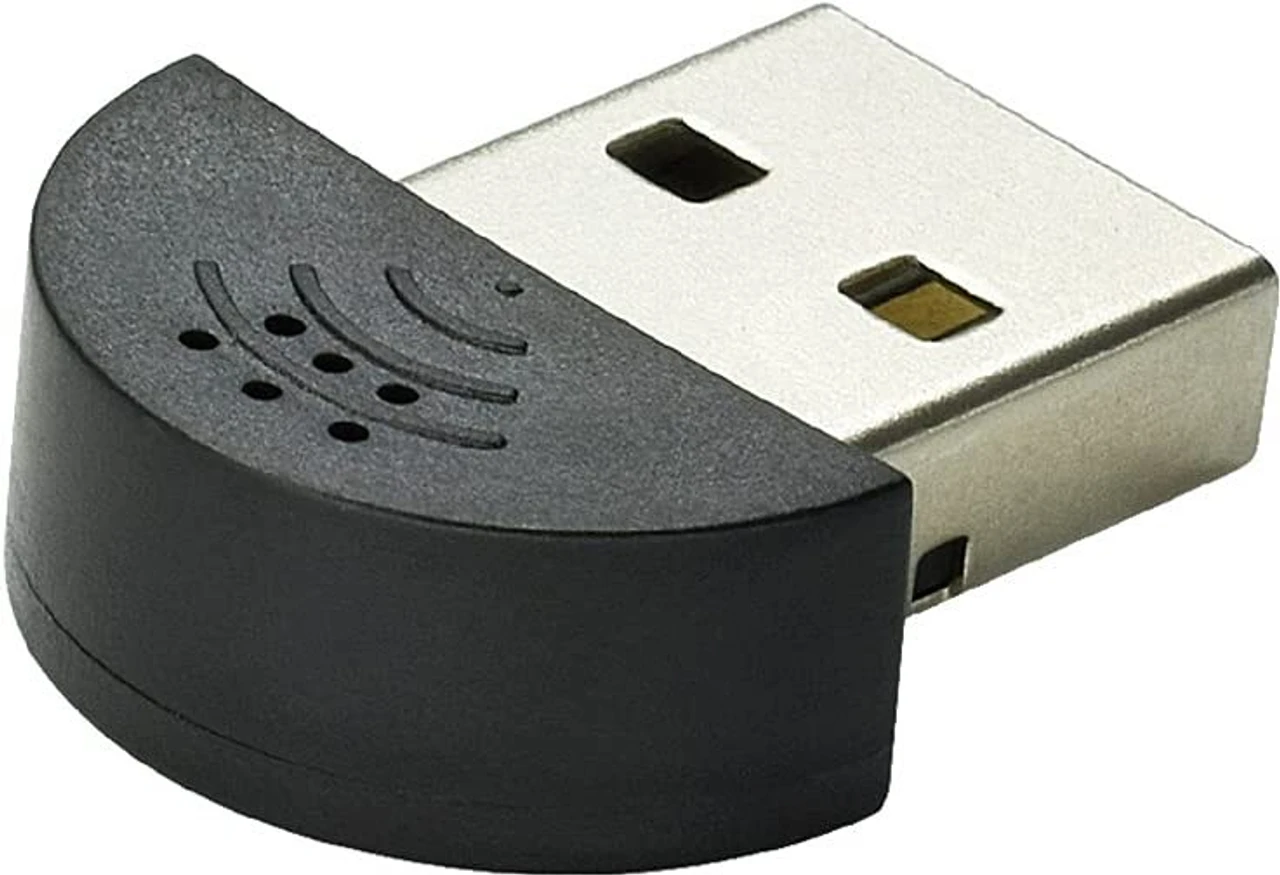

for-laptop-desktop-pc-plug-and-play-redbek-original-imahjdfgwv827aef

Click to enlarge

Back to products

Original price was: ₹295.00.Current price is: ₹250.00.

Parameter	Specification Details
Interface Protocol	USB 2.0 / Backward compatible with USB 1.1 & 3.0
Audio Capture Mode	Omnidirectional (360-degree coverage field)
Sensitivity Profile	-67 dBV/pA, -47 dBV/Pascal ± 4dB
Frequency Response	100 Hz to 16,000 Hz
Signal-to-Noise Ratio	Greater than 67 dB
Operating Voltage	5V DC (Power drawn directly from the USB port)
Physical Dimensions	22.0 mm × 18.0 mm × 7.0 mm

Compare

Add to wishlist

Description

Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “Mini USB Microphone for Raspberry Pi”
