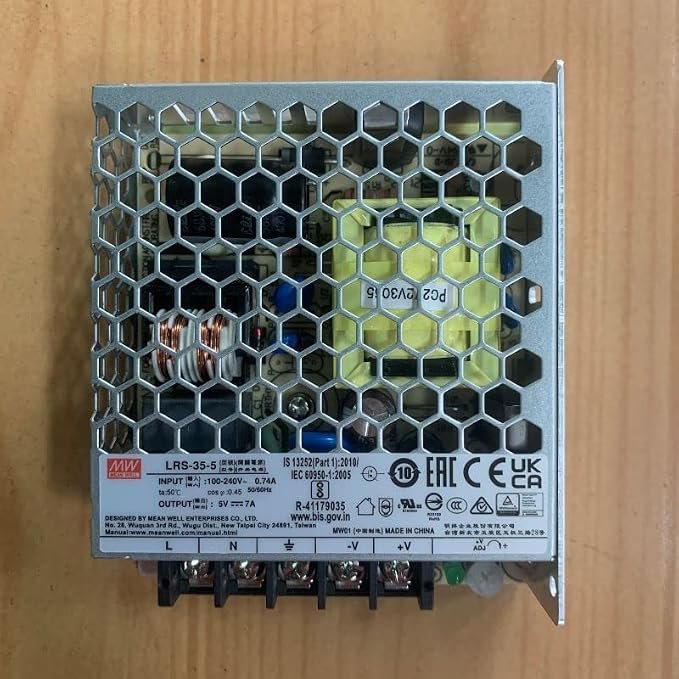

The MEAN WELL LRS-35-5 is a 35W single-output enclosed switching power supply designed to deliver a highly regulated 5V DC output up to 7 Amperes. Featuring a ultra-low profile 30mm 1U design, it is ideal for compact industrial enclosures and flat-rack installations. Its perforated metallic mesh chassis layout optimizes natural air convection, allowing the unit to operate efficiently across a wide thermal range of -30°C to +70°C entirely without an integrated cooling fan. It accepts global universal AC inputs, withstands 300VAC surges up to 5 seconds, and delivers high operational reliability for digital logic circuits, microcontrollers, single-board computers (like Raspberry Pi), and small 5V LED display matrices.
Key Features
-
- Ultra-Low 1U Profile: Measuring only 30mm thick, it easily fits into shallow spaces and flat enclosures.
- Fanless Convection Cooling: Passive cooling through a perforated metal frame prevents dust intake and fan failure risks.
- Surge and Vibration Resistance: Mechanically tested to withstand severe 5G vibrations and momentary 300VAC power spikes.
- Highly Efficient Idle Savings: Standby power consumption stays under 0.2 Watts when working in no-load conditions.
- Comprehensive Safe Guards: Complete embedded circuits shield against short circuits, overloads, and overvoltage events.
- Appliance Safety Compliance: Fully rated under IEC/EN 60335-1 and IEC/EN 61558-1 certifications for industrial and domestic deployment.
